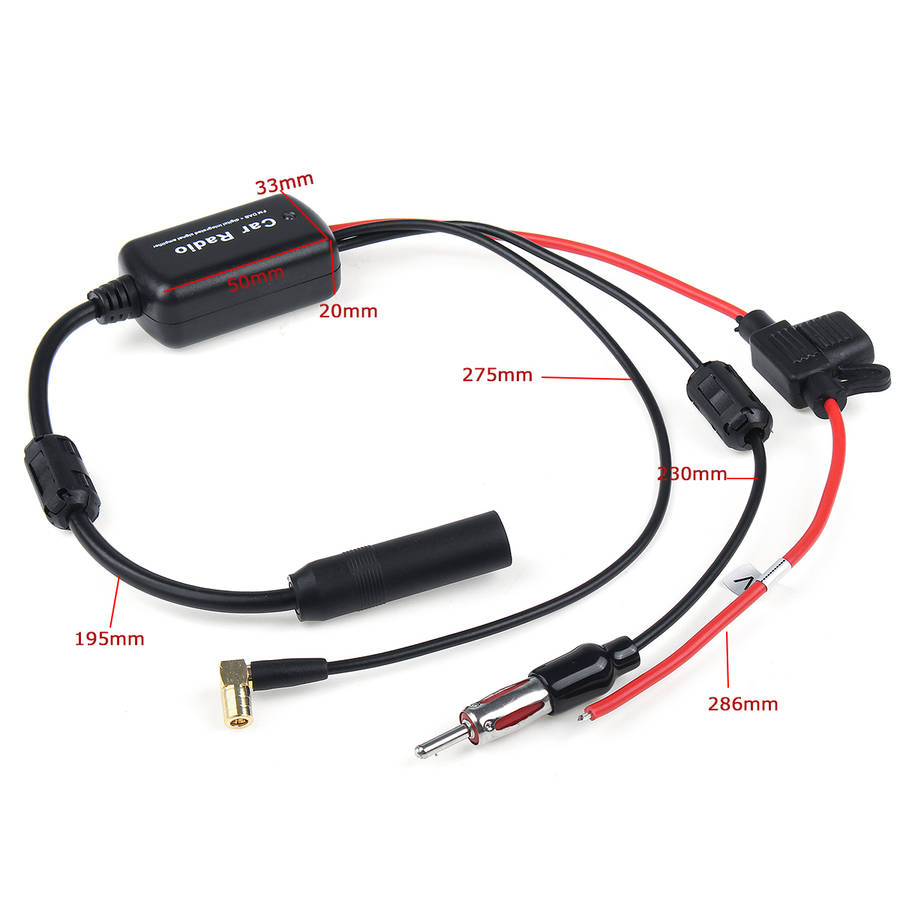

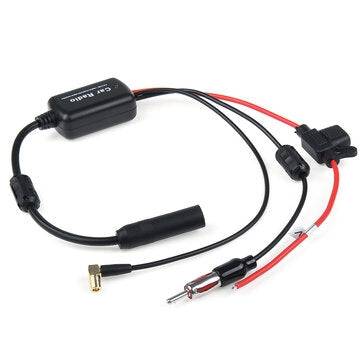

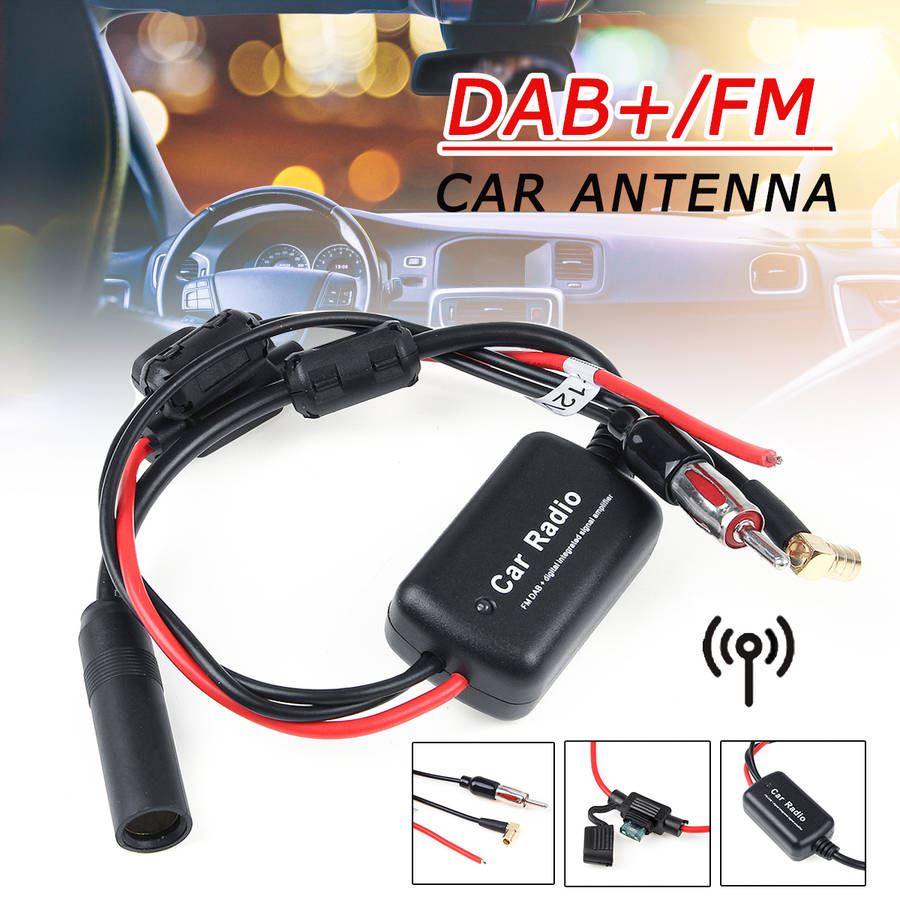

Universal DAB+ FM Car Antenna Aerial Splitter Cable Digital Radio Amplifier with SMB Connector

Universal DAB+/ FM Car Antenna Aerial Splitter Cable Digital Radio + Amplifier

Specification:
Model: C08639

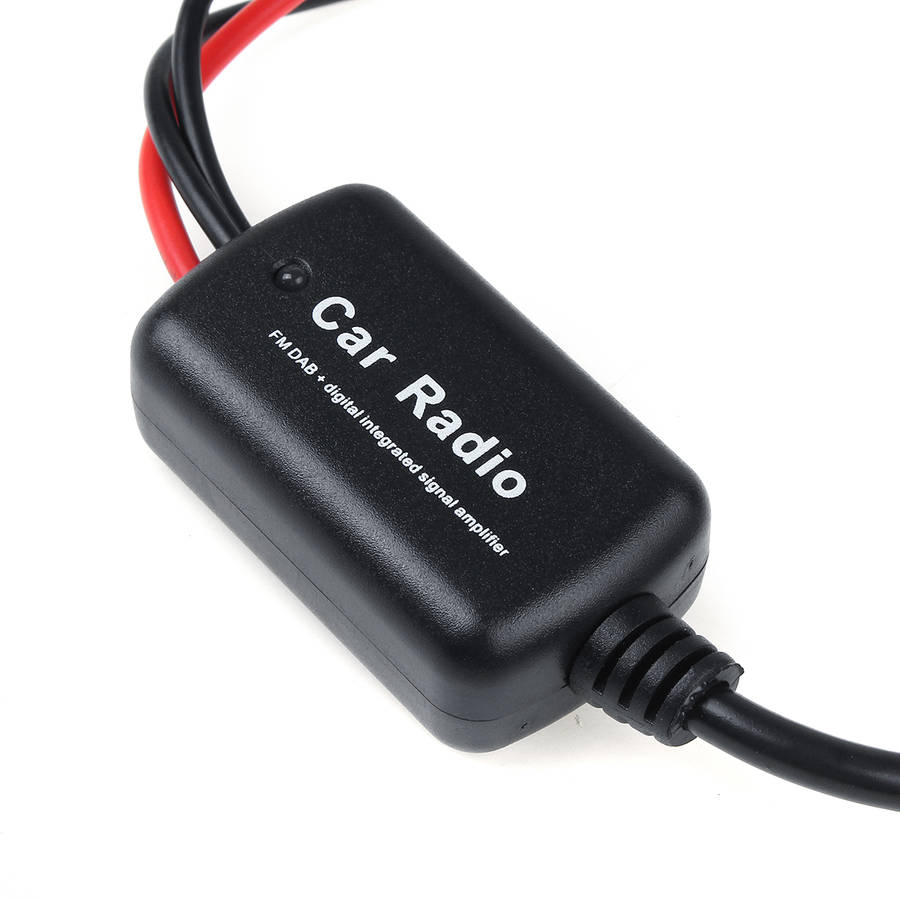

Product Name: Radio Amplifier Cable
Primary Color: Black
Material: Plastic
Frequency Range:88-108MHZ,170-240Mhz
Amplified Gain:22+/-3dB
Noise Figure:a6dB
Impendance: 75
Maximum output level: 108db
Voltage: DC+12~24V
Current: a 70mA

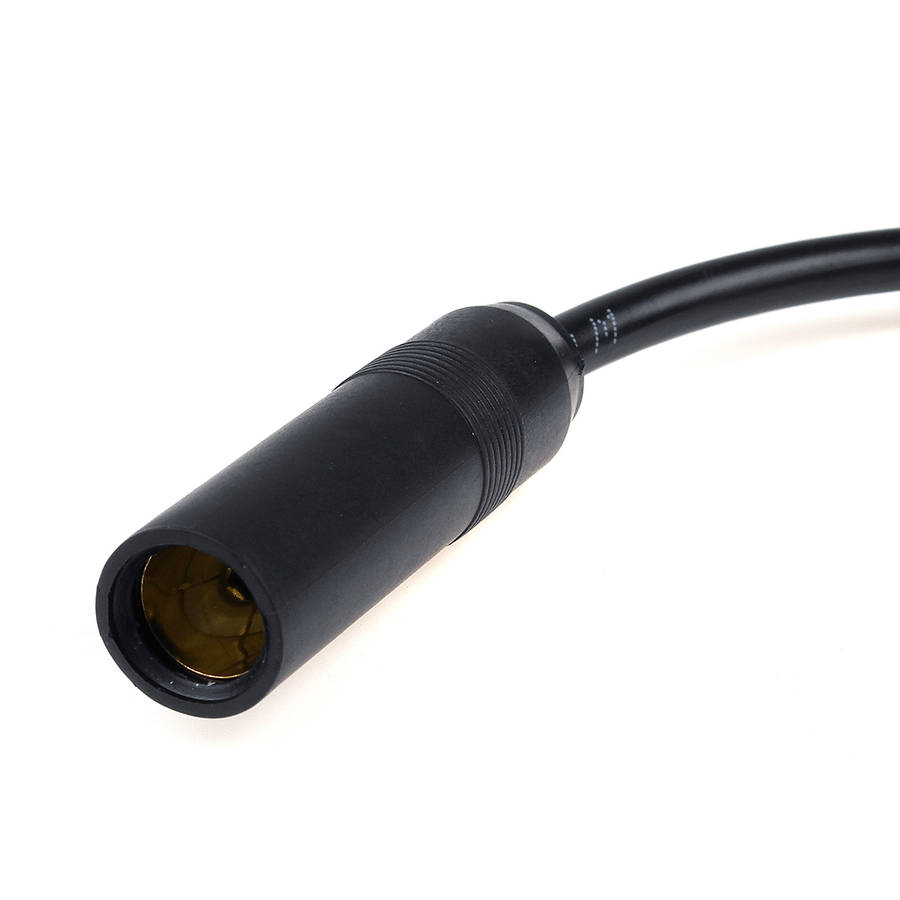

Signal output interface:FM male connector (Support for custom)
Qty:1 pc
Radio Connector: SMB

Features:
1.Apply in AM/FM car aerial to receive DAB digital radio signals,enabling you to retain your existing aerial and fit a DAB aftermarket radio without the need for an additional DAB aerial.
2.Quick and easy to fi an aftermarket DAB Stereo,money and time saving.
3.Just one aerial is needed to mount over windscreen,no need for another.

Installation:
1.Simply plug inline with your head unit aerial connection and then plug the DAB plug into the DAB socket on the back of the headunit.

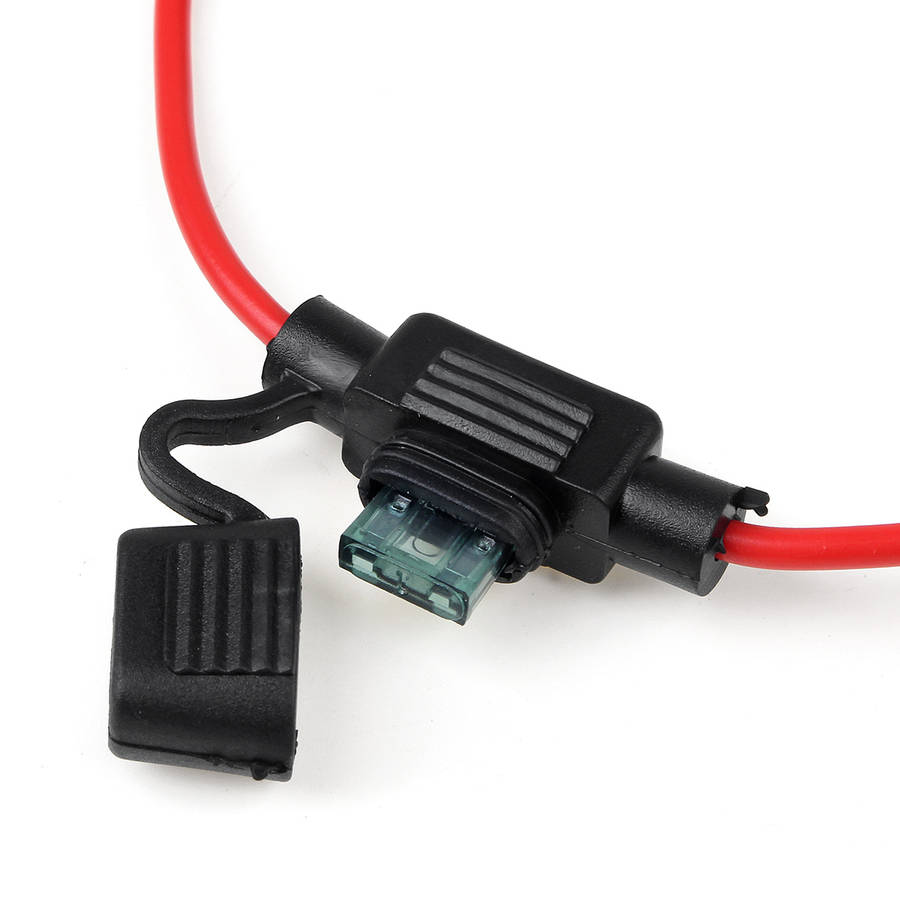

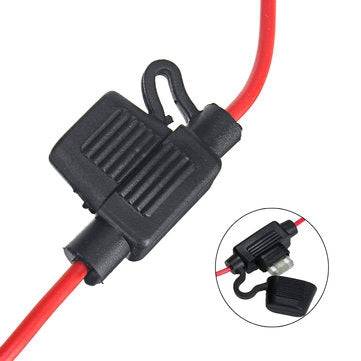

2.Connect the Red wire to the aerial power lead that is 12 volts with the radio switched on.

Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2.Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)

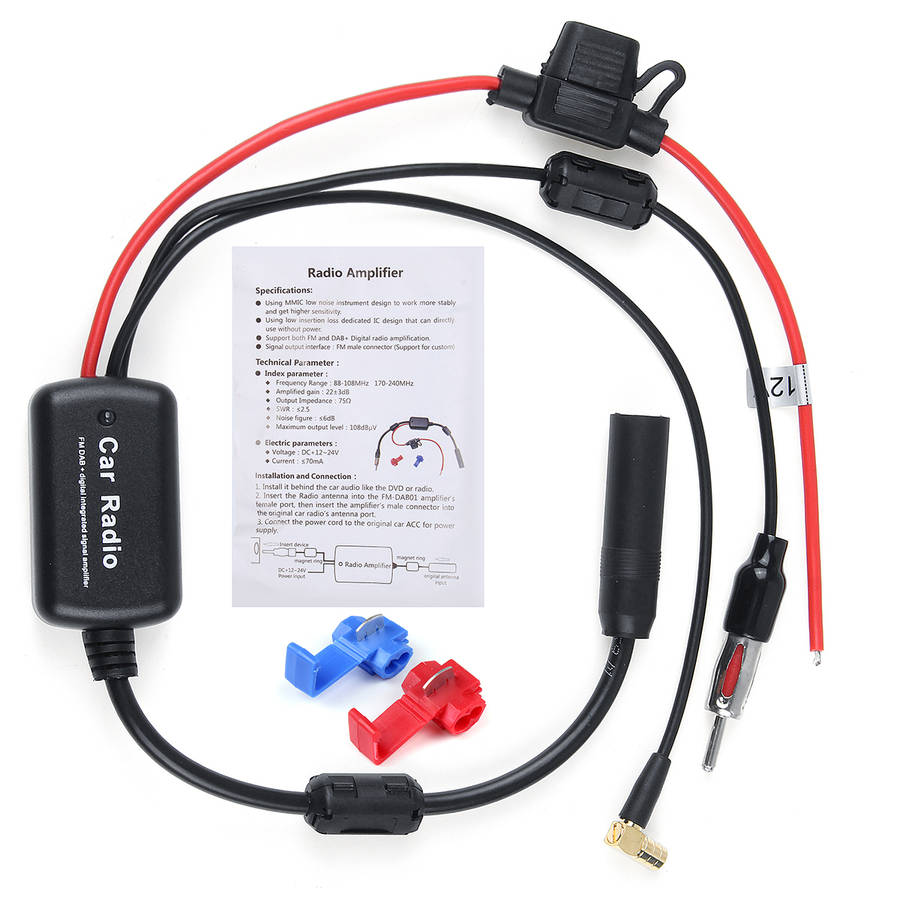

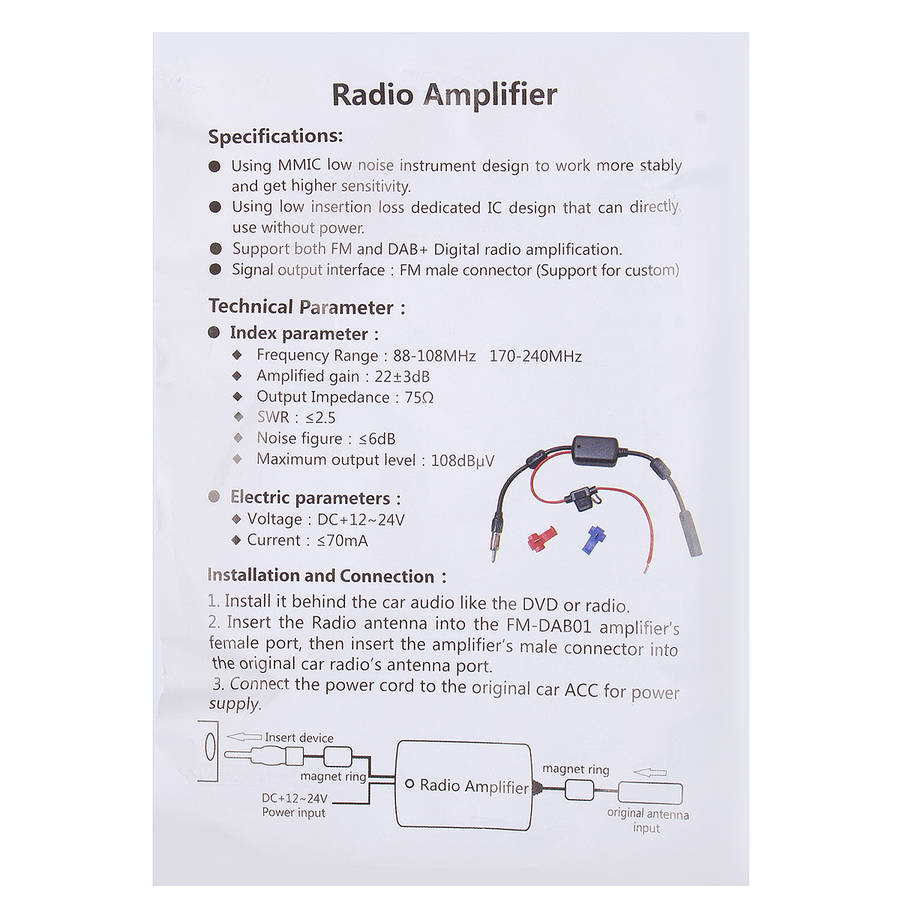

3.Although instruction is included.Professional Installation Is Highly Recommended!

Package Included:
1 x DAB Cable
