Description:

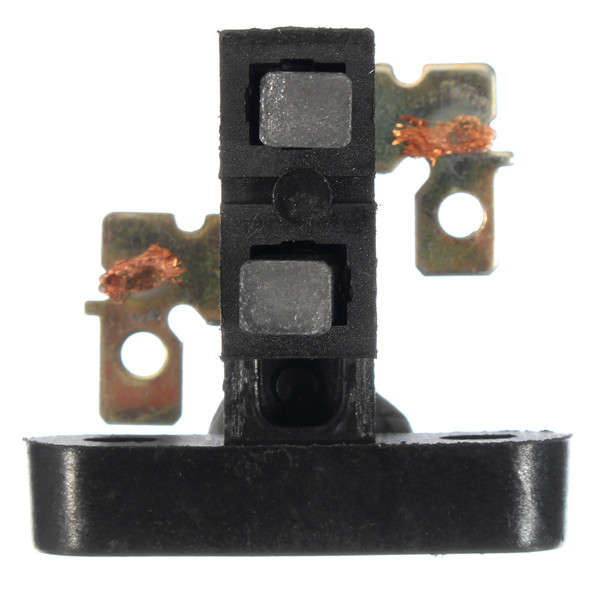

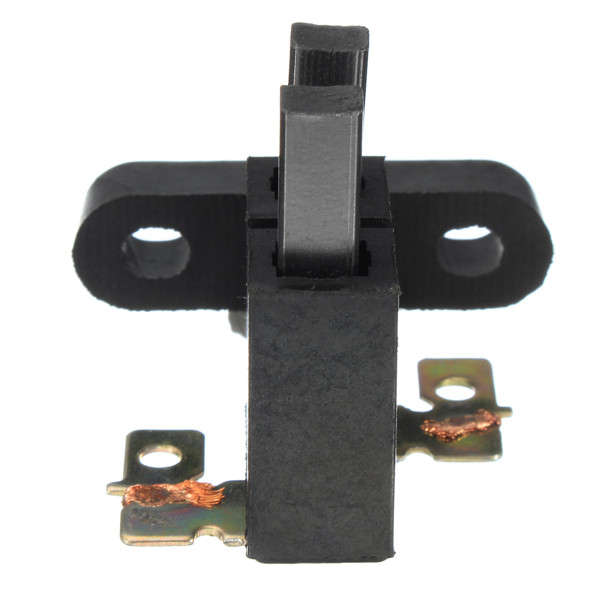

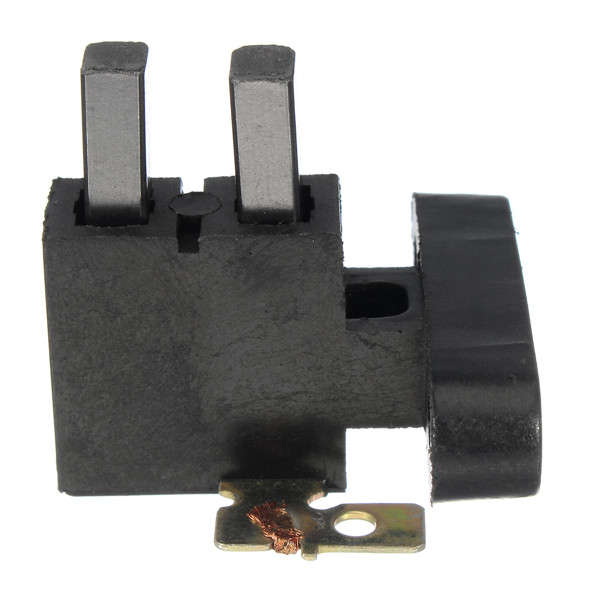

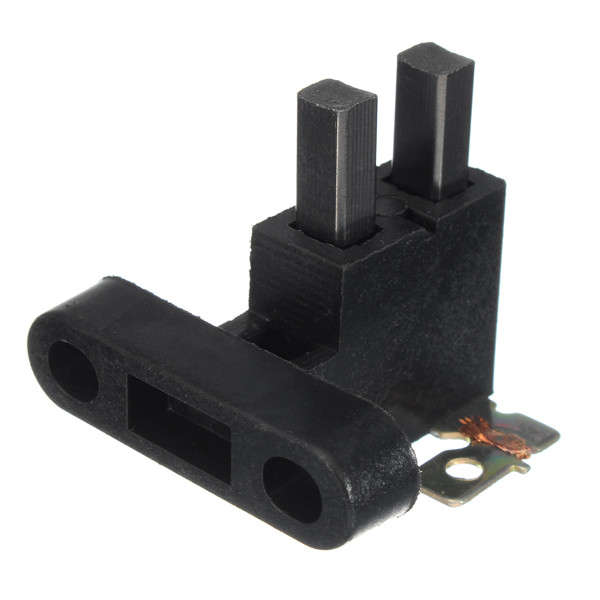

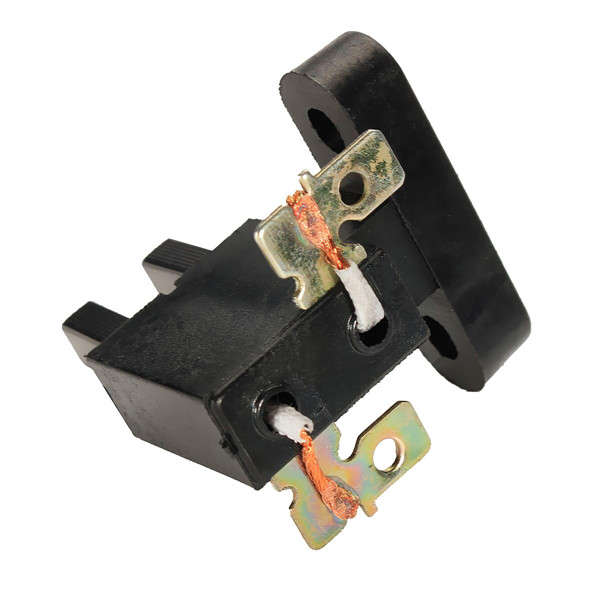

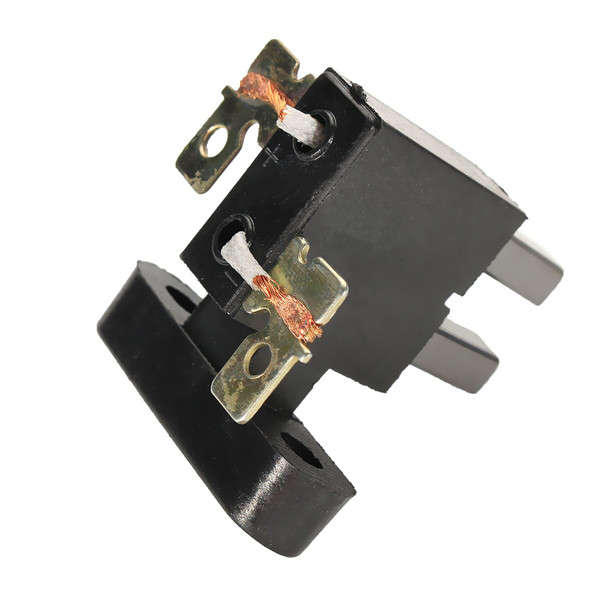

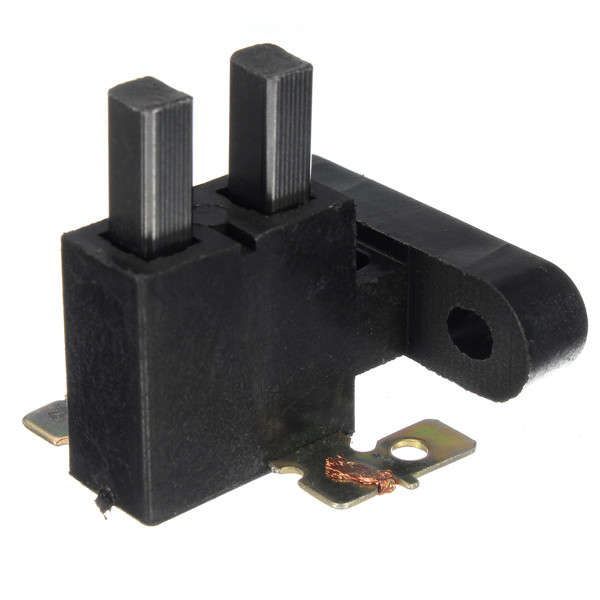

Universal Generator Carbon Brush for 4KW 5KW 7KW
Specification: Style: Universal 4KW 5KW 7KW
Mounting Bolt Hole: 1/4"
Mounting Bolt Spacing: 1" on Center
Carbon Sticks: 1/4" x 3/16"
Distance from Edge to 1st Brush: 3/4"
Distance Between Brushes: 7/16" on Center
Electric Connection: 2 Single Blade Connectors

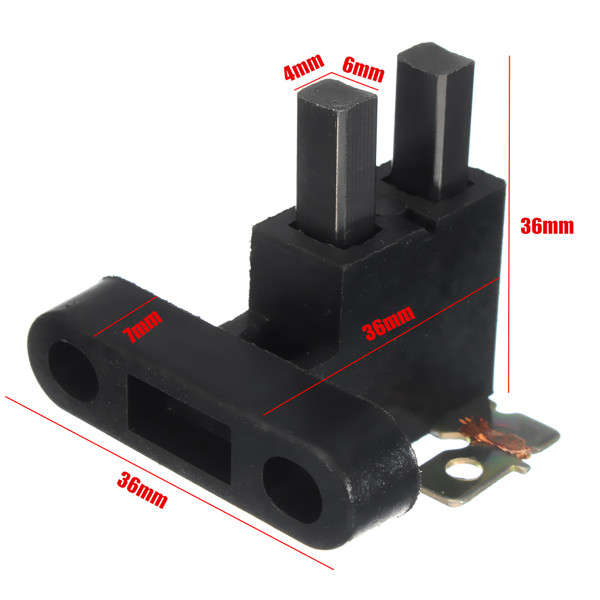

Size: As shown in picture
Application: This is for a carbon brush assembly that is used in generators for charging.
This style of carbon brush is used in hundreds of brands and models of generators.
If you carbon brush looks similar to this one then it will work for your application
This carbon brush has 2 - 1/4â³ diameter holes. The holes are spaced on 1â³ centers. The brushes are roughly 5/8â³ from the backside of the brush and on 5/8â³ centers. You can use spacers, if needed, to allow the brushes to make contact.
Package Included: 1 x Carbon Brush
