Universal IR Receiver HS0038

Universal IR Receiver HS0038

New 19 available
R33.06
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
WIR-00220
Bob Shop ID
633481100

Description

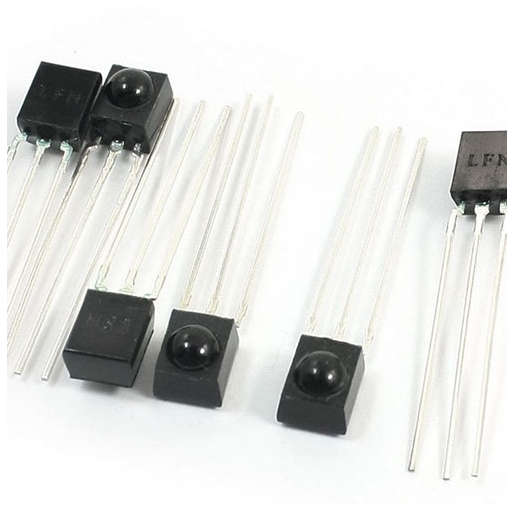

  • Universal IR receiver (HS0038)

IR sensor tuned to 38KHz, perfect for receiving commands from a TV remote control.

Runs at 5V (although it seems to be OK down to 3.3V)To use, connect pin 3 (all the way to the right) to 5V power, pin 2 (middle) to ground and listen on pin 1. It doesn't do any decoding of the signal, just passes the 'raw data' along.

  • Size: square, 7mm by 8mm detector area
  • Output: 0V (low) on detection of 38KHz carrier, 5V (high) otherwise
  • Sensitivity range: 800nm to 1100nm with peak response at 940nm. Frequency range is 35KHz to 41KHz with peak detection at 38KHz
  • Power supply: 5V DC 3mA
