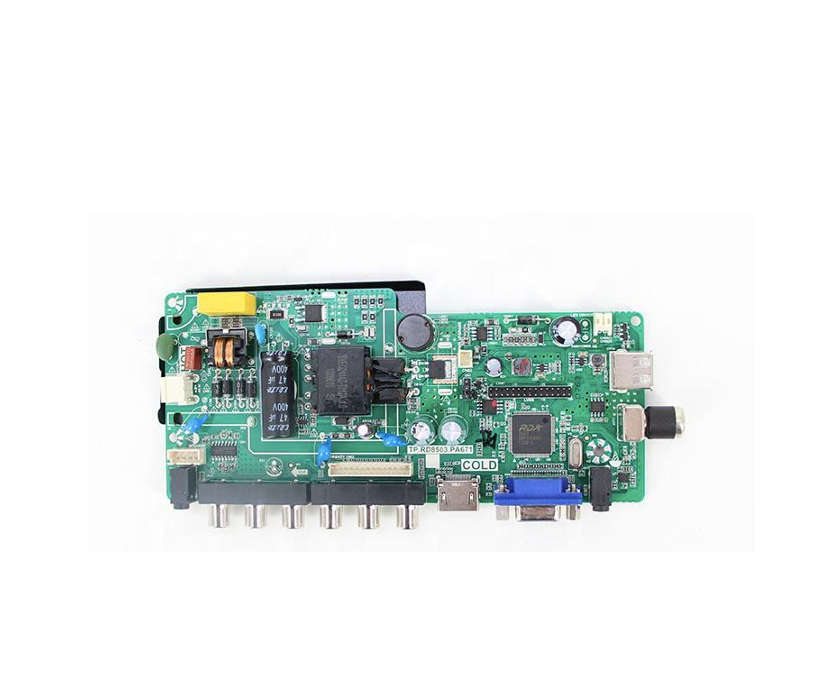

Universal LED TV Main Board For 28-32inch LED TP.RD8503.PA671 HDMI USB AV YPBPR

Universal LED TV Power Supply Board For 28-32inch LED TP.RD8503.PA671 HDMI USB AV YPBPR Model: TP.RD8503.PA671 TV Size: 28-32inches Main Configuration: HDMI*1, USB*1, AVIN*1, YPBPR*1 Main Features: ATV only Essential details Screen Size: 32 Inches Interface Type: Composite A/V, HDMI, usb, VGA Resolution: HD1080 (1920*1080) Receiving System: NTSC, PAL, SECAM Model Number: TP.RD8503.PA671 Type: LCD Wide Screen Support: Yes Display Format: 1080p (Full-HD) Use: PORTABLE TV Backlight Type: LED Product name: LED TV Power Supply Board Model Name: TP.RD8503.PA671 Size: 28-32" Firmware Writing - Step 1: Empty the U disk - Step 2: Copy the corresponding resolution program (*. Bin file) with the TXT file to the U disk base on your screen size. - Step 3: Connect the U dish and TV Mainboard Via USB Interface. - Step 4: Connect the Keyboard and TV Mainboard. -Step 5: Connect the power supply, check the keyboard light. If there is a flashing light, that means it is programing, wait for the light to turn Green, job done! If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again. Note: During Step 5,the power supply can't be cut off. The same firmware can only be burned once time. Once done, use the remote control to turn on the tv (after burning the firmware, the mainbaord is on standby,need the remote control to turn on the tv) Factory Settings - Menu--remote control press 1147--factory setting - Screen Specification Adustment: Factory setting--Use the right key to choose--MAP data (LVDS MAP DATA has 16 items totally, it is enough for most of the screen) BOOT LOGO SETTING - Step 1: Put your logo into the U disk - Step 2: connect your U disk with mainboard - Step 3: Find your logo in Multi-media File - Step 4: Select your logo - Step 5: Press No."6 " on remote control to change to fullscreen play, then press "ok" on the remote control, on the bottom of the option items, there is a " catch", choose it. Done!
