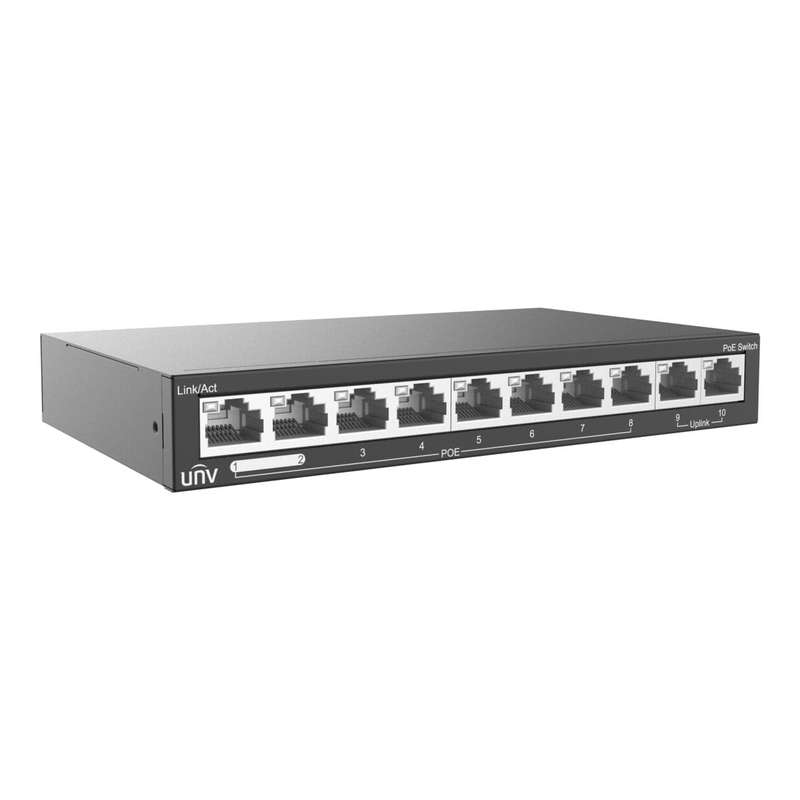

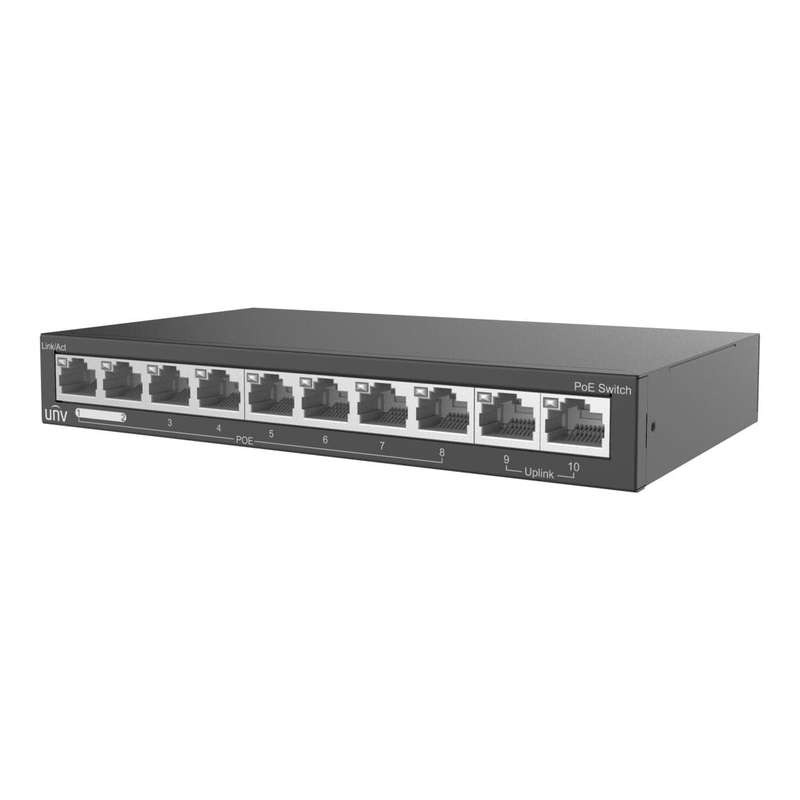

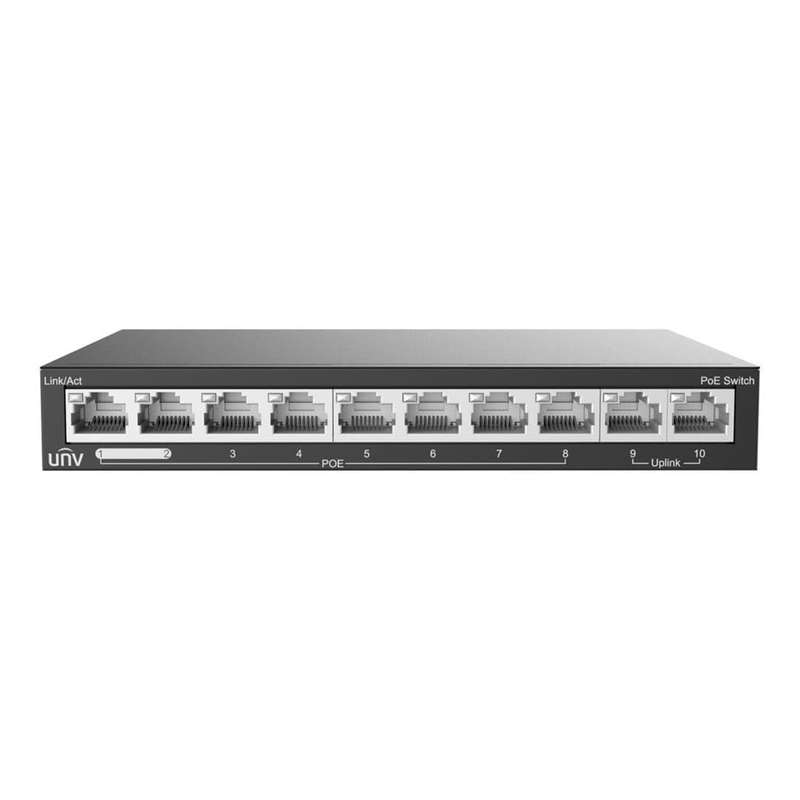

Uniview 10-port PoE Unmanaged Ethernet Switch NSW2020-10T-POE-IN
Unmanaged Ethernet Switch(PoE)
- Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
- Support port traffic control
- Up to 250m transmission distance on Extend mode
- Support buffer optimization
- All metal housing, safe and reliable
Port Configuration
Equipped with ten 100Mbps RJ45 ports, including eight PoE ports capable of delivering up to 30W per port, with a total PoE budget of 88W.
Operating Modes
- Default (Normal) Mode: All ports can communicate with each other.
- VLAN (Secure) Mode: Downlink ports communicate only with uplink ports, enhancing network security.
- Extend (Surveillance) Mode: Supports transmission distances up to 250 meters, ideal for extending network reach in surveillance scenarios.
Performance
Features a switching capacity of 2Gbps and a forwarding performance of 1.49Mpps, ensuring efficient data handling.
Construction
Built with an all-metal housing, providing durability and reliability in various environments.
Power Supply
Operates on AC power (100-240V, 50/60Hz).
Specifications
Ports Type: 10×100Mbps network ports (RJ45), including 8 PoE ports
Prior Ports: 1 to 2
Indicator: POWER Steady on: AC input is normal, POWER Off: No AC input, No PoE Indicator, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data
PoE: support POE
Switching capacity: 2 Gbps
Packet Buffer: 448K bit
Max. PoE Power: Max capacity: 88 W, Max capacity for single port: 30 W
Storage Temperature: -40 ⃠to 70 âƒ
Working Mode: Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Power Supply: DC: 48/51V, powered by adapter (AC100-240V, 50/60Hz)
Max.Power: 94W
Operating humidity: 10%～90% (non-condensing)
MAC: 1K
Forwarding performance: 1.49Mpps
Cooling Fans: 0
Weight: 0.29KG
Storage humidity: 5%～90% (non-condensing)Dimensions (W×D×H)171*103*25mm
Operating temperature: 0 ⃠to 40 ⃠(32 â to 104 â)
Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
