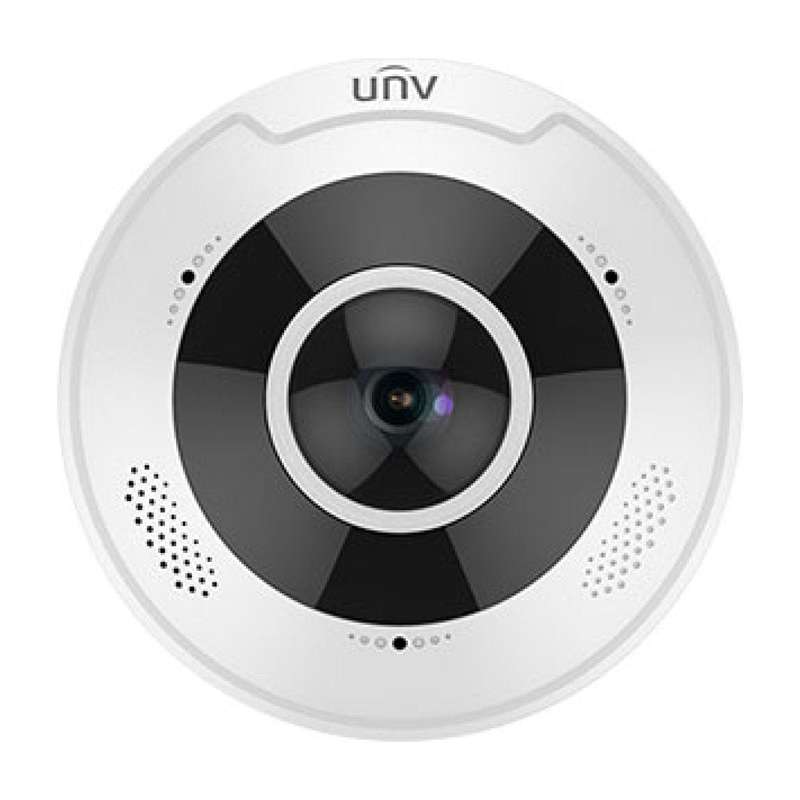

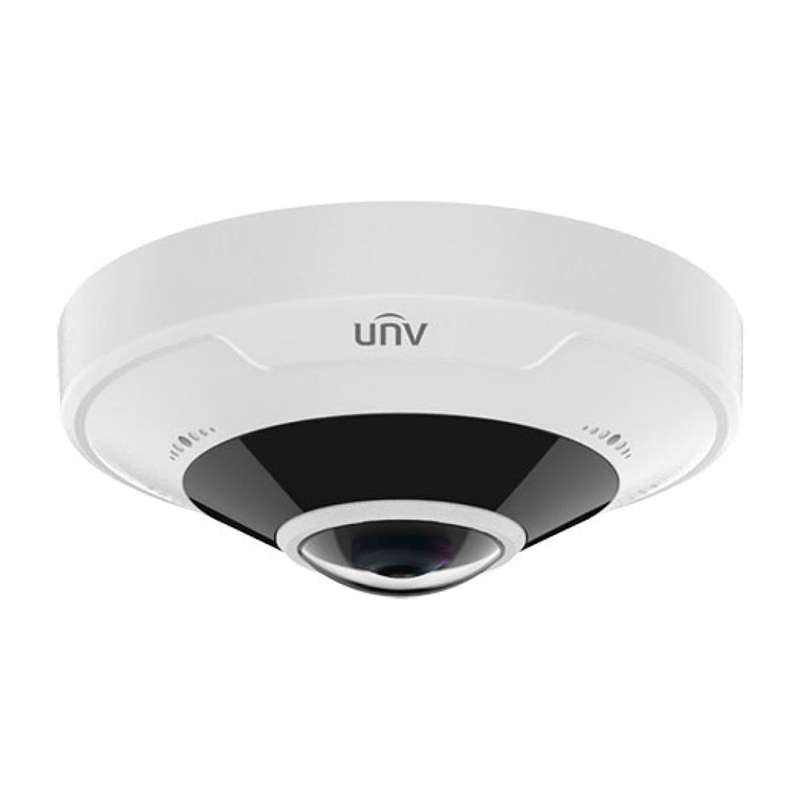

Uniview 12MP 1.8mm UHD Infrared Vandal-Resistant Fisheye Fixed Dome Camera IPC86CEB-AF18KC-I0
The Uniview 12MP 1.8mm UHD Infrared Vandal-Resistant Fisheye Fixed Dome Camera (IPC86CEB-AF18KC-I0) is a cutting-edge surveillance solution designed for ultra-wide area coverage and superior image quality. With its fisheye lens and 12MP resolution, this camera is ideal for environments requiring a panoramic view with minimal blind spots.
Ultra-High Resolution
Provides 12MP UHD resolution (4000 x 3000), delivering exceptional image clarity and detail for high-end surveillance applications.
1.8mm Fisheye Lens
Offers a 360° panoramic view, eliminating the need for multiple cameras to cover wide areas.
Infrared (IR) Night Vision
Equipped with advanced IR LEDs for clear black-and-white video in complete darkness, with a range of up to 10 metres.
Multiple Display Modes
Supports diverse viewing formats such as panoramic, de-warped, and split-screen views, enhancing usability for different scenarios.
Vandal-Resistant and Weatherproof
Rated IK10 for impact resistance and IP67 for protection against dust and water, ensuring reliability in harsh environments.
Advanced Compression
Utilises H.265+ compression, reducing storage and bandwidth demands while maintaining high-quality video.
Smart Features
Includes motion detection and other video analytics for improved event monitoring and proactive security.
ONVIF Compliance
Ensures seamless integration with third-party video management systems (VMS), providing flexibility in deployment.
Features
- High quality image with 12MP,1/1.7'' CMOS sensor
- Max 4000*3000 resolution
- Ultra265, H.265, H.264, MJPEG
- Ultra wide angle lens, 360° panoramic image
- Embedded infrared light, 360° fill-in light, up to 15m (49ft) IR distance
- Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
- Heatmap: Working with management platform, the data of moving objects is counted in real time on an intuitive color map
- Built-in microphone & speaker, two-way talk supported
- Supports 256 G Micro SD card
- IK10 vandal resistant
- IP67 protection
Specifications
Sensor: 1/1.7", 12.0 megapixel, progressive scan, CMOS
Minimum Illumination: Colour: 0.03Lux (F2.0, AGC ON); 0Lux with IR
Day / Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, shutter time: 1 ~ 1/100000s
WDR: DWDR
S/N: >52dB
Lens type: 1.8mm-F2.0
Field of View: 360°
IR Range: Up to 15m (49ft) IR range
wavelength: 850nm
IR On/Off Control: Auto/Manual
Video
- Compression: Ultra265, H.265, H.264, MJPEG
- H.264 code profile: Baseline profile, Main Profile, High Profile
- Main Stream: Fisheye View: 12MP(4000*3000)-20fps;3000*3000-20fps; 2560*2560-25fps; Panorama View: 12MP(4000*3000)-20fps;3000*2000-20/25fps; 3000*1500-20/25fp; PTZ View: 1920*1080-20/25fps; Sub Stream: Fisheye View:2000*1500-20fps;2000*2000-25fps; Third Stream: Fisheye View:D1(720*576)-20/25fps;CIF352*288)-20/25fps;
- Video Bit Rate: 128 Kbps~16 Mbps
- U-code: Support
- OSD: Up to 8 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video stream: Triple streams
- White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction: 2D/3D DNR
- Smart IR: Support
- Flip: Normal/Flip Vertical/ Flip Horizontal/180°
- Dewarping: N/A
- HLC: N/A
- BLC: Support
- Defog: Digital Defog
Audio
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-way audio: Support
- Suppression: Support
- Sampling Rate: 8KHZ
Network
- Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
- User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
- Client: EZStation; EZView; EZLive
- Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
- Audio I/O: Input: impedance 35k; amplitude 2V [p-p]
- Output: impedance 600; amplitude 2V [p-p]
- Alarm I/O: 2/1; Multiple Alarm linkage editable
- Built-in Mic: Two Mics
- Built-in Speaker: Support
- Serial: 1 channel RS485 interface
- Network: 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
- Video Output: 1 BNC, impedance 75; amplitude 1V [p-p]
