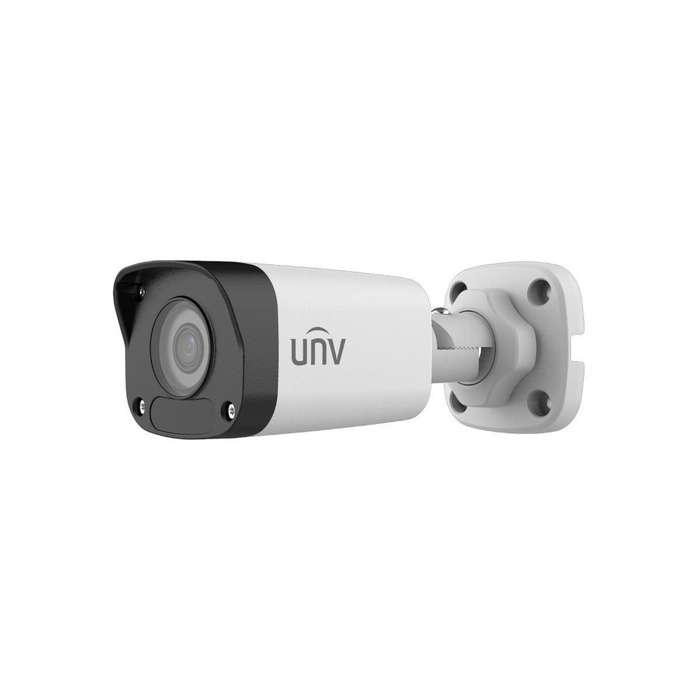

| IPC2122LB-SF28-A | |
| Camera |
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Lens | 2.8mm@F2.0 | |
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 43.4 | 17.4 | 8.7 | 4.3 |
| 4.0 | 62.1 | 24.8 | 12.4 | 6.2 |
| Angle of View (H) | 106.7? | |
| Angle of View (V) | 57.1? | |
| Angle of View (O) | 115.7? | |
| Adjustment angle | Pan: 0? ~ 360? | Tilt: 0? ~ 90? | Rotate: 0? ~ 360? |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR on |
| Digital noise reduction | 2D/3D DNR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | DWDR |
| Video |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180? |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Network |
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP |
| Compatible Integration | API |
| Client | EZStation
EZView
EZLive |
| Web Browser | Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Interface |
| Network | 10/100M Base-TX Ethernet |
| Certifications |
| Certifications | CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15 |
| General |
| Power | DC 12V?25%, PoE (IEEE 802.3af) |
| Power consumption: Max 5.5W |
| Dimensions (L ? W ? H) | 161 ? 63 ?62mm (6.4? ? 2.5? ? 2.4?) |
| Net Weight | 0.27kg (0.60lb) |
| Material | Metal + Plastic |
| Working Environment | -30?C ~ 60?C (-22?F ~ 140?F), Humidity: ?95% RH (non-condensing) |
| Strorage Environment | -30?C ~ 60?C (-22?F ~ 140?F), Humidity: ?95% RH (non-condensing) |
| Surge Protection | 4KV |
| Ingress Protection | IP67 |
| Reset Button | N/A |
