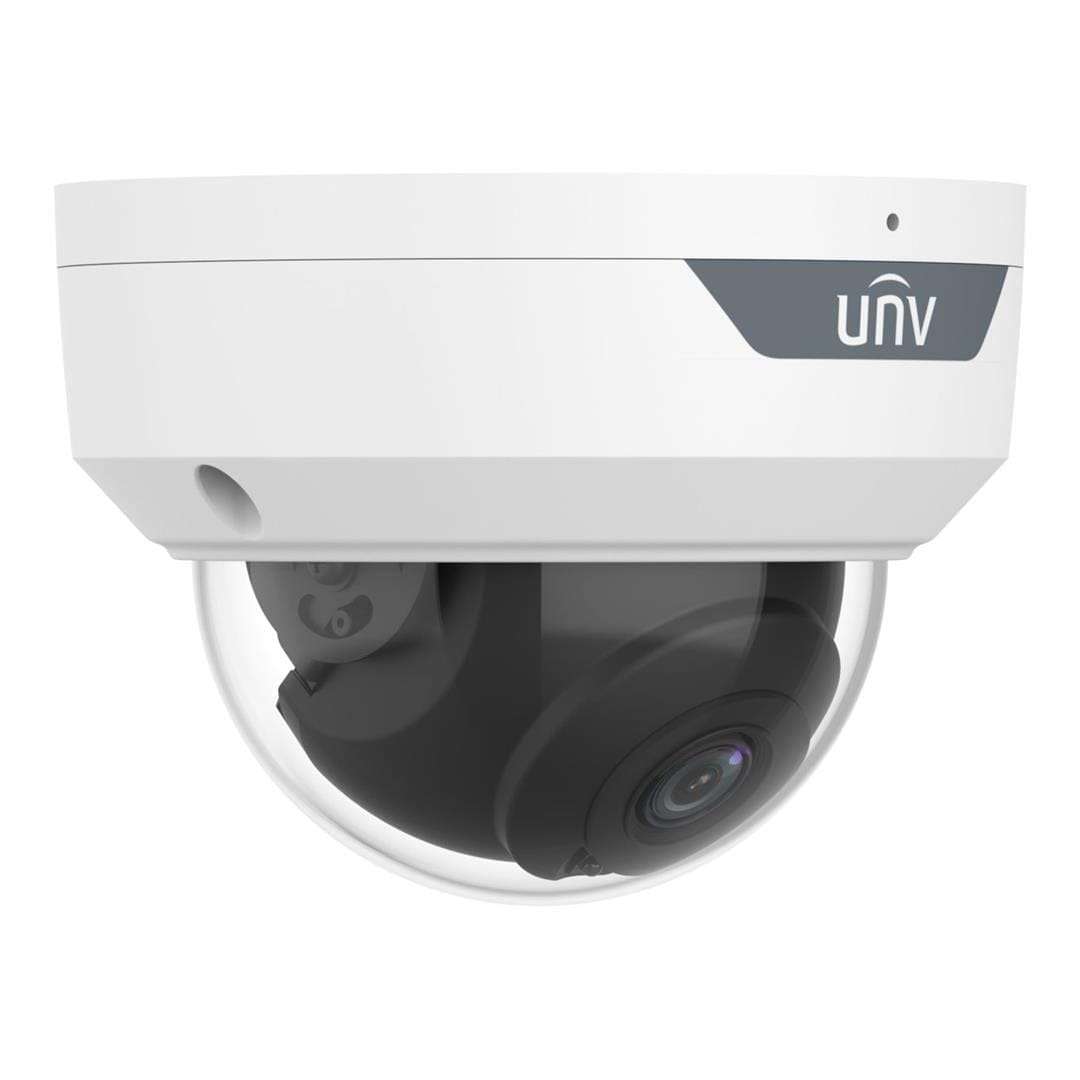

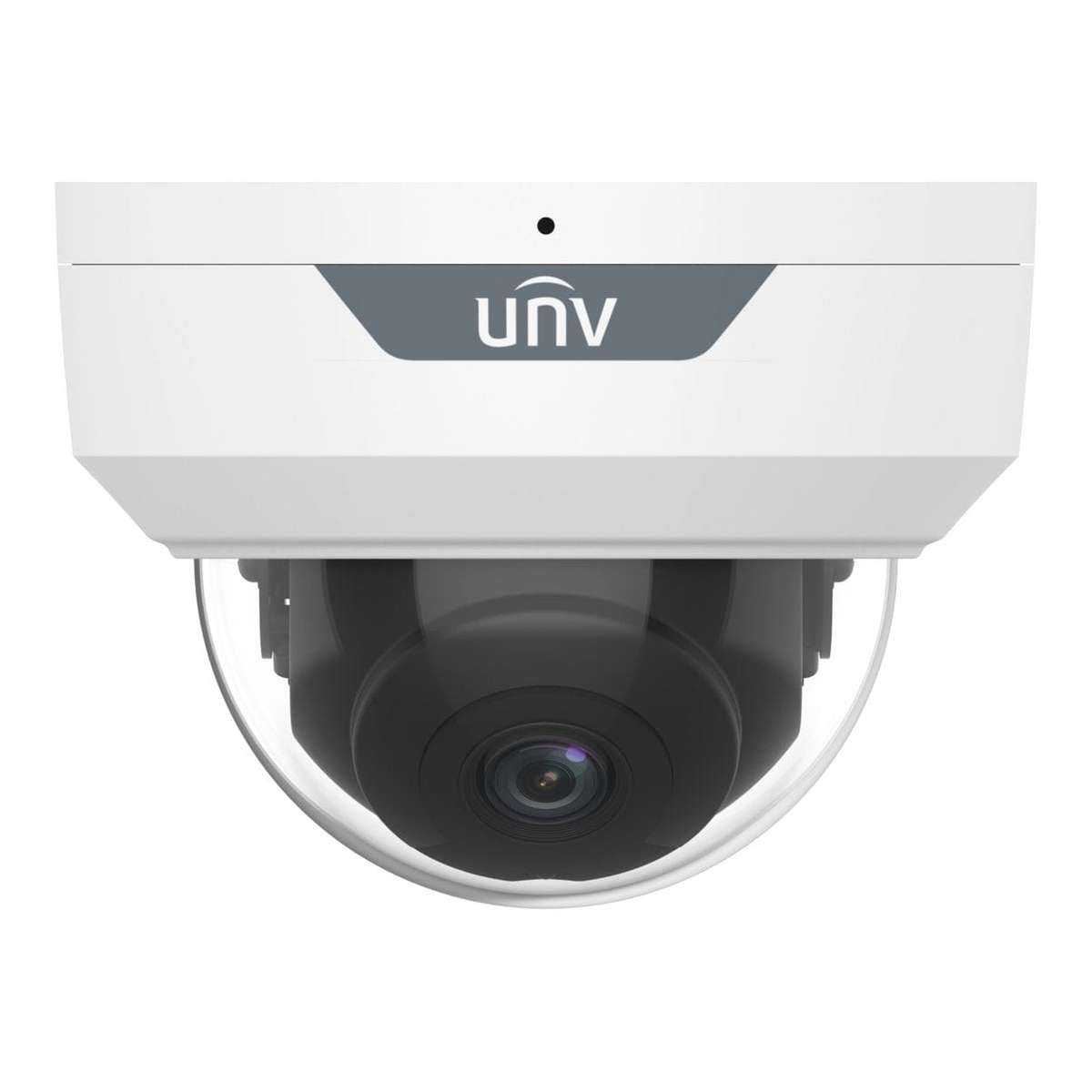

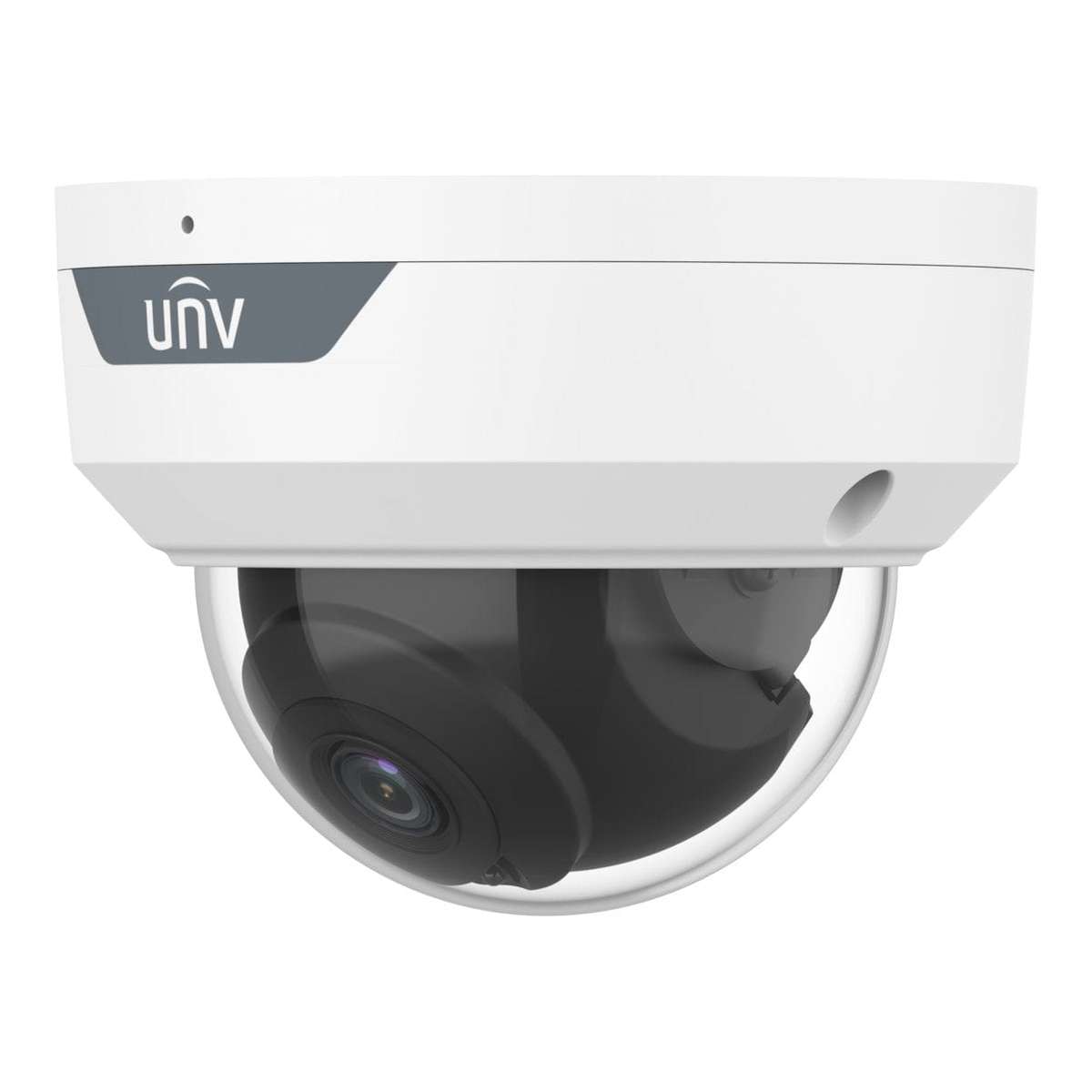

Uniview 2MP Fixed IR Dome Network Camera IPC322LB-AF28-A2
The UNV IPC322LB-AF28(40)-A2 is a robust and versatile surveillance solution offering high-resolution imaging for a variety of indoor and outdoor applications. Equipped with a 1/2.8" progressive scan CMOS sensor, it captures crisp 2MP (1920x1080) video at up to 30 frames per second. This camera leverages Ultra 265, H.265, and H.264 compression formats, ensuring efficient bandwidth utilisation and storage. Its Smart IR functionality provides effective night vision up to 30 meters without overexposure, while features like Digital WDR and 2D/3D DNR enhance image clarity in challenging lighting. Built with an IP67 weather-resistant and IK10 vandal-proof housing, and supporting PoE for simplified installation, the IPC322LB-AF28(40)-A2 delivers reliable and durable security monitoring.
Features:
- High quality image with 1080P, 1/3.0" CMOS sensor
- 1080P (1920 × 1080)-30/25 fps; 720P (1280 × 720)-30/25 fps
- Supports accurate human body detection 2.0
- Ultra 265, H.265, H.264
- Built-in mic
- Smart IR, up to 30 m (98.4 ft) IR distance
- Day/night functionality
- 2D/3D DNR (digital noise reduction)
- DC 12 V, PoE (IEEE 802.3af) power supply
- IP67 protection
- IK10 vandal resistant
- 2-axis
Technical Specifications:
Camera
Max. Resolution: 2 MP
Sensor: 1/3.0" CMOS
Minimum Illumination: Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1—1/100000 s
Adjustment Angle: Pan 3°—360°, Tilt 0°—75°
S/N Ratio: > 52 dB
WDR: DWDR
Lens
Focal Length: 2.8 mm / 4.0 mm
Iris Type: Fixed
Iris: F2.0
Field of View (H): 99.5° (2.8 mm), 77.1° (4 mm)
Field of View (V): 56.5° (2.8 mm), 42.8° (4 mm)
Field of View (D): 114.4° (2.8 mm), 88.2° (4 mm)
Lens Type: Fixed
DORI Distance
2.8 mm Lens: Detect 46.7 m, Observe 18.7 m, Recognize 9.3 m, Identify 4.7 m
4.0 mm Lens: Detect 66.7 m, Observe 26.7 m, Recognize 13.3 m, Identify 6.7 m
Illuminator
Supplemental Light: IR
Illumination Distance: 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual
Video
Compression: Ultra 265, H.265, H.264
H.264 Profiles: Baseline, Main, High
Frame Rate:
- Main Stream: 1080P (1920×1080) max. 30 fps; 720P (1280×720) max. 30 fps
- Sub Stream: 640×360 max. 30 fps; 2CIF (704×288) max. 30 fps; CIF (352×288) max. 30 fps
Bit Rate: 128 Kbps—6144 Kbps
U-code: Yes
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Yes
Streams: Dual streams
White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2, Area WB
DNR: 2D/3D
Smart IR: Yes
Flip: Normal, Vertical, Horizontal, 180°
Dewarping: N/A
HLC: Yes
BLC: Yes
Defog: Digital Defog
Image Stabilization: N/A
Events
Basic Detection: Human Body Detection 2.0, Motion Detection, Audio Detection
General Functions: Watermark, IP Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Compression: G.711U, G.711A
Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Yes
Sampling Rate: 8 kHz
Storage
Edge Storage: N/A
Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS
Integration: ONVIF (Profile S/T), API, SDK
Users/Hosts: Up to 32 users; 2 levels: Administrator, Common User
Security: Password Protection, Strong Passwords, Operation Logs, Digest Authentication (RTSP/HTTP/ONVIF), WSSE
Client: UNV-Link, UNV-Link Pro, EZStation
Web Browser: Chrome 57+, Firefox 58+, Edge 16+ (plug-in free)
Interfaces
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Yes
Built-in Speaker: N/A
Wi-Fi: N/A
Network Port: 1 × RJ45 10/100M Ethernet
Video Output: N/A
Certification
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC Part 15B
Safety: CE LVD (EN 62368-1)
Environment: CE-RoHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU)
Protection: IP67 (IEC 60529), IK10 (IEC 62262)
General
Power: DC 12 V ±25%, PoE (IEEE 802.3af)
Consumption: Max. 3.9 W
Power Interface: Ø5.5 mm coaxial plug
Dimensions (Ø×H): Ø111 × 82.5 mm (Ø4.4" × 3.2")
Weight: 0.35 kg (0.77 lb)
Material: Metal + Plastic
Operating Environment: -30°C to 60°C (-22°F to 140°F), 95% RH (non-condensing)
Storage Environment: -30°C to 60°C (-22°F to 140°F), 95% RH (non-condensing)
Surge Protection: 4 KV
Reset Button: N/A
Web Client Languages: English
