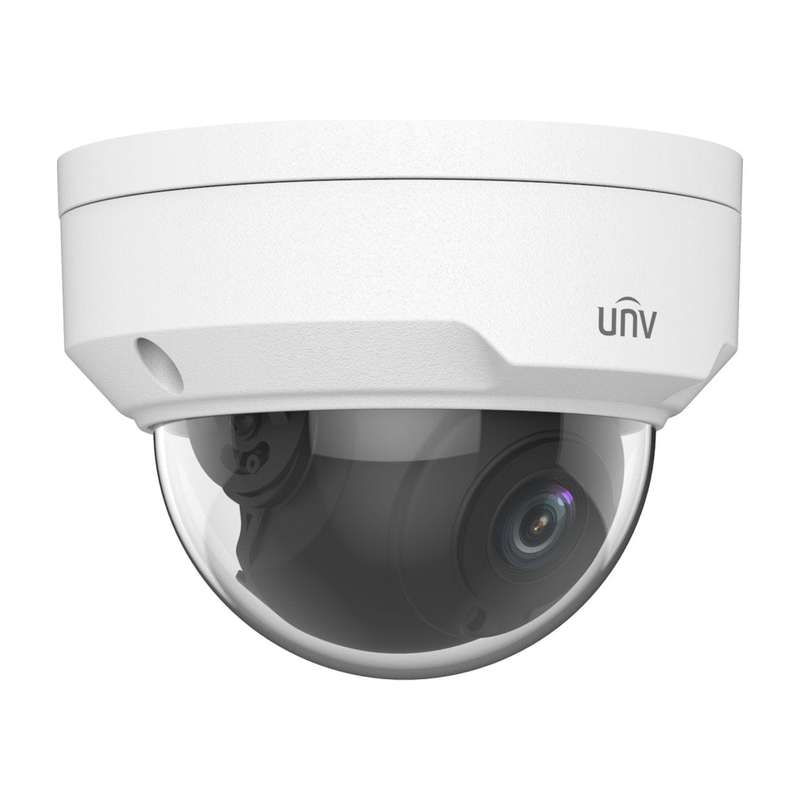

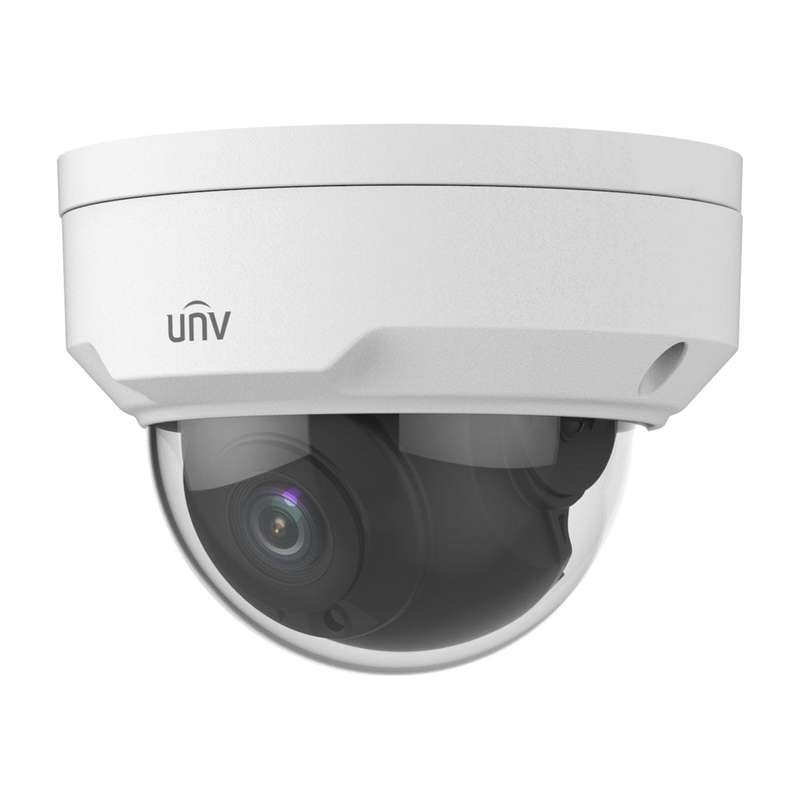

Uniview 4MP 2.8mm Fixed IR Dome Network Camera IPC324LB-SF28-A
The Uniview 4MP 2.8mm Fixed IR Dome Network Camera (IPC324LB-SF28-A) is a reliable and robust surveillance solution designed for detailed monitoring in various environments. Its advanced features make it suitable for both indoor and outdoor use, combining high-resolution imaging with durable construction.
High-Resolution Video
Provides 4MP resolution (2560 x 1440) for sharp and detailed video, ensuring clear surveillance footage.
2.8mm Fixed Lens
Offers a wide-angle field of view, making it ideal for monitoring large areas such as hallways, offices, or open spaces.
Infrared (IR) Night Vision
Equipped with IR LEDs to capture clear black-and-white video in complete darkness, with an effective range of up to 30 metres.
Weatherproof and Vandal-Resistant
Rated IP67 for dust and water resistance and IK10 for protection against impacts, ensuring durability in harsh conditions.
Wide Dynamic Range (WDR)
Handles challenging lighting conditions by balancing bright and dark areas for optimal image clarity.
Smart Compression
Supports H.265+ video compression, reducing storage and bandwidth requirements without compromising video quality.
ONVIF Compatibility
Ensures seamless integration with third-party video management systems (VMS), enhancing system flexibility.
Features
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2560*1440)-25/20fps; 3MP (2304*1296)-25/20fps; 2MP (1920*1080)-30/25fps
- Ultra 265, H.265, H.264
- Smart IR, up to 30m (98ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- IP67 protection
- IK10 vandal resistant
- DC12V or PoE(IEEE 802.3af) power supply
- 2-Axis
Specifications
Max Resolution: 4 MP
Sensor: 1/3.0" CMOS
Min. Illumination: Colour: 0.01 lux (F2.1, AGC ON); 0 lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 3° ~ 360°, Tilt: 0° ~ 68°
S/N: >52dB
WDR: DWDR
Focal Length: 2.8 mm4.0 mm
Iris Type: Fixed
Iris: F2.1
Field of View (H): 97.0°
Field of View (V): 52.2°
Field of View (D): 107.5°
DORI Distance (Lens): 2.8mm
DORI Distance (Detect): 63.0m
DORI Distance (Observe): 25.2m
DORI Distance (Recognize): 12.6m
DORI Distance (Identify): 6.3m
Supplemental Light: IR
Illumination Distance (IR): 30 m
Wavelength: 850 nm
IR On/Off Control: Auto/Manual
Video
Video Compression: Ultra 265, H.265, H.264
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 4MP (2560*1440), Max 25fps; 3MP(2304*1296), Max 25fps;2MP(1920*1080),Max 30fps; Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate: 128 Kbps ~ 6144 Kbps
U-code: Support(Main stream)
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual Streams
White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip Vertical, Flip Horizontal, 180°
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog
Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS
Compatible Integration: ONVIF (Profile S, Profile T) , API, SDK
User/Host: Up to 32 users, 2 user levels: administrator and common user
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client: UNV-Link, UNV-Link Pro, EZStation
Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
