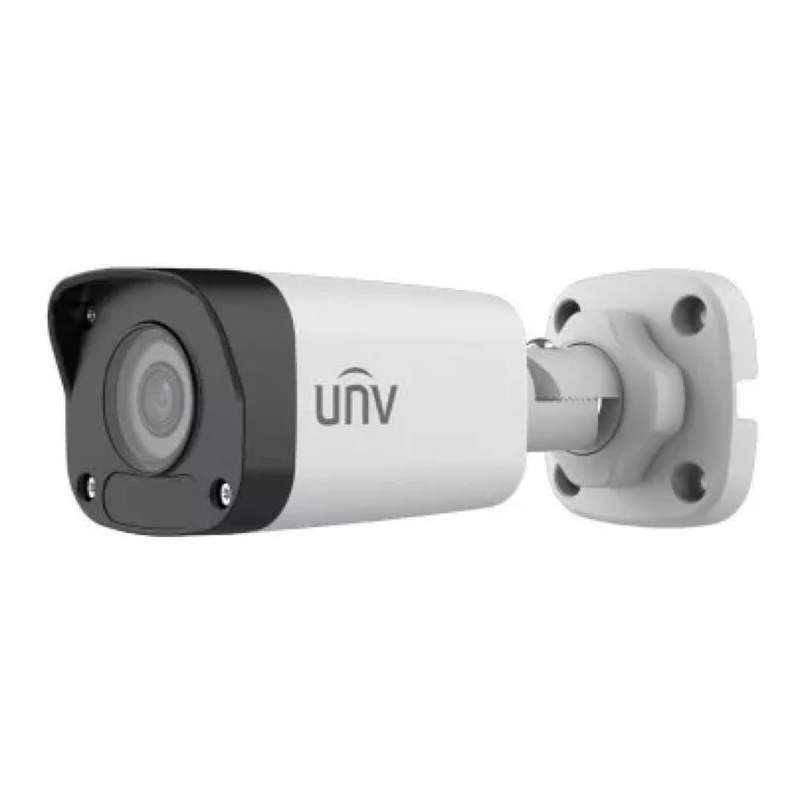

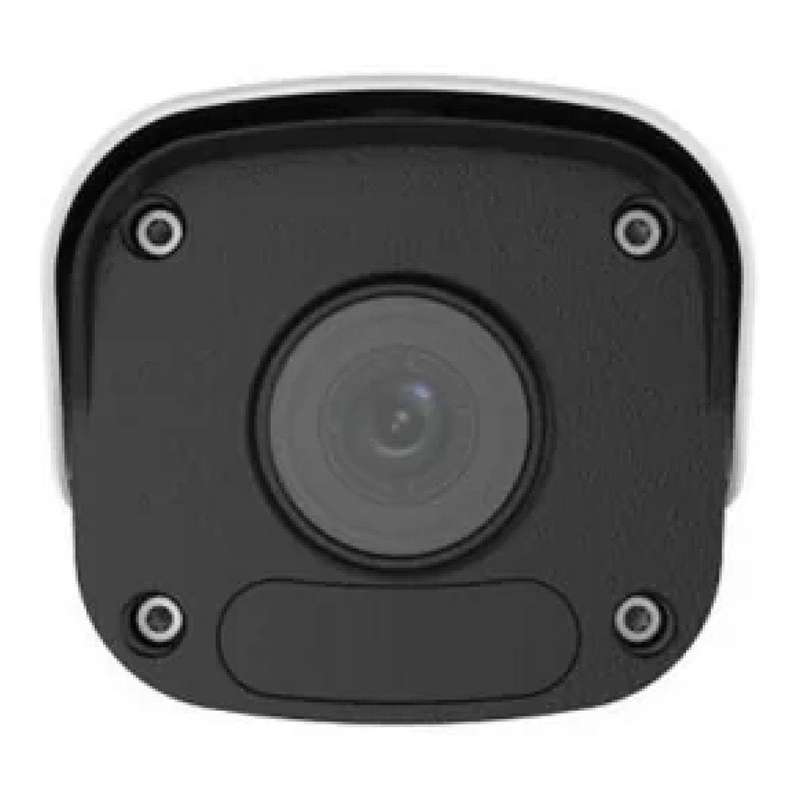

Uniview 4MP 4mm Smart IR Mini Fixed Bullet Camera IPC2124LB-SF40-A
The Uniview IPC2124LB-SF40-A is a 4-megapixel mini fixed bullet network camera engineered for superior surveillance performance. It utilises a 1/3" CMOS sensor to deliver high-resolution imagery up to 2560×1440 at 25 frames per second. The 4mm fixed lens offers a horizontal field of view of 79°, making it suitable for detailed area monitoring.
Equipped with Smart IR technology, this camera ensures clear visibility in low-light conditions, extending infrared illumination up to 30 metres. It supports Ultra 265, H.265, and H.264 video compression formats, optimising both storage and bandwidth efficiency.
The camera's day/night functionality is enhanced by an IR-cut filter with auto-switching (ICR), and it includes 2D/3D digital noise reduction to improve image clarity. It offers dual video streams and supports a range of network protocols, including IPv4, TCP, UDP, and HTTP.
For power options, the IPC2124LB-SF40-A supports both DC12V and PoE (IEEE 802.3af), with a maximum power consumption of 5.0W. Its IP67-rated housing ensures protection against dust and water, making it suitable for various environmental conditions.
Features
- High quality image with 4MP, 1/3.0"CMOS sensor
- 4MP (2560*1440)-25/20fps; 3MP (2304*1296)-25/20fps; 2MP (1920*1080)-30/25fps; 720P (1280*720)-30/25fps
- H.265, H.264
- Smart IR, up to 30m (98ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- IP67 protection
- DC12V or PoE(IEEE 802.3af) power supply
- 3-Axis
Specifications
Max Resolution: 4 MP
Sensor: 1/3.0" CMOS
Min. Illumination: Colour: 0.01 lux (F2.1, AGC ON); 0 lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N: >52 dB
WDR: DWDR
Focal Length: 4.0 mm
Iris Type: Fixed
Iris: F2.1
Field of View (H): 79.0°
Field of View (V): 42.3°
Field of View (D): 85.1°
DORI Distance (Lens): 4.0mm
DORI Distance (Detect): 90.0m(295.3ft)
DORI Distance (Observe): 36.0m(118.1ft)
DORI Distance (Recognize): 18.0m(59.1ft)
DORI Distance (Identify): 9.0m(29.5ft)
Supplemental Light: IR
Illumination Distance (IR): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual
