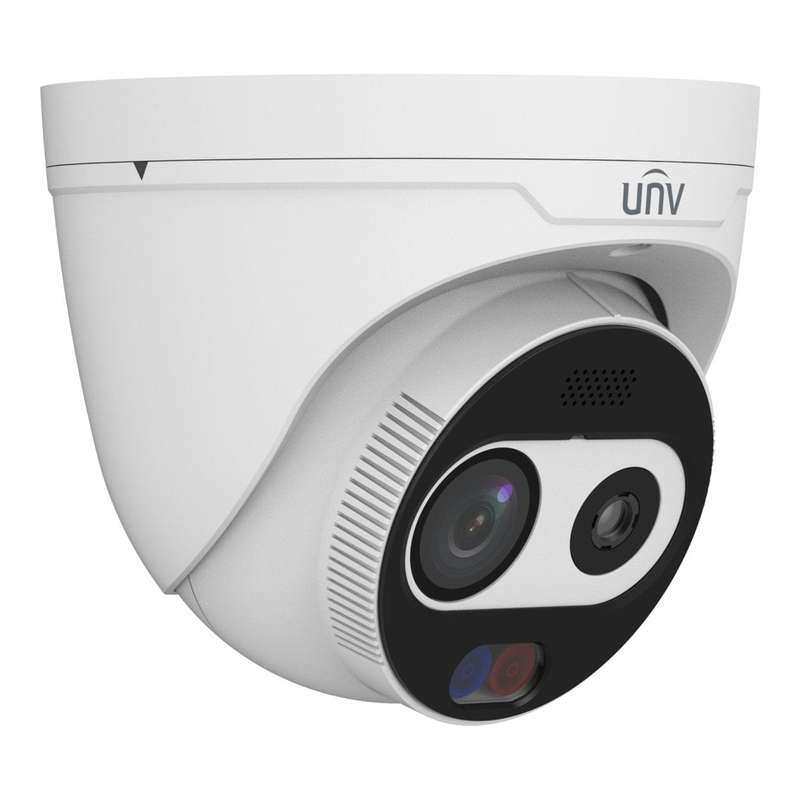

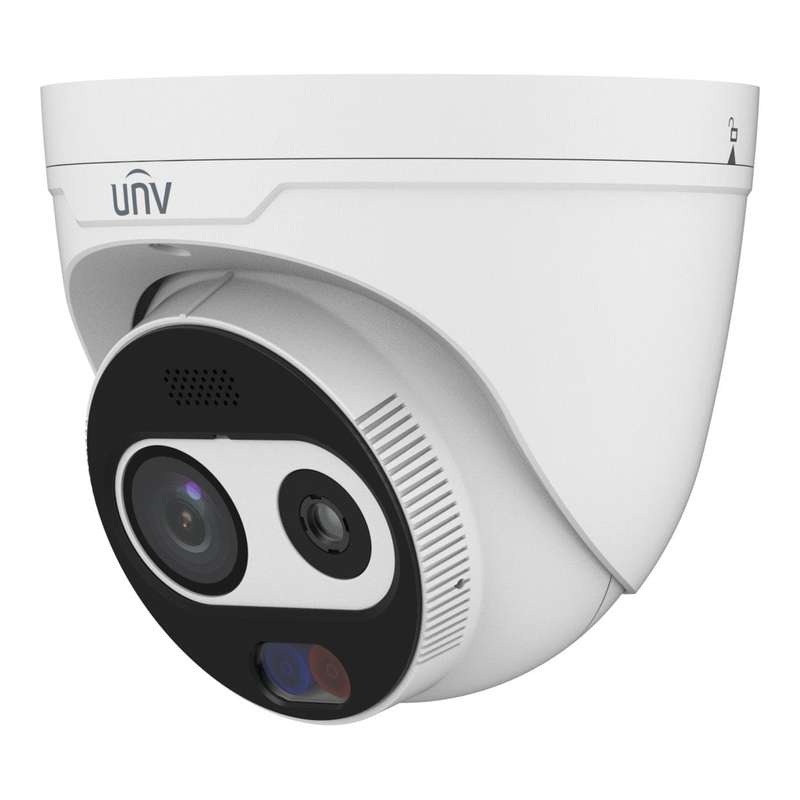

Uniview 4MP Thermal and Optical Dual-spectrum Turret Network Camera TIC3612SA-F3-4F4AC-I1
Features
- Thermal & optical dual-spectrum image, dual video with single IP address, adaptable to various scenes
- 1/2.8" target surface, high sensitivity sensor, suitable for starlight monitoring
- Thermal module supports reliable fire detection and fire shield area
- Thermal module supports temperature detection and cold & hot spot tracking, which highlights abnormal temperatures and links to alarm
- Thermal & optical dual-spectrum smart intrusion prevention can be enabled simultaneously: cross line, enter area, leave area, intrusion
- Optical module supports smog recognition, which can help with fire alarm reconfirmation
- Supports picture-in-picture mode, real-time contrast live, more convenient and clear
- Supports audio and light alarm, with red and blue warning lights built in
- Ultra 265, H.265, H.264, MJPEG
- Max 2688 × 1520-30 fps in the optical module and max 960P-30 fps in the thermal module
- DC 12 V ± 25% or PoE power supply
- Alarm 2 in and 2 out, audio 1 in and 1 out, micro SD, up to 512 GB
Technical Specification
Sensor: 1: 1/2.8" CMOS , 2: Vanadium oxide uncooled focal plane arrays
Resolution: 1: 2688 x 1520 (4MP) , 2: 256 × 192
Focal Length: 1: 4mm , 2: 3mm
Iris: 1: F1.6 , 2: F1.0
Field of View (H): 1: 72.9° , 2: 58.0°
Field of View (V): 1: 44.4° , 2: 42.5°
Field of View (D): 1: 89.8° , 2: 72°
DORI Distance (Detect): 1: 90.0m , 2: N/A
DORI Distance (Observe): 1: 36.0m , 2: N/A
DORI Distance (Recognize): 1: 18.0m , 2: N/A
DORI Distance (Identify): 1: 9.0m , 2: N/A
Illuminator Wavelength: 1: 750 nm , 2: N/A
Illumination Distance (IR): 1: 30m , 2: N/A
Mic: Built-in
Speaker: Built-in
Audio I/O: 1 Input: impedance 1 k, amplitude 2.5 V [p-p], 1 Output: impedance 600 , amplitude 2 V [p-p]
Alarm I/O: 2/2
Serial Port: 1 channel RS485 interface
Network: 1x RJ45 10 M/100 M Base-TX Ethernet
Power: DC12V(±25%) or PoE(IEEE802.3af)
Power Interface: Ø5.5 mm coaxial power plug
- Please note: Power supply is not included
