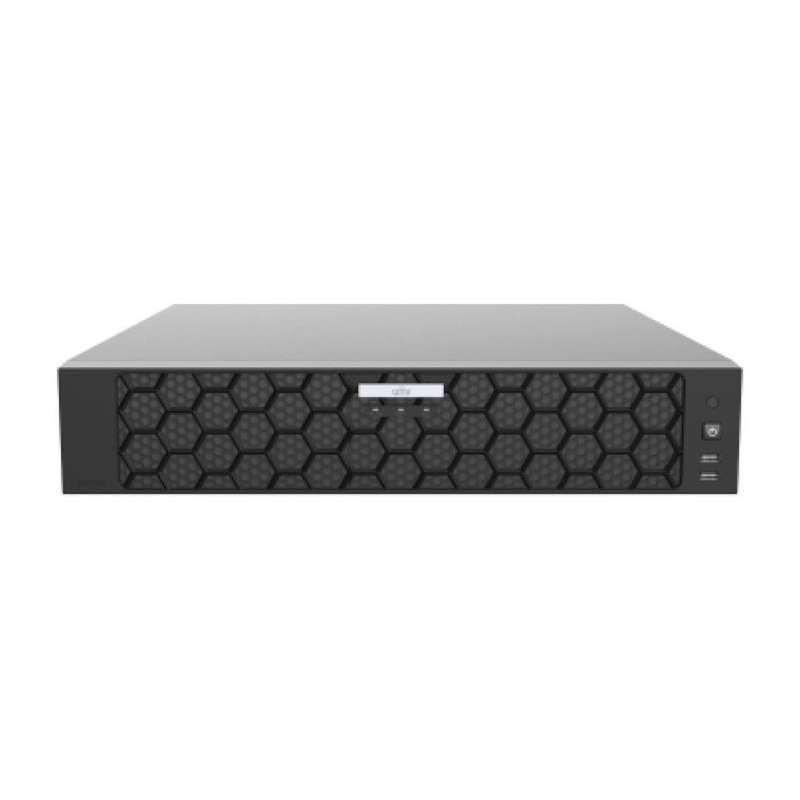

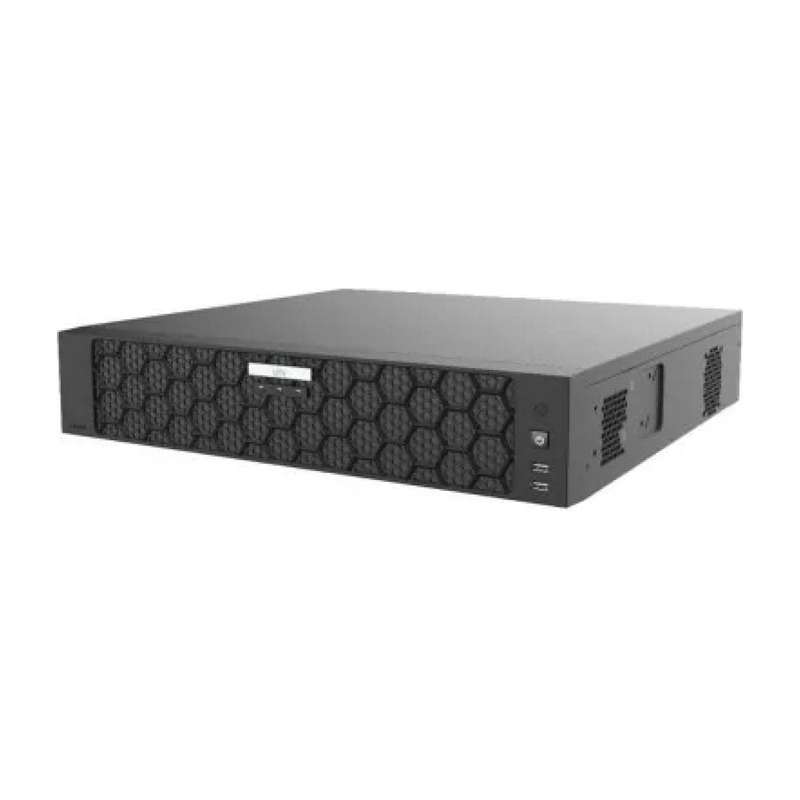

Uniview NVR508-64E-IQ 64-channel Ultra 265 NVR
The Uniview NVR508-64E-IQ 64-Channel NVR is a high-performance network video recorder designed to support large-scale surveillance systems. With robust hardware, intelligent analytics, and advanced management features, it is an ideal choice for professional-grade security installations.
64-Channel Support
Capable of managing up to 64 IP cameras simultaneously, providing extensive coverage for large security networks.
High Decoding Capability
Supports up to 16-channel 1080P or 4-channel 4K decoding, enabling smooth playback and live viewing of high-resolution video.
Storage Capacity
Features 8 SATA interfaces for large storage capacity, allowing for extensive video retention periods.
AI-Powered Features
Integrated with AI-driven analytics, including facial recognition, perimeter protection, and smart search capabilities for enhanced monitoring efficiency.
4K Output Support
Equipped with HDMI and VGA outputs, supporting 4K resolution for crystal-clear video display on connected monitors.
Advanced Compression
Utilises H.265/H.265+ compression, significantly reducing bandwidth and storage requirements without compromising video quality.
Smart Management Features
Includes smart search, event notifications, and remote access via web or mobile apps for user-friendly operation.
ONVIF Compliance
Ensures compatibility with third-party cameras and systems, offering flexibility in deployment.
Features
- Support Ultra 265/H.265/H.264 video formats
- 32/64â'channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T) and RTSP protocols
- Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
- Up to 32 Megapixels resolution recording
- Support N+1 Hot spare
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Specifications
Decoding Format: Ultra 265,H.265,H.264
Remote Users: 128
Protocols: TCP/IP;P2P;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6
Browser(Plugin): Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above)
IP Video Input: NVR508â'64Eâ'IQ: 64â'channel
RCA Audio Input: 1â'channel
HDMI Output: HDMI:4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output: VGA:1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output: 2â'channel
Live view Display: NVR508â'64Eâ'IQ: 1/4/6/8/9/16/25/36/64
Corridor Mode Screen: 3/4/5/7/9/10/12/16/32
Two-way Audio: 1â'channel,RCA(Using the audio input and output)
FTP/Schedule/Event Snapshot: 16â'channel snapshot,up to 4K resolution
Recording Resolution: 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Compression: G.711A,G.711U
Decoding Capability
- Smart Off: 2 x 32MP-30, 4 x 16MP-30, 5 x 12MP-30, 8 x 4K-30, 10 x 6MP-30, 12 x 5MP-30, 16 x 4MP-30, 20 x 3MP-30, 32 x 1080P-30
- Smart On: 1 x 32MP-30, 3 x 16MP-30, 4 x 12MP-30, 6 x 4K-30, 8 x 6MP-30, 9 x 5MP-30, 12 x 4MP-30, 16 x 3MP-30, 24 x 1080P-30, 32 x 720P-30 NVR508â'64Eâ'IQ:Smart Off：2 x 32MP-30, 4 x 16MP-30, 5 x 12MP-30, 8 x 4K-30, 10 x 6MP-30, 12 x 5MP-30, 16 x 4MP-30, 20 x 3MP-30, 32 x 1080P-30, 64 x 720P-30
- Smart On: 1 x 32MP-30, 3 x 16MP-30, 4 x 12MP-30, 6 x 4K-30, 8 x 6MP-30, 9 x 5MP-30, 12 x 4MP-30, 16 x 3MP-30, 24 x 1080P-30, 48 x 720P-30
Incoming Bandwidth
- Smart Off: 384Mbps
- Smart On: 200Mbps
Outgoing Bandwidth
- Smart Off: 384Mbps
- Smart On: 200Mbps
Smart
- VCA Detection by IPC: Face Detection;Vehicle Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection);People Counting(People Flow Counting,Crowd Density Monitoring);Video Metadata;Traffic Monitoring
- Smart by NVR: Face detection;Smart Intrusion Prevention (SIP);Ultra Motion Detection(UMD)
- VCA Search: Motor Vehicle Search;Nonâ'Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map
- Smart by IPC: All channels (up to 16 images/s in total)Face Detection,Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring
- Face Picture Library: Up to 128 face picture libraries,with up to 40,000 face pictures in total
- Vehicle Picture Library: Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total
- SIP by NVR: 8â'channel
- UMD by NVR: 16â'channel
- Capacity of Snapshot Records: 3 millions records for face snapshot;2 millions records for vehicle snapshot;2 millions records for SIP;2 millions records for video Metadata
HardDisk
- SATA: 8 SATA Interfaces
- Capacity: Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
- Disk Group: Support
- Redundant Storage: Support
- Disk Array Type: RAID 0,1,5,6,10
Interface
- Network Interface: 2 RJ45 10M/100M/1000M selfâ'adaptive Ethernet Interface
- USB: Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0
- RS485: 1
- RS232: 1
- Alarm In: 16â'channel
- Alarm Out: 10â'channel
- SATA: 1
- PowerOutput: 12V
- PowerSupply: AC 100~240V
...
