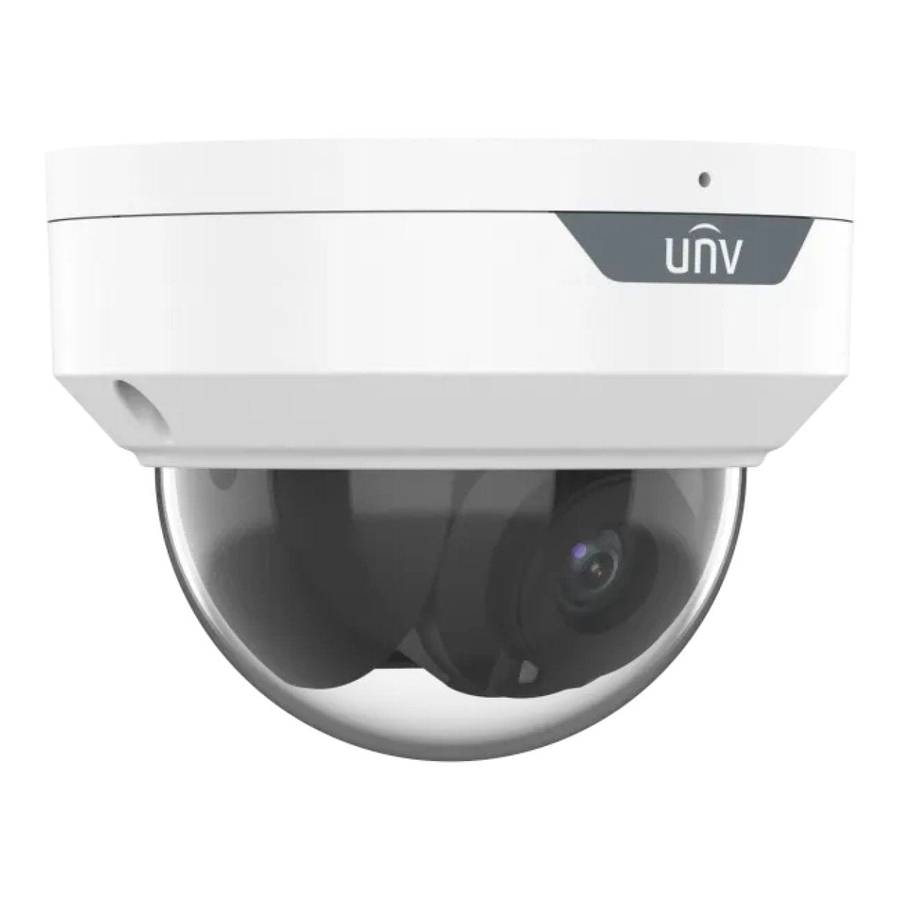

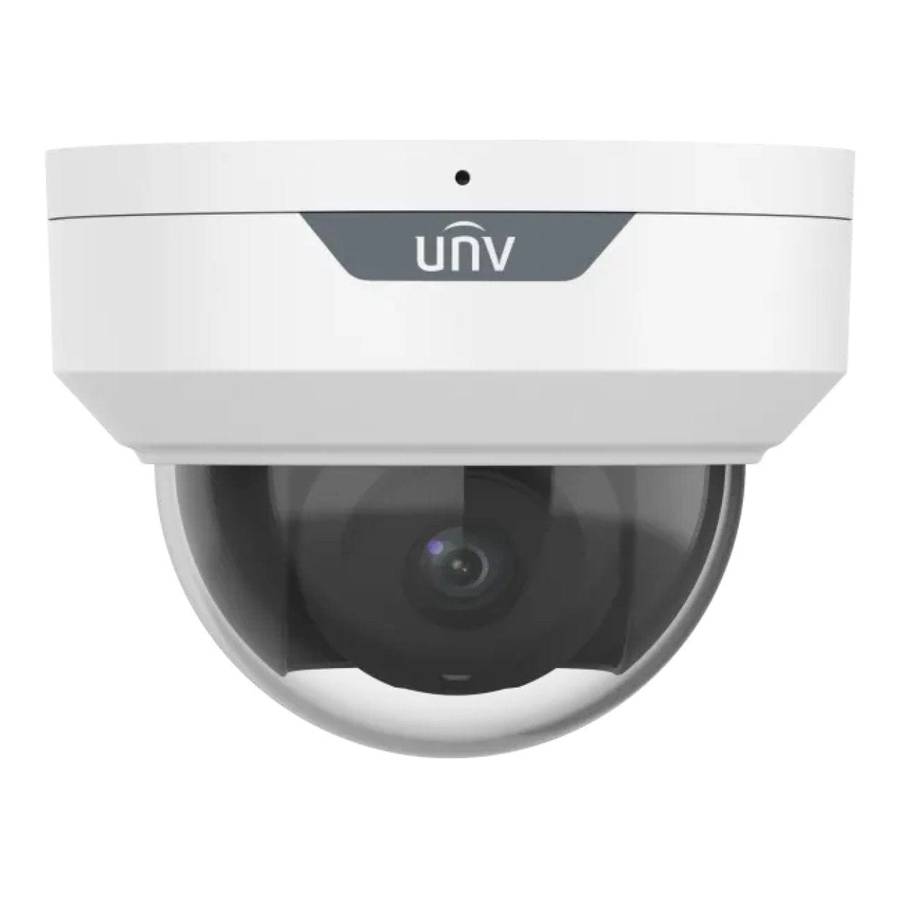

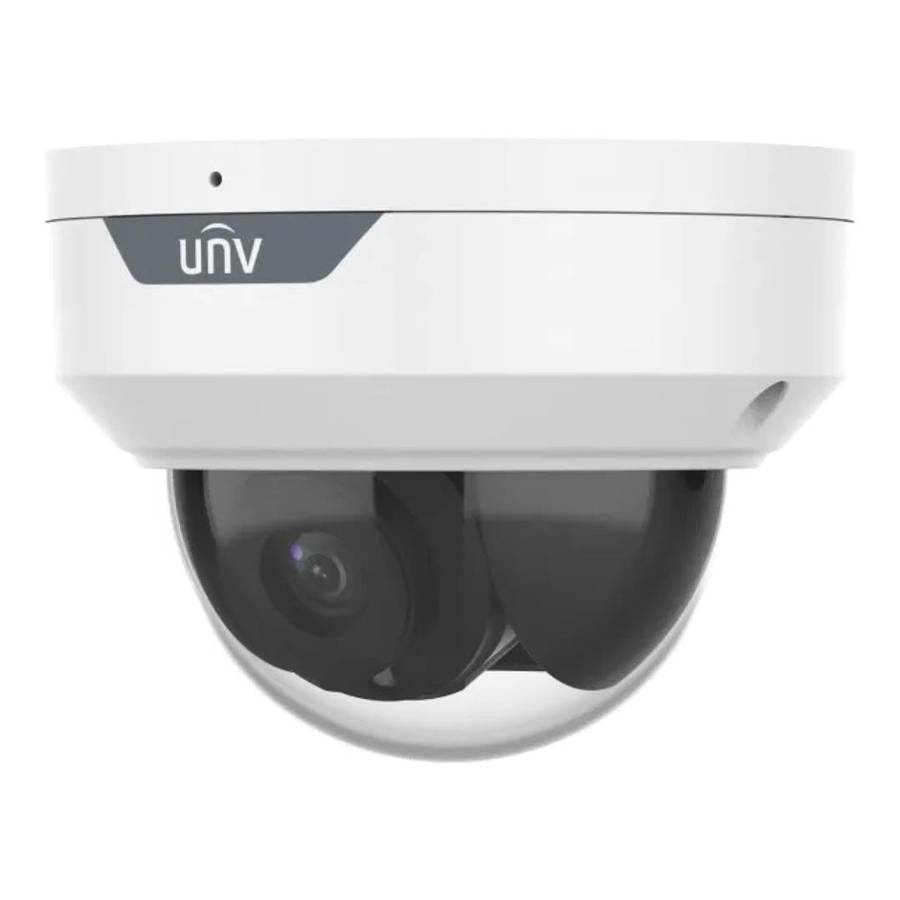

Uniview UNV 2MP Vandal-Resistant Mini Dome IP Camera IPC322LB-AF40-A2
The Uniview IPC322LB-AF40-A2 is a 2MP mini dome camera designed for reliable indoor and outdoor surveillance. It delivers high-quality 1080p video at up to 30 frames per second while Ultra H.265 compression reduces bandwidth and storage requirements. The camera features an IK10-rated vandal-resistant housing for durability in exposed or high-risk locations. Its compact, fixed-lens design provides discreet coverage, making it suitable for a wide range of installations.
Features
- 2MP resolution at 1080p, 30fps
- IK10 vandal-resistant housing
- Ultra H.265 video compression
- Compact, discreet fixed-lens design
- Suitable for indoor and outdoor use
- Durable construction for exposed environments
Technical Specifications:
General
Power: DC 12 V ±25%, PoE (IEEE 802.3af), Max 3.9 W
Dimensions: Ø111 × 82.5 mm (Ø4.4" × 3.2")
Weight: 0.35 kg (0.77 lb)
Material: Metal + Plastic
Operating Temp: -30 °C to 60 °C, 95% RH
Storage Temp: -30 °C to 60 °C, 95% RH
Surge Protection: 4 KV
Camera
Resolution: 2 MP (1/3" CMOS)
Min. Illumination: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1—1/100000s
Adjustment: Pan 3°—360°, Tilt 0°—75°
S/N Ratio: >52 dB
WDR: DWDR
Lens
Focal Length: 2.8 mm / 4.0 mm (F2.0, Fixed)
FOV (H/V/D): 99.5°/56.5°/114.4° (2.8 mm), 77.1°/42.8°/88.2° (4 mm)
DORI (m / ft)
Detect: 46.7 / 153.1 (2.8 mm), 66.7 / 218.8 (4 mm)
Observe: 18.7 / 61.4 (2.8 mm), 26.7 / 87.6 (4 mm)
Recognize: 9.3 / 30.6 (2.8 mm), 13.3 / 43.7 (4 mm)
Identify: 4.7 / 15.4 (2.8 mm), 6.7 / 22.0 (4 mm)
Illuminator
IR Distance: 30 m (98.4 ft), 850 nm
Control: Auto/Manual
Video
Compression: Ultra 265, H.265, H.264
Profiles: Baseline, Main, High
Frame Rate: 1080P/720P up to 30 fps; Sub Stream up to 30 fps
Bitrate: 128 Kbps — 6144 Kbps
Streams: Dual, ROI, OSD (4), Privacy Mask (4)
White Balance: Auto, Outdoor, Fine tune, Sodium, Locked, Auto2, Area WB
Noise Reduction: 2D/3D DNR
Smart IR: Yes
Flip: Vertical, Horizontal, 180°
BLC/HLC/Defog: Supported
Events
Detection: Human body detection 2.0, Motion, Audio
Functions: Watermark, IP filtering, Access policy, ARP/RTSP/HTTP authentication
Audio
Compression: G.711U, G.711A
Bitrate: 64 Kbps, 8 kHz
Two-way: No
Built-in Mic: Yes
Network
Protocols: IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS
Integration: ONVIF (Profile S, T), API, SDK
Users: Up to 32 (Admin/Common)
Security: Password, Logs, Digest Authentication, WSSE
Client: UNV-Link, UNV-Link Pro, EZStation
Browser: Chrome 57+, Firefox 58+, Edge 16+
Interface
Ethernet: 1 × RJ45 10/100M
Audio/Alarm/Serial/Video Out: N/A
Wi-Fi: N/A
Certification
EMC: CE-EMC, FCC Part 15 B
Safety: CE LVD (EN 62368-1)
Environment: CE-RoHS, WEEE
Protection: IP67, IK10
