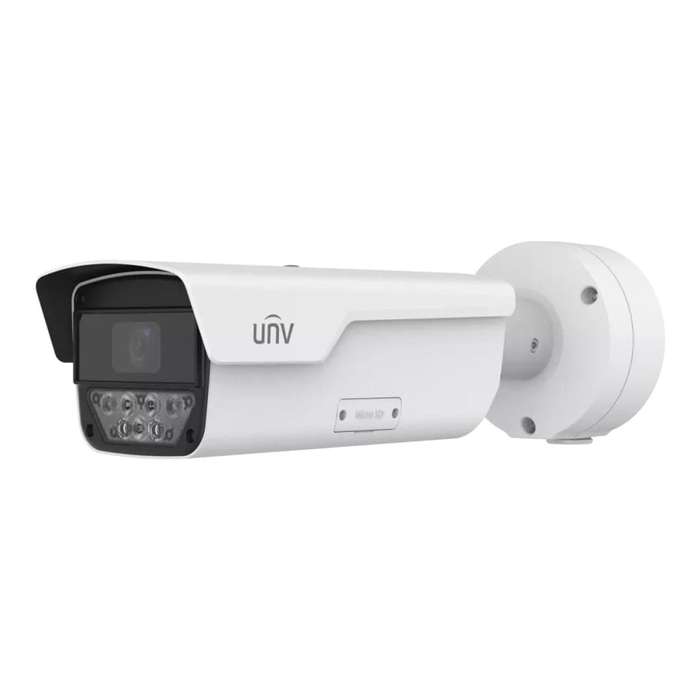

Uniview UNV 3MP Starlight ANPR Bullet Camera PKC2630-Z28(-IR)-P
The Uniview UN-IPC3-LPR-V3 is a high-performance 3MP license plate recognition (LPR) bullet camera for entry/exit and roadside monitoring applications. It features a 2.8—12mm motorized zoom lens, delivering flexible coverage with a wide 119.5° to narrow 35.7° field of view. Built-in warm light LEDs provide up to 50m of illumination, ensuring accurate license plate capture even in low-light conditions. Powered by advanced H.265 video compression and a built-in LPR algorithm, the camera supports automatic vehicle detection, license plate recognition (including allowlist/blocklist filtering), and barrier control integration. Video and data are safely stored using edge recording on a Micro SD card (up to 256GB), and ANR ensures continued recording during network disruptions. With robust IP67 and IK10 protection, PoE or 12V DC power options, and advanced security features including HTTPS, RTSP authentication, and IP filtering, the UN-IPC3-LPR-V3 is built for secure, reliable operation in any outdoor surveillance scenario.
Features:
- Builtâ'in lens supports motorized zoom to adapt to different scenes and allows for easy installation.
- Automatic gain control, white balance, and WDR for various light conditions.
- Compression
- Supports triple streams.
- Advanced H.265 encoding technology improves compression efficiency.
- Custom OSD allows various vehicle information to be overlaid on the video image.
- Functions
- Builtâ'in vehicle and license plate recognition algorithm can recognize standard license plates of multiple countries.
- Supports capturing vehicle head only.
- Supports plate allowlist and blocklist configuration.
- Supports vehicle access control when connected to a barrier.
- Supports Micro SD cards of up to 256GB.
- Automatic network replenishment (ANR) allows to automatically store video to SD card in case of network disconnection.
- Supports audio collection and intercom.
- Network
- Network autoâ'adaptability ensures smooth live video in relatively bad network conditions such as packet loss.
- Supports SNMP.
- Supports UNP for NAT traversal between public and private networks.
- Supports integration with the third party via SDK or HTTP.
- Network Security
- Supports authorized user access by password. Weak password detection and account lockâ'up when failed login attempts reach the upper limit enhance password security.
- Supports Web access via HTTPS.
- RTSP authentication prevents unauthorized video stream requests.
- IP address filtering prevents illegal access from untrusted IP addresses.
- Gateway ARP protection prevents MAC address spoofing.
- Structure
- Supports DC 12V and PoE (802.3at) power supplies.
- Cast aluminum body offers excellent heat dissipation.
- 3â'axis mounting bracket for various installation scenarios.
- A junction box on the mounting bracket is convenient for storing tail cables.
- IP67 and IK10 protection.
Technical Specifications:
Camera Sensor: 1/2.8â'inch 3MP CMOS
Focal Length: 2.8 to 12mm
Shutter: Auto/Manual, range: 1/30 to 1/100,000 s
Minimum Illumination: PKC2630-Z28â'P/PKC2630-Z28â'P: 0.003 lux (F1.4), PKC2630-Z28â'IRâ'P/PKC2630-Z28â'IRâ'P: 0.005 lux (F1.6)
Image Collection Format: 2304×1296-30 (default), 2304×1296-25
Resolution: Main stream: 2304×1296, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF
Frame Rate: 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
Video Compression: H.264 (default), H.265
ROI: Supports up to 8 regions
Video OSD: Supports 8 overlay areas including date, time, date&time, zoom ratio, custom contents
Image OSD: Supports 8 overlay areas including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location
Application Scenario: 30 km/h for entrances/exits, 80 km/h for regular roads; supports simultaneous road and entry/exit scenes
Vehicle Detection Mode: Supports video detection
License Plate Recognition: Supports recognition of numbers and letters by default
List Configuration: Supports allowlist and blocklist (up to 20,000 items per list); supports import, export, add, delete
Barrier Opening Policy: Open barrier for recognized vehicles, all vehicles, only allowlist, or vehicles not on blocklist; configurable Boolean output ID
Edge Storage: Supports ANR with Micro SD card, up to 256 GB
Illumination:
PKC2630-Z28â'P: Builtâ'in module, 4 warm light LEDs, 50 m distance, auto on/off
PKC2630-Z28â'IRâ'P: Builtâ'in module, 4 IR LEDs, 50 m distance, auto on/off
Bracket: 3â'axis mounting bracket
Junction Box: Included for tail cable storage
Network Interface: 1 × 10M/100M RJ45
Serial Port: 1 × RS485
Boolean Output: 1 relay output, AC 125V/0.3A, DC 30V/1A
Boolean Input: 2 × input, supports level (up to DC 5V) and switch signal
Audio Interface: 1 × input, 1 × output
Storage Interface: 1 × Micro SD card slot
Power Supply: DC12V ±25%
Max. Power Consumption: 20W
PoE Support: 802.3at, Class 4
Dimensions (L×W×H): 406 mm × 126 mm × 130 mm
Weight: 2.1 kg
Operating Environment: -40⃠to 60âƒ, 90% RH
Ingress Protection: IP67, IK10
