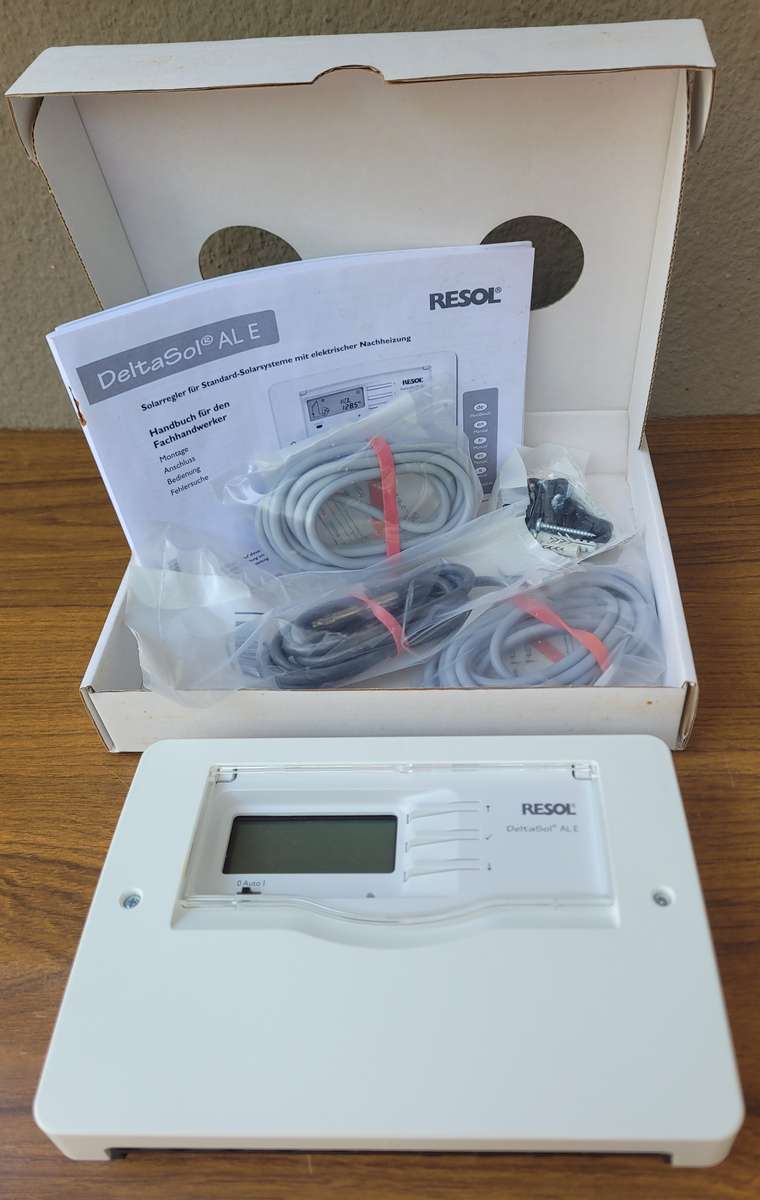

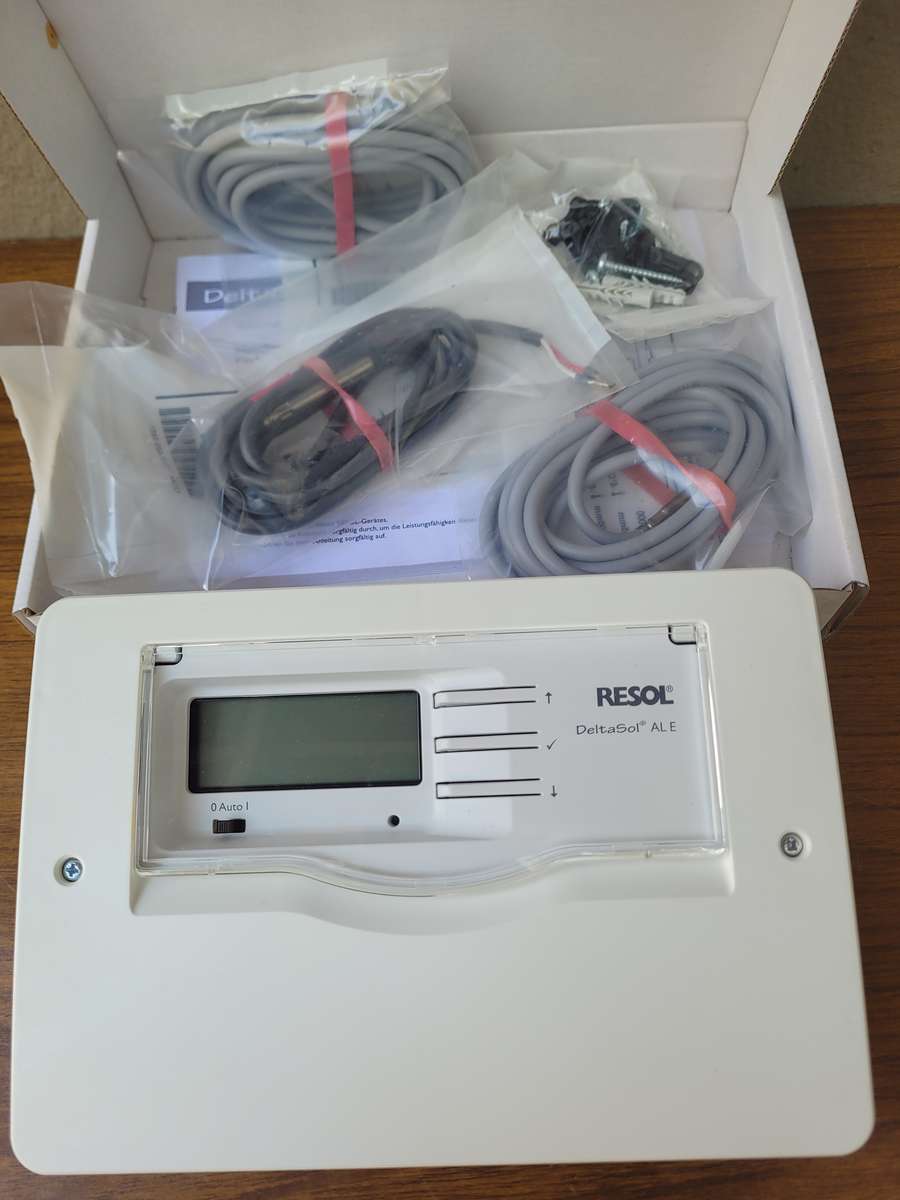

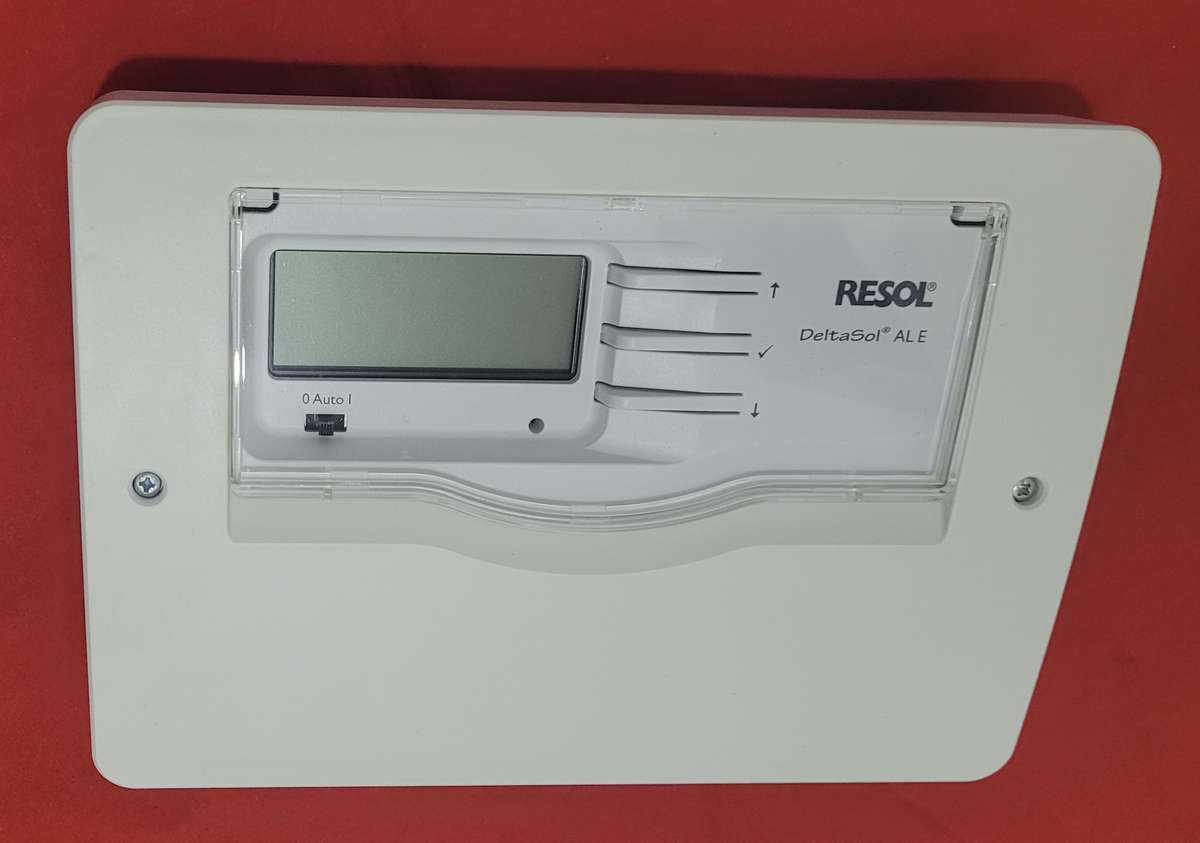

UNUSED RESOL DeltaSol AL E HE Thermal System SOLAR Controller

Courier OR free collection.

UNUSED

The DeltaSol® AL E HE controller is especially designed for standard solar systems with a high-efficiency pump and an electric backup heating.

The heater can be directly connected to the controller without the need of auxiliary relays

It is equipped with a PWM output and two high-current relays to which an electric immersion heater of up to 3 kW (230 V~) can be connected.

.

For data communication, the controller has a RESOL VBus®. Direct connection of an electric immersion heater up to 3 kW (230 V~) DHW heating with rapid heat-up and thermal disinfection Time and temperature control of the electric backup heating Solar backup heating suppression Heat quantity measurement via VFD Grundfos Direct Sensor PWM output for the speed control of a high-efficiency pump Quick access to the holiday and the manual modes Status display for a bidirectional HE pump Drain back option and tube collector function Commissioning menu Max. number of collector fields:1 Max. number of stores:1 Weather-compensated heating circuits:- External heat exchanger:- Speed control of standard pumps: check Speed control of HE pumps: check via integrated PWM output:check via PSW adapter:- Hardware Temperature sensor inputs:4 Sensor type:Pt1000 Inputs for Grundfos Direct Sensors:digital Input for CS10 irradiation sensor:- Impulse inputs for V40 flowmeter:- Relay outputs in total:3 semiconductor relays (speed control):1 electromechanical relay:- potential-free relay with changeover contact:- potential-free relay with normally open contact:- potential-free high-current relay:2 PWM outputs:1 convertible to 0-10 V:- Real-time clock:check Data interface:VBus®
