Up to 63A (variable Trip Limit) 63A WIFI Smart Breaker with optional Energy Monitoring
Most homes have a 63 Amp breaker to power the complete home with geysers, stoves and appliances. use this breaker to make your home smart and to switch-off power completely based on smart scenes during load shedding to preserve solar equipment battery life, switch of other high power devices based on routines when using a smart monitoring breaker as per options on this product.
NOTE!! Please ensure all electrical wiring is done by someone who is qualified to do so or knows how to work safely with electricity. Please be safe when working with electricity and ensure correct procedures followed. We recommend installation by a qualified electrician for all electrical equipment.
To install this DIN Rail breaker on a Samite Type Rail DB Board please use the adapter as at DIN Rail to Samite Rail Adapter.
Features of Smart Breakers (Independent of monitoring capabilities):
- With the 63A WIFI Smart Breaker, you can control high power appliances such as geysers, pool pumps, heat pumps, jacuzzi heaters or even complete homes are powered by a 63A mains breaker.
- Schedule/Timer/Loop timer, Scene based routines can change status base on status of other smart devices.
Features and Specifications of 63A Smart Breaker:
- Rated Voltage: 110-240V
- Rated Current: 40 Amp continues / 63 Amp peak.
- Connection: WIFI 2.4Ghz
- Installation: Din Rail
- Rated Frequency: 50/60hz
Features of 1 Pole Smart Breaker with Adjustable Trip Limit (Volts, Watts, Amps) and Energy Monitoring Capabilities : Ewelink App

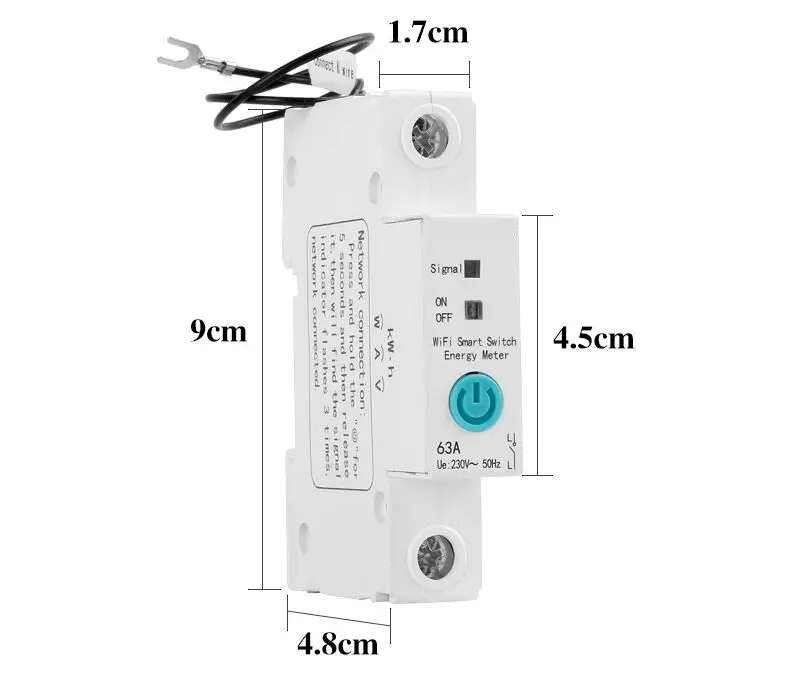

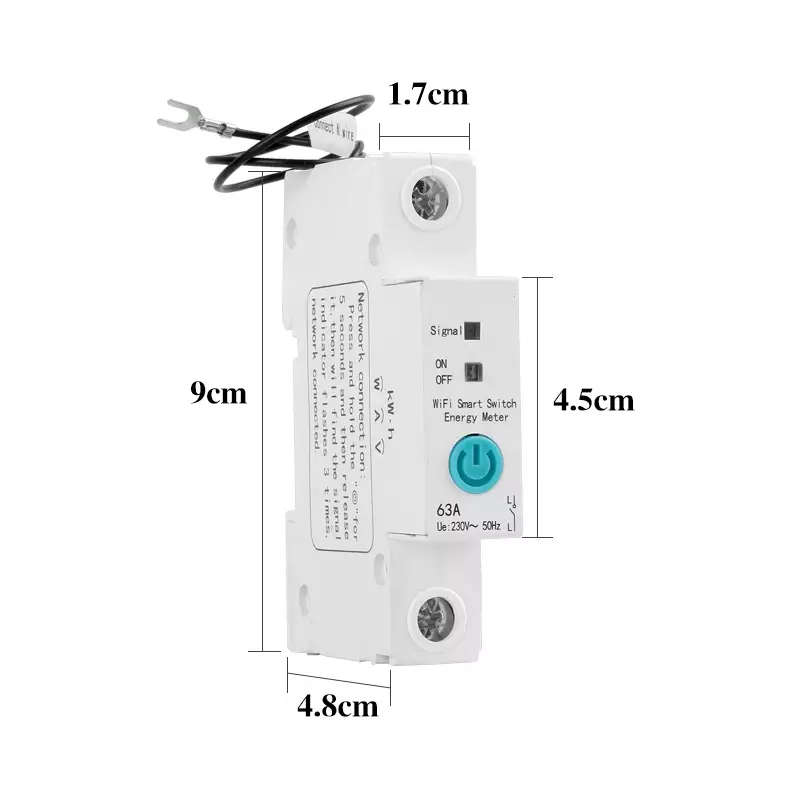

- Dimensions (Fits on Standard DIN Rail inside DB Board):

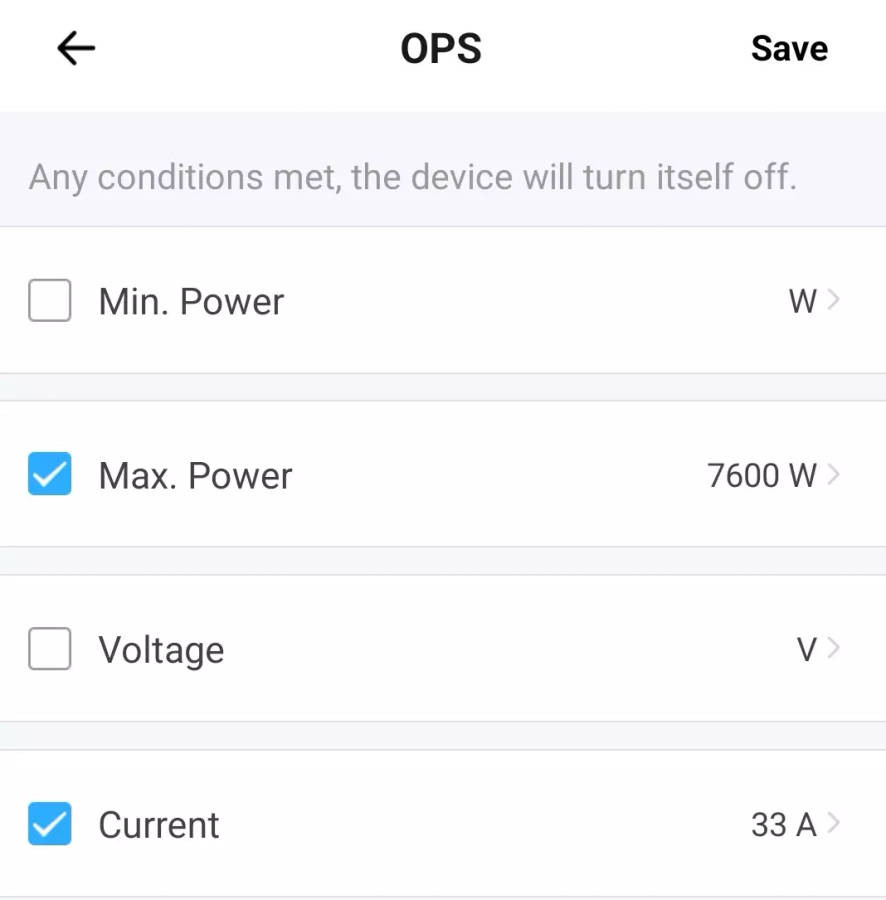

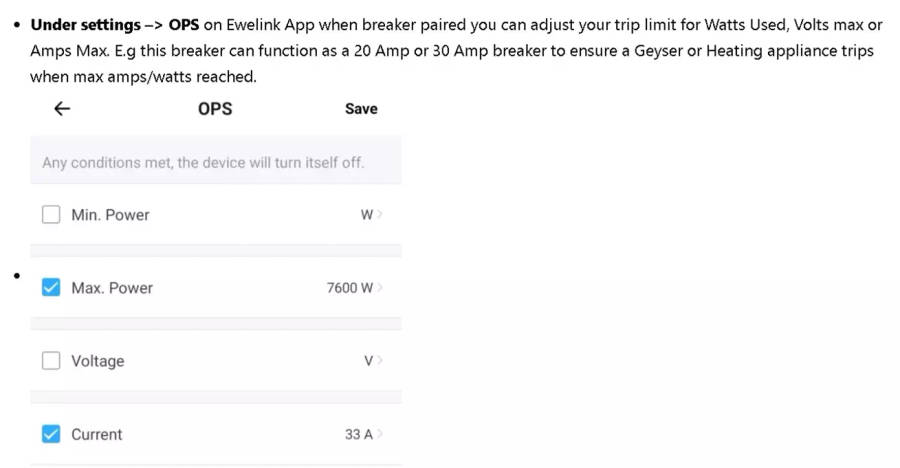

- Under settings --> OPS on Ewelink App when breaker paired you can adjust your trip limit for Watts Used, Volts max or Amps Max. E.g this breaker can function as a 20 Amp or 30 Amp breaker to ensure a Geyser or Heating appliance trips when max amps/watts reached.

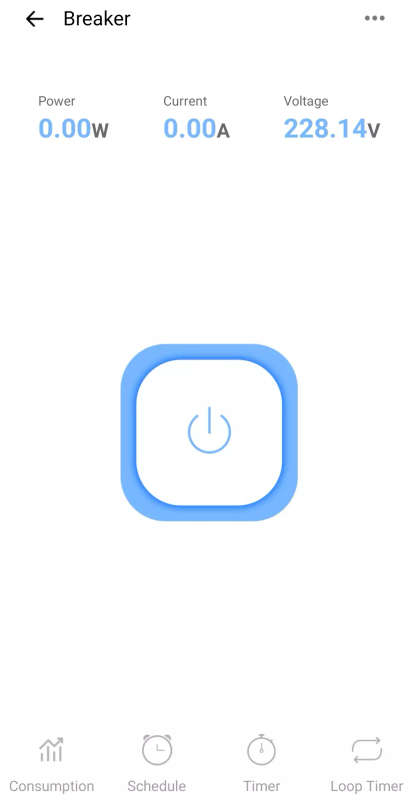

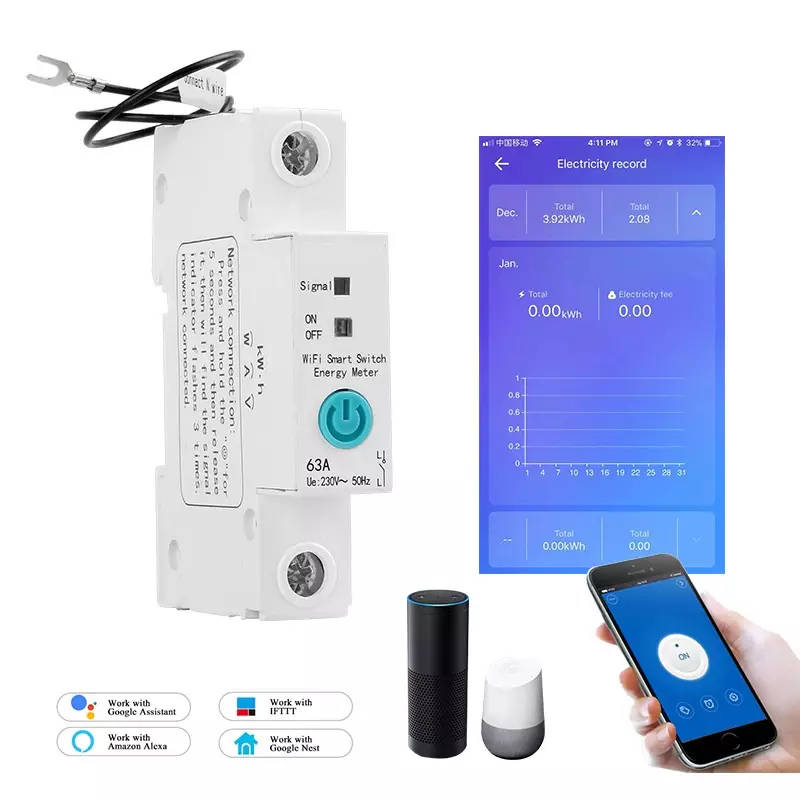

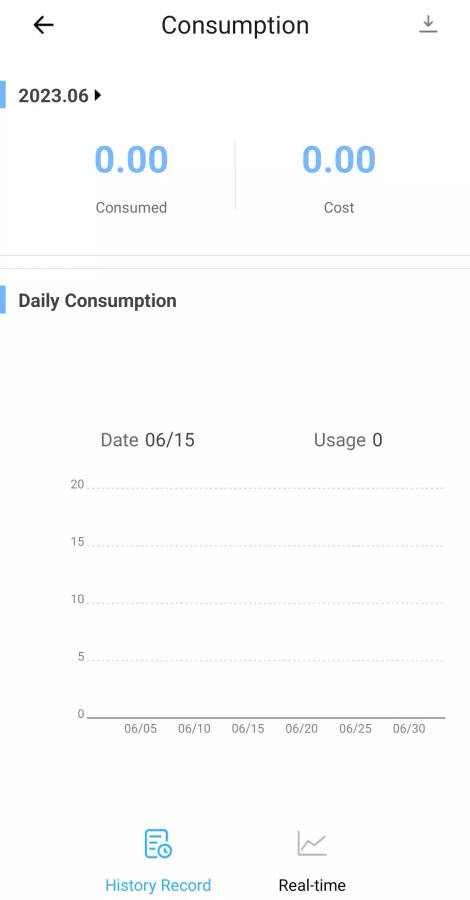

- The Smart Energy / Power Monitoring Breaker uses the EWELink app. All power related stats can be monitored or used in auto scenes to trigger scenes or status of other devices. The 63A WIFI Smart Breaker with Power Monitoring Capabilities has Live Energy monitoring, Set power unit price to calculate usage, Calculate device power consumption, set routines or scenes based on Amps / Watts used etc to trigger other smart devices.
- Preset power/current/voltage trip values in-app, Once the real-time power/current/voltage reaches the threshold values, the connected electrical appliances will be automatically turned off or another smart device status can be changed based on electrical power consumption of devices connected to the smart breaker with monitoring.

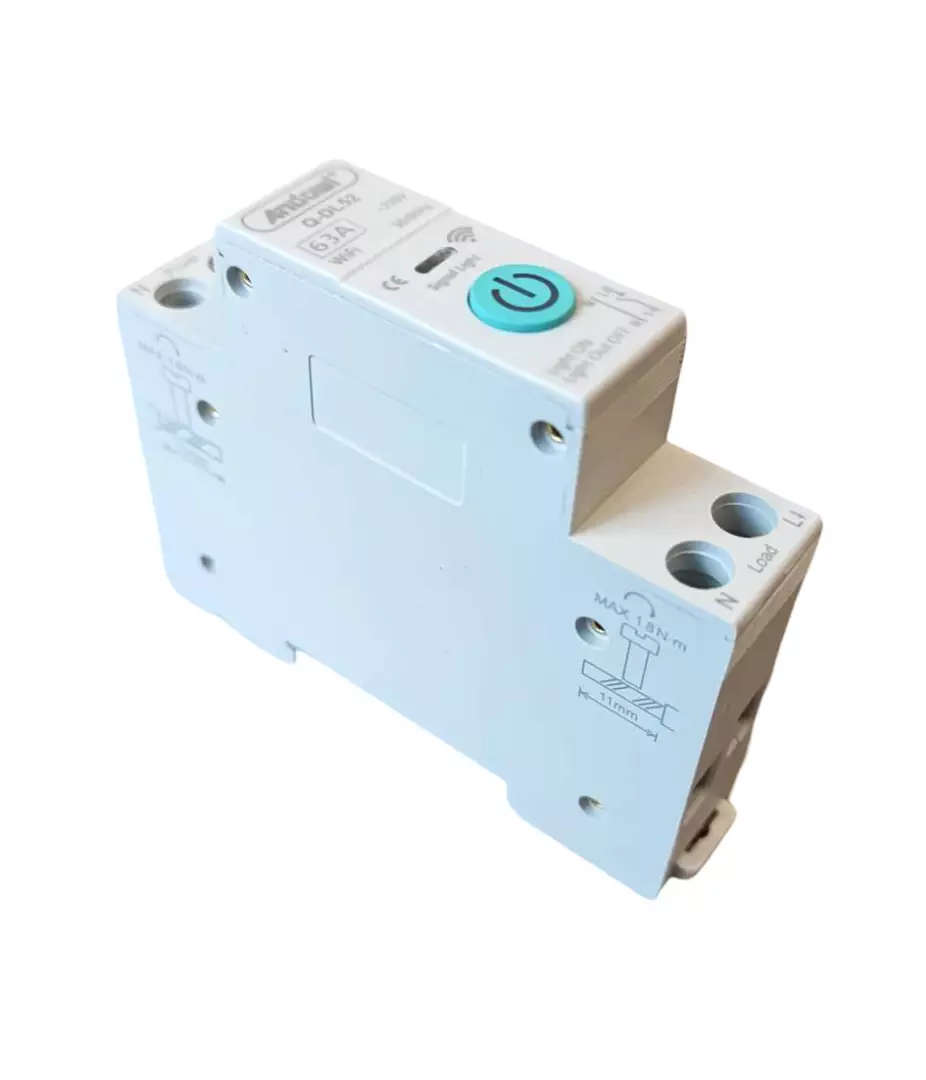

Features of 2 Pole NO Energy Monitoring, 63A Non-Variable Trip Limit Smart Breaker: Tuya App

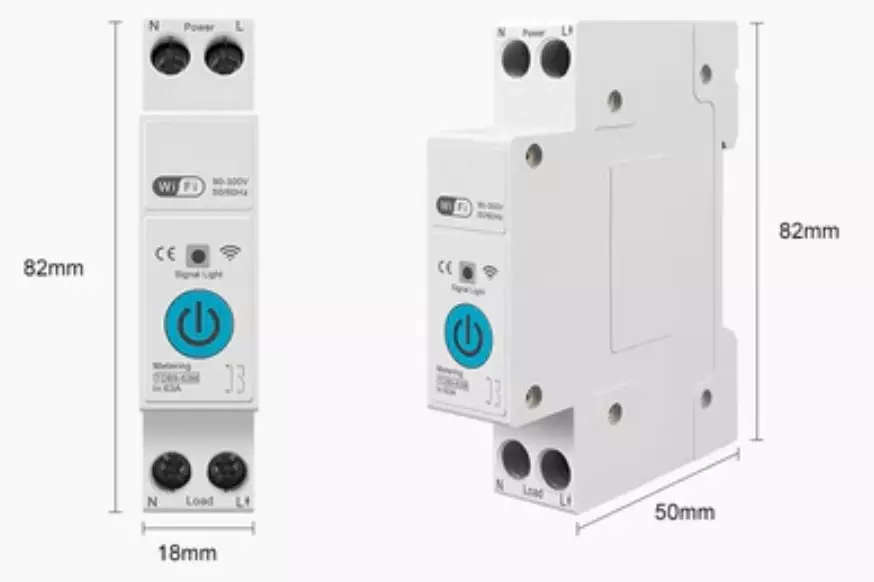

Dimensions (Fits on Standard DIN Rail inside DB Board):
Manually Add Device as Wifi Breaker to Tuya App:

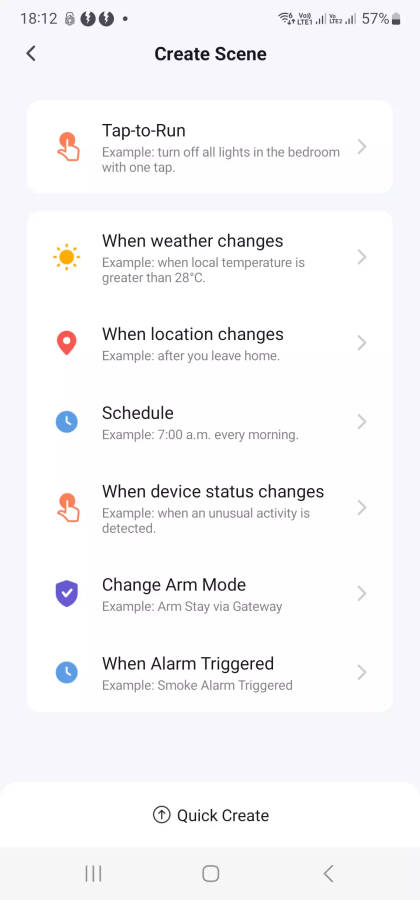

Smart Scenes below can be specified on Tuya App (Ewelink App Above for Smart Energy Monitoring Breaker has same Auto Scenes + Thresholds for Amps, Watts, Volts etc additional)
If used as a breaker that must be auto-on e.g. mains breaker or similar please be aware that your wifi will also be down when main power is down with no control to Wifi Smart Breaker due to no wifi connection when all power down.

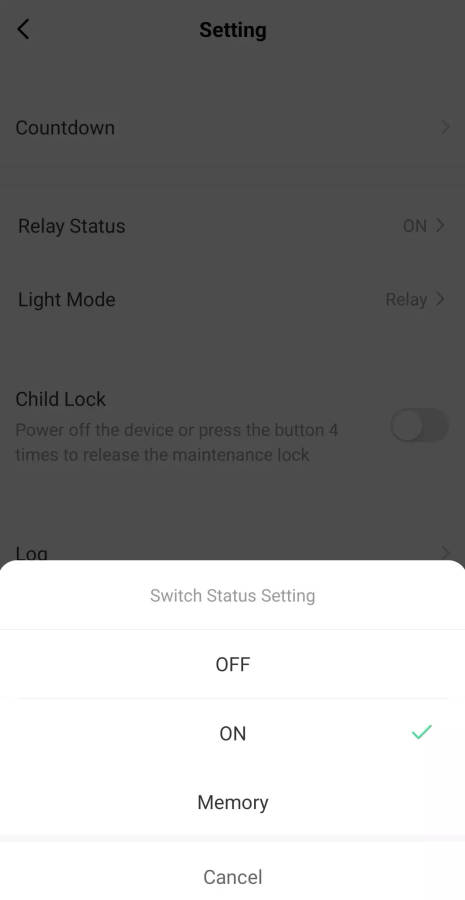

In such a case please setup below status to "ON" when breaker status must be set after power failure / load shedding, default is OFF. This setting is saved to the breaker itself and will be set after a restart / power failure / load shedding.
Example Installation Diagram ANY Smart Breaker:
