UPA Programmer Desription 1
STMicroelectronics ST62*:
1. ST6240, ST6245, ST6249
2. NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9
3. For Motorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,MC68HC05X16, MC68HC05X32
4. For Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A
5. For Motorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
6. For Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A
7. For Motorola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256
8. Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253
9. Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313
10. Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675
11. Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A), PIC16F877(A)
UPA Programmer Desription 2
1. EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01
2. EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46
3. EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, M25P05, M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045
4. EEPROMs Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102
*EEPROM Only
NEC ..uDP780828A uDP780948 uDP780949 uDP780973 uDP780974
TMS...TMS370CX02 TMS370CX32 TMS370CX36 TMS370CX42 TMS370CX56 TMS370CX56 TMS370CX56 78K0/HC912
TMS370CX58 TMS370CX58 78K0/HC912 TMS375C006

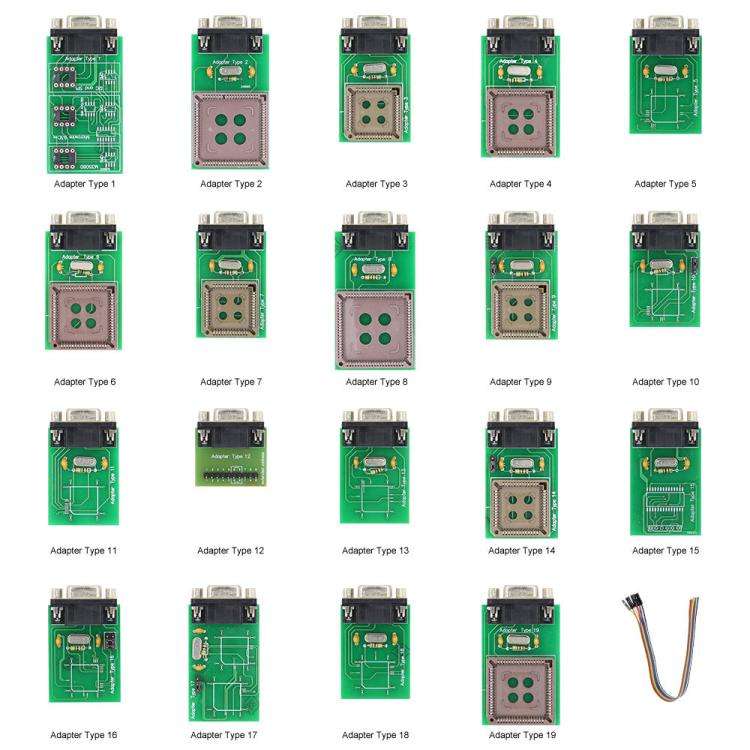

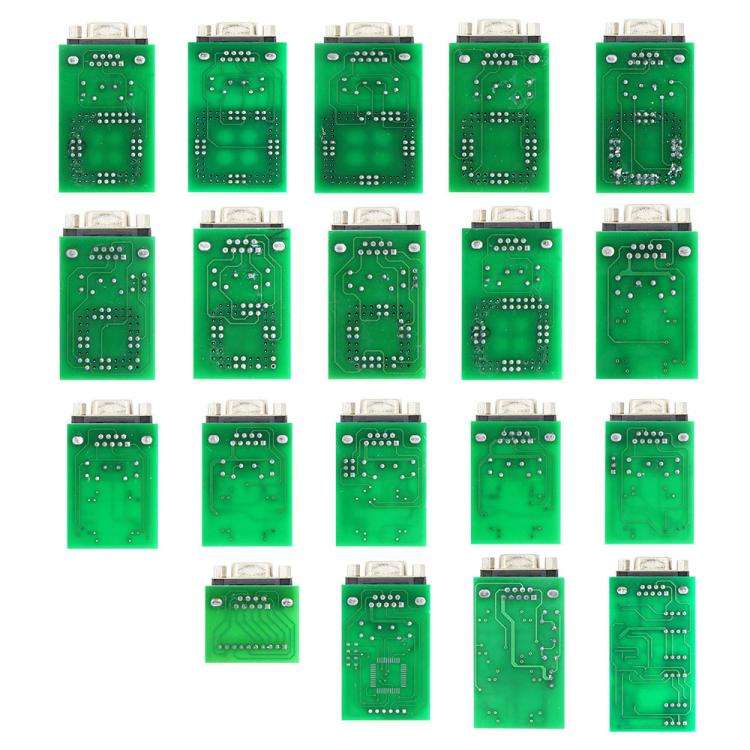

Package List
1. Adapter Type1 Per eprom IA2C,SPI, Microware e M35080

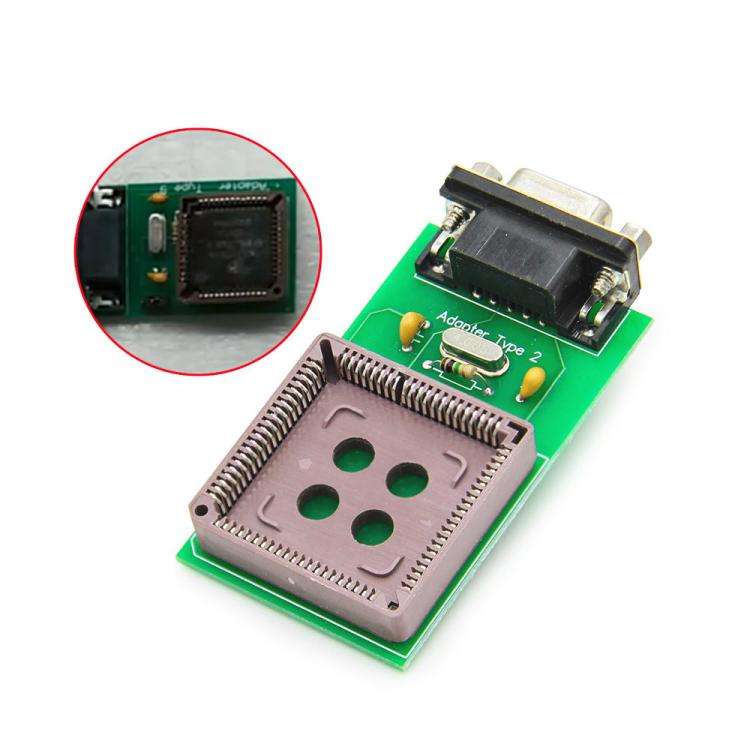

2. Adapter Type2 for Motorola MC68HC11P2+MC68HC11PH8-PLCC84
3. Adapter Type3 for Motorola MC68HC08AS-PLCC52
4. Adapter Type4 for Motorola MC68HC11KA2/4+MC68HC11KS-PLCC68
5. Adapter Type5 for Motorola MC68HC(9)08-QFP64
6. Adapter Type6 for Motorola MC68HC11F1-PLCC68
7. Adapter Type7 for Motorola MC68HC05H12-PLCC52
8. Adapter Type8 for Motorola MC68HC11K-PLCC84
9. Adapter Type9 for Motorola MC68HC11A8/E1/E9/ E20+MC68HC11EA9-PLCC52
10. Adapter Type10 for Motorola MC68HC11KA2/4+MC68HC11PA8-QFP64

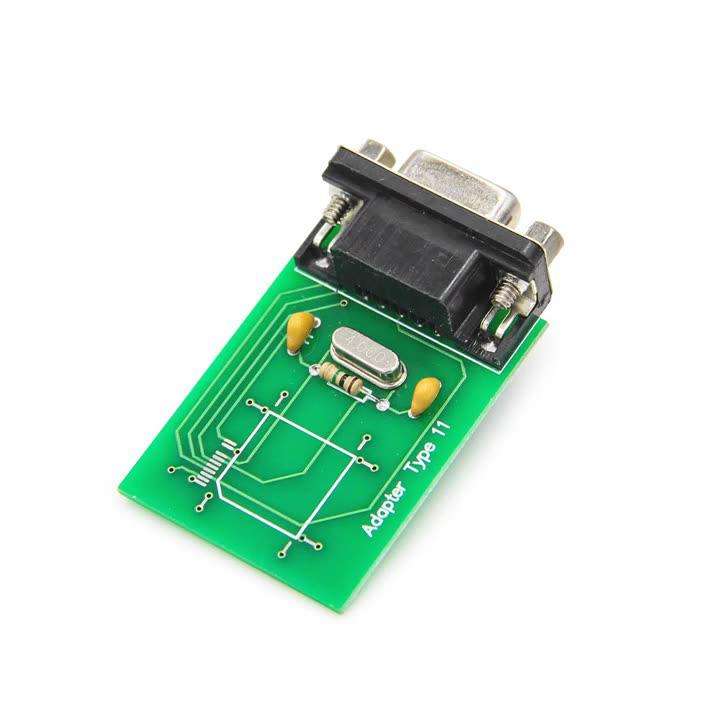

11. Adapter Type11 for Motorola MC68HC11K-QFP80
12. Adapter Type12 for Extended address
13. Adapter Type13 for Motorola MC68HC11A8/E1/E9/E20-QFP64
14. Adapter Type14 for Motorola MC68HC05B4/B6/B8/B16/ B32+MC68HC705B16/B32-PLCC52
15. Adapter Type15 for Motorola MC68HC(7)05E6-SOIC28
16. Adapter Type16 for Motorola MC68HC05B4/B6/B8/B16/ B32+MC68HC(7)05X16/X32-QFP64
17. Adapter Type17 for Motorola MC68HC(9)12B32-MC68HC(9)12D60(A)-QFP80
18. Adapter Type18 for Motorola MC68HC11F1-QFP80
19. Adapter Type19 for Motorola MC68HC11L6-PLCC68
