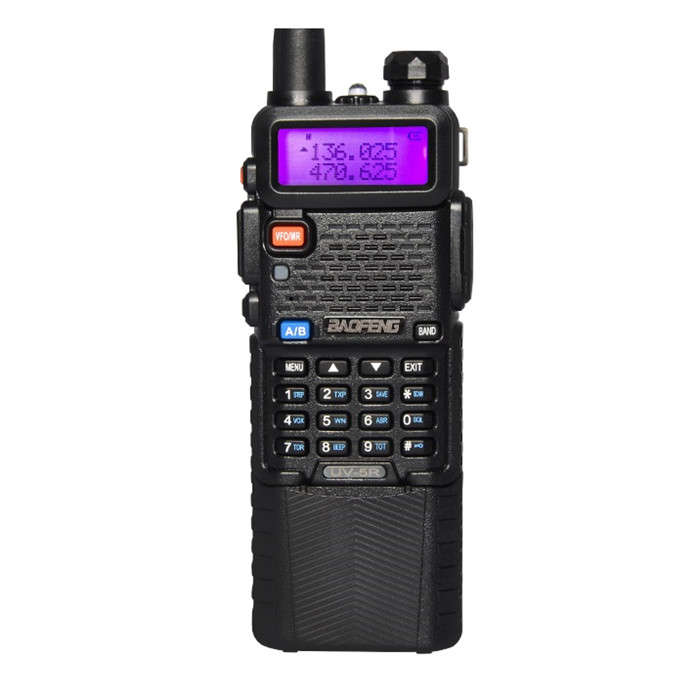

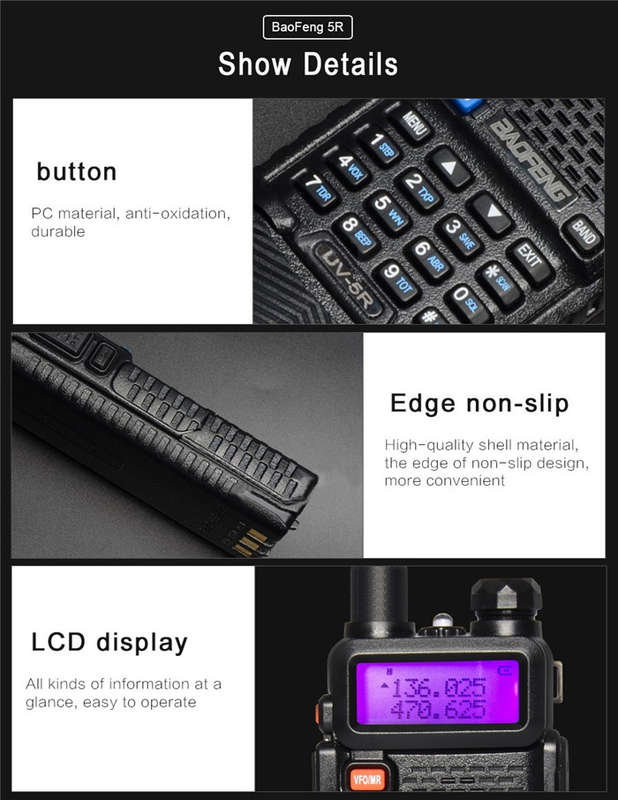

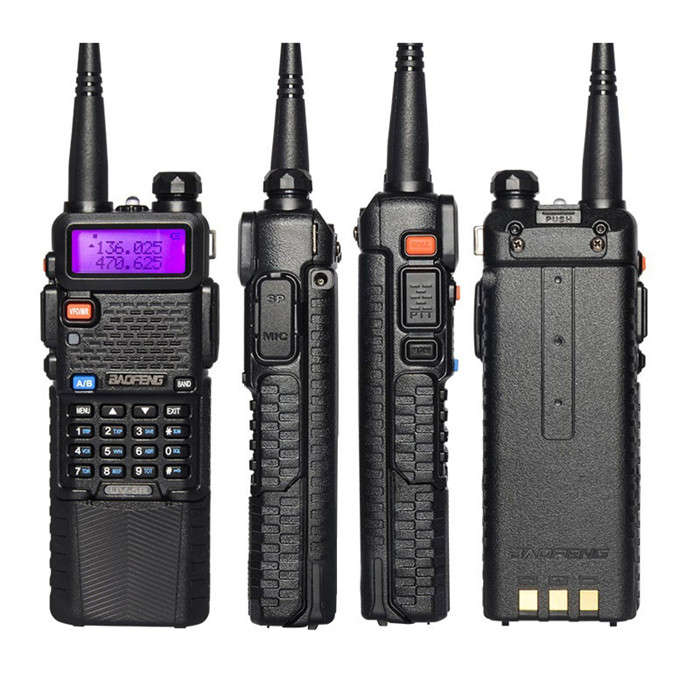

Item number | UV-5R |
General | |
Frequency Range | 65-108MHz(FM Receive only) |
136-174MHZ and 400-520MHZ (TX/RX) | |
Channel No. | 128 |
Frequency Stability | 2.5ppm |
Antenna | High gain DualBand antenna |
Antenna Impedance | 50 |

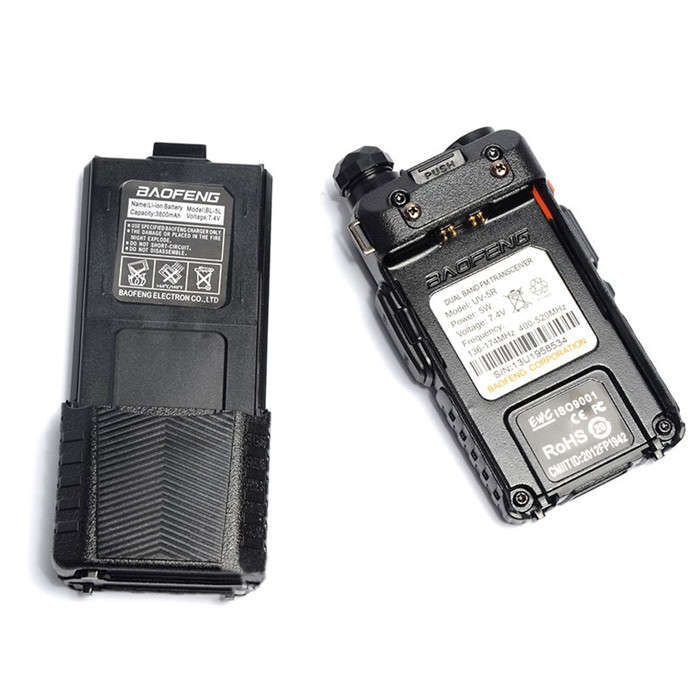

Operating Voltage | DC 7.4V |
Mode of operation | Simple or semi-duplex |
Dimension(W x H x D) | 100 x 52 x 32 mm |
Weight | 250g(including battery, antenna) |
Transmitter | |
Output power | 4W / 1W (Max 5W) |
Modulation Mode | 16kF3E / 11kF3E |
Maximum deviation | <5kHz(Wide) / <2.5kHz(Narrow) |
Spurious Radiation | <7W |
