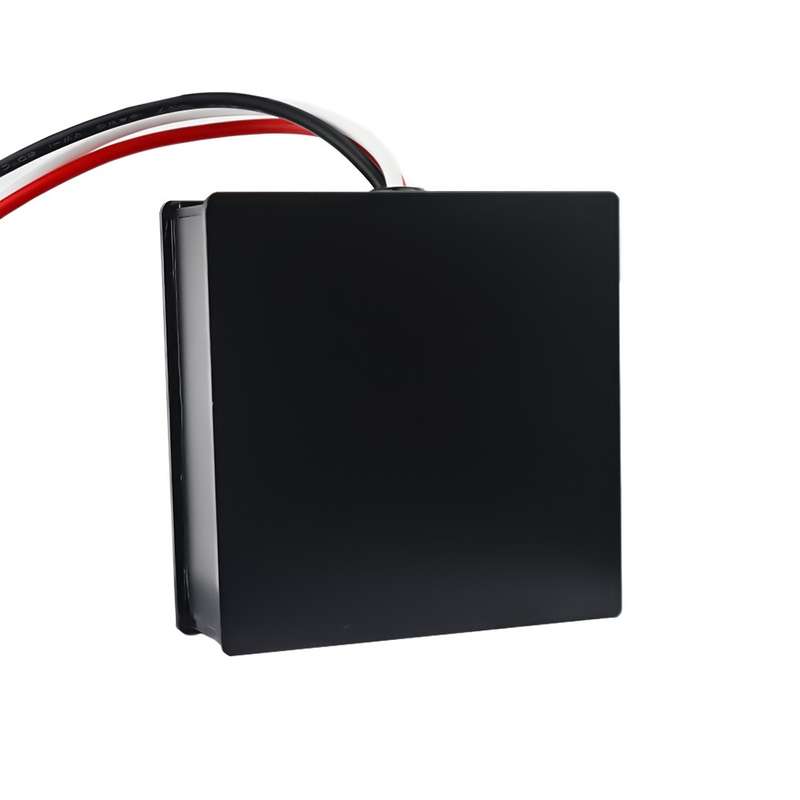

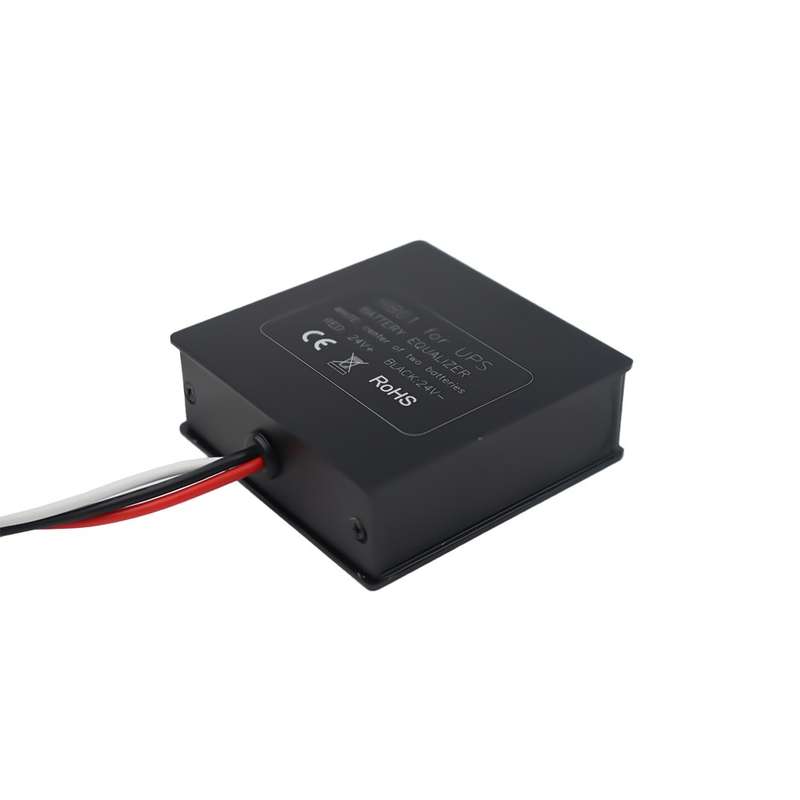

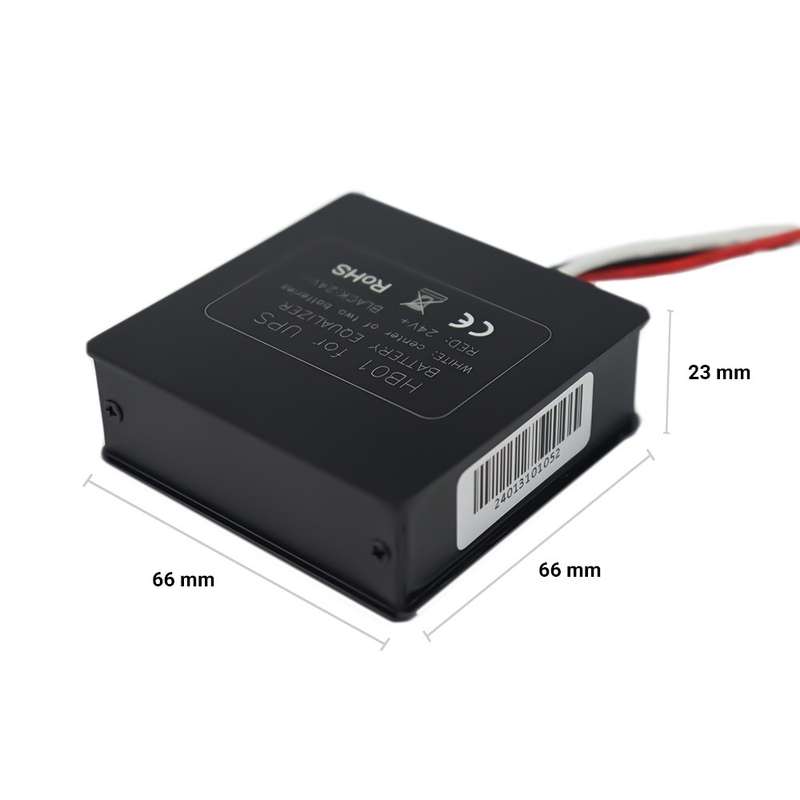

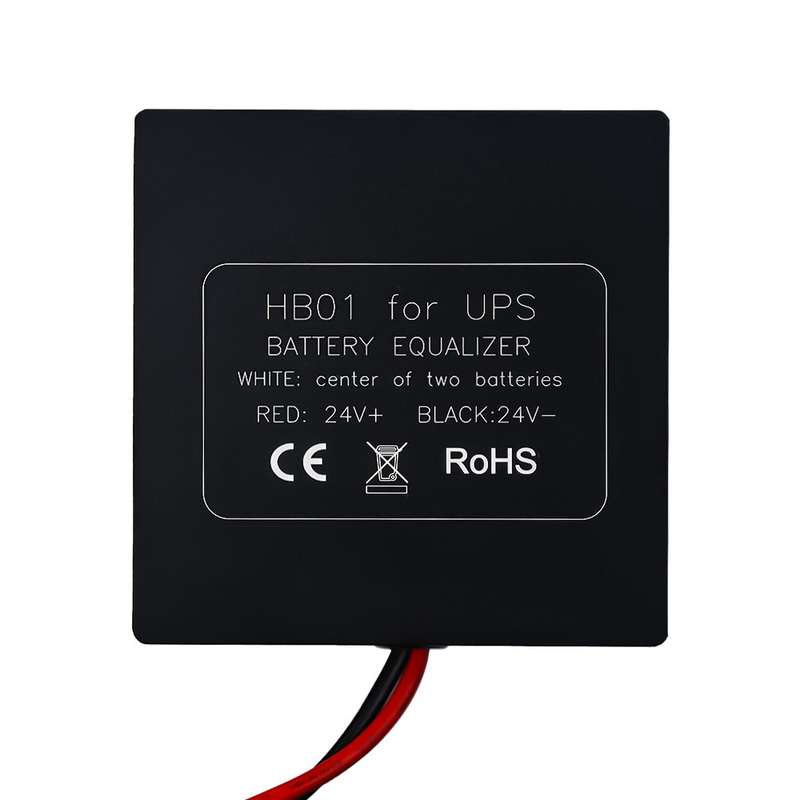

UPS Lithium 24V Battery Balancer / Equaliser (suitable for all battery types) - 24V (2x 12V F1 T1...

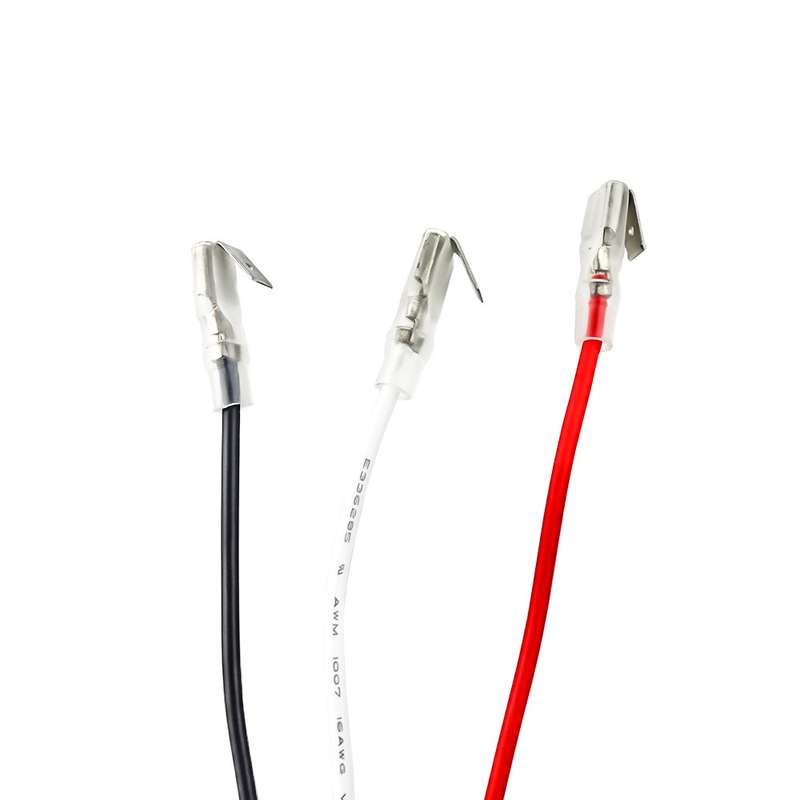

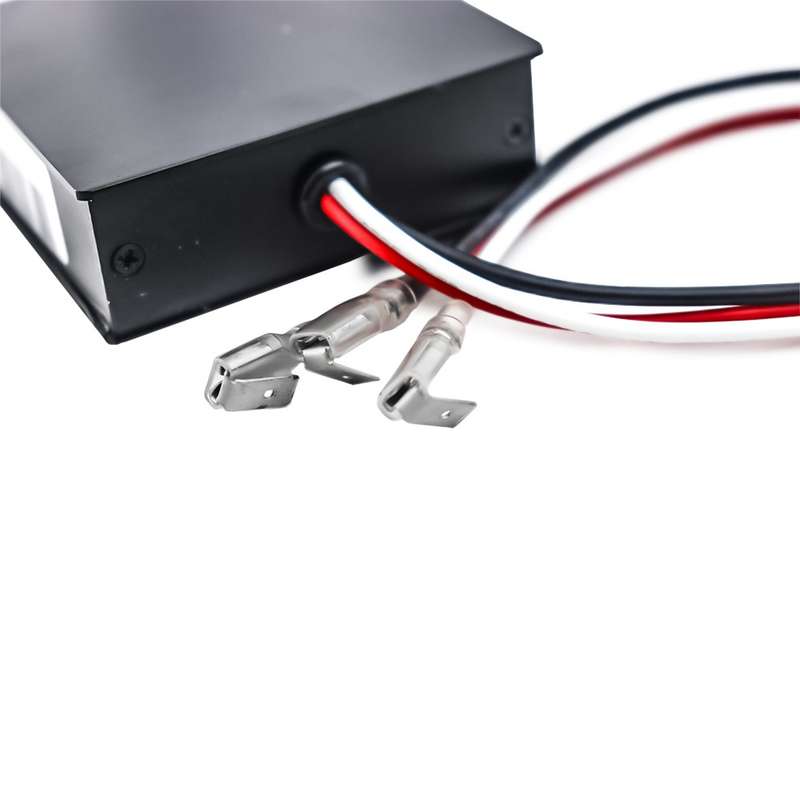

*Connectors are designed for F1 (T1) Terminals - to be used to upgrade UPS batteries to Lithium

Suggested batteries: https://www.geewiz.co.za/lithium-ion-batteries/206811-geewiz-12v-10ah-up-to-40a-discharge-lithium-lifepo4-battery-compatible-with-gates-alarms-cctv-ups-3-year-warranty-same-size-as-7ah-replacement-battery.html

Features

- Keeps batteries in optimal condition
- Up to 5Amp inter battery balancing
- Ensures longer service life of batteries
- Highly recommended for batteries in series
- 24V Active balancer

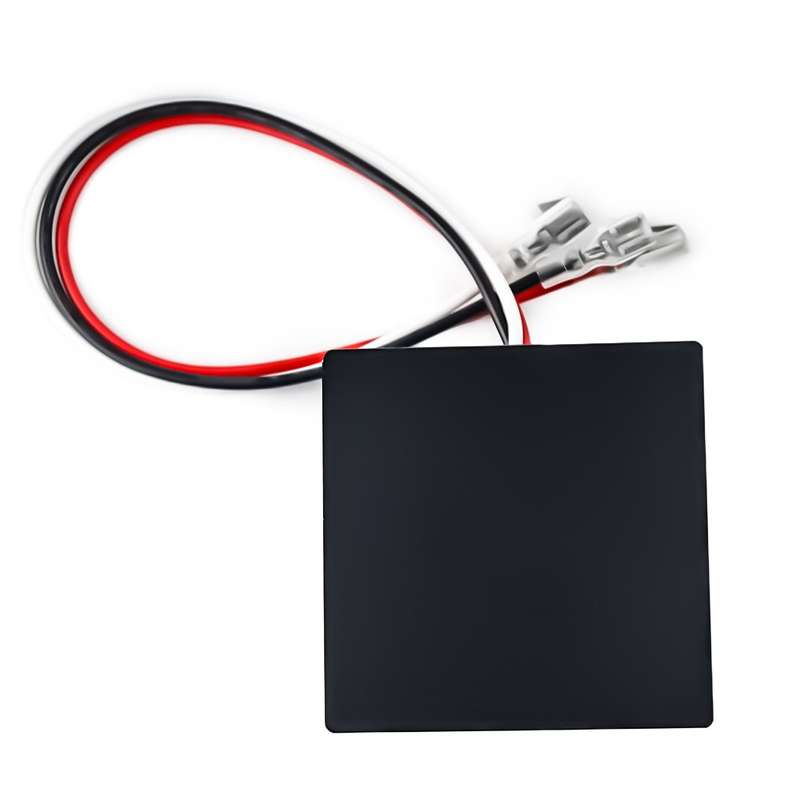

- Easily connect to batteries with included wiring

Specifications

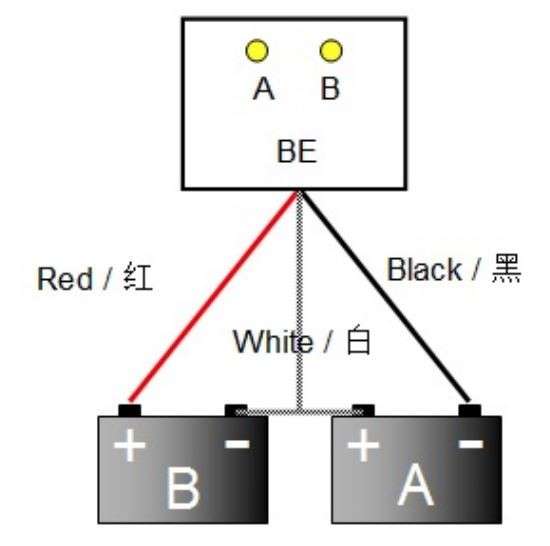

• Can be connected to 24V UPS Batteries (2x 12V F1 T1 Terminal in series)
• Monitors each battery voltage
• On deviation of more than 20 mV, the higher voltage battery will be discharged to the lower voltage batteries until all the battery voltages are equal
• Battery banks of 2.4V/3.6V/6V/9V/12V can be used
• IP67 rated
• No external power supply is required
• Reverse polarity protection
• Optimization current-controlled between 0 to 5 A
• Low power consumption of 3mA

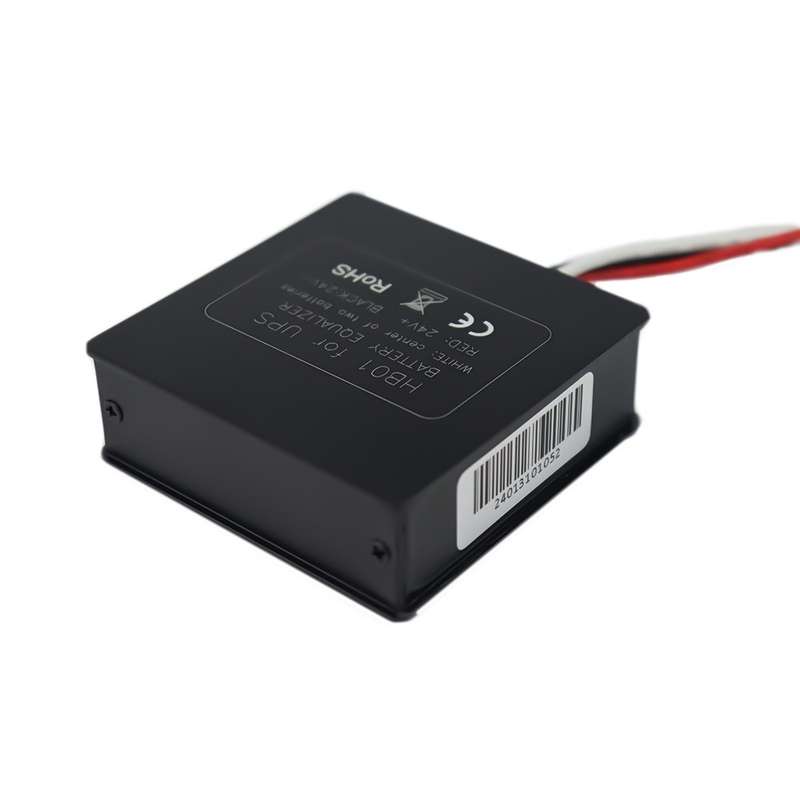

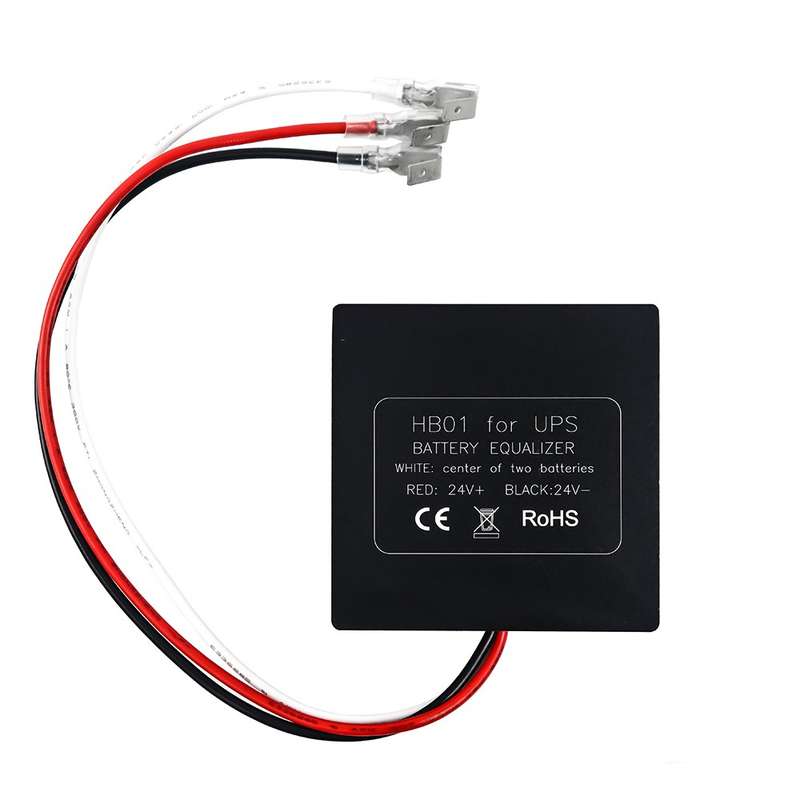

HB01/HB11/HB11L
