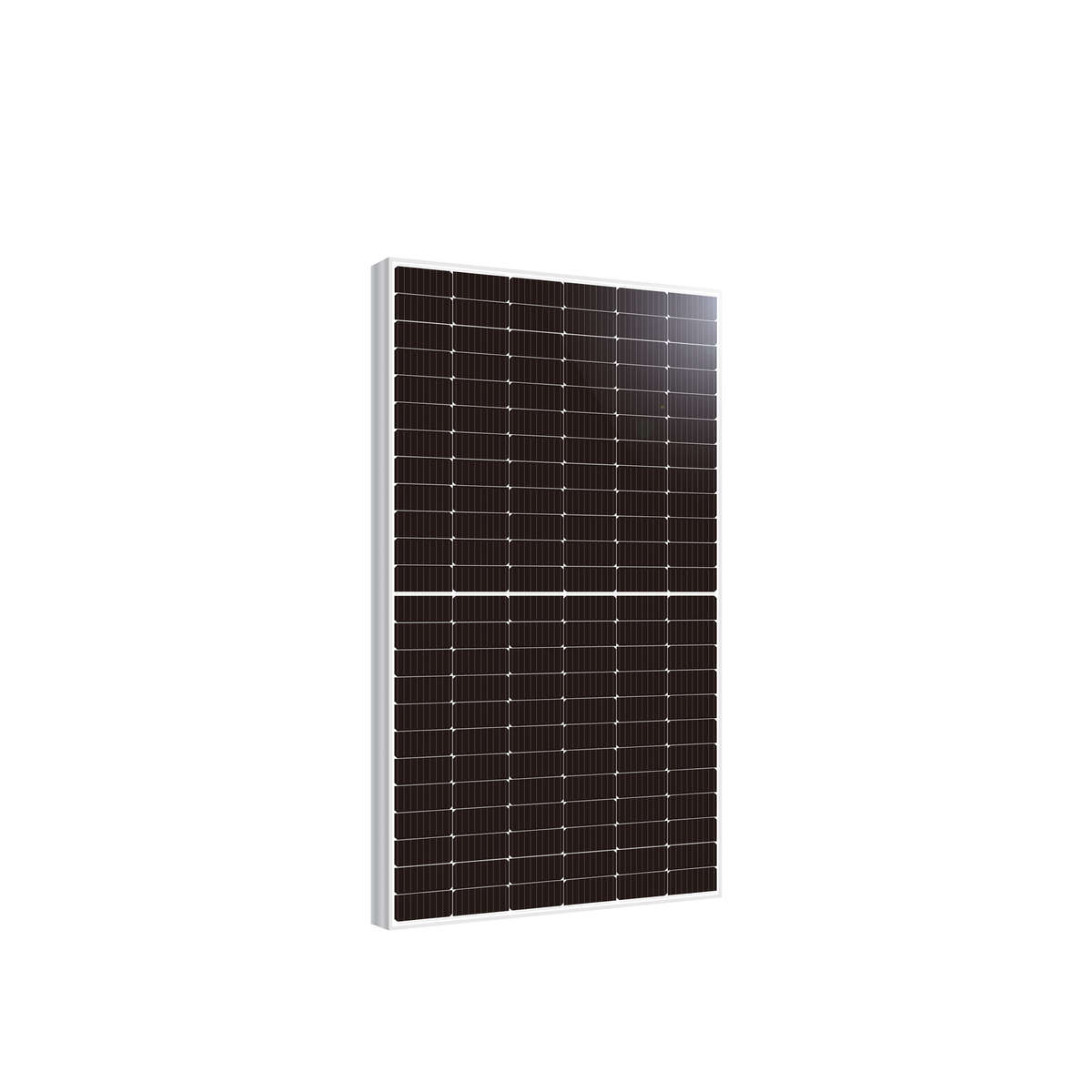

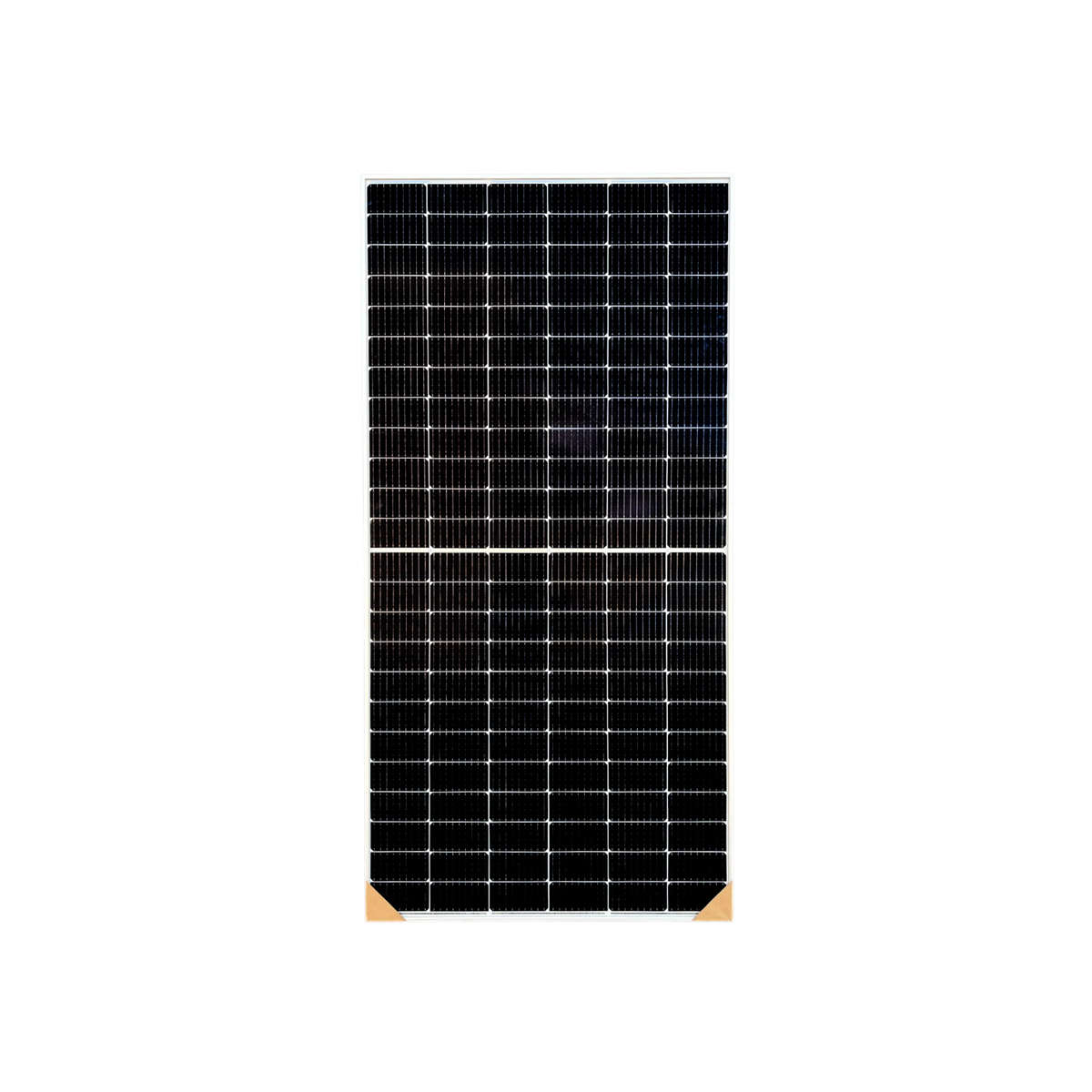

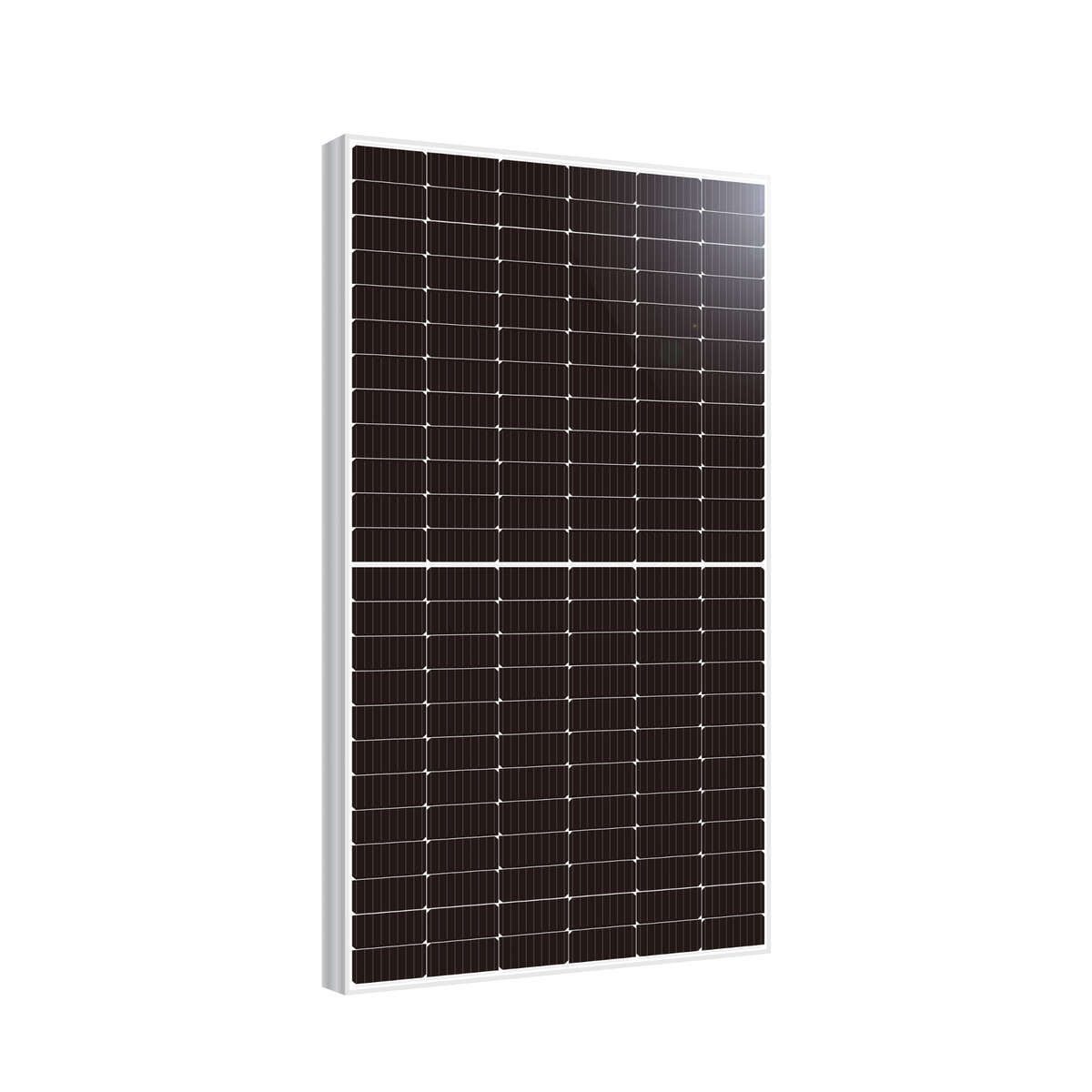

URE 450W Solar Panels High-Efficiency 144 Cell HCC Module (9BB)
TÜV Certified | Bloomberg New Energy Finance Tier 1 Rated
Harness the power of advanced solar technology with URECO Taiwan's 450W 144 Cell Half-Cut Cell (HCC) Solar Panels!
Built using state-of-the-art cutting technology and precision manufacturing, these panels are engineered for high efficiency, superior durability, and maximum reliability, even in low-light conditions. A trusted solution for both residential and commercial solar applications.

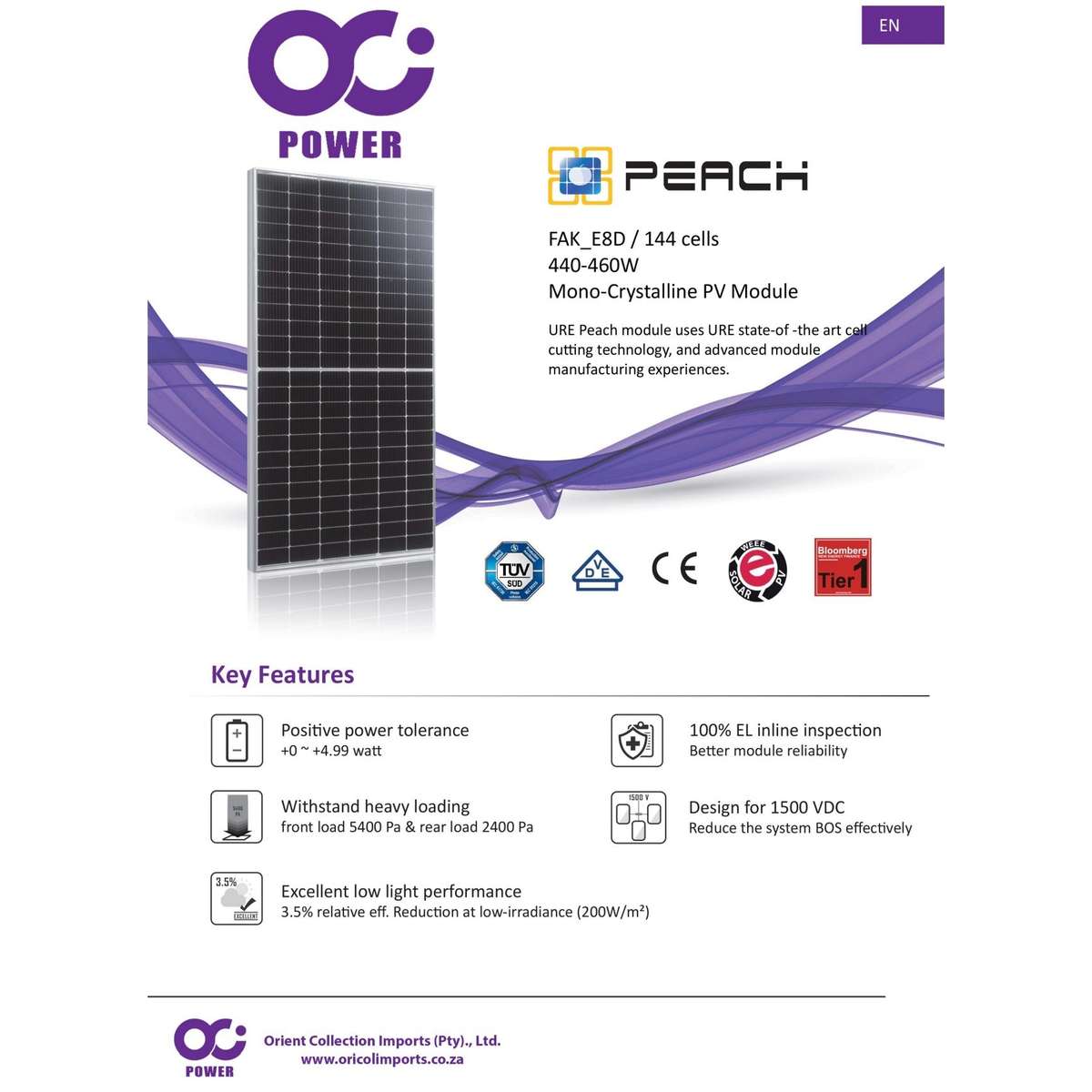

Key Features & Benefits
Positive Power Tolerance: Guaranteed output range of +0 to +4.99 watts ensures stable and efficient performance with minimal variance.
100% EL Inline Inspection: Each module undergoes full Electroluminescence testing for optimal reliability and early fault detection.
Heavy-Duty Load Resistance: Designed to endure 5400 Pa front load and 2400 Pa rear load ideal for demanding environments.
Ammonia Resistant: Suited for agricultural settings and high-exposure areas where long-term resilience is essential.
1500 VDC System Compatibility: Supports high-voltage system design to reduce Balance of System (BOS) costs effectively.
Superior Low-Light Efficiency: Maintains excellent output with only 3.5% performance reduction at irradiance levels as low as 200W/m².
Warranty Assurance:
Applications
Residential Rooftops
Commercial Solar Systems
Agricultural & Farming Installations
Industrial Projects
Choose URE a global leader in photovoltaic innovation and invest in proven performance, certified quality, and long-term energy independence.

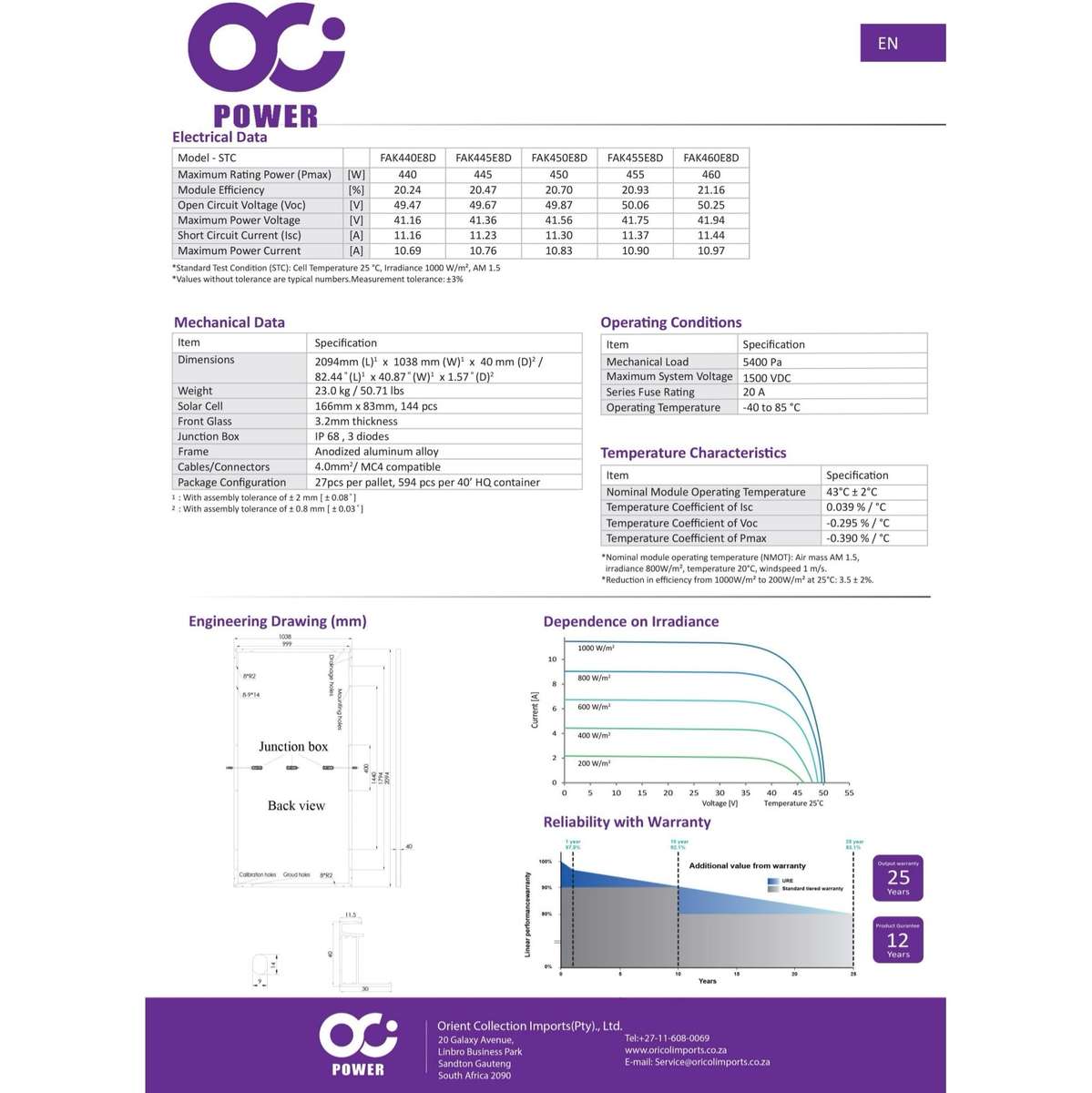

| Item | Specification |

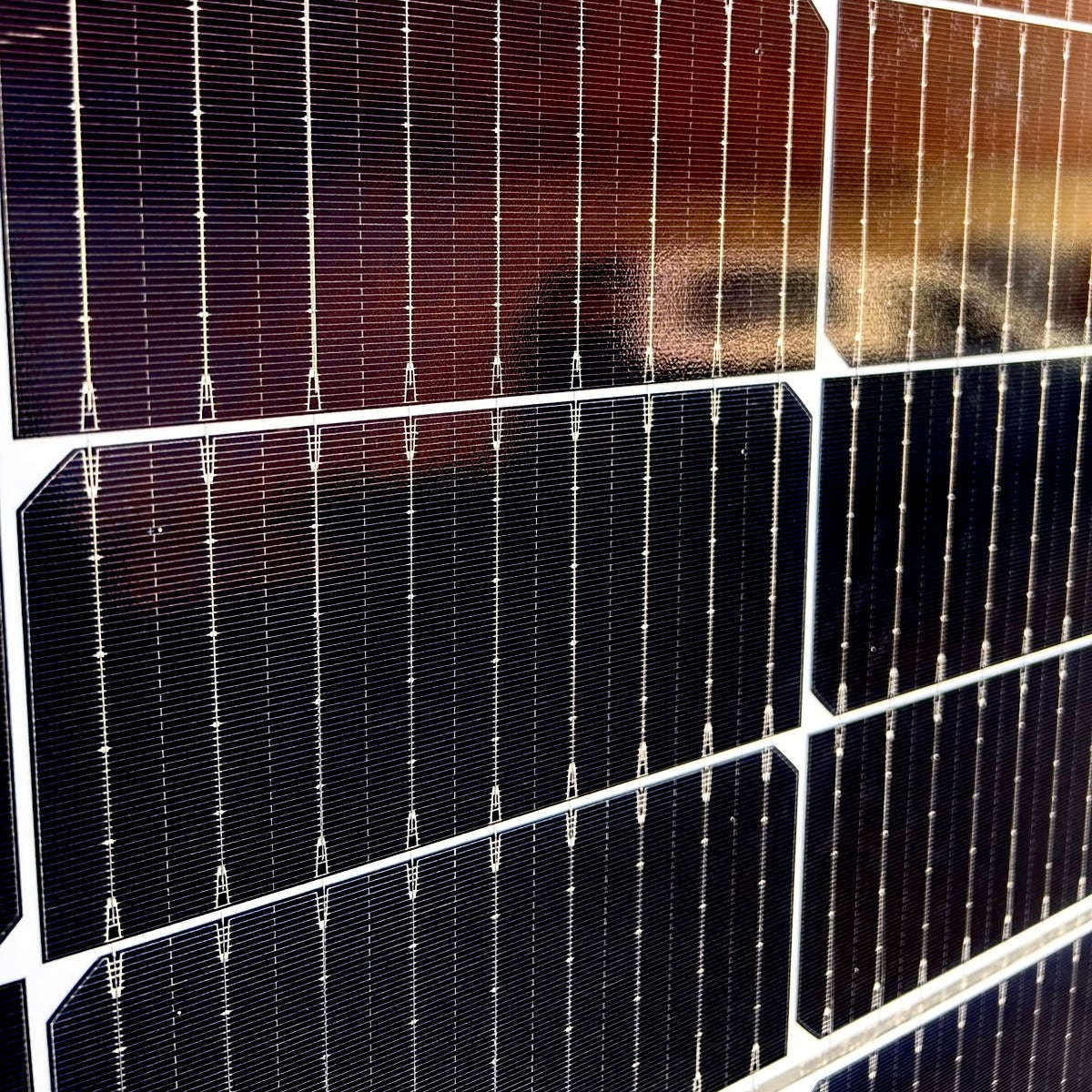

| Cell Type | 166mm x 83mm Mono-crystalline |
| Cell Orientation | 144 cells |
| Module Dimensions | 2094 × 1038 × 40 mm |
| Weight | 23.0 kg / 50.71 lbs |
| Front Cover | 3.2mm high transmittance, reinforced glass |
| Back Sheet | Anti-aging film |
| Frame Material | Anodized aluminum alloy |
| Junction Box | IP 68 , 3 diodes |
| Cable | 4.0mm2 |
| Connector | MC4 compatible connector |
| Item | Specification |
| Maximum Rating Power (Pmax) | 440 |
| Module Efficiency | 20.24 |
| Open Circuit Voltage (Voc) | 49.47 |
| Maximum Power Voltage | 41.16 |
| Short Circuit Current (Isc) | 11.16 |
| Maximum Power Current | 10.69 |
*Standard Test Condition (STC): Cell Temperature 25 °C, Irradiance 1000 W/m², AM 1.5
*Values without tolerance are typical numbers. Measurement tolerance: ± 3%
| Item | Specification | | Mechanical Load | 5400 Pa | | Maximum System Voltage | C1500 VDC | | Series Fuse | 20 A | | Rating Operating Temperature | -40 to 85 ° |
|
*Shipping costs will be affected due to size and weight of the panels*
