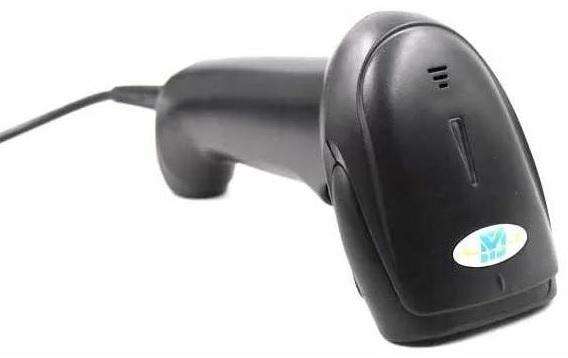

DY BARCODE SCANNER - DS6100C
High Light: Cmos Barcode Scanner, Barcode Scanner gun
DS6100 10mm-500mm Depth Field 32-bit USB/RS232 Wired Barcode Scanner 2D Handheld barcode Reader
Product Description
DS6100 is a high-performance 2D barcode scanner with leading CMOS image recognition technology
It can easily read the paper, goods, screen and other media barcodes
Widely used in manufacturing, warehouse, logistics, health care, retail chain
Mobile payment, express delivery, inventory management, food traceability, asset inventory, etc
Features
Ergonomic design, comfortable using, cost-effective.
Read all mainstream 1D 2D barcodes in the market easily. (4mil)
Interface: USB.
Support multiple languages and systems
Support USB barcode information transmission. ( languages customization)
Widely used in supermarket, warehouse, mobile payment, chain stores.
Application
Supermarket
Warehouse
Mobile payment
Retail chain
Courier
Health care
Physical Parameter
Weight: 110g(without cable)
Dimension: L150mm x W70mm x H95mm
Interface Type: USB
Communication Way: USB(USB-KBW,USB-COM)
Power Supply: DC 5V@130mA(work)
Performance
Scan type: CMOS
Light source: Red light LED 62510nm(aim),5600K LEDs(lighting)
CPU: 32-bit
Resolution: 640 x 480
Resolution: 4mil/0.1mm(PCS90%,Code 39)
Scan Tolerance: 10CM/S
Depth of Field: 10mm-500mm
Scan Mode: Manual, Continuous, Auto sense
Scan Angle: Roll 360, Pitch60, Skew60 (PCS90%, Code 39,10mil/0.25mm)
Print Contrast Signal: 25%
Ambient Light: Dark, indoor natural light
Symbologies: 1D:UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39
Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Codabar(NW-7), MSI, etc
2D: QR Code,PDF417,Data Matrix, etc
Environmental
Operating temperature: 10 to 50
Storage temperature: 30 to 60
Humidity: 5% to 5% (non-condensing)
Drop Height: 1.5m
Transport Vibration Test: 10H @ 125RPM
Depth Of Field
4MIL: 30-60mm (PCS90%, Code 39)
13MIL: 40-210mm (PCS90%,EAN-13)
20MIL: 50-260mm (PCS90%,Code 39)
40MIL: 130-500mm (PCS90%,Code 39)
20MIL: 100-180mm (PCS90%,QR Code)
Accessories List
Data Cable: USB, connect the scanner to a host device
