USB 3.0 | Keystone Wall Plate Insert | HTECH

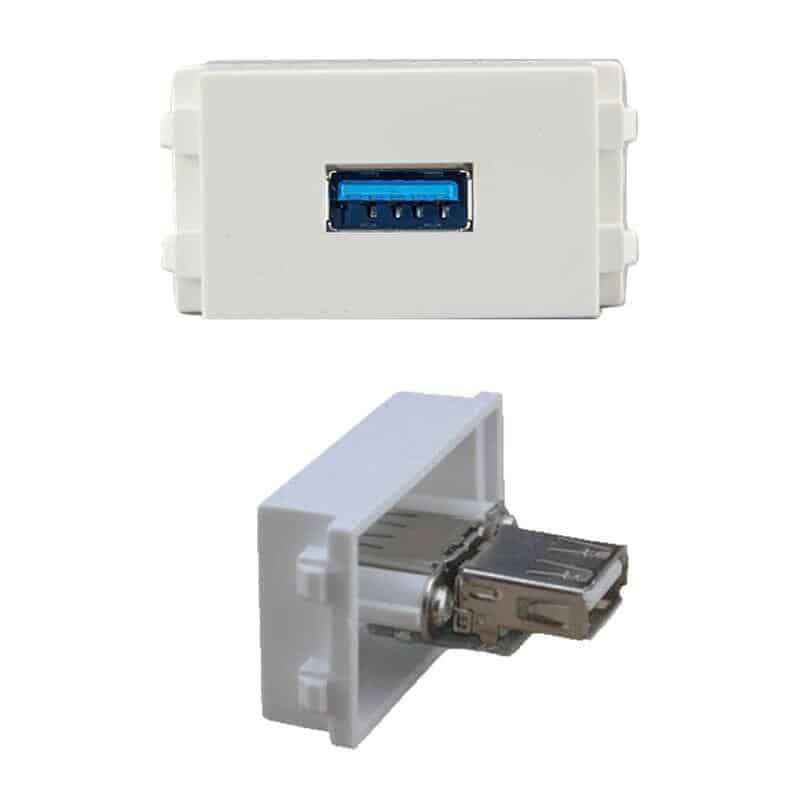

USB 3.0 Keystone Insert: for use with HTECH Wall Plates, Trunking Plates & Floor Plates

Specifications (this product)

• Occupies Slots:       1
• Contact                    female to female barrel - straight
• Colour:                     White. (Images have been deliberately darkened)
• Material:                  Flame Retardant PVC
• For use                      LAN Ethernet - data and internet connections

To purchase Wall, Trunking or Floor Plates [click here])

------------------------------------------------------------------------------------------------------

Design your own custom wall plates to suite your own specific requirements.

Available Options in our HTECH range

Step 1| HTECH Base Plate Options. (Depth is keystone insert dependent)

1. Trunking Wall Plates: 86 x 86mm, 1, 2 & 3 slot
2. Wall Plates: 2 x 4, 120 x 70 mm, 1, 2 & 3 slot
3. Wall Plate: 4 x 4, 120 x 120mm, 6 slot
4. Extended Plate, 195 x 70mm, 6 slot
5. Floor / table Top Plate: 120 x 120mm , 3 slot. Depth 60mm

Step 2| HTECH Keystone Insert Options for Trunking, Wall & Floor Plate

1. HDMI female to female barrel straight 180°
2. HDMI female to female barrel elbow 90° for limited space.
3. RCA a.Digital audio_yellow , b. Stereo_red + white, c. Component_green+red+blue, d. AV_yellow+red+white,
4. VGA - female to female barrel, straight
5. 5mm aux or headphone, 3pin terminal block
6. 5mm headphone guitar, 3pin terminal block
7. Meeting 6 core, 6pin solder terminals
8. Meeting 8 core, 8pin solder terminals
9. Audio Speaker Banana connections, 2pin solder connections
10. XLR / Lennon Male and Female, 4pin solder connections
11. Speakon Female, 4pin spade or solder connections
12. RJ11 telephone, quick snap connector
13. RJ45 single + dust cover
14. RJ45 2x dual
15. USB 3.0 (this product - usb 3.0 keystone Insert HTECH)
16. USB 2x dual for Charging only, 4 pin solder connections
17. F type for satellite dish connections DSTV etc. 2pin solder connections
18. TV for terrestrial antenna, 2pin solder connections
19. SC for Fiber Optic connections, female to female barrel
20. LC for Fiber Optic connections, female to female barrel
21. Power for 2pin EU round connections to 230V AC, 3pin terminal block
22. Blanking Inserts to fill the gaps
