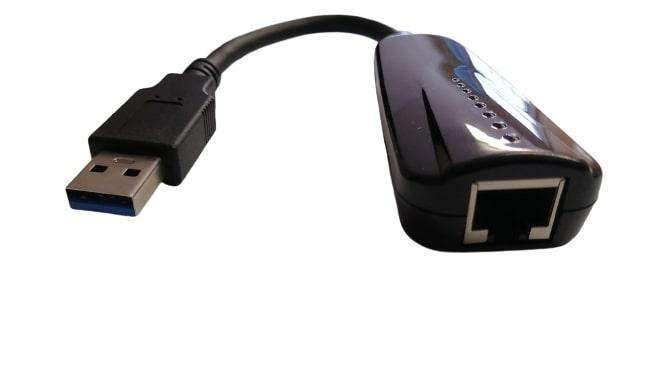

Usb 3.0 (M) To Gb Lan Port

USB 3 GIGABIT LAN ADAPTOR - TXA042Model number: TXA042Chipset Realtek: RTL8153Port number: 1 x RJ45Standard: IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.1P, IEEE 802.1Q VLANtaggingIEEE 802.3az-2010 (EEE)Network media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTPData rate: 10/100M/1000MbpsInterface: USB3.0Color: Black, whiteLED Indicator: Link/ACTDimension: 70 x 32.5 x 17mm,USB cable:150mmSupport OSWindows 10 8.1 8 32-bit 64-bit Plug in Play Native Driver No installation NeededWindows 7 Vista XP CompatibleEnvironmentOperating Temperature: 0 ?-55 ?Relative Humidity: 10%-90%(non-condensing)Storage Temperature: -0?-80?Relative Humidity: 5%-90%(non-condensing)Other featuresplug and playWake-On-LANFlow controlAuto-Negotiation with Next Page capabilitySelective suspendRemote wake-upECMAHalf Duplex and Full Duplex ModeFeature:HardwareIntegrated 10/100/1000M transceiverAuto-Negotiation with Next Page capabilitySupports USB 3.0, 2.0, and 1.1Supports CDC-ECMSupports LPM (Link Power Management)Supports pair swap/polarity/skew correctionCrossover Detection & Auto-CorrectionSupports Wake-On-LAN and ?RealWoW!? (Wake-On-WAN) Technology (see note 1)Supports ECMA-393 ECMA ProxZzzy Standard for sleeping hosts (see note 1)XTAL-Less Wake-On-LANSupports power down/link down power savingTransmit/Receive on-chip buffer supportEEPROM InterfaceEmbedded OTP memory can replace external EEPROMBuilt-in switching regulator and LDO regulatorSupports Customizable LEDsSupports hardware CRC (Cyclic Redundancy Check) functionLAN disable with GPIO pinSupports 25MHz or 48MHz external clock (from oscillator or system clock source)SPI Flash Interface48-pin QFN ?Green? packageNote 1. Select between RealWoW! or ECMA, only one feature can be active at atimeSoftware OffloadMicrosoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and SegmentationTask-offload (Large sendv1 and Large send v2) supportSupports jumbo frame to 9K bytesMicrosoft AOAC (Always On Always Connected)Supports 16-set 128-byte Wake-Up Frame pattern exact matchingSupports link change wake upSupports Microsoft WPD (Wake Packet Detection)Supports Protocol Offload (ARP & NS)Intel CPPM (Converged Platform Power Management)Supports L1 with 3ms BESL (USB 2.0)Dynamic LTM messaging (USB 3.0)Supports U1/U2 (USB 3.0)Supports selective suspend
