DescrIption:
Features & details

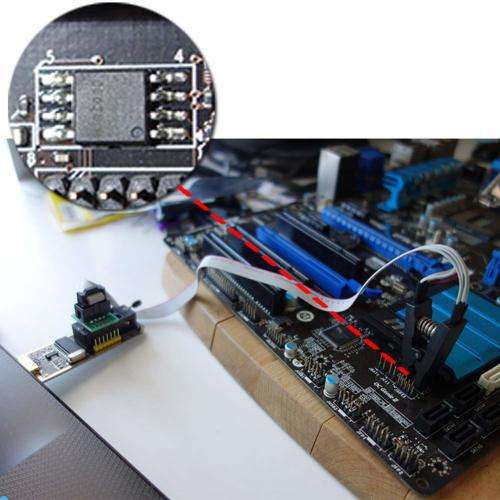

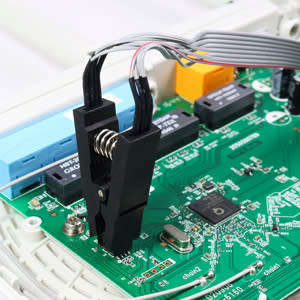

The SOP8 clip enables in-circuit programming of EEPROM without disassembling the chip, making flashing the BIOS simpler and more efficient.
The main purpose of the CH341A Programmer is to back up, erase, program, calibrate and other actions on various software.
The CH341A programmer supports most of the 24/25 series EEPROM SOP8 chips on the market, but not all of them. Please be sure to check whether your chip model is within the compatible range in the product description before purchasing.

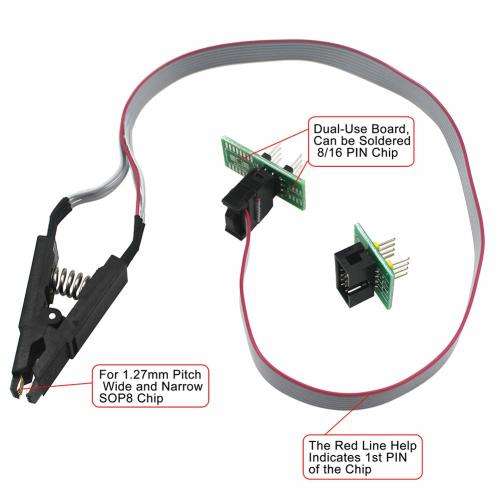

The SOP8 clip support both wide body and narrow body SOP8 chip with 1.27MM Pitch.
We provide detailed PDF tutorials, CH341A software, and drivers, which will be sent to you by email after the orde

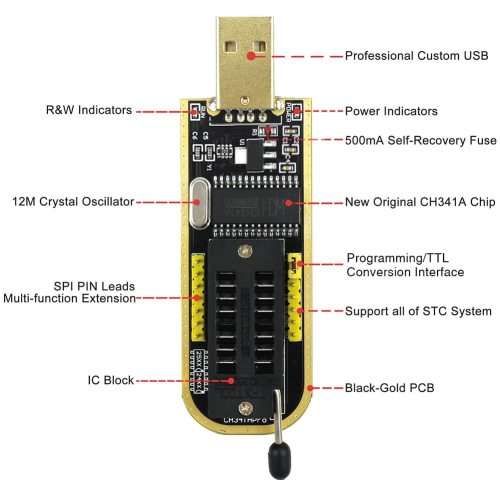

USB Programmer
Support 24EEPROM and 25 SPI flash 8pin/16pin chip
USB to TTL port, can getroot online
With CH341A chip
Recognize 25 series chip automatically
And support download STC series procedure of singlechip
With 24/25 status indicator lamp
SPI pin to support expanding the utility
Provide 5V-3.3V power supply output
Dimension:70mm x 27mm
Please NOTE that due to lighting effects, monitor's brightness/ contrass settings ect, there could be some slight differences in the color tone of the pictures and the actual item!

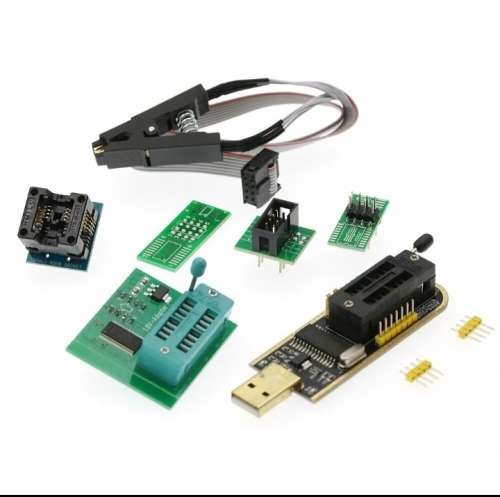

Package Included :
1 x CH341A USB Programmer Module
1 x SOIC8 Clip
1 X 1.8V Adapter
1 X SOIC8 Adapter
