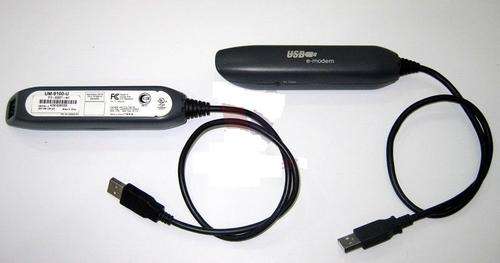

USB e - modem Dial-up 56K UM-9100-U for FAX V.17 and DATA V.92

TESTED WORKING

Excellent working condition


PRODUCT SPECIFICATIONS

USB FEATURES

    Complies with USB specifications rev 1.1
    Complies with USB COM class rev 1.1
    Complies with USB Data class rev 1.1
    Supports suspend/resume
    Bus powered, does not required external power supply
    OnNow power management (D0,D2,D3)

MODEM FEATURES

    USB Interface 1.1
    Automatic detection between data and fax
    Line quality monitoring and re-train
    Enhanced ADPCM/PCM voice operation with concurrent DTMF detection

DATA MODE FEATURES

    56Kbps Internet connectivity via ITU/TIA V.92, V.90 Standard
    DTE rate of up to 460,800bps (via virtual UART)

DATA COMPRESSION/ERROR CORRECTION

    V.42 bis, MNP 5
    V.42, LAPM, MNP2-4

DATA MODE STANDARDS

    V.92 : 56 Kbps
    V.90 : 56 Kbps
    V.34bis : 33.6 Kbps
    V.34 : 28.8 Kbps
    V.32bis : 14.4 Kbps
    V.32, V.23, V.22bis, V.22, V.21
    Bell 103 and Bell 212A

FAX MODULATIONS

    V.17 : 14,400 bps
    V.29 : 9,600 bps
    V.27ter : 4,800 bps

FAX CONTROL/PROTOCOL

    Class 1, V.21 Channel 2
    Group 3 fax mode
