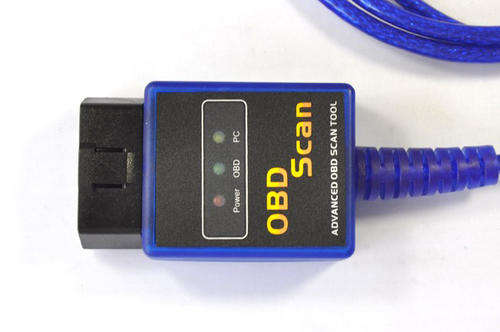

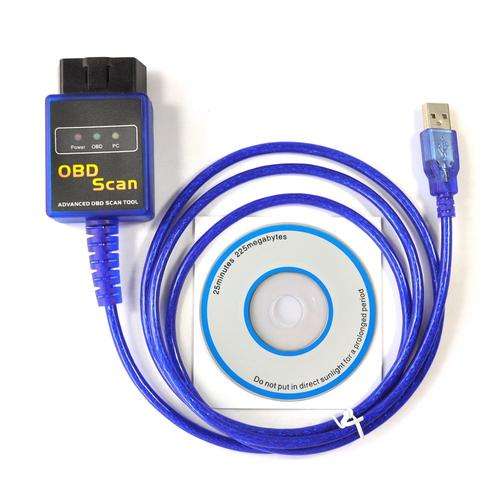

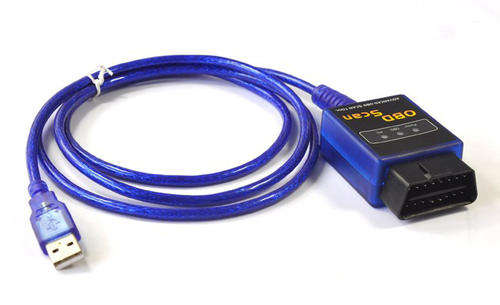

USB ELM327 OBD2 Interface OBD Scan Tool
100% Brand New.
Function: USB ELM327 V1.5 OBD2 Diagnostic Scan
Main Control Chip:PIC18F2480
USB Drive Chip: FTDI232RL
Mini ELM327 USB Main Features:
* The newly developed USB scan tool.
* It supports all OBD-II protocols.
* Adopts the latest version 1.5
* Support New Style Chip with Power-saving Mode
* Retrieve Fault Codes (DTCs) and clear Check Engine lights.
The program lets you perform the following operations:
* Read diagnostic trouble codes, both generic and manufacturer-specific , and display their meaning (over 3000 generic code definitions in the database).
* Clear trouble codes and turn off the MIL ("Check Engine" light)
* Display current sensor data, including:
* Engine RPM
* Calculated Load Value
* Coolant Temperature
* Vehicle Speed
* Fuel System Status
* Short Term Fuel Trim
*Long Term Fuel Trim
* Intake Air Temperature
* Intake Manifold Pressure
* Timing Advance
* Air Flow Rate
* Absolute Throttle Position
* Oxygen sensor voltages/associated short term fuel trims
* Fuel Pressure and many others...
Multi-Protocol Support:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
Supported platform: PC
Software Included:
Scantool_net113win (Full Version)
EasyOBDII V2.2 (Free Version)
OBD2Spy (Demo Version)
ScanMaster-ELM (Demo Version)
wOBDCRAZY (Demo Version)
Note: This tool do not work on diesel cars.
Size: 70*45*24*146mm
Net Weight: 105.7g
