Parameters:

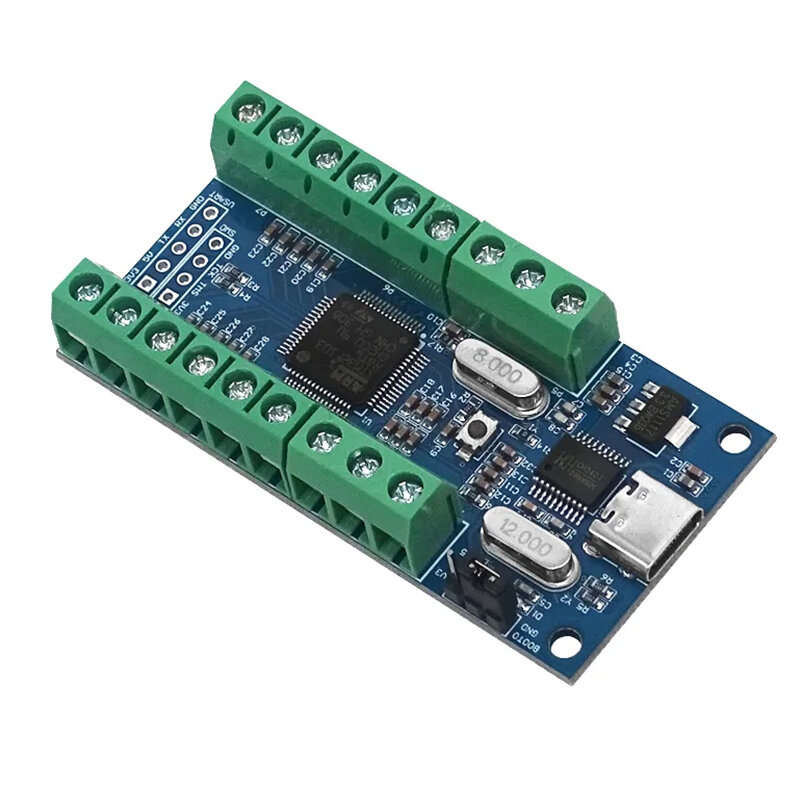

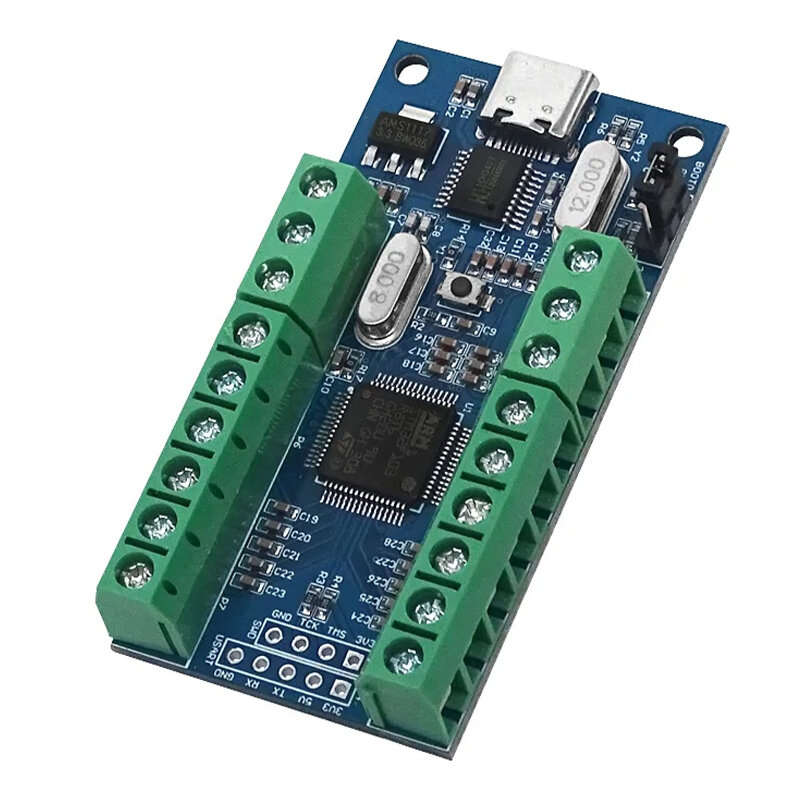

Product name: STM32 16-way AD sampling module

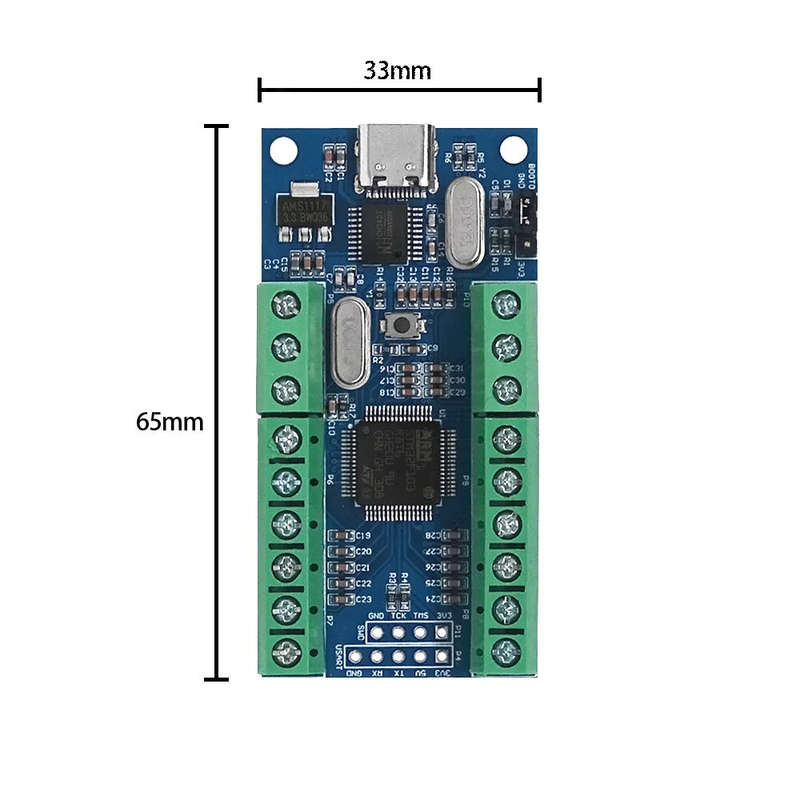

Product size: 33*65mm
Product interface: Type-C interface power supply
Product weight: 25g
Product material: FR-4
Description:
The STM32 16 channel ADC sampling module uses the internal 16 channel ADC resources of ST company's STM32F103R8T6 microcontroller as the sampling core. The obtained sampling data is transferred to memory through the internal DMA of STM32,reducing CPU burden and enhancing the stability and accuracy of AD sampling. At the same time,the onboard USB to serial chip CH340T can transfer data to the upper computer,and users can use Type_ C data cable can achieve code burning.
Features:
1. Using STM32F103R8T6 as the main control chip
2. On board CH340T chip,via Type-C data c
