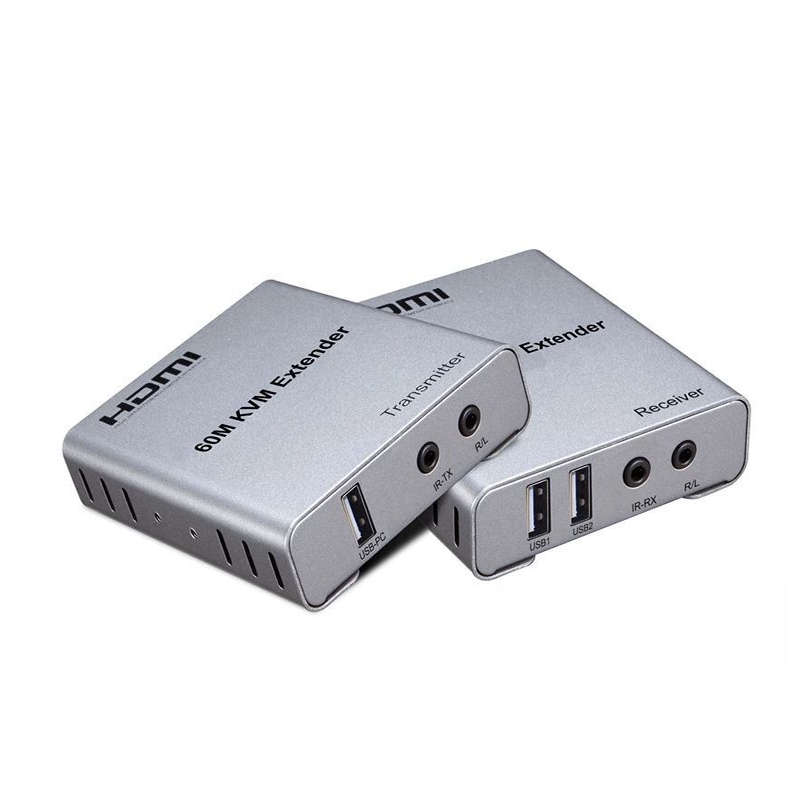

PRODUCT DESCRIPTION
-2-USB port on the Receiver (RX) allows you to control a computer system using a Mouse/Keyboard
-This HDMI KVM USB extender can be widely used in home security systems, camera monitoring, conference hall broadcasting, restaurant projection, and more
-Compact design and aluminum alloy metal shell are good for heat dissipation, wear resistance, and can extend their service life
-Support the highest resolution up to 1080P/60Hz. 60M long-distance transmission. Both the transmitter and receiver support
-Low power consumption, low temperature, high safety. Support infrared IR control. Support USB mouse and keyboard extension
-Both the transmitter and receiver support 3.5mm left and right channel audio output, which can be freely connected to audio equipment such as speakers, headphones, and headsets
-Built-in chip smart buffer: using the original imported smart chip, long-distance 60 meters lossless transmission, stable and non-flickering. Synchronous audio and video transmission: while zooming in on the screen, it can also support audio transmission
Features:
-Supports high video resolution 1080p/60Hz

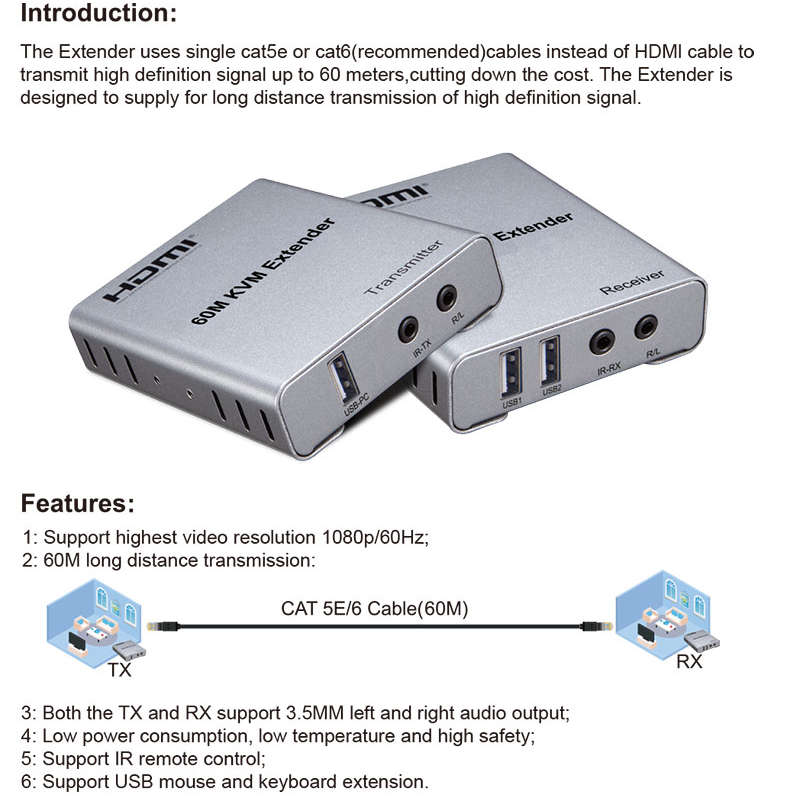

-60M long-distance transmission
-Both the TX and RX support 3.5MM left and right audio output
-Low power consumption, low temperature, and high safety
-Support IR remote control
-Support USB mouse and keyboard extension
Specifications:
-Input video signal: 0.5~1.5Volts p-p
-Output DDC signal' 5Volts p-p (TTL)
-Input HDMI cable length; less than or equal to 10m AWG26 standard HDMI cable
-Output HDMI cable length; less than or equal to 15m AWG26 standard HDMI cable
-Maximum working current TX; 300mA
-Maximum working current RX; 300mA
-Power specification: Input; AC (50Hz, 60Hz) 100V-240V
-Output: DC 5V/1A
-Operating temperature range; (-15 to +45 Celsius)
-Operating humidity range; 5 to 90RH (no condensation)
-Application scenarios; HDMI cable extenders are mostly used in audio-visual conferences, command and control centers, ticketing platforms, home theaters, multimedia teaching, conference systems, etc.
Package Weight: 800g
Package Dimensions: L=18.6cm x W=8.8cm x H=13.3 cm
