Feature:
Powerful analysis function :
Support any multi-screen display, Easy to Variety of analysis;
Support the input waveform interpolation;
Support the input waveform, 'add', 'subtraction' and 'multiplication' synthesis;
Support the input waveform plus Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman , blackman Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gauss, dolph_chebyshev 18 kind of window;
Support the input waveform filtering and design filter;
Support the input waveform, 'Lissajous', 'Amplitude', 'phase', 'log Amplitude', 'self-power spectrum', 'log self-power spectrum' ,'cross-power spectrum', 'log cross-power spectrum' ,'auto-correlation' and 'cross-correlation 'analysis;
Support under logarithmic coordinate system, the input waveform, 'Amplitude', 'phase', 'log Amplitude', 'self-power spectrum', 'log self-power spectrum' ,'cross-power spectrum','log cross-power spectrum' ,'auto-correlation' and 'cross-correlation 'analysis.
Powerful data recorder function:
Support continuous data collection and storage, and can move, zoom, view global data, and compare multiple data collection;
High-speed USB2.0 for fast transfer, unlimited long the collected data, records into files for easy viewing and analysis of collected data;
24M of continuous recording up to meet the capture function of the general agreement, such as SPI, IIC, UART, etc.
Feature Description:
Oscilloscope / spectrum analyzer:
Bandwidth 20M
Sample 48M
Channel 2
Input voltage range [-50V,+50V](With probe X10)
Memory depth 1Mx2
AD Bit 8
Software trigger rising, falling, rising / falling, differential, rising / falling+ differential
Analysis Waveform Synthesis: Add, subtract, multiply;
Filter processing: IIR filter support 'Butterworth', 'Chebyshev I', 'Chebyshev II', 'Elliptic' type of filter design; FIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design.
Waveform analysis: Lissajous, 'Amplitude', 'phase', 'log Amplitude', 'self-power spectrum', 'log self-power spectrum' ,'cross-power spectrum', 'log cross-power spectrum' ,'auto-correlation' and 'cross-correlation '.
Capture frame Continuous function of captuer the frame
Note: Due to computer USB voltage differences, the oscilloscope measurement results may have some bias, needs your own manual calibration, the specific reference to the oscilloscope use.
Data recorder:
Sample 0.25M~24M
Channel 2
Input voltage range [-50V,+50V](With probe X10)
AD Bit 8
Data View The stored data can be continuous, and support global, zoom and move the viewing.
Note: The specific speed recorder with computer processing speed, and if use high sampling rate, the situation may break.
Package Included:

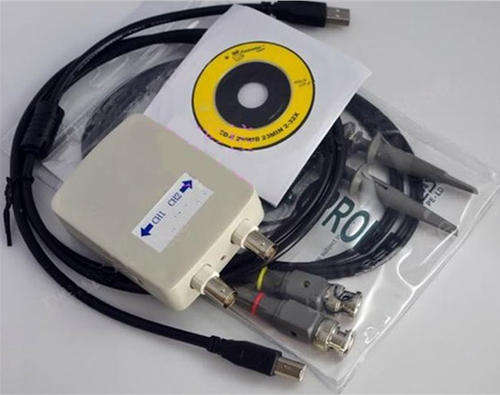

1 x MDSO Dual-Channel Digital Storage Oscilloscope Host
1 x USB Cable
2 x Oscilloscope probe
