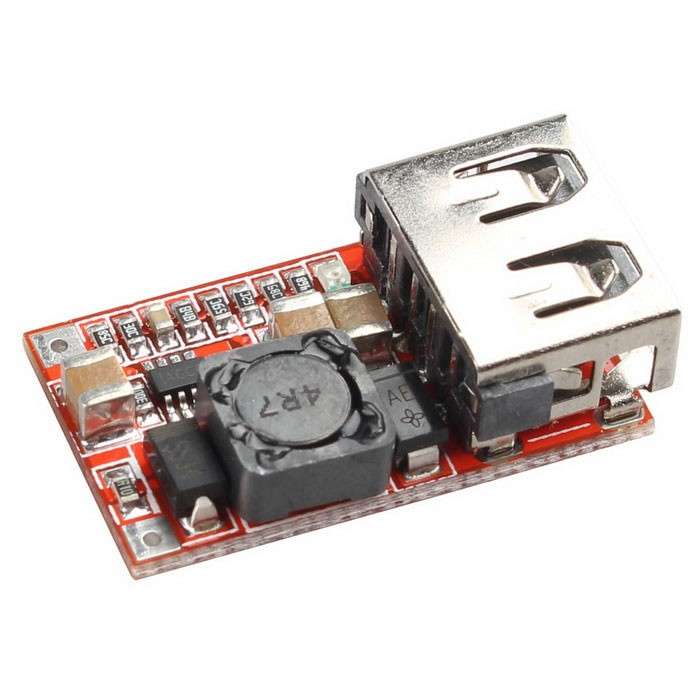

USB Step-Down Power Module 12V to 5V 3A MP2315 - Mini DC Converter

Product Description:
This compact USB step-down power module is designed to convert a 12V input into a stable 5V output, providing safe and reliable power for USB devices. Engineered with advanced circuitry and high-quality solid-state components, this module delivers high efficiency, minimal ripple, and low heat generation.

Key Features:

• High Current Output: Supports a peak output of 3A with a stable 2.1A for continuous operation, making it ideal for powering a range of USB devices.
• Advanced Design: Built with three large solid-state ceramic capacitors (MCC), eliminating the need for electrolytic or tantalum capacitors, which can wear out or pose safety risks.
• Low Ripple: Maintains low output ripple of around 10mV (12V to 5V at 3A), protecting sensitive electronics from potential harm caused by higher ripple levels.
• High Efficiency: Achieves up to 94% conversion efficiency, minimizing power loss and reducing heat output during operation.
• Built-In Protection: Includes over-voltage protection with a 1.5A fuse, a 5V 300W TVS tube, and reverse polarity protection to safeguard connected devices.
• Device Compatibility: USB identification circuit is compatible with most devices, including iPhones, iPads, and Android phones.
• Durable USB Interface: Features a gold-plated USB connection designed for durability and long-lasting performance.
• Compact Size: Ultra-small form factor (26.4mm x 15mm x 7.4mm) fits easily into tight spaces.
• Low Quiescent Current: Draws only 0.85 mA when idle, making it suitable for continuous connections, such as in automotive applications.

Specifications:

• Input Voltage: 12V DC only
• Output Voltage: 5.1-5.2V
• Max Output Current: 3A (2A continuous without additional cooling)
• Efficiency: Up to 94%
• Switching Frequency: 500KHz
• Output Ripple: ~10mV (20MHz bandwidth)
• Operating Temperature: -40C to +85C (output power may reduce at higher temperatures)
• Protection Features: Over-voltage, short-circuit, and reverse polarity protection

Note: Price is for one module.
