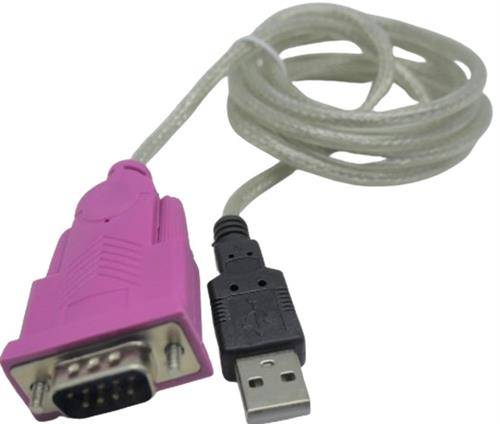

USB to RS232 Cable



USB to RS232 cable

1) Small volume, easy installation
2) No power supply needed, plug and play
3) Automatic detective serial signal rate
4) Standard: USB1.1 or 2.0, EIA RS232 standard
5) USB signal VCC, DATA+, DATA-, GND, FG
6) RS232 signal RX, TX, RTS, CTS, DTR, DSR, DCD, RI, GND
7) Asynchronism, point to point
8) Band rate: 300 – 115,200bps, automatic test signal rate
9) Transmission:
a) RS232 side: 15M
b) USB side: less than 5M
10) Protection: 600W sugre protection, 15KV static electrify protection
11) Interface type: USB side: type A interface female, RS-232: side DB-9 male
12) Working temperature: -20 to 60oC
13) Storage temperature: -25 to 85oC
14) Relative humidity: 5% to 95%
15) Input powered: no power supply needed, powered from USB
16) Consumption:
a) Static consumption less than 80mA
b) Dynamic average consumption: less than 150mA
