USB to VGA Converter | USB 3.0 Adapter Cable For Windows 7,8,10 & Windows 11
Product Description

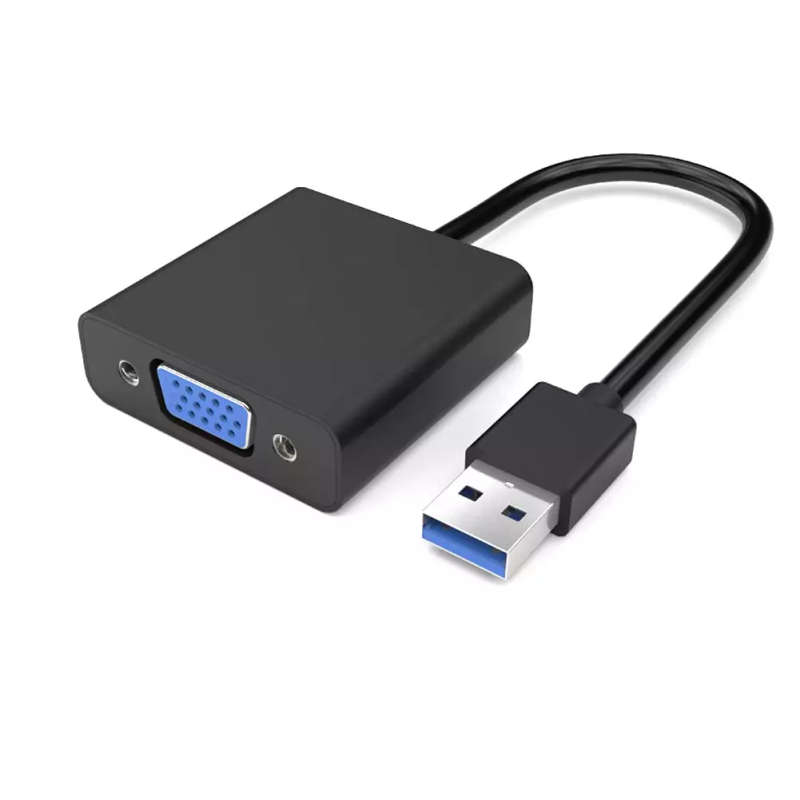

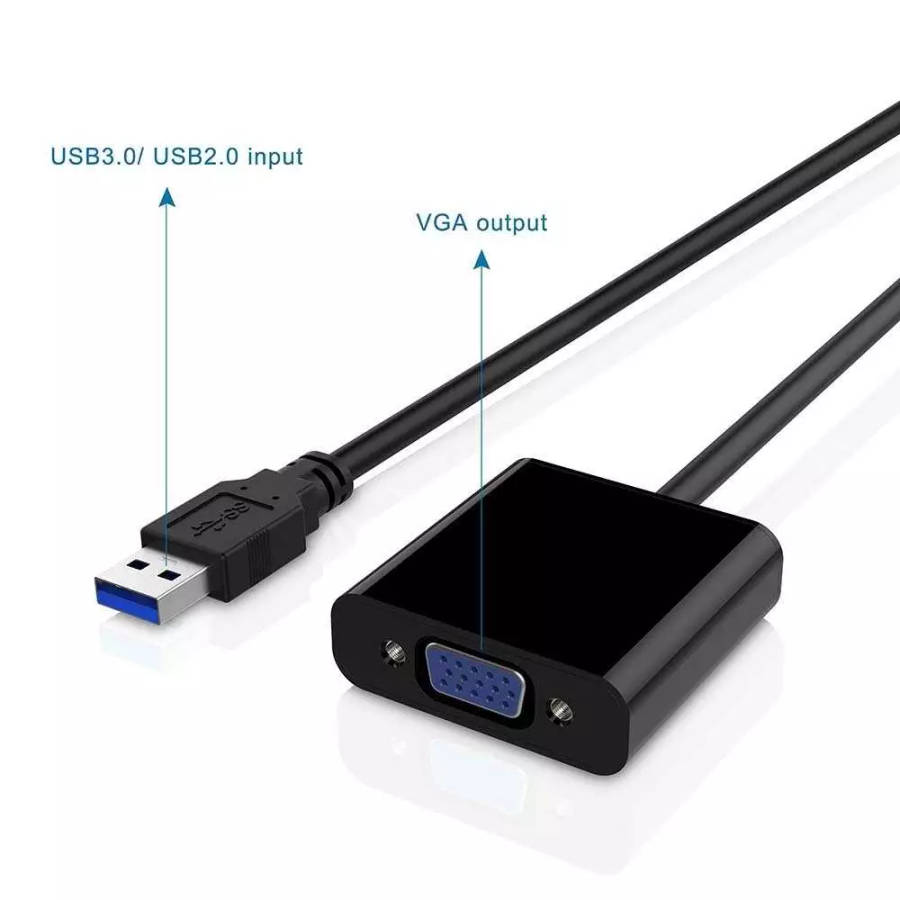

This adapter allows a standard VGA (DSub / 15 Pin) monitor / display to be connected via a standard USB 2.0 / 3.0 connection. The USB 3.0 interface provide better performance compared to USB 2.0. The adapter functions as an additional graphics card and can be setup accordingly.
No power is needed power is provided by USB. No fan solution is very low power and completely silent.
The virtual USB graphics driver extends or mirrors your desktop, drivers can be found as below:
Windows 10 : USB to VGA Adapter Driver Download Windows 7 - Windows 10.
Windows 11 : USB to VGA Driver Download Windows 11
Windows 11 Alternative Driver : USB to HDMI Driver Download Win11 July 2024
MAC Driver (Not tested by HDCabling) : MAC OS Driver Download
Displays are configured using the standard Windows display control panels and driver must be updated via Windows Device Manager.
When adapter connect to the Windows PC USB 3.0 Port the device will show as below in Windows Device Manager. Unzip the driver above and Right Click the "msusb device" and click update driver to browse and search for the driver in the downloaded driver folder.
Please ensure all other drivers such as FL2000 drivers are uninstalled otherwise resolution options may be limited to 800 x 600 due to driver conflicts
When the Driver is successfully installed it will be shown in Windows Device manager as below:
Analogue VGA connections support up to 1600x1200. All standard monitor modes up to the maximum resolution can be set by the device.
Features:
- Adapter Specifications : USB to VGA Female Converter - MSUSB Video
- Operating System Support : Windows 7,8 & 10 , Windows 11 Tested May 2022 Update , MAC OS
- Power Consumption : 1 W
- Maximum Support Devices : One per USB 3.0 Host Controller
- Input Interface : USB
- Power Supply Voltage : 5VDC
- Max Power Consumption : <5W
- VGA Resolutions Supported : 1600X1200 , 1680X1050 , 1440X900 , 1400X900 , 1400X1050 , 1360X768 , 1280X1024 , 1280X960 , 1280X800 , 1280X768 , 1280X720 , 1152X864 , 1024X768 , 800X600
- VGA Connector : D-Sub , any VGA 15-Pin Male to Male cable can be used with the converter
- Display : Any VGA Display such as HDTV's, PC Displays, Projectors etc
- USB Speciation : USB 2.0 / 3.0
- USB Bandwidth : 480 Mbps
- Minimum PC requirements : Minimum 1.2Ghz CPU , 512 MB Memory
- Recommended PC requirements : Minimum 2Ghz CPU , 1GB Memory
- Operating System Support for MS Operating System : PC or Laptop Windows 7/8/8.1/10 , Desktop , Raspberry Pi ,Roku
- Technology Used : ViewSpan
- Operating Temperature : 0～55
- Storage Temperatures : -20～70
- Operating Humidity : 0～95%
- Dimensions : 137mm×82mm×25mm
- Weight : 204g
- MTBF : > 30000 Hours
Can I use more than one Adapter on a PC / Laptop ?
Most system can only support one USB video adapter. Keep reading if you want the details. Multiple adapters on one system is not officially supported. If you open a support request for help with it, you will get a link to this article but no further support.
The USB to Video adapter needs a lot of data to keep working properly. Most computer systems aren't able to send enough data over USB 3.0 for two adapters. This means that one or both monitors will start flickering or go completely blank.
Still want to try multiple adapters ? Here are some rules to give you the best chance.
- No Hubs! USB hubs provide more ports but can't increase the amount of data a USB port can send.
- If your system has more than one USB 3.0 Host controller, connect one adapter to each controller. You can also try adding an additional PCIe to USB 3.0 adapter card to your system as an additional controller.
- Lowering the resolution of the monitors also lowers the amount of data needed.
- Change the Windows Power Plan to "High Performance". Modern computers try very hard to save power. Sometimes they try too hard and this can effect how much data they can send over USB.
