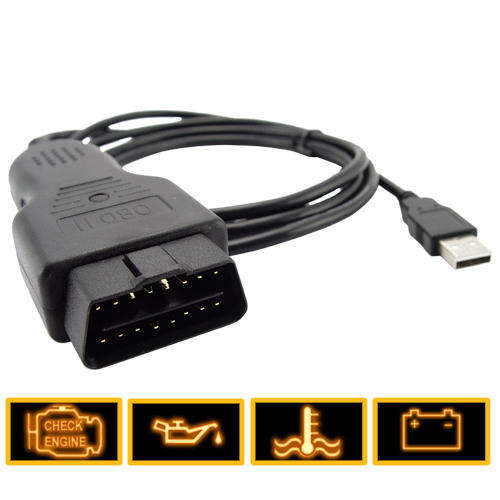

USB VAG Commander 5.1 OBDII Diagnostic Cable for VW and Audi

USB VAG Commander 5.1 OBDII Diagnostic Cable for VW and Audi

This Commander 5.1 diagnostic cable allows you to connect your car directly to your laptop computer. The software interface lets you access data from your car right on your computer screen. You can view live data straight from your vehicle's engine. You will have full access to your car's diagnostic trouble codes (DTCs) and see their full definitions as well as the location and type of problem, so you won't have to spend time looking up the code's meaning. You can also clear all generic and some manufacturer specific DTCs. You will also have access to your vehicle's OBDII Freeze Frame data (which is captured when the vehicle's on board computer detects problems). Your local mechanic charges you a lot for each of those tests, so get this cable and start saving today.
Getting started with this diagnostic cable is easy. All you need is this VAG cable, a computer, and a vehicle. No extra converters, connectors, or tools are required. Plug one end of the cable into your vehicle's Diagnostic Link Connector (DLC), which is usually located within easy reach of the driver. Plug the other end into your computer's USB port, and install the included software. You're now ready to access and interact with your car's on-board computer. Do-it- yourself has never been so simple!

At a Glance...

• Compatible with certain models of VW, Audi, Seat, and Skoda
• Connect your computer to your car
• USB to OBDII - CANBUS connection
• Displays live data from your vehicle
• Displays diagnostic trouble codes (DTCs) and definitions on screen
• Reads and clears all generic DTCs and some manufacturer specific DTCs
• Read security access code of immobilizer, eeprom and flash memory of instrument cluster
• Plug and play: No need for additional batteries, cables, connectors, or converters

Manufacturer Specifications

• Primary Function: Commander 5.1 OBDII diagnostic cable for VW and Audi
• Compatible Vehicles
  VW: Caddy, Crossgolf, EOS, Golf5, Individual, Jetta (MY2006), Passat platform B6 (MY2006), Phaeton, Touaran, Touareg
  Audi: A3, A8, A6, Q7
  Seat: Altea, Altea XL, Leon (2005+), Toledo (2005+)
  Skoda: Octavia II, Roomster, Scout
  Porsche: Cayenne (2005+)
• Operating Software Compatibility: Windows 98SE, ME, 2000, XP
• OBDII Plug: 16-pin (Male)
• USB: 2.0 and backward compatible
• Dimensions: L:186cm

Product Notes

• Manual definition of running diagnostic session
• Special functions about instrument clusters from VDO
• Retrieve Vehicle Identification Number (VIN)
• Read Freeze Frames
• Covers all electronic control units in vehicles (diagnostic addresses from 0x01 to 0x80)
• Supports popular diagnostic functions such as identifications, coding, and adaptations
• Broadcast diagnostic request, e.g., disable normal communication, logistic (transport) mode, etc.
• Manage brand new immobilizer units where programming of PIN, SKC, BGW, MAC is allowed
• Supports many additional functions. Visit popular DIY car maintenance forums to get an idea about all the great things you can do with a VAG Commander 5.1 cable!

Package Contents

• Interface Cable
• CD with software

Frequently Asked Questions

• Can inspecting my car's data on a regular basis improve my safety?
  Yes. Did you know that when your vehicle's on board computer detects certain problems, it captures a "Freeze Frame" of the data when the fault was detected, assigns the relevant fault code (DTC), and stores this data in it's memory. But it will not turn on a warning light until the same problem is detected on two trips in a row. Using this diagnostic cable, you can access your vehicle's stored data and resolve these problems before they occur again. Don't wait for these problems to happen two times in a row before you get this scanner.
• I'm not a professional mechanic, can I still use this cable?
  Yes. This cable and the included software is designed to be fairly user friendly and easy to use and understand.
