PRODUCT IS IN USED CONDITION AND COMES WITH CHARER

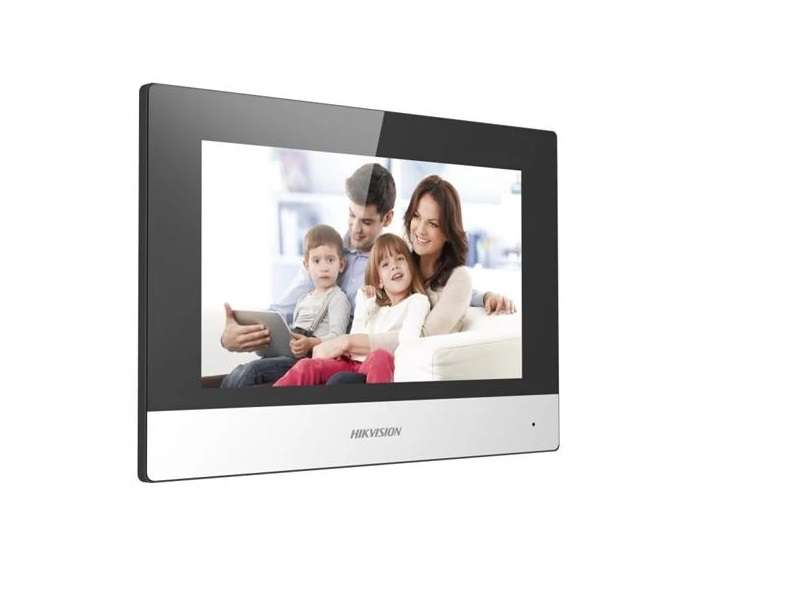

7-inch TFT touch screen with 1024 `d7 600 resolution
Convenient Hik-Connect APP Mobile Control
Receive calls, open the door and live view remotely
Easy to use without PC
Easy wizard for quick set up
Configure the whole system on one touch screen
Live view of the door station and cameras in public areas
Support voice messages when no response from the indoor station
Receive alarms by linkage with a alarm system and notify the center to handle in time
Elevator access control
System Parameters
Operation System
Linux
ROM
32 MB
RAM
128 MB
Processor
Embeded high performance processor
Display Parameters
Screen Size
7-inch
Operation Method
Capacitive touch screen
Type
Colorful TFT
Resolution
1024 `d7 600
Video Parameters
Lens
/
Resolution
/
FOV
Not supported.
Wide Dynamic Range (WDR)
/
Video Compression Standard
/
Focal Length
/
Audio Parameters
Audio Input
1 built-in omnidirectional microphone
Audio Compression Standard
G.711U/G.711A
Audio Output
1 built-in loudspeaker
Audio Compression Bitrate
64 Kbps
Audio Quality
Noise suppression and echo cancellation
Volume Adjustment
Adjustable
Capacity
Message Capacity
TF card inserted: 200 captured pictures, 200 alarm records
Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
Notice Capacity
200
Linked Indoor Extensions Capacity
16
Linked Doorphone Capacity
17
Linked Network Camera Capacity
16
Network Parameters
Network Protocol
TCP/IP, SIP, RTSP
Wi-Fi
/
Bluetooth
/
3G/4G
/
Zigbee
/
Device Interfaces
Alarm Input
8
Network Interface
1 RJ-45 10/100 Mbps self-adaptive
TAMPER
/
RS-485
/
USB
/
TF Card
Support TF card, up to 128 G
Alarm Output
/
Lock Control
2 relays, Max. 30 VDC 0.3 A
General
Button
/
Installation
Surface mounting
Indicator
/
Weight
Net weight: 350 g
Gross weight: 675 g
Protective Level
/
Working Temperature
-10 `b0C to 55 `b0C (14 `b0F to 131 `b0F)
Working Humidity
10% to 90% (no-condensing)
Dimension (W `d7 H `d7 D)
200 mm `d7 140 mm `d7 15.1 mm (7.9" `d7 5.5" `d7 0.6")
Battery
/
Application Environment
Indoor
Power Consumption
5 W
Language
English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
