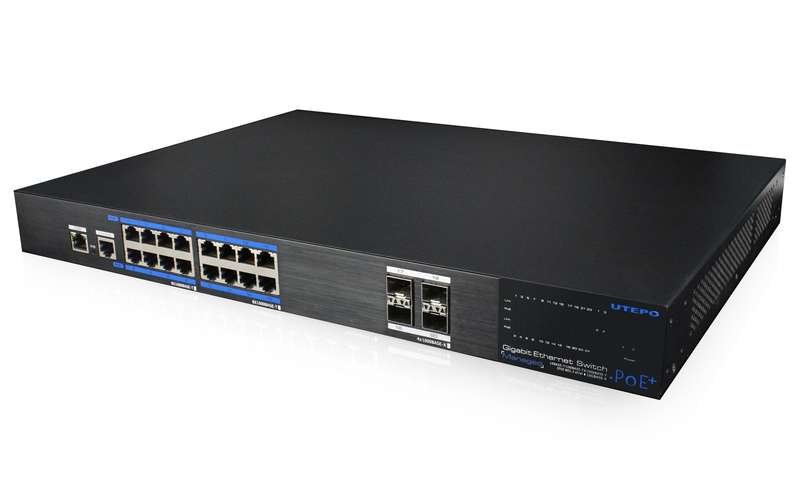

The Utepo UTP3-GSW1604S-MTP250 is a powerful Layer 2 managed switch built for enterprise, surveillance, and industrial networks. It features 16 Gigabit PoE+ ports with a total power budget of 230W and 4 SFP uplink slots for long-range fiber connectivity. With a switching capacity of 40Gbps and a packet forwarding rate of 29.8Mpps, this unit delivers exceptional performance under demanding network loads.
Advanced Layer 2 functionality includes VLAN, QoS, IGMP snooping, loop protection, and security features like 802.1X, ACL, and MAC filtering. The unit also supports SNMP, Telnet, SSH, and Web-based management.
Key Features & Benefits
16 × 10/100/1000Base-T PoE+ ports with a 230W power budget
4 × 1000Base-X SFP slots for high-speed fiber uplinks
40Gbps non-blocking switching capacity with 12Mbit buffer
Full Layer 2+ management with VLAN, QoS, ACLs, IGMP, STP/RSTP, and ERPS
Supports WEB/CLI/SNMP/SSH/IPv6 for flexible administration
Fanless, rack-mountable design with built-in surge and ESD protection
Ideal Uses
Powering and managing IP cameras, wireless access points, or VoIP phones
Enterprise and campus networks requiring secure Layer 2 segmentation
Industrial networking with robust surge/ESD protection and wide temp range
Scalable edge switch for surveillance, retail, or smart building deployments
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Utepo
Model: UTP3-GSW1604S-MTP250
Device Type: Layer 2 Managed Gigabit PoE+ Switch
Copper Ports: 16 × 10/100/1000Base-T PoE+ (Auto MDI/MDI-X)
SFP Ports: 4 × 1000Base-X SFP (Mini-GBIC)
Console Port: 1 × RJ45 RS-232
PoE Standard: IEEE802.3af (15.4W), IEEE802.3at (30W)
PoE Budget: 230W
Switching Capacity: 40Gbps
Forwarding Rate: 29.8 Mpps
Packet Buffer: 12 Mbit
MAC Address Table: 16K
Jumbo Frame: 10K Bytes
Network Standards: IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.1Q/p, 802.3x, 802.1D, 802.1X, 802.3ad
Management: Web GUI, Telnet, SSH, SNMP v1/v2/v3, LLDP, NTP, Tracert
PoE Features: Port priority, PoE ON/OFF, consumption limits, 30W max/port
Security: 802.1X, ACL (Basic & Advanced), port isolation, MAC filtering
VLAN Support: Port/MAC-based VLANs, QinQ, GVRP, VLAN isolation/intercommunication
QoS: DSCP, 8-level queue management, WRR, PQ, DRR, WFQ
Loop Protection: STP/RSTP, ERPS v1/v2, Y.1731 CCM
IPv6 Support: Dual-stack, IPv6 ACL, DHCPv6, ND, Ping/Web/SSH
Surge Immunity: 6kV IEC61000-4-5
ESD Protection: 6kV contact / 8kV air discharge (IEC61000-4-2)
Power Supply: Internal AC 100240V 50/60Hz
Power Consumption: <250W (max PoE usage)
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 85°C
Humidity: 5%95% (non-condensing)
Dimensions (L × W × H): 442 × 286 × 44 mm
Weight: 3.859 kg
Certifications: CE, FCC, RoHS
Warranty: 3 Month Carry-in Warranty
What's in the Box: Utepo UTP3-GSW1604S-MTP250 Switch
