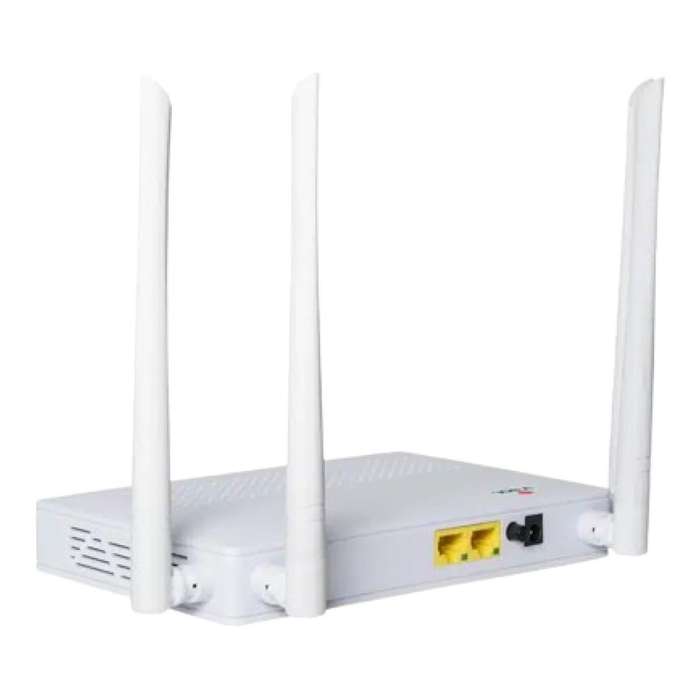

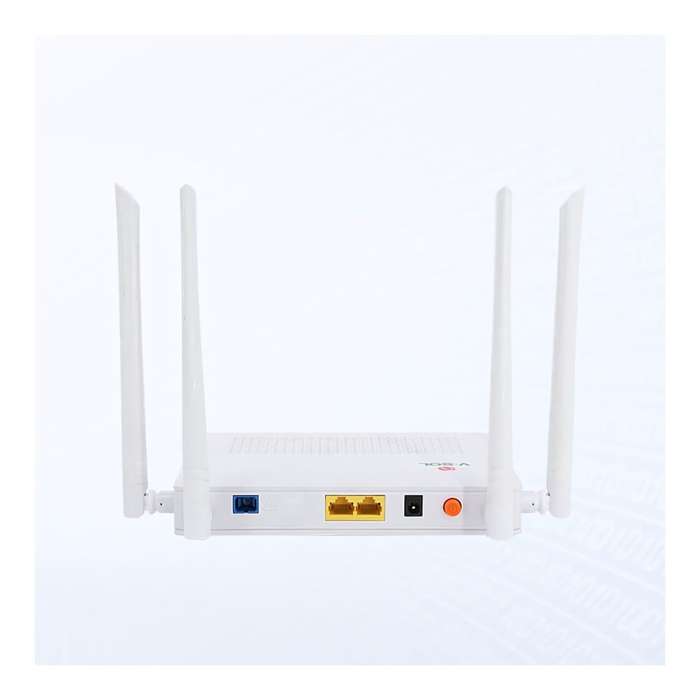

V-Sol Wi-Fi 5 xPON ONU/ONT with 2GE Wireless Router V2802DAC

Available: Mon—Fri, 08:00—17:00 | Closed on weekends & public holidays

Discover 22,000+ In-Stock Products | https://www.bobshop.co.za/store/FirstShop

Brand New & Sealed with Manufacturer Warranty

V-Sol Wi-Fi 5 xPON ONU/ONT with 2GE Wireless Router V2802DAC

EasyMesh: Smart, Extended Coverage Home Wi-Fi

Support IPv6 and MU-MIMO Technology

Say goodbye to network lag, multiplayer online without lag

AC1200 Dual Gigabit Interfaces for Gigabit Broadband Access Applications

Technical Specifications:

Hardware Parameters

Dimension: 178mm × 120mm × 30mm (L × W × H)

Net Weight: 0.31 kg

Operating Condition: Operating temperature: -10°C ~ +55°C; Operating humidity: 5% ~ 95% (non-condensing)

Storing Condition: Storing temperature: -40°C ~ +70°C; Storing humidity: 5% ~ 95% (non-condensing)

Power Adapter: DC 12V, 1.0A, external AC-DC

Power Supply: 12W

Interface: 2 GE + Wi-Fi 5

Indicators: PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G

Interface Parameters

PON Interface:

1 × PON port (EPON PX20+ and GPON Class B+)

SC single mode, SC/UPC connector

TX optical power: 0 ~ +4 dBm

RX sensitivity: -27 dBm

Overload optical power: -3 dBm (EPON) or -8 dBm (GPON)

Transmission distance: 20 km

Wavelength: TX 1310 nm, RX 1490 nm

User Interface:

2 × GE, Auto-negotiation, RJ45 ports

WLAN Interface:

Compliant with IEEE802.11b/g/n/ac

2.4 GHz operating frequency: 2.4000—2.4835 GHz

5.0 GHz operating frequency: 5.150—5.825 GHz

Support MIMO, rate up to 1.167 Gbps

Wi-Fi: 2.4 GHz (2T2R), 5.8 GHz (2T2R), 5 dBi antenna, support multiple SSID

TX power: 11n — 22 dBm / 11ac — 24 dBm

Function Data

Management:

OAM/OMCI, Telnet, WEB, TR069

Support full management of ONT functions by VSOL OLT

Internet Connection:

Support Bridge, Route, and Bridge/Route mixed mode

Multicast:

Support IGMP v1/v2/v3

Support IGMP Proxy and MLD Proxy

Support IGMP Snooping and MLD Snooping

VLAN:

Support VLAN tag mode, VLAN trunk mode, VLAN translation

Data Service Functions:

Full speed non-blocking switching

2K MAC address table

8 full range VLAN IDs

Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

Support auto polarity detection of Ethernet ports (AUTO MDIX)

Integrated IEEE802.1p QoS with four-level priority queues

Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy

Wireless:

Support Wireless AP mode

Support 802.11 b/g/n/ac

Support Multiple SSID

Authentication: WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)

Modulation type: DSSS, CCK, and OFDM

Encoding scheme: BPSK, QPSK, 16QAM, 64QAM, 256QAM

Support EasyMesh protocol

QoS:

Support 4 queues

Support SP and WRR

Support 802.1P and DSCP

L3:

Support IPv4, IPv6, and IPv4/IPv6 dual stack

Support DHCP/PPPoE/Static

Support Static route

Support DHCP Server

Support NAT/DMZ/DDNS

Support Virtual Server

Security:

Support Firewall

Support MAC filter based on MAC or URL

Support ACL
