V07HU Car Free Drive USB ELM327 OBD V1.5 Car Fault Detector OBD2

1. Durable and reliable.
2. OBDII Supported Protocol:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
3. Display current sensor data, including: Engine speed per minute (RPM) Calculated load values coolant temperature Fuel system status speed. Short term fuel situation Long term fuel situation Intake manifold pressure Injection advance time Intake temperature Air velocity Absolute position of throttle valve Oxygen detection voltage associated with short term fuel state Fuel system status Fuel pressure There are many other data for fuel consumption monitoring.
4. Usage Method:

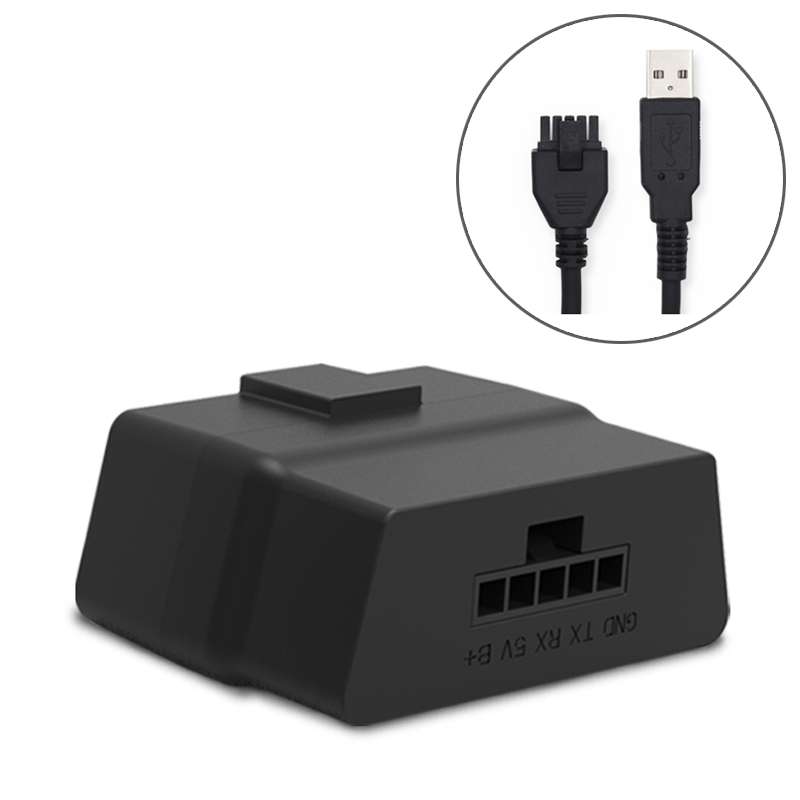

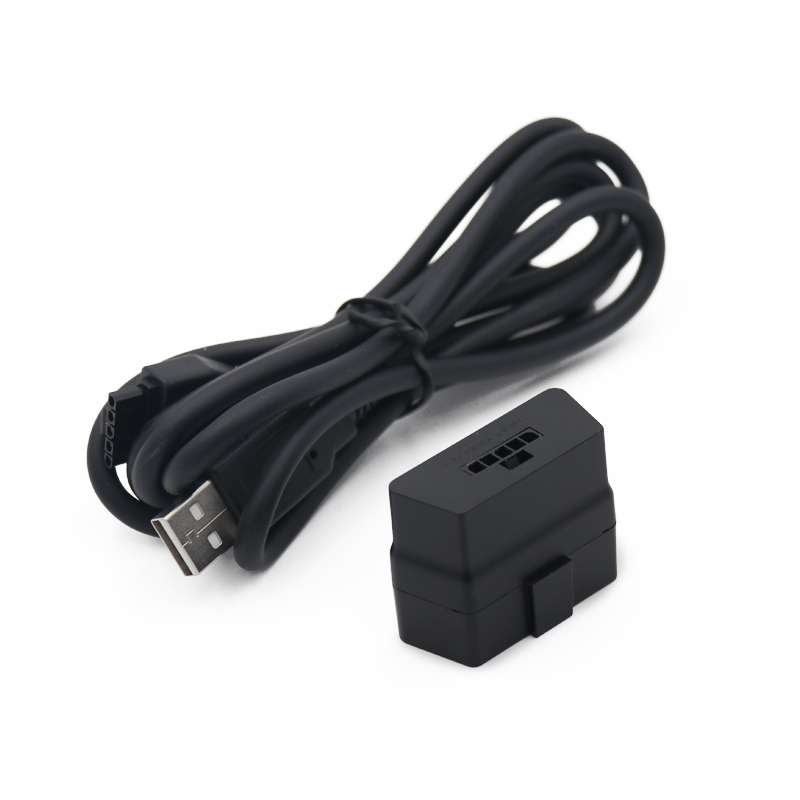

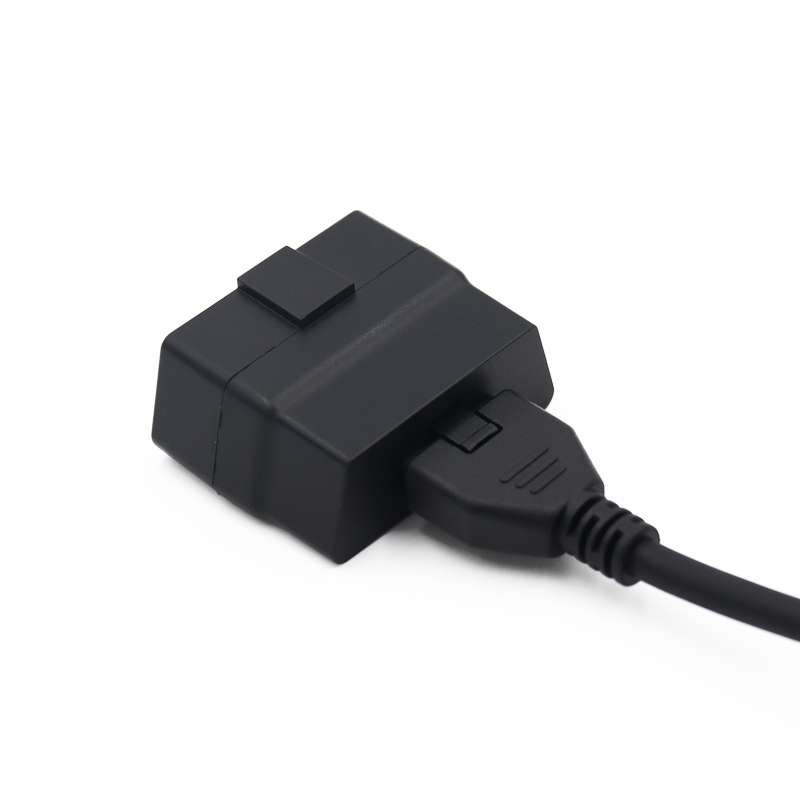

1. Insert one end of the standard V07HU wire into the 3.0mm seat of the product, and connect the USB interface of the other end to the USB of the computer (for the first time use, the computer will automatically search and install drivers).
2. Connect the OBD port of the V07HU product to the OBD interface of the vehicle.
3. Let us take the PC test software ScanMaster-ELM as an example and introduce its usage.
- Open the software ScanMaster-ELM.
- Enter options
- Communication, setting
- Click connect
- At this point, users can choose each function menu to see if the vehicle condition is normal.
