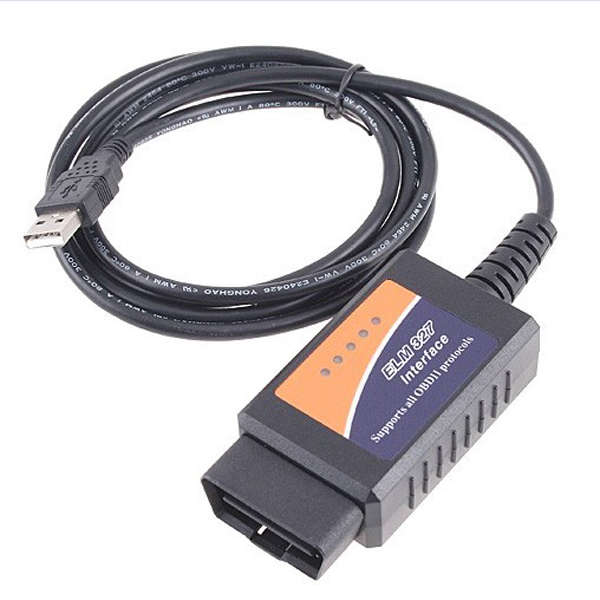

V1.5 ELM327 OBDII Auto Diagnostic USB Interface Code Scanner Reader
Descriptions:
ELM327 is the latest PC-based scan tool. It supports OBD-II protocols and is dispatched with a number of compatible programs.
ELM327 OBD-II Software is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
Features :
user-friendly, easy to learn, and easy to install.
The output protocol (connection to laptop) is USB.
The software supports two platforms - DOS and Windows, (not include Windows 7)
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light).
Display current sensor data, including:
Engine RPM,Calculated Load Value,Coolant Temperature,Fuel System Status,Vehicle Speed,Short Term Fuel Trim,Long Term Fuel Trim,Intake Manifold Pressure,Timing Advance
Intake Air Temperature,Air Flow Rate,Absolute Throttle Position,Oxygen sensor voltages/associated short term fuel trims,Fuel System status,Fuel Pressure
Specifications :
OBDII Protocols:
ISO15765-4 (CAN),ISO14230-4 (KWP2000),ISO9141-2,J1850 VPW,J1850 PWM
Output protocol: RS232
Baud rate: 9600 or 38400
Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power
Operating voltage: 12V, internal protection from short circuits/overvoltages
Nominal idle current: 45mA
Color: Back + Orange + Blue
Item Weight:114g
USB Cable Length:Approx.146cm
Free software :
Scantool.net
GM Mode 22 Scan Tool by Terry
OBD Gauge for PalmOS and Pocket PC by Dana Peters
OBD Logger by Jonathan Senkerik
OBD-II Scan Master by Wladimir Gurskij (ScanMaster 3.52 - local copy)
obd2crazy.com
OBD2 Scantool by Ivan Andrewjeski
OBDII for ELM322 by David Huffman
pyOBD by Donor Size more for Macaco and Linux
RDDTC by Pete Calinski
Real Scan by Brent Harris
ScanTest for Pocket PC by Ivan Ganev aka a-ser
wOBD by WDT
Available cars :
Toyota:
Toyota Camry 2.0A 2004 (ISO),Toyota Camry 2.4A 2005 (ISO),Toyota Corolla Altis 1.6A 2005 (ISO),Toyota Corolla GLXi G8 1999 (ISO),Toyota Corolla G9 2002 (ISO)
Toyota Vios 2004 (ISO),Toyota camry 2002,Toyota Wish JDM (Missing Pin 5 in DLC),Toyota IST JDM (Missing Pin 5 in DLC),Toyota altis 1.8 2004
Mitsubishi:
Mitsubishi Colt 2003 (ISO),Mitsubishi Colt Plus 2005 (ISO),Mitsubishi Eclipse(GST--Turbo Car can be tested for the year 1995-2000; RS/GS----1994-1996 GS all can do; Turbo Car for the year 1996-2000, only have speed and TPS, can clear the DTCS),Mitsubishi Lancer Evolution IX 2006 (ISO)
Mitsubishi Pajero 3.5 V6 2006 (ISO)
Hyundai:
Hyundai Accent 2004 (ISO),Hyundai Getz 1.3A 2004 (ISO),Hyundai Getz 1.6M 2004 (ISO),Hyundai Matrix 2004 (ISO),Hyundai Santa Fe 2.4A (ISO)
Hyundai Sonata GLS (ISO),Hyundai Sonata 2005 (ISO),Hyundai Tuscani FX (ISO)
Honda:
Honda Accord 2006 JDM (ISO),Honda Accord Euro R 2004 JDM (ISO),Honda City GD8 (ISO),Honda Civic ES 1.6A (ISO)
Honda Integra Type R DC5 JDM (ISO),Honda Jazz 1.4M (ISO)
Nissan:
Nissan Sunny B14 (ISO),Nissan Sunny VIP FB15 (ISO),Nissan X-Trail 2.0L 2004 (ISO),Nissan X-Trail 2.5L 2004 (ISO),Nissan Sunny (N16)
Nissan Cefiro (Teana) 2005,Nissan sentra 1.8 2000/2005,Nissan Cefiro (Teana) 2005
Peugeot:
Peugeot 206 2001 –Only can show RPM,Peugeot 206 (ISO),Peugeot 307 (ISO),Peugeot 407 (ISO)
Kia:
Kia Carens 2005 (ISO),Kia Magentis 2005 (ISO),Kia Rio LS (ISO),Kia Sorento SUV 2005 (ISO)
Mazda:
Mazda 5 (CAN),Mazda 6 (CAN),Mazda Premacy 2001 (ISO),Mazda RX8 (CAN)
Subaru Impreza:
