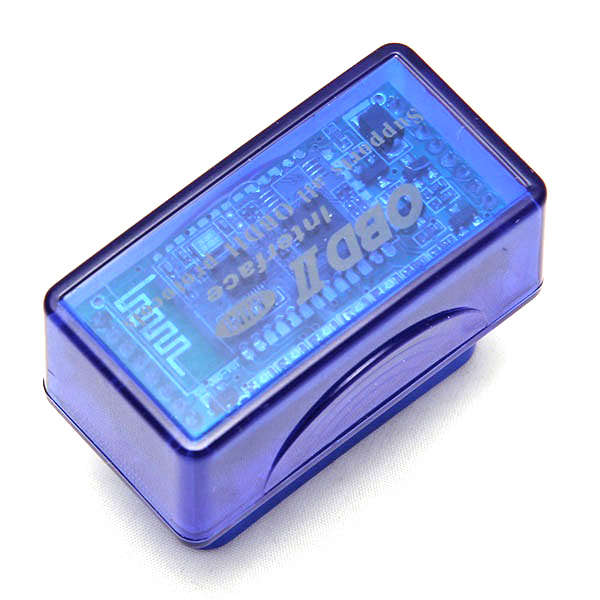

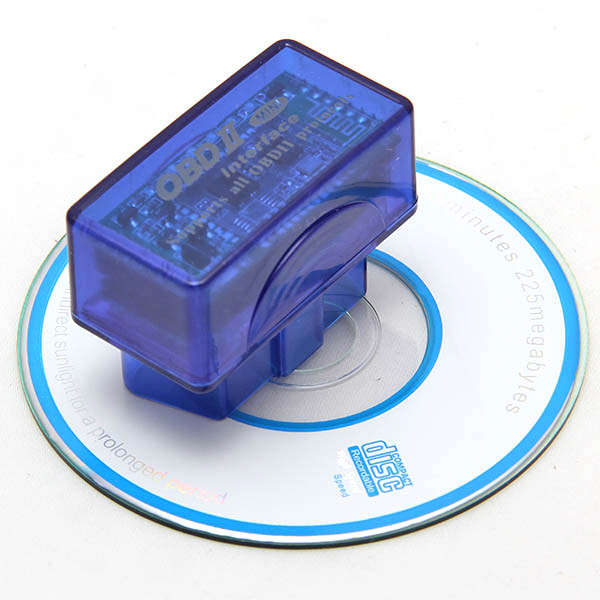

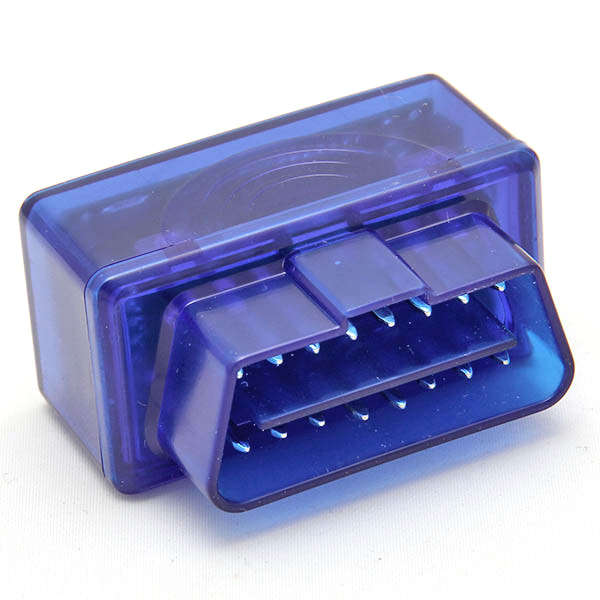

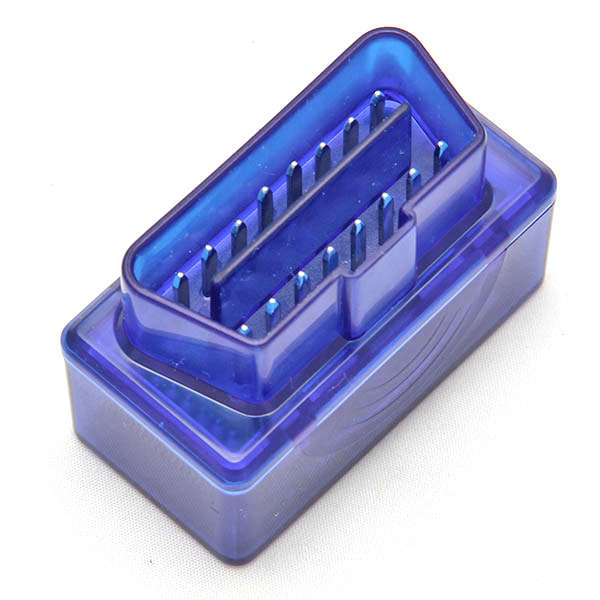

V2.1 Super Mini ELM327 BT OBD2 Scanne CAN-BUS Supports

V2.1 Super Mini ELM327 BT OBD2 Scanne CAN-BUS Supports

Features:

Brand new and high quality.
Work with all OBD2 compliant vehicles.
Small bluetooth interface with a 16 pin socket.
Mini ELM327 bluetooth scanner is the newly developed wireless scan tool. It supports all OBD-II protocols.
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Support different kinds of devices to use this scan tool: Android system phones, Symbian system phones, Windows XP and WIN7 32bite computers.

Display current sensor data, including:

1.Engine RPM
2.Calculated load value.
3.Coolant temperature.
4.Fuel system status
5.Vehicle speed.
6.Short term fuel trim.
7.Long term fuel trim.
8.Intake manifold pressure.
9.Timing advance.
10.Intake air temperature.
11.Air flow rate.
12.Absolute throttle position.
13.Oxygen sensor voltages/associated short term fuel trims.
14.Fuel System status.
15.Fuel Pressure.
Type: code readers & scan tools.
Color: blue.
Material: plastic.
Voltage: 12V
Current: 45mA.
Wave frequency: 38400Hz.
Applicable scope: 5-10m.
Size: 4.8cm x 3.2cm x 2.5cm.

Features:

1.SAE J1850 PWM(41.6Kbaud).
2.SAE J1850 VPW(10.4Kbaud).
3.ISO9141-2(5 baud init,10.4Kbaud).
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud).
5.ISO14230-4 KWP(fast init,10.4 Kbaud).
6.ISO15765-4 CAN(11bit ID,500 Kbaud).
7.ISO15765-4 CAN(29bit ID,500 Kbaud).
8.ISO15765-4 CAN(11bit ID,250 Kbaud).
9.ISO15765-4 CAN(29bit ID,250 Kbaud).
10.SAE J1939 CAN(29bit ID,250*Kbaud).
11.USER1 CAN(11*bit ID,125*Kbaud).
12.USER2 CAN(11*bit ID,50*kbaud).
default settings(user adjustable).

Package Included:

1 X ELM327 Bluetooth OBD2 Scanne
