V56 Universal LCD TV Controller Driver Board PC/VGA/HDMI/USB Interface+7 Key Bo
Sold

V56 Universal LCD TV Controller Driver Board PC/VGA/HDMI/USB Interface+7 Key Bo

30 were available / new
Indicative market price: R1,199.00
R443.51
63% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
1197481
Bob Shop ID
307481425
Package weight: 0.13 kg
Description:

Support TV Signal: Analog
OSD Language: Chinese, English, Deutsch, Espoal, Portuguese, French, Italian.
Scheme of the chip: TSUMV56RUUL.Z1

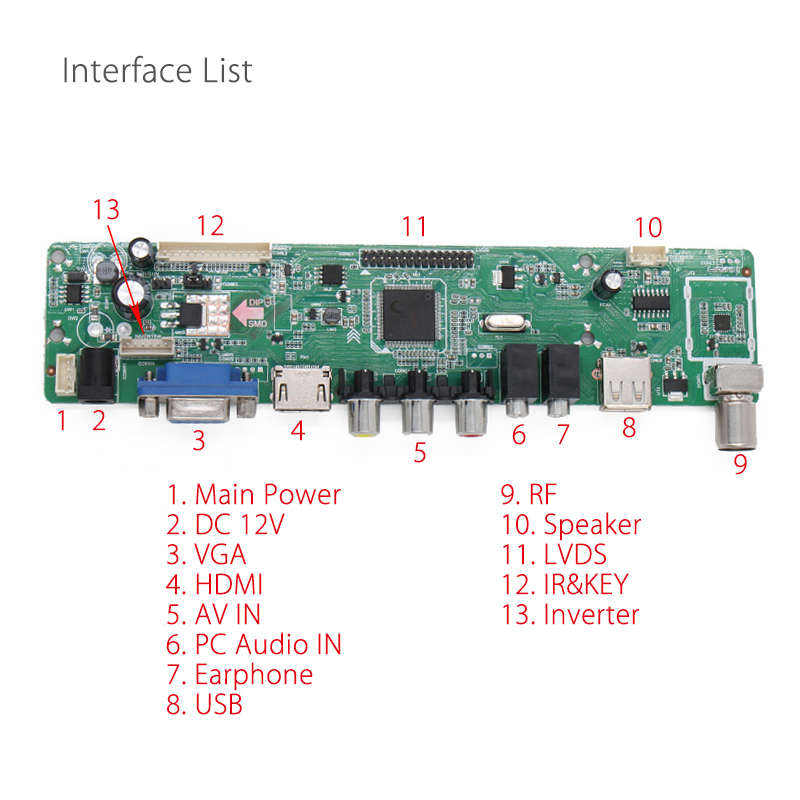

Input Interface: PC / VGA / HDMI / TV / USB multimedia playing
Voltage: DC 12 V
Screen interface: LVDS Single 6 / 8 , Double 6 / 8
Screen voltage: 3.3V / 5V / 12V
Resolution: Support high screen 1920 * 1080, 7-55 inch LVDS screen (support most of the panels,but not all)

Burning method: to record the screen program in the USB flash disk, USB flash disk inserted into board, plug in the keypad, electricity; About after a few seconds, press the keypad lights start alternating red and green flash, flash lights began to write programs (please do not power), light in the slow flash first, after a slow flash flash, will speed up the quick flash, long after the last until the lights stop flashing light is the program written, electricity burn with USB flash disk to complete the program.
Not only USB interface can be used to upgrade programs, but also can use to play video/music/photo (V29 without this function), basically formats are supported. You can also set a boot display pictures or LOGO.
Notice:
1. The power requirement of 12V4A
2. Screen voltage jump line according to the working voltage of screen jump to the corresponding position
3. Use to adapt to the board of general screen line
4. The screen line not to reverse and dislocation


Programming:

1. The screen of the program is copied(.bin file) to the usb drive.
2. Insert USB Flash disk to the USB port on the board
3. Connected to the keypad, electricity again, until you see by the indicator lights on the keypad after flashing in red and green, until after the indicator light flashing, unplug the power, then pull out USB Flash disk, afresh power on.(Note that write programs do not power outages, crashing won't be able to use)

Does this board suitable for my LCD? How to know? Here is the method!
Find the program:
Step 1: Find your LCD model's resolution (you can check the resolution from this link: https://www.panelook.com/index.php)
Step 2: Downlosd the file and open, find your screen resolution and screen model number.copy it to your U disc.(If you can't find your screen model numer in the folder, you can copy anyone that same resolution to try, if not suitable ,try another one)

Firmware is !

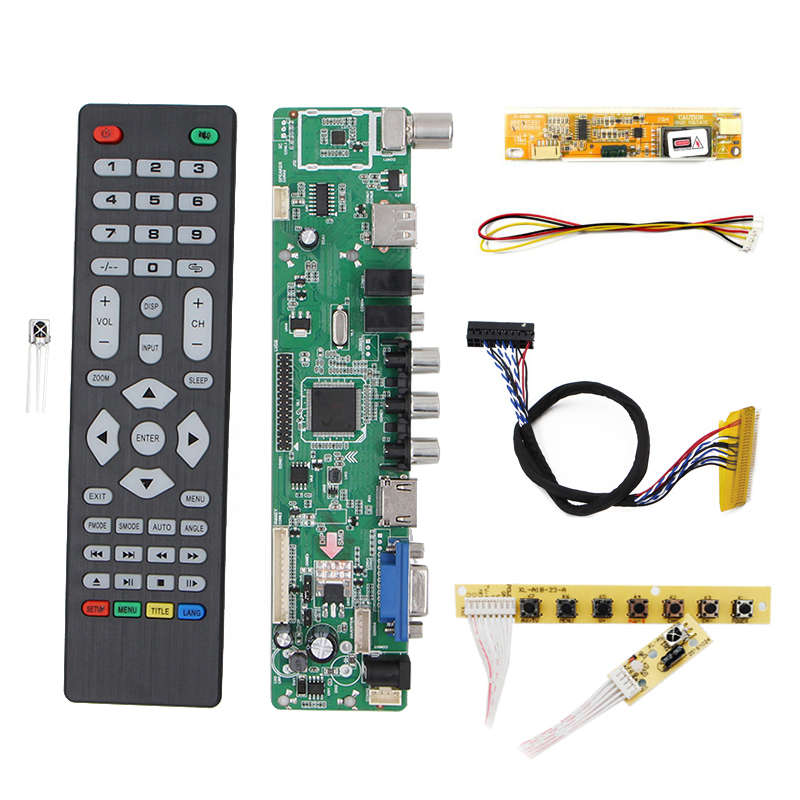

Package included:

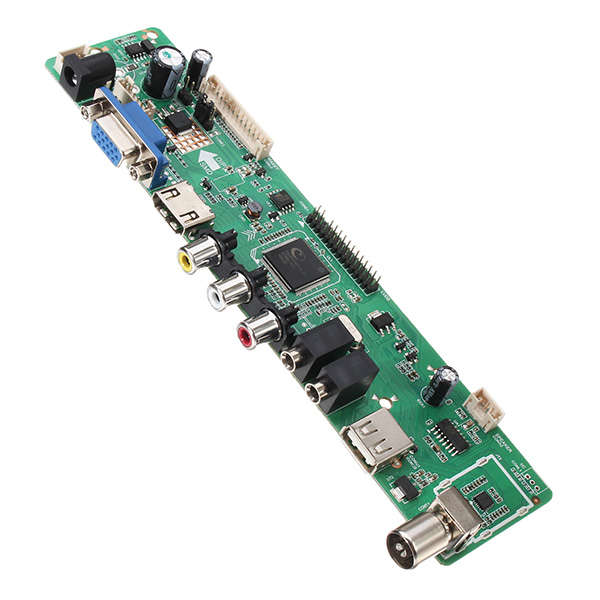

1 x V56 Controller Board

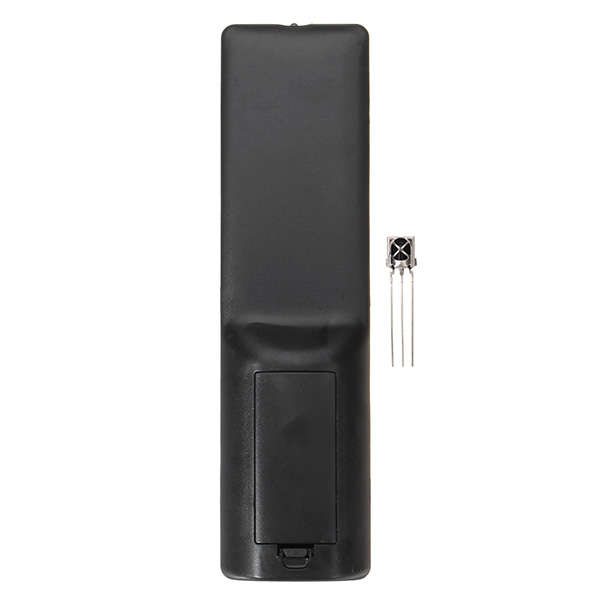

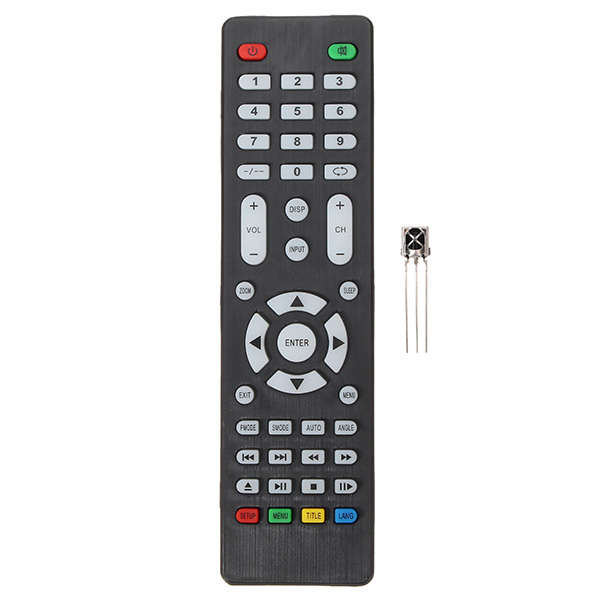

1 x Remote Control
1 x IR

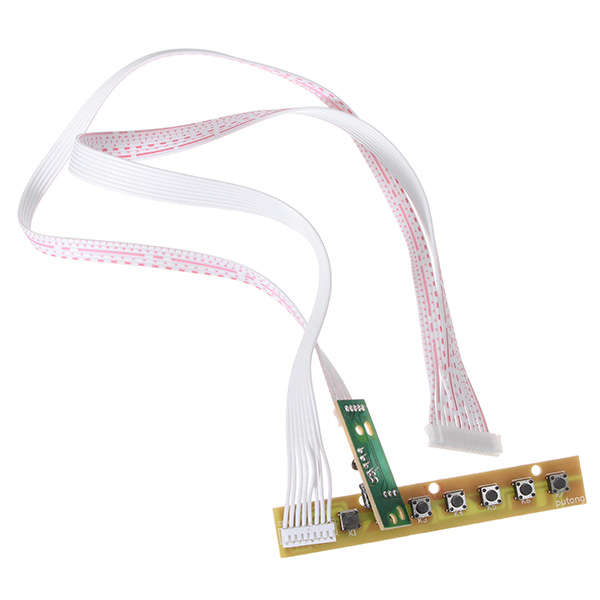

1 x 7Key Button

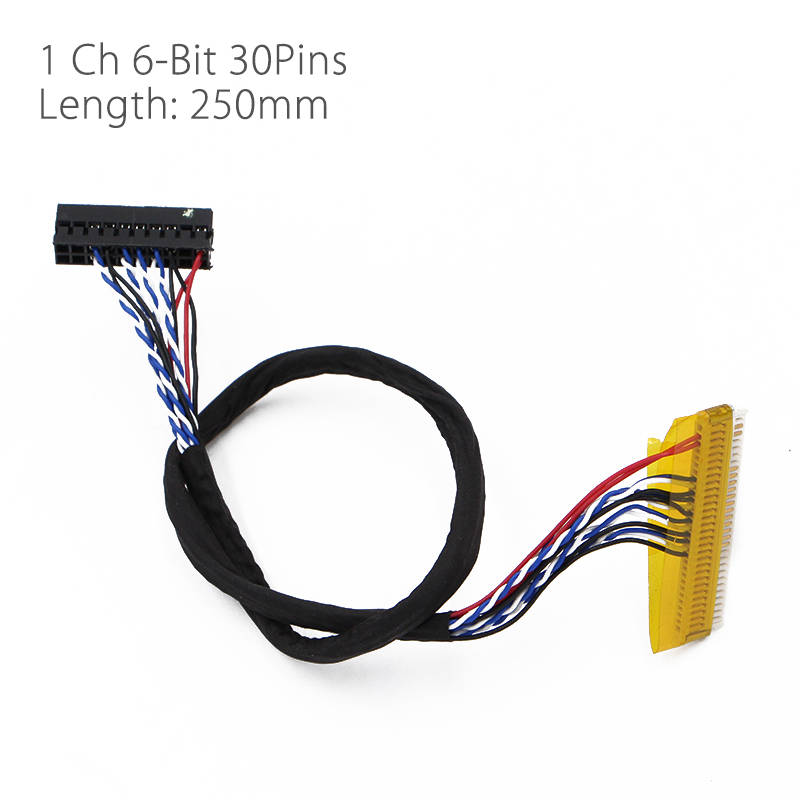

1 x 1 Ch 6-Bit 30Pins LVDS Cable

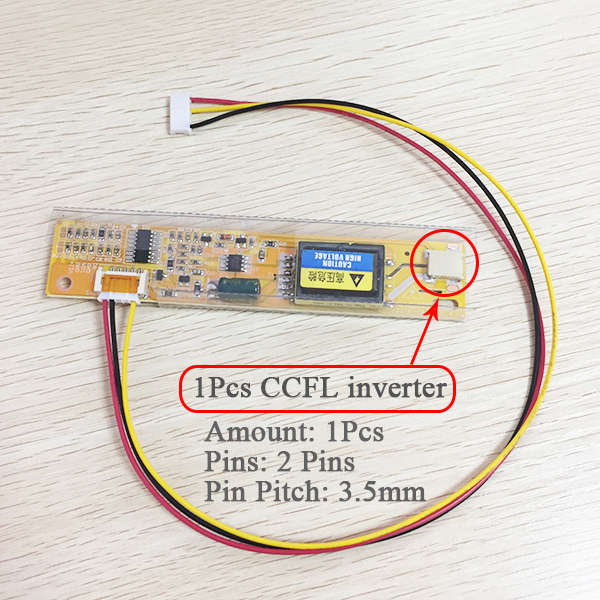

1 x 1 Lamp CCFL Inverter
