V59 Universal LCD Controller Driver Board + V59 Baffle Iron Stand
Description:
This Baffle is for V29 V59 TV driver board and with hd USB interface board
Model: LA.MV9.P V59

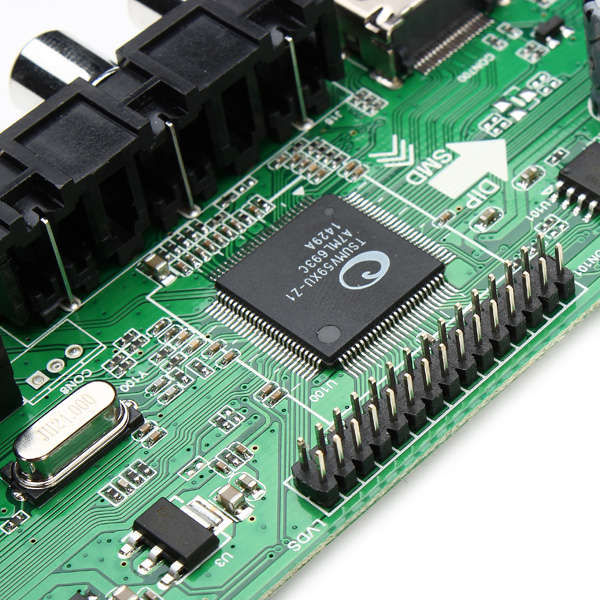

Scheme of the chip: V59

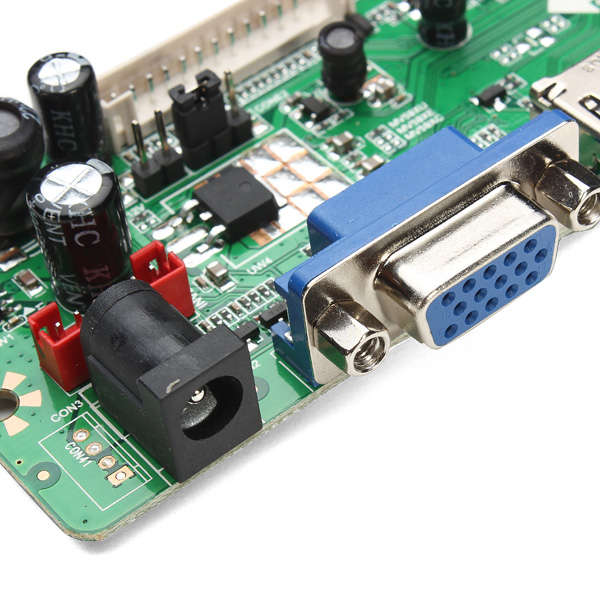

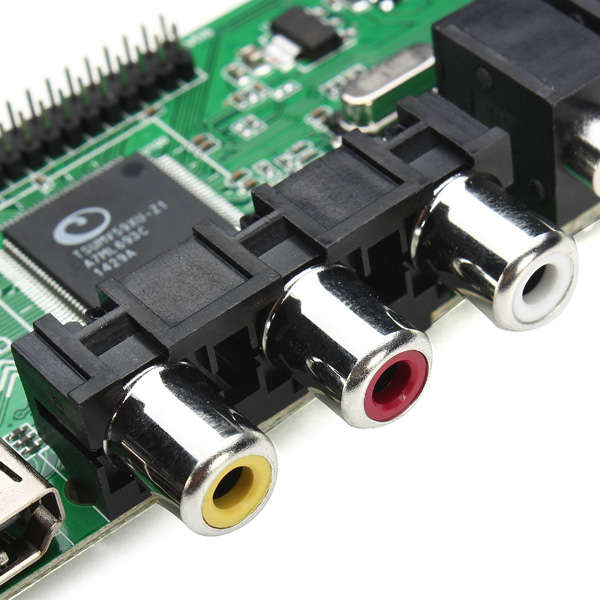

Input Interface: PC / VGA / HDMI / TV / USB multimedia playing
Voltage: Single 12 V
Screen interface: LVDS Single 6 / 8 , Double 6 / 8

Screen voltage: 3.3V / 5V / 12V
Resolution: Support high screen 1920 * 1080 8.9-42 inch LVDS screen
Burning method: to record the screen program in the USB flash disk, USB flash disk inserted into board, plug in the keypad, electricity; About after a few seconds, press the keypad lights start alternating red and green flash, flash lights began to write programs (please do not power), light in the slow flash first, after a slow flash flash, will speed up the quick flash, long after the last until the lights stop flashing light is the program written, electricity burn with USB flash disk to complete the program.

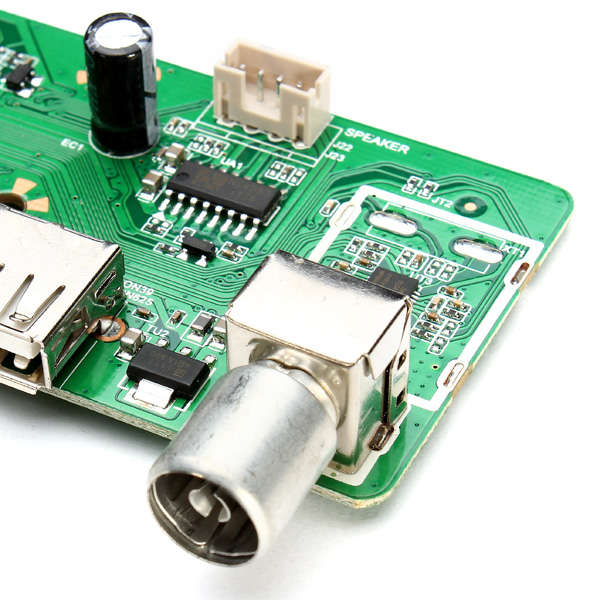

Not only USB interface can be used to upgrade programs, but also can use to play video, basically formats are supported. You can also set a boot display pictures or LOGO
Notice:
1. The power requirement of 12V4A
2. Screen voltage jump line according to the working voltage of screen jump to the corresponding position
3. Use to adapt to the board of general screen line

4. The screen line not to reverse and dislocation

Programming:
1. The screen of the program is copied to the usb drive. AS: inner
2. Insert USB Flash disk to the USB port on the board
3. Connected to the keypad, electricity again, until you see by the indicator lights on the keypad after flashing in red and green, until after the indicator light flashing, unplug the power, then pull out USB Flash disk, afresh power on.(Note that write programs do not power outages, crashing won't be able to use)

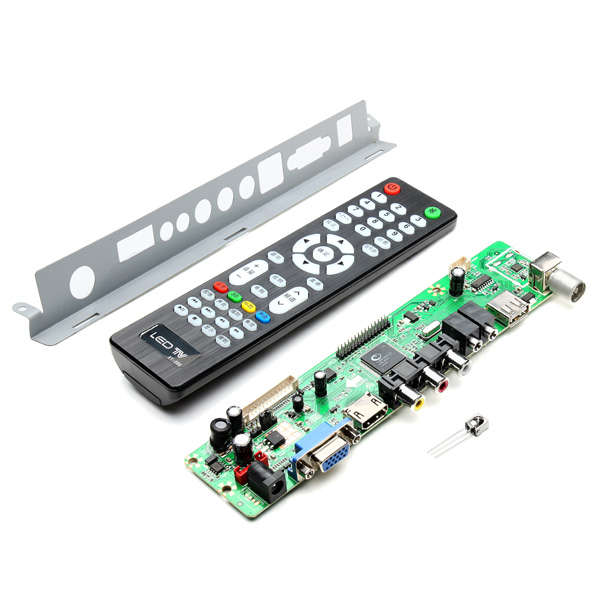

Package included:

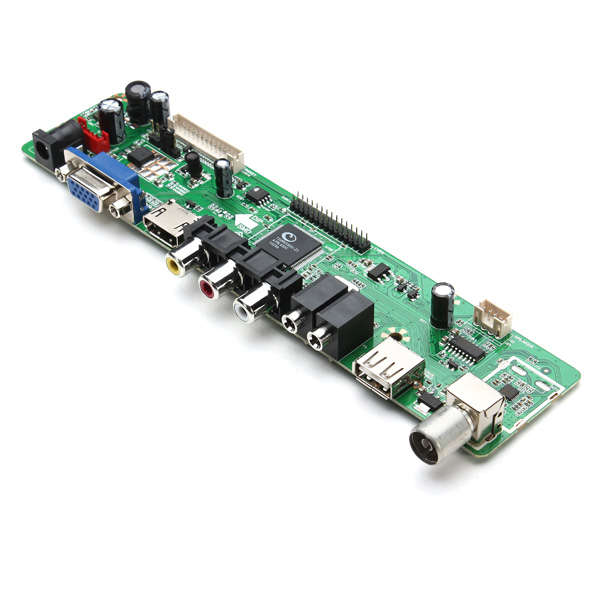

1 x V59 Controller Board

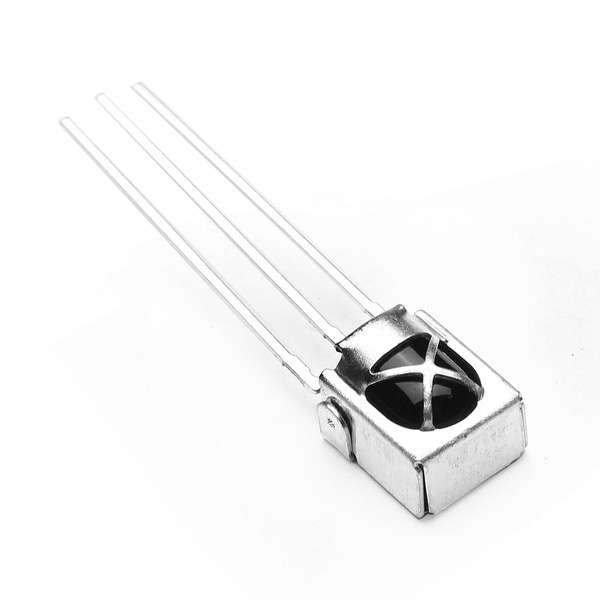

1 x remote control

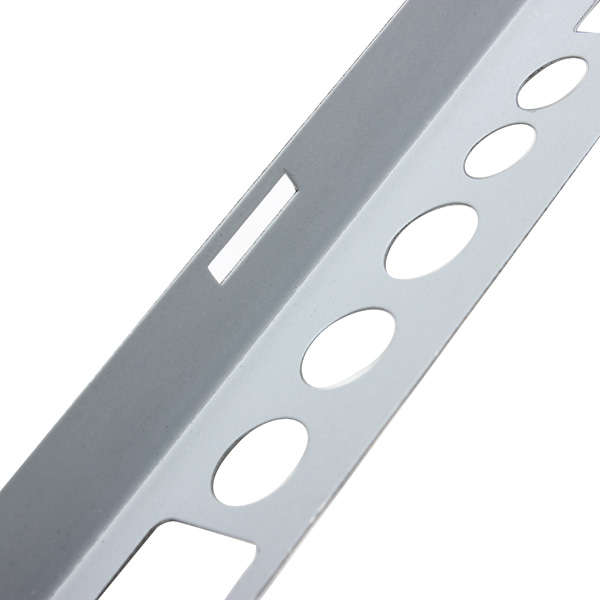

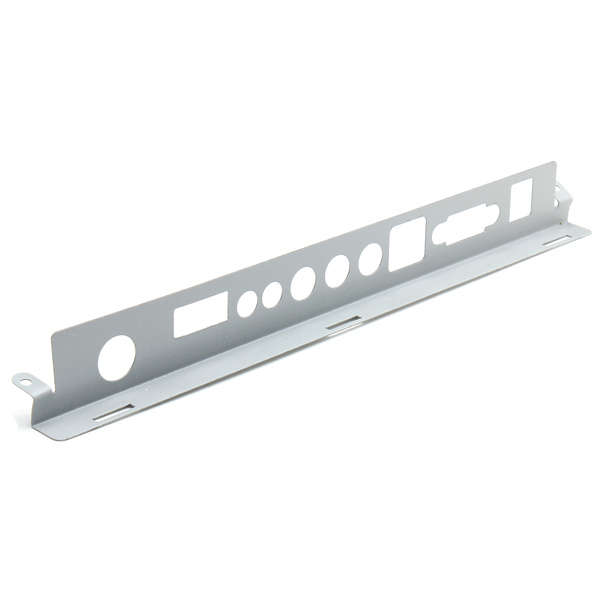

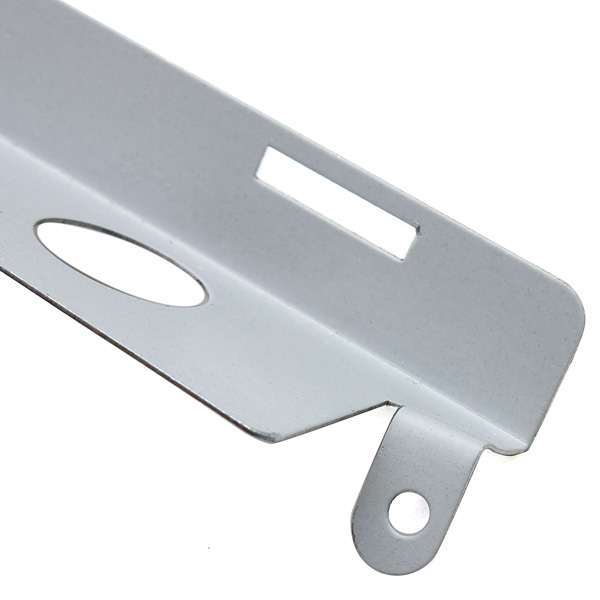

1 x Baffle
