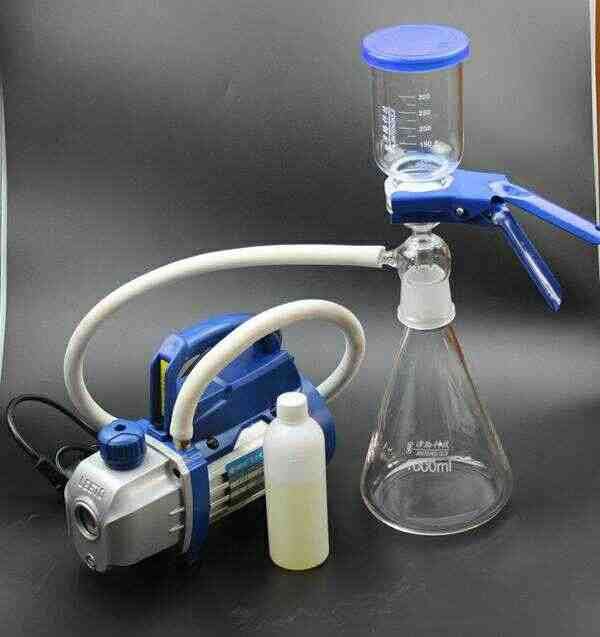

Vacuum Pump Solvent filtration devices 1000ml

This series of single-stage vacuum pump, using direct-overall design, to make products more compact, lightweight and reasonable. Using a large starting torque, for a special design for a low-temperature environment, to ensure that in the case of low ambient temperature in winter boot normally. Suitable for vacuum packaging, vacuum refrigeration, vehicle maintenance, printing machinery and so a variety of vacuum suction.

Parameter / Model RS-1

Pumping speed m3 / h (L / S) 50 (HZ) 2 (0.5)

Ultimate Pressure (Pa) Pa 10

microns 75 × 10-2

Mbar 0.1

Speed (r / min) 50 (HZ) 1440

Power (kw) 0.12

Voltage (V) 220

Inlet diameter (O.D.) (Mm) 8

Noise (dBA) 56

Come volume (L) 0.225

Dimensions (mm) 275 × 114 × 207

Weight (Kg) 6.2KG
