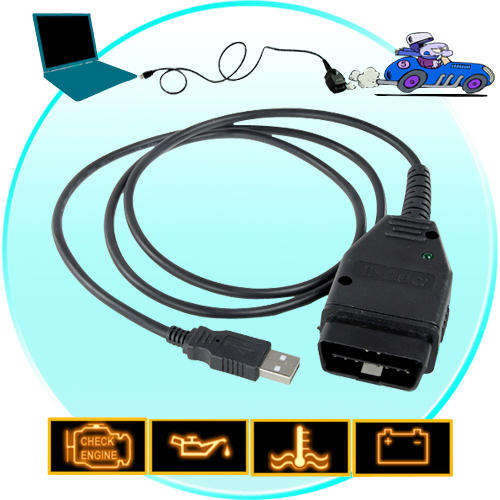

VAG-COM Tacho 2.5 USB to OBD-II interface cable for VW, Audi, Seat and Skoda (certain models - see specifications below). This VAG-COM cable with software is an aftermarket tool for transmission protocols with 16pin OBDII style data link connector that supports VDO SEED-KEY protected dashboards.
This car diagnostics USB to 16PIN OBD-II cable allows you to read/write EEPROM programming, read PIN codes for new key change and update the millage of your car. Use your computer and this USB enabled VAG-COM interface cable, and you will be able to instantly modify certain settings and clear errors in your vehicle. With easy installation of the software provided with this Tacho 2.5 USB OBD-II cable, you can start self-troubleshooting your very own car, and view results within minutes.
This model supports VDO SEED-KEY protected dashboards so you can read the Immobilizer PIN code of your car without the need to remove the dash panel. The VAG-COM Tacho 2.5 interface cable is easily connectible to your vehicle through the OBD diagnostics port. There is no doubt that this simple tool is very cost affective, whether you are a mechanic or just a car owner.
At a Glance...
VAG-COM Tacho 2.5 USB to OBD-II Interface Cable
Supports VDO SEED-KEY protected dashboards
Full featured diagnostic code analyzing software
NOTE: Instructions should be read and advice sought from your technician or mechanic before using this product. The unit works on vehicles that are VAG compliant, the best way to check if your car is compliant is to check the car user manual, contact your local car dealer or mechanic
Manufacturer Specifications:
Primary Function: USB Vag-Com interface cable
OBDII Plug: J1962 16-Pin Male (to Car)
USB Port enabled
Operating Software Compatibility: Windows 98SE / ME / 2000 / NT and XP.
Some Compatible Vehicle Models and Years++:
- Audi A4, A6, A8 with separate immobilizer box (1994-1999), reads PIN and reads/writes EEPROM
- Audi A3, A4, A6, TT (1998-2002), reads PIN and corrects mileage
- Audi (nearly all VDO dashboards) pre-2001 Reads/writes EEPROM
- VW Beetle (New) Magneti Marelli M73 (1998-2002), reads PIN & corrects mileage
- VW Beetle (New) Magneti Marelli M73 (2001-2005), reads PINs
- VW, Seat, Skoda (nearly all VDO dashboards) pre-2004 reads/writes EEPROM
- VW, Seat (nearly all MotoMeter dashboards) to 2001 reads/writes EEPROM
Supports VDO SEED-KEY protected dashboards including the following VW's and Skodas:
- Bora (to 2004)
- Golf 4 (to 2003)
- Jetta (to 2004)
- Passat B6
- Fabia (to 2004)
- Skoda Octavia/Fabia (to 2004)
- Also supports some Seat dashboards up to year 2004
Dimension: L:154 (CM)
Other Features:
No power supply needed, just connect to your car and computer
**Note**: Refer to your car user manual or check with your vehicle manufacturer, dealer or local mechanic to verify that your model is compliant
Package Contents:
Model: USB VAG-COM interface cable
User CD Manual & Software - English
FAQ
I get a warning message from Windows when I am installing the software, should I be worried?
No. The software should install and work just fine.
Do I need to have my car running while performing diagnostics?
Just the ignition, but for some tests you might require the engine to be running.
