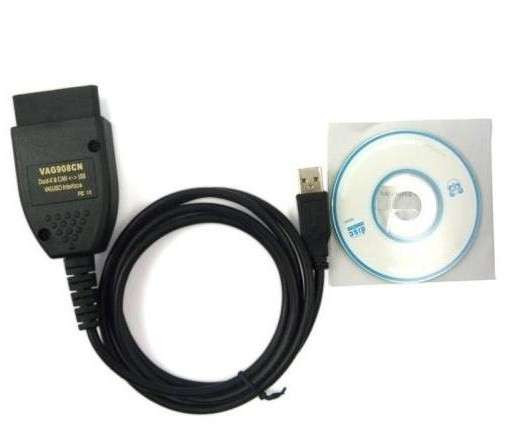

VAG-COM VCDS 908.1 HEX CAN Diagnostic Cable

Latest 908.0 New Functions:

• Supports Measuring Values, Output Tests, and Adaptations on control modules using the new UDS/ODX/ASAM protocol, • Adds new UDS addresses and updated ODX data for 2010 models, • Includes support for TP1.6 protocol which is required for the 6J Ibiza and speeds up access on many modules in other models, • The Select Control Module screen now shows "Installed Modules" rather than "Common Modules" if the car being worked on is new enough to have a proper CAN Gateway, • Modified SRI Screen to show more info and force user to select a job before proceeding, • Adds drop-box function selection in Basic Settings and Adaptation. • Reads Mileage stored in many EDC16 ECUs, • New CODES file, now with over 13,000 fault code and measuring value texts, • New USB drivers for enhanced PC compatibility and stability, • Updated Label files; better documentation for new and existing models.

Fully activated VCDS Vag Com diagnostic cable, brand new, provides fully Registered/Activated and unlimited access to all VCDS features.

This cable can be used with any laptop and PC with a USB port and that is running Windows XP,Vista and Windows 7.

Compatible with the newest cars which require a direct CAN connection for diagnostics including all Golf-5 platform cars and latest Audi A3, A6 and A8,Q7,etc.

Functions:

Full support for control modules using the new "Service 22" identification methods. Support for control modules using the new UDS/ODX/ASAM protocol. The following functions are supported:

•Control Module ID (including Advanced ID), Coding, Security Access, and Fault Codes, •New Session Log capabilities, •Support for Generic OBD-II Mode 10, •Support for vehicles with dual ECUs, or example the RS4 and W12 engines, •Both ECUs are accessible simultaneously via address 31 for Basic Settings such as TBA, •Revised Adaptation screen to support the much longer Long Adaptations now appearing in some control modules, •Revised Advanced ID screen for increased flexibility handling the various data items appearing in the latest control modules, •New internal Gateway Coding Assistant (required for Audi B8 platform cars), •Much improved documentation (Label Files) for many older cars, •Module Version - identify the control module part number and coding version, •DTC Memory - read and clear manufacturer diagnostic trouble codes, •Actual Values - access live data, •Activation - selected components can be activated, •Code Module - code new control modules (most models through 2002), •Adaptation - read/reset Service Light parameters, view/change block learn values, •Basic Settings - view and change control module default settings (Excluding 1.8T 01 and newer), •Individual Values - read individual measuring values, •Readiness Code - Check status of applicable emissions related systems, •Remote Control Programming - program Radio Frequency keys, •Key Matching - match keys to Immobilizer control module (5 digit), Color (red/green) status/activity LED

Workable Models

All VW, AUDI, SEAT, and SKODA vehicles, includes those with CAN-BUS system. Audi

Audi A2 (8Z) 2000 - 2008

Audi A3/S3 (8L) 1997 - 2008

Audi A3/S3 (8P) 2004+

Audi A4/S4/RS4 (8D) 1995 - 2008

Audi A4/S4/RS4/Cabriolet (8E/8H) 2001+

Audi A4/S4/RS4/Cabriolet (??) 2008+

Audi A5/Cabriolet (??) 2007+

Audi 100/A6/S6 (4A) 1991 - 1997

Audi A6/S6/RS6/allroad (4B) 1997 - 2006

Audi A6/S6 (4F) 2005+

Audi Q5 (??) 2007+

Audi Q7 (4L) 2006+

Audi A8/S8 (4D) 1994 - 2002+

Audi A8/S8 (4E) 2003+

Audi TT (8N) 1999 - 2007

Audi TT (8J) 2007+

Audi R8 (??) 2007+

Audi Radio/Navigation System

Seat

Seat Alhambra (7M) 1996+

Seat Altea (5P) 2004+

Seat Ibiza / Cordoba (6K) 1993 - 2002+

Seat Ibiza / Cordoba (6L) 2002+

Seat Leon / Toledo (1M) 2000+

Seat Leon (1P) 2006+

Seat Radio/Navigation System

Volkswagen

VW Caddy (9K) 1996 - 2003+

VW Caddy (2K) 2004+

VW Corrado + >> VW Crafter (2E) 2006+

VW Caddy (9K) 1996 - 2003+

VW Caddy (2K) 2004+

VW Corrado +

VW Eos (1F) 2006+

VW Fox/Spacefox/Sportvan/Suran (5Z) 2005+

VW Golf/Jetta II (19E) 1983 - 1992

VW Golf/Jetta/Vento/Cabriolet III (1H) 1992 - 1998+

VW Golf Cabriolet IV (1E) 1999 - 2002

VW Golf/Jetta/Bora IV (1J/9M) 1998 - 2006

VW Golf/Jetta/Bora V (1K/5M) 2004+

VW LT (2D) 1996+

VW Lupo (6E/6X) 1999+

VW New Beetle/Cabriolet (1C/1Y/9C) 1999+

VW Passat (31/3A) 1988 - 1994+

VW Passat (3B) 1997 - 2005+

VW Passat (3C) 2006+

VW Phaeton (3D) 2002+

VW 6N/6N2) 1994 - 2002+

VW 9N) 2002+

VW Scirocco (??) 2008+

VW Sharan (7M) 1995+

VW Tiguan (??) 2007+

VW Touareg (7L) 2003+

VW Touran (1T) 2003+

VW Transporter ( 70 ) 1991 - 1996

VW Transporter (7D) 1997 - 2003

VW Transporter (7H/7J) 2003+

VW Radio/Navigation System

Please note: only work with the VCDS/Vag Com software provided (as the cables are linked) and should never be used with other software which has been downloaded from the internet , I cannot offer support if you do not use the software provided. Other software will damage the cable so they no longer function.

Some products will be shipped from Asia if they are not in stock in our warehouse in SA. In this case delivery to you will take between 6 and 12 days. You will be informed of the stock/delivery situation when you have placed an order. Please note that the price you see here is the price you pay. WE pay the Import duties, VAT, Delivery cost to SA etc
