This product is a Multi-Interface Adapter that will allow you to connect different types of storage devices and allow you to Store, Backup, Clone, and manage your data when connected to your fast USB 3.2 Gen2x1 USB C or USB Type-A interface on the computer system. Accessing your data is easy, just mount tool your M.2 NVMe or M.2 SATA or 2.5" SATA drive and have immediate access to your data, No drivers are required. It is also backward compatible with all other slower USB ports.
CB-NSC300
Features:
Tooless Installation, Easy Insert and Mount

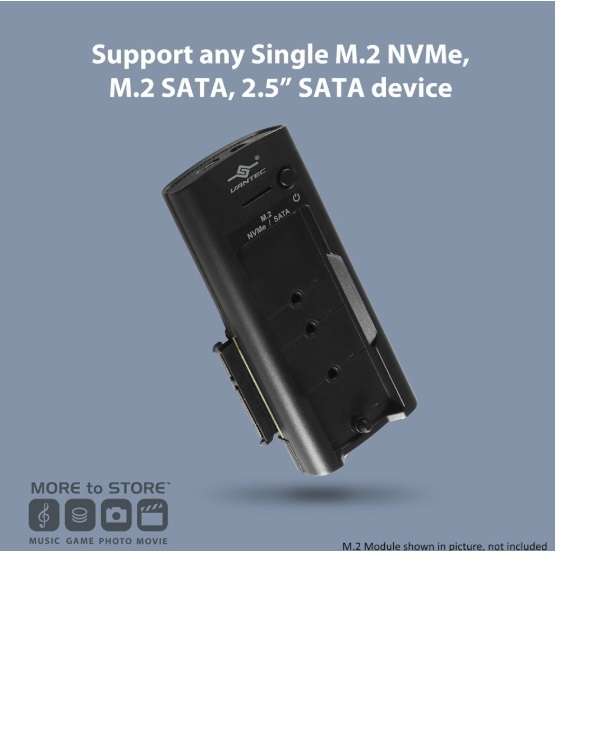

Quick Access to data on any M.2 NVMe or M.2 SATA or 2.5"/3.5" SATA device

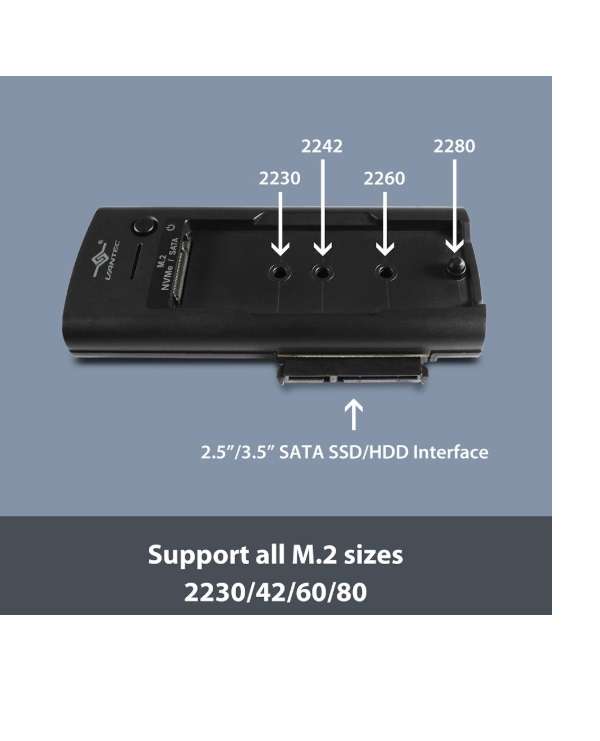

Design to be Compatible with all M.2 sizes 2230/42/60/80 with or without heatsink
Design for Data Recovery, Backup, Access data, and Cloning

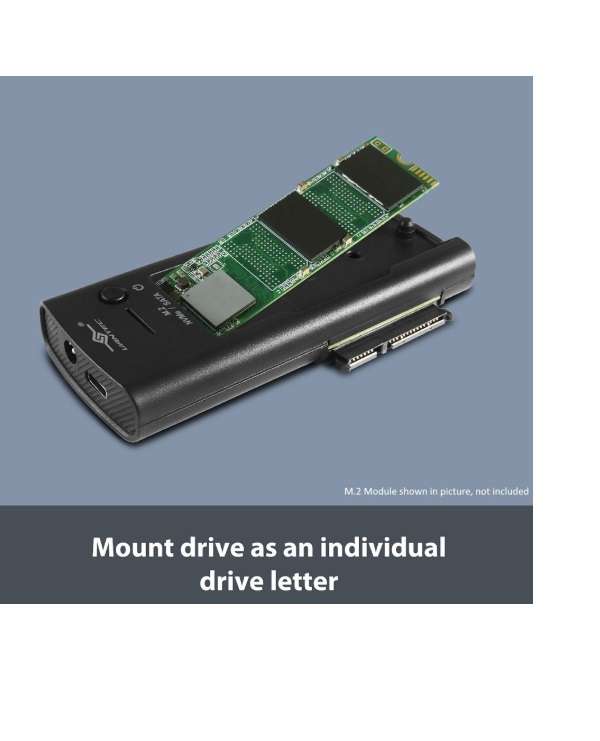

Mount M.2 NVMe/SATA, or SATA drive as an individual drive letter
Uses USB 3.2 Gen2x1 (10Gbps), Native USB C, comes with USB C to C/A cable
No Driver Needed. USB Hot-swappable, Plug & Ready
Compatible with All OS (Windows 10/11, OS X, Linux or more) with USB support, UASP, BOT, TRIM
Specifications:
-Adapter interfaces: M.2 NVMe, M.2 SATA, 2.5"/3.5"x SATA III HDD/SSD/Hybrid Drive
-M.2 Size Support: 2230/2242/2260/2280 without or with HeatSink
-M.2 with HeatSink Measurement: (W) <=30mm x (L) 80mm x (Db) 2.5mm (Df) >8.5mm
-SATA Size Support: 2.5"/3.5"x SATA SSD/HDD/Hybrid Drive
-Internal Interface: M.2 NVMe or M.2 SATA or 2.5"/3.5"x Standard SATA III/II/I
-External Interface: USB 3.2 Gen2x1 Type C
-Interface Cable: USB C to C/A (Included)
-USB cable Length: 380 mm
-Power Supply: None, Bus-powered, Comes with Power Port for Optional AC Adapter
-Optional AC adapter: Universal Auto-Switching AC adapter, Output, 12VDC, 2A-3A, Center Pin Positive, Outer Dia: 5.5mm, Inner Dia: 2mm, Barrel Length: 10mm
-Storage Capacity: M.2 NVMe/SATA (1/2/4/8TB or more), SATA III (4TB or more)
-Material: Heavy Duty ABS

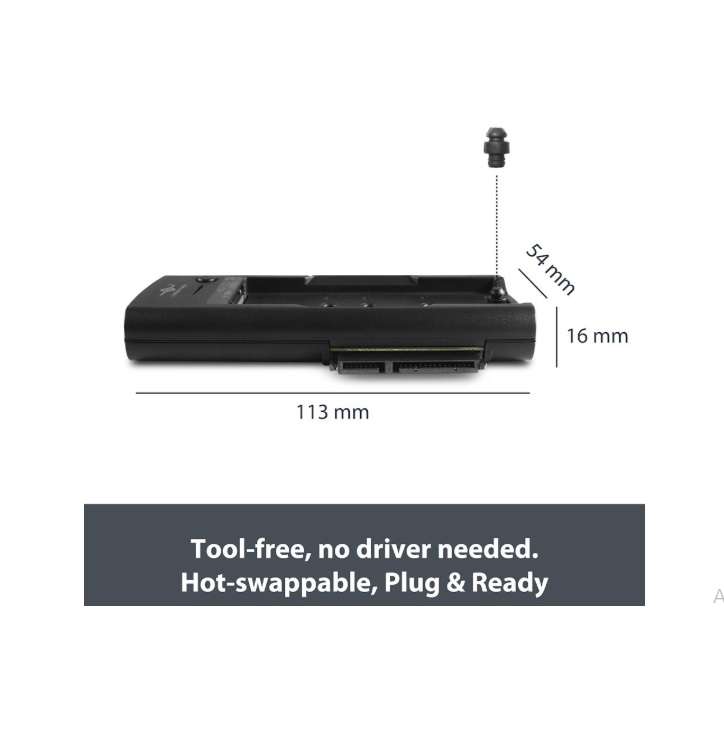

-Dimension (LxWxH): 113 x 54 x 16 mm
-Weight: 47g
System Requirements:
-Windows OS (7/8/10/11) / OS X 10.6 or later / Latest Linux OS
-Computer with USB 3.2 Gen2 Type C/A preferred
-Your USB Port MUST provide enough power to your device, else the Optional AC adapter is required
xNote:
- Since this is a BUS-POWERED Adapter, your USB port MUST provide enough power to your Storage device else it will not work. If your USB Port does not provide enough, you MUST use the Optional AC adapter, See Specifications above.
- 3.5" SATA Drives requires more power. MUST purchase an Optional AC adapter to power these drives. See Specifications for AC Adapter to purchase.
- If your M.2 drive has a Heatsink, Check Specifications above for HeatSink Size for proper fit.
- No Software provided, for Data recovery tool apps, please source online on your own.
What's in the box

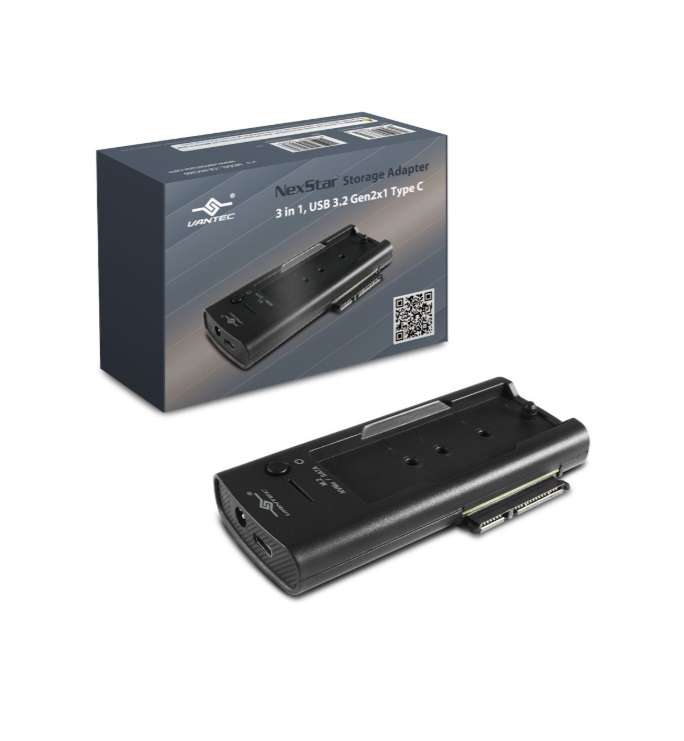

1x Vantec NexStar Storage Adapter, 3-in-1
1x USB cable (C to C/A)
1x Quick Guide
