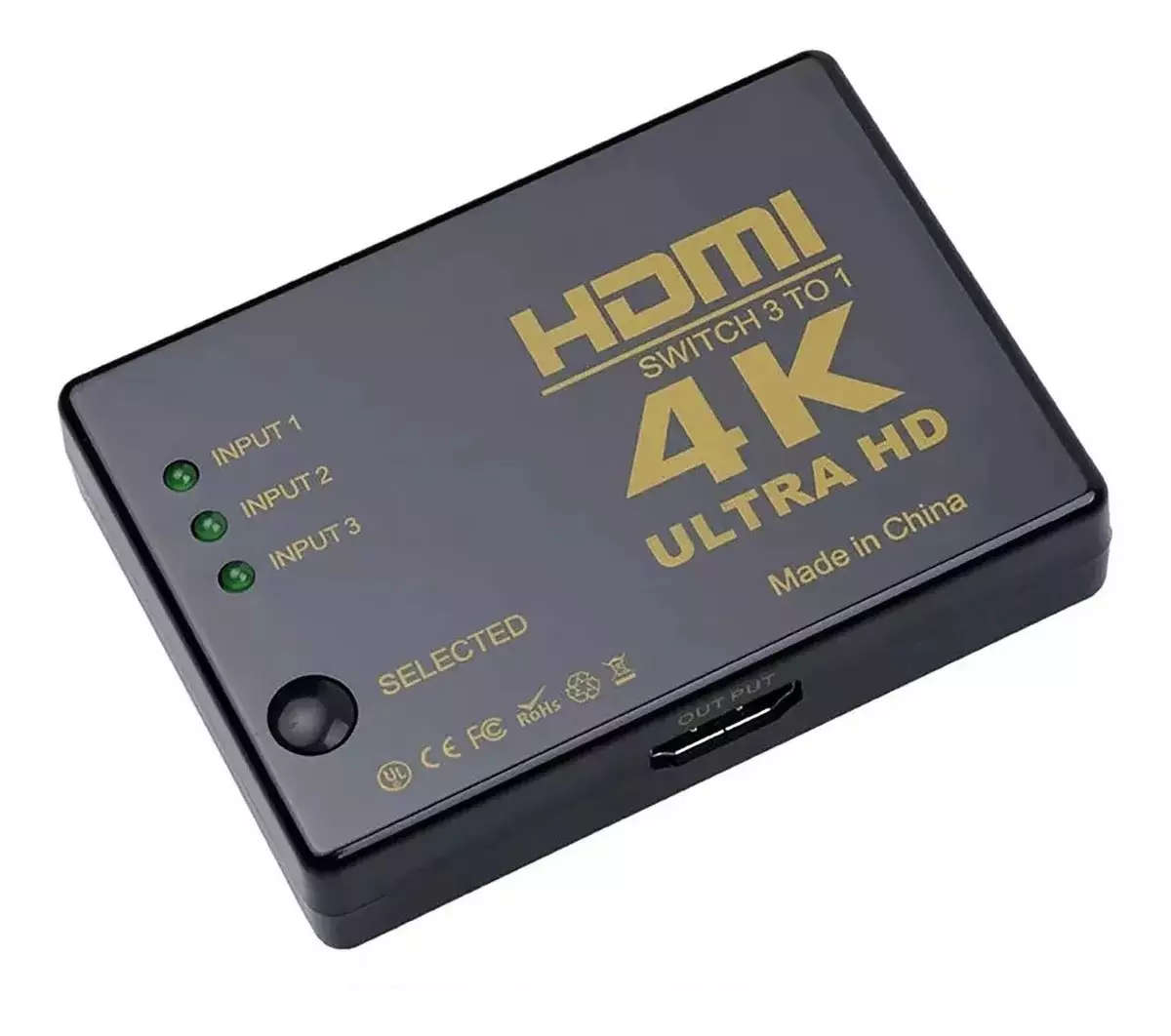

Variable 4k UltraHD 3x1 (3 input ports) HDMI Switch with built-in Equalizer & IR Remote Control

Variable 4k UltraHD 3x1 (3 input ports) HDMI Switch with built-in Equalizer & IR Remote Control

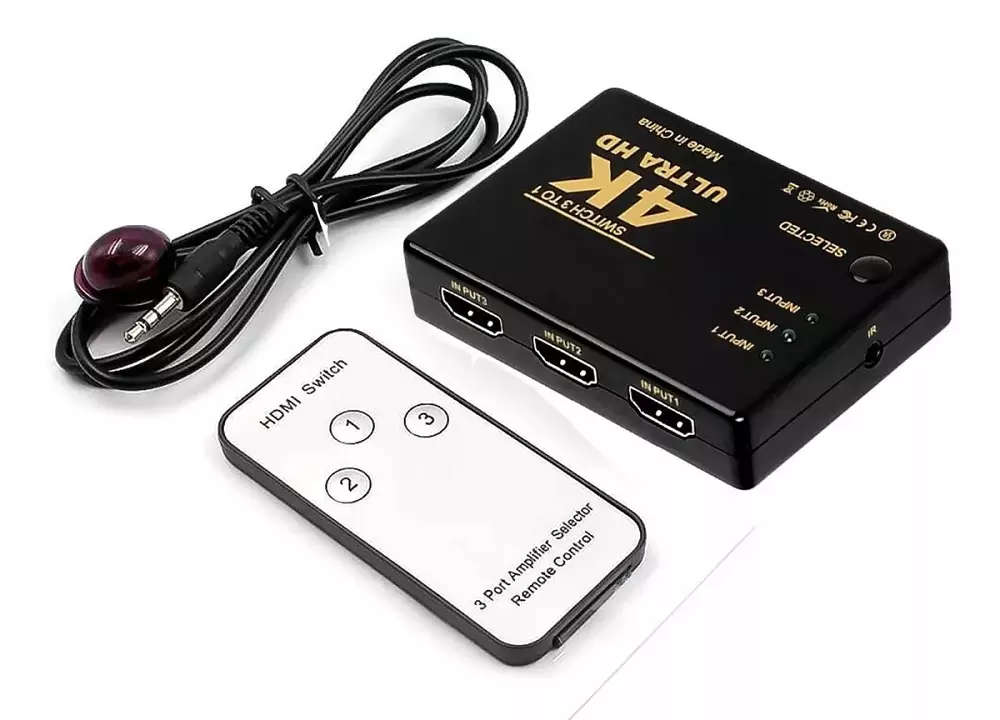

This is a high performance 3 HDMI input and 1 HDMI output switch. The system supports all 3D TV formats in addition to all HDTV formats up to 4k (3840x2160). Furthermore, the remote control is included and you will be able to control which source you would like to be on.

Features:

• Support 3D frame sequential video format up to 1080p @ 60hz, Standard Video/Movies/Gaming up to 4k @ 60hz
• Supports smart auto switch function
• Supports IR and Panel button control

Specifications:

• Input Ports - 3 x HDMI (Female type)
• Output Ports - 1 x HDMI (Female type)
• Output Resolution - 480i ~1080p 50/60hz, 4K (3840 x 2160) 60hz
• ESD Protection
• Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
• Dimensions - 64 mm (W) × 155mm (D) × 17 mm (H)
• Weight - 180 g
• Operating Temperature - 0 °C~40 °C/ 32 °F~104 °F
• Storage Temperature 20 °C ~ 60 °C/4 °F ~140 °F
• Relative Humidity - 20~90 % RH (non-condensing)
• Power Consumption - 2W

Connect and Operate

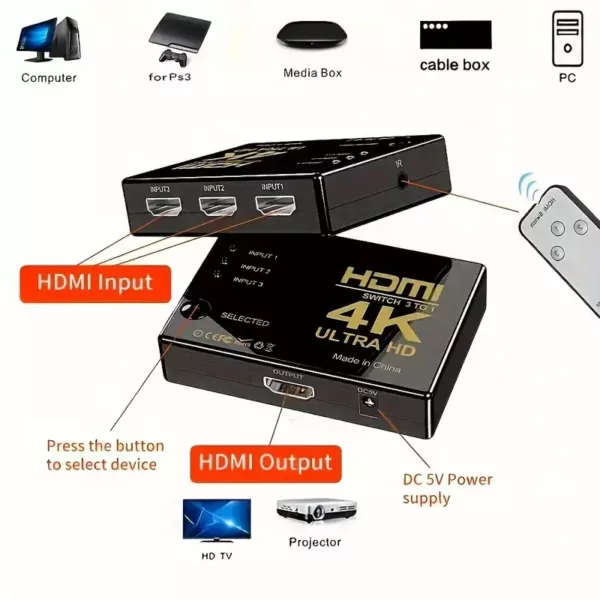

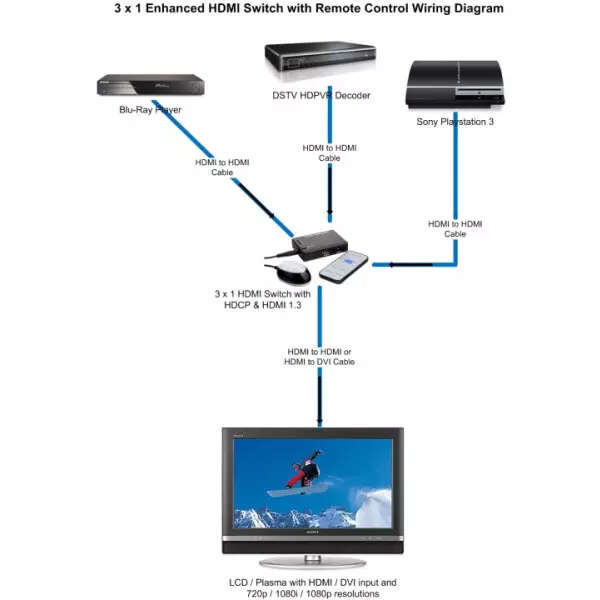

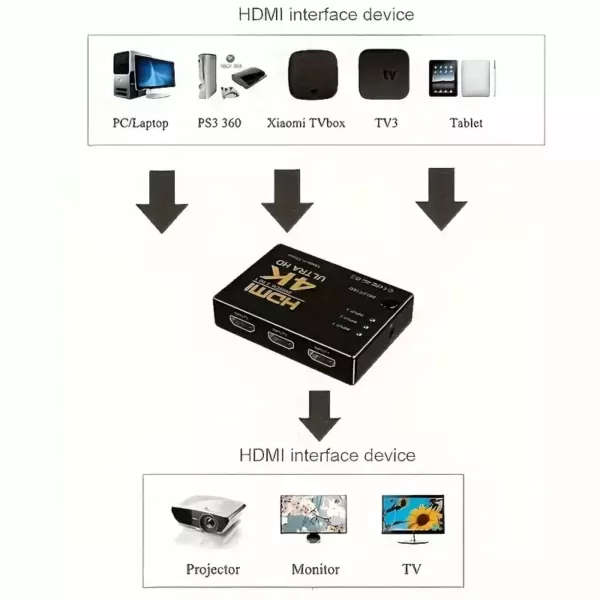

• Connect the signal sources such as Blu-Ray Player, Play Station 3, satellite receivers and computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the HDMI Switcher input.
• Connect the HDMI outputs from the HDMI Switcher to high-definition display devices such as HD-LCD, HD-DLP and HD projectors with HDMI input interfaces.
• Use high-speed HDMI cables that are recommended for the distances that are required for each connection
