I used the below items a couple of years ago to establish a long range wireless link (4km) between two remote buildings, in conjunction with two Senao 23dBm (200mW) RF power output access points (listed elsewhere on bid or buy). After moving premises, I no longer needed them and they have been in storage for about three years.
The link between the buildings was originally implemented with the lower gain dishes, which worked until trees along the way entered the Fresnel zone. Subsequently I upgraded to higher-gain grid antennas.
I wish to sell the items together as one since they've been taking up space in my garage for too long.

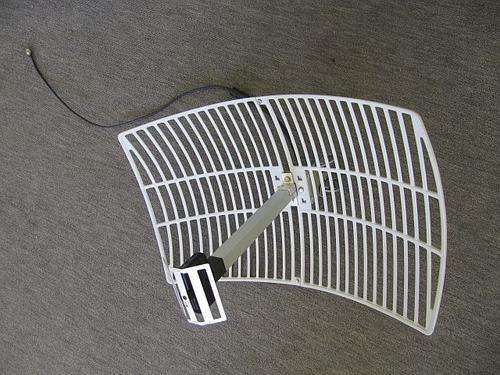

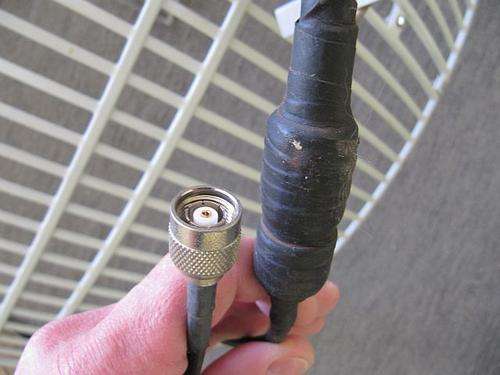

1x 2.4Ghz 24dBi (0.6 x 0.9 m) Split Grid Antenna with N(f) connector and 50cm N(m)-TNC(m) cable
Specifications: www.dbg.co.za/downloads/technical_specifications/Unigain/UNI2424G.pdf

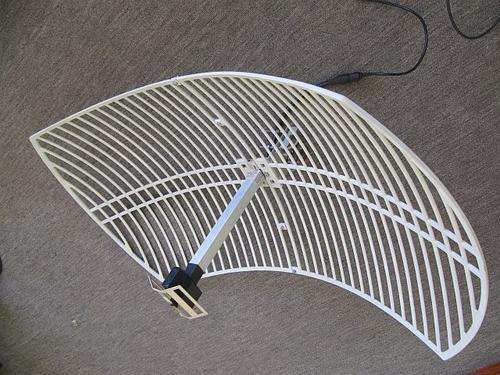

1x 2.4Ghz 19dBi (0.4 x 0.6 m) Split Grid Antenna with N(f) connector and 50cm N(m)-TNC(m) cable
Specifications: www.dbg.co.za/downloads/technical_specifications/Unigain/UNI2419G.pdf

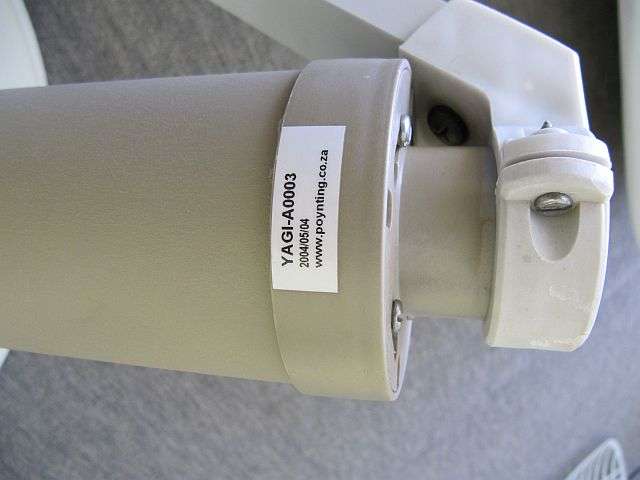

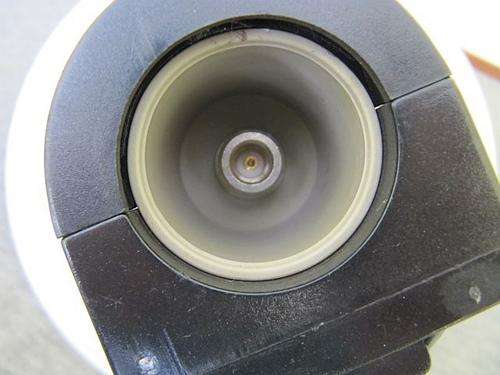

2x 2.4Ghz 9.5dBi Offset Dish Antennas with Poynting YAGI-A0003 Linear Feed N-Type (f) connector
Specifications: www.therfidshop.com/images/YAGI-A0003_v3.pdf

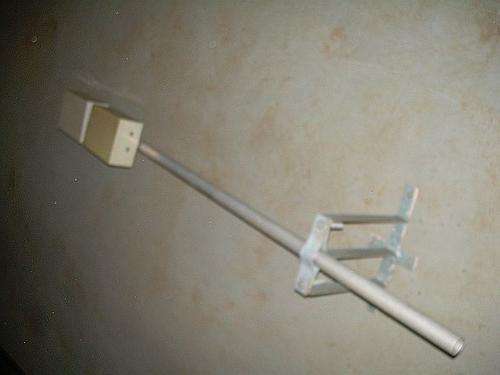

1x 2m long pole (40mm dia.) with mounting bracket

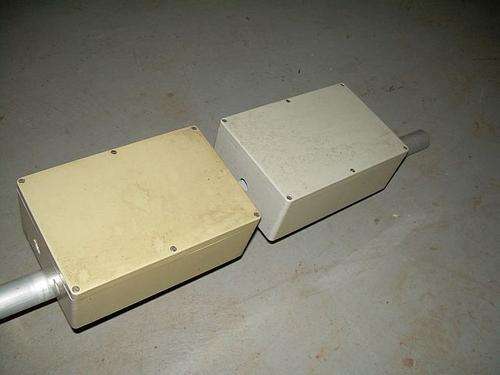

2x 240(h) x 160(w) x 90m(d) weatherproof enclosures (hole(s) drilled in bottom. One is very discoloured due to sunlight exposure.
Please do not make an offer to purchase these items if you have no prior knowledge of wireless networking in general and/or do not understand this item's function or purpose.
