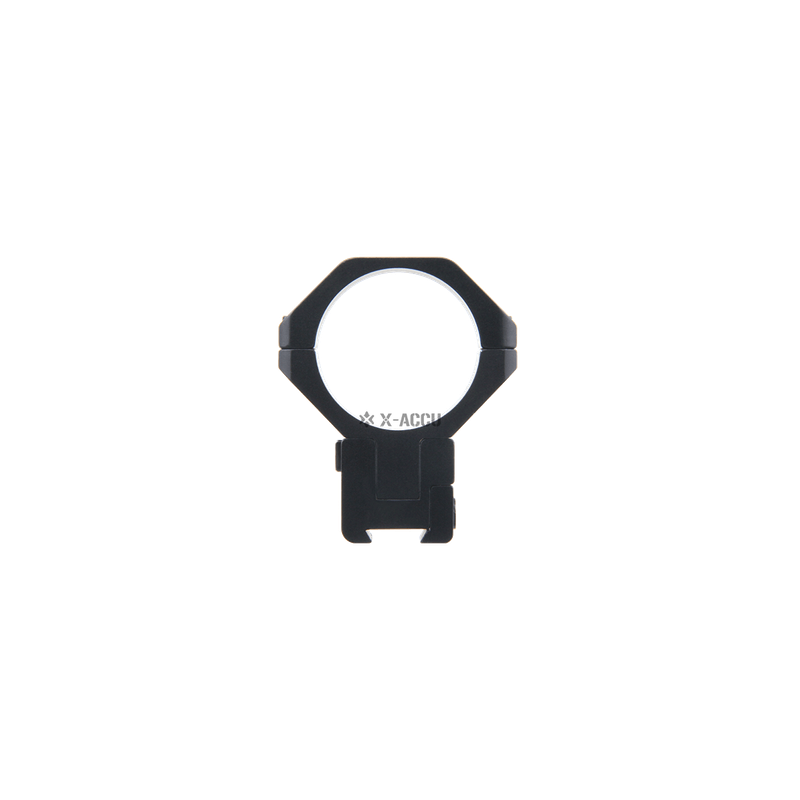

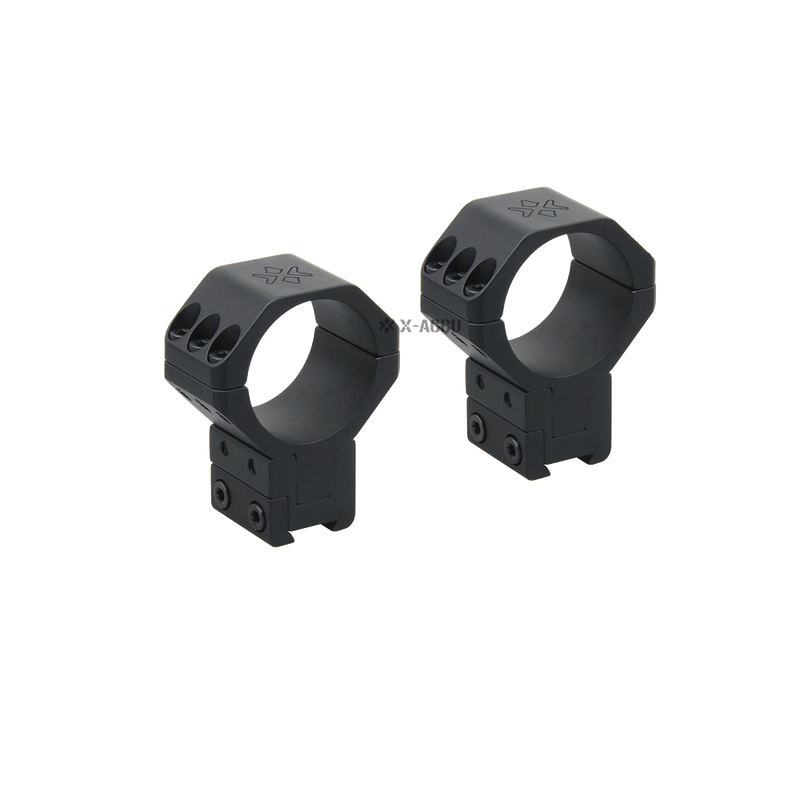

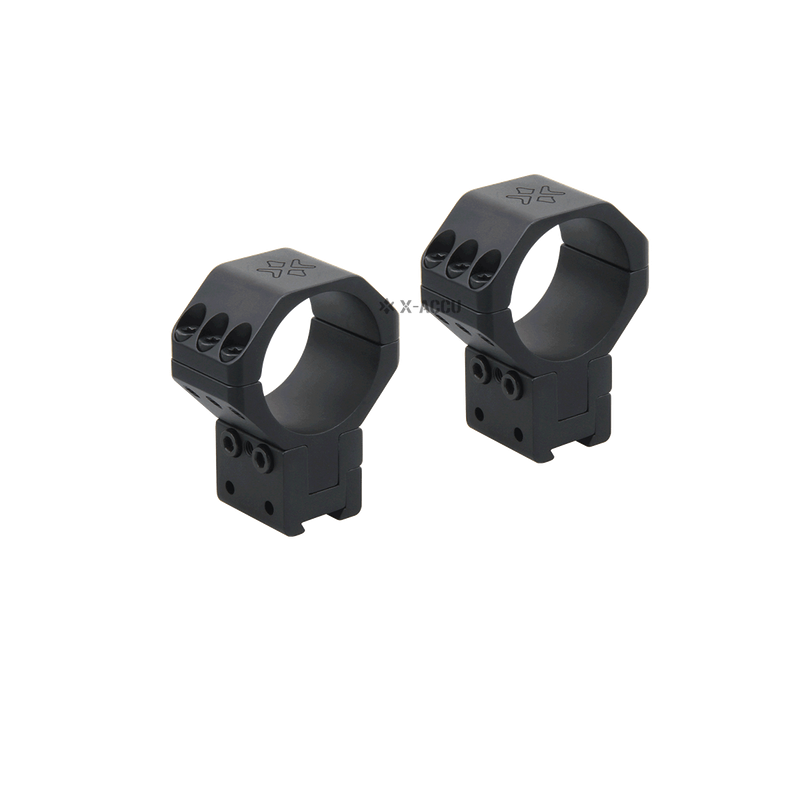

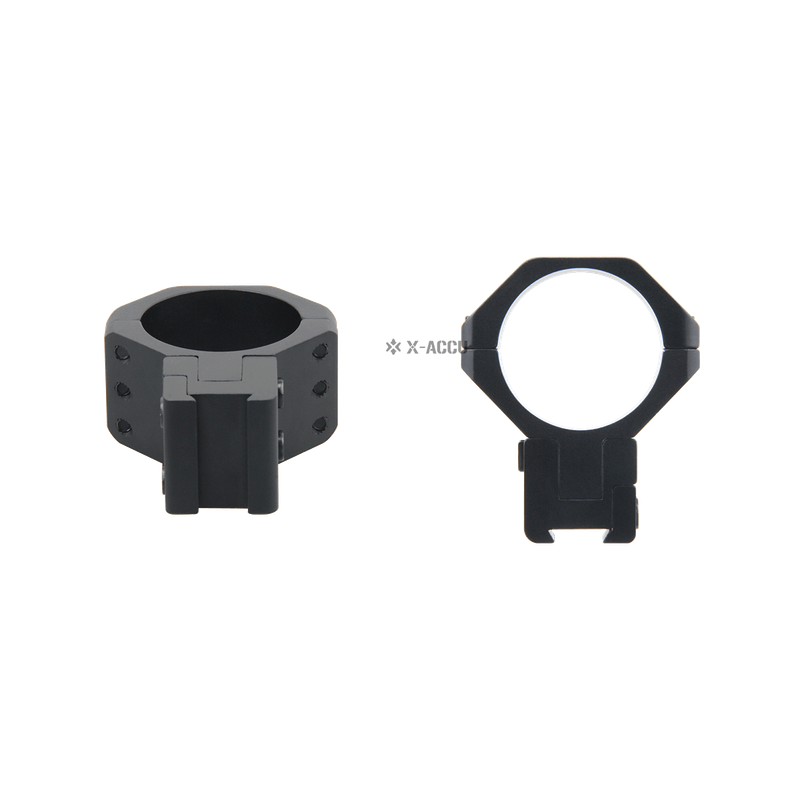

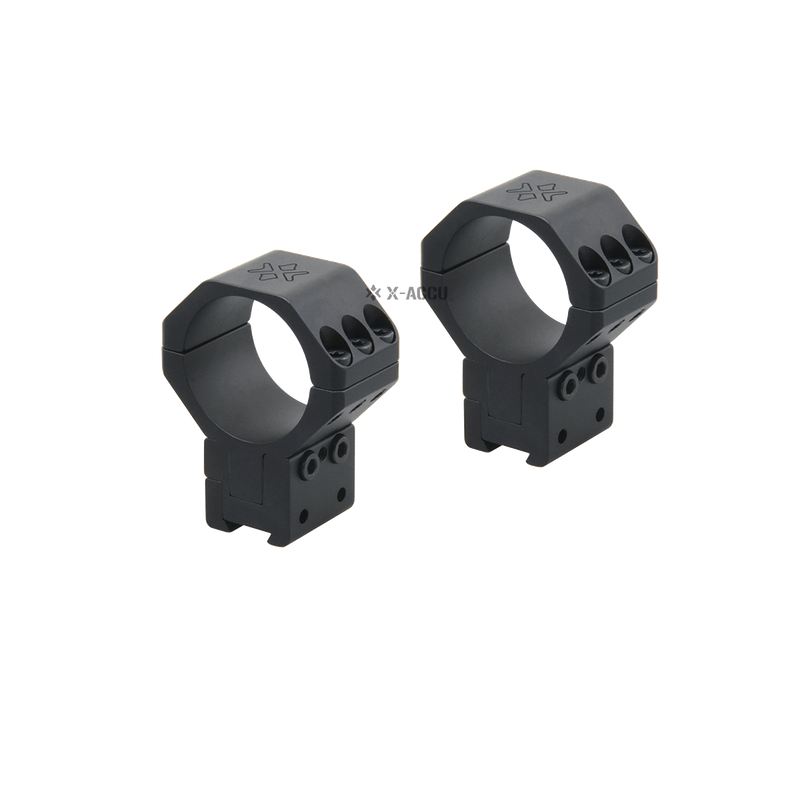

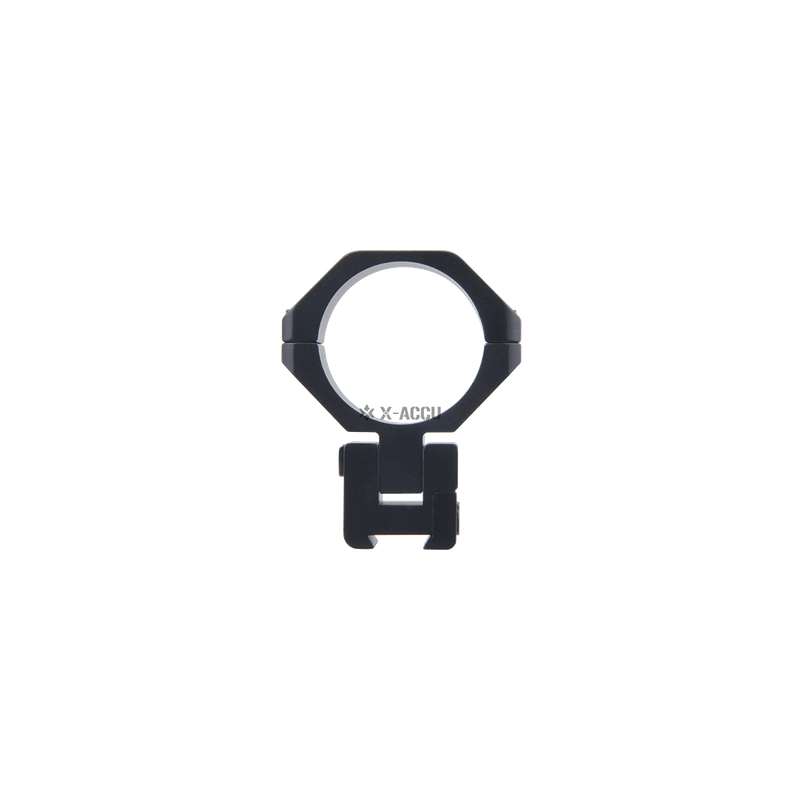

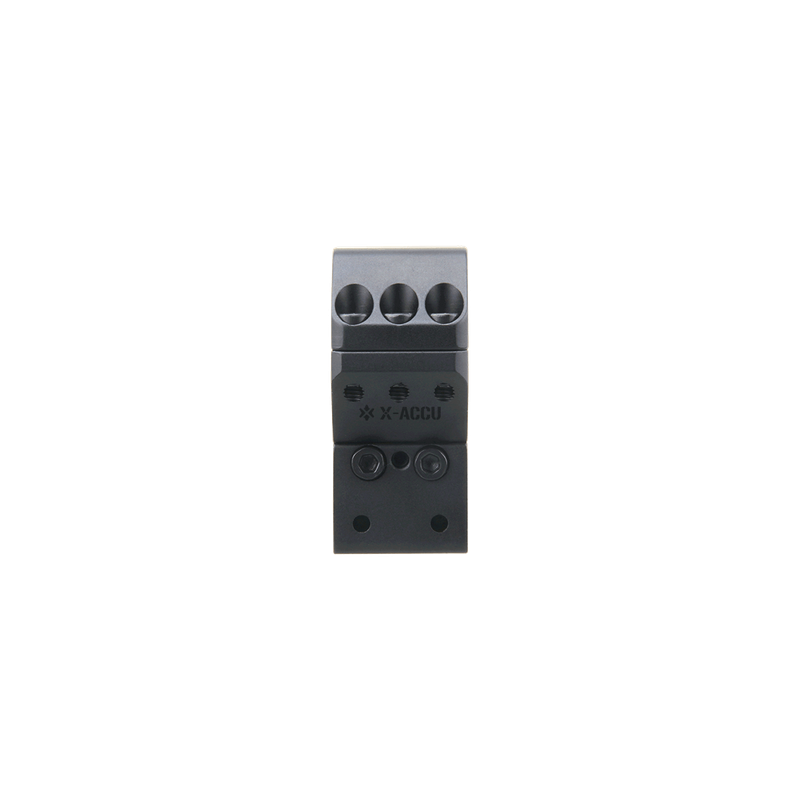

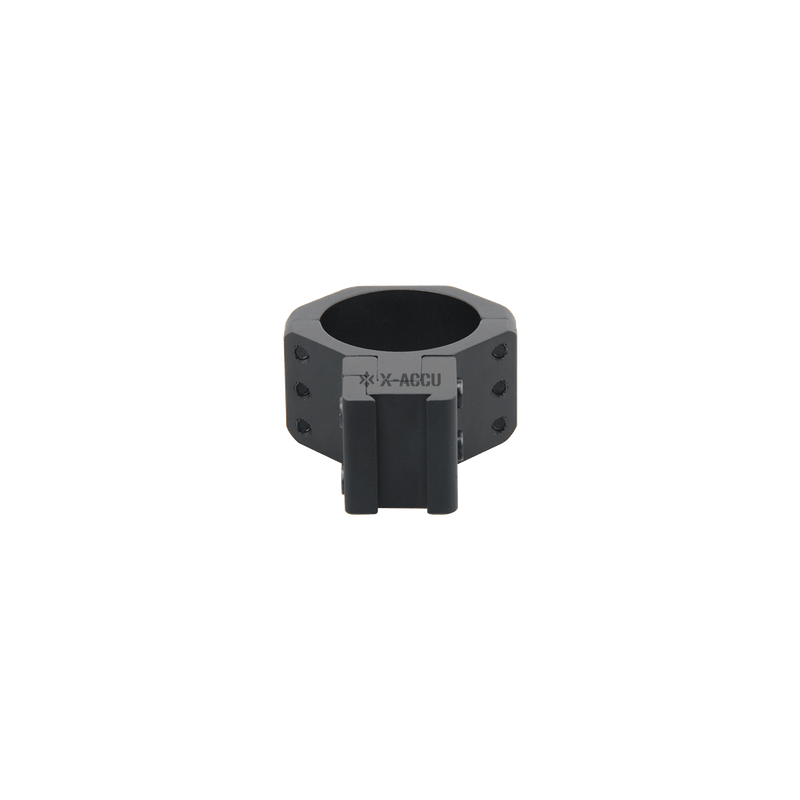

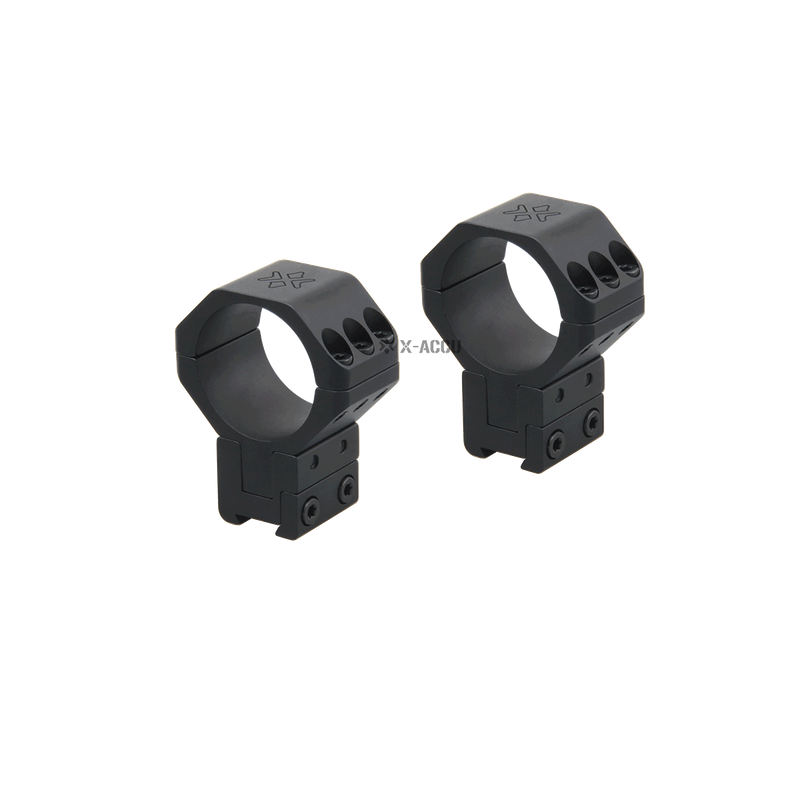

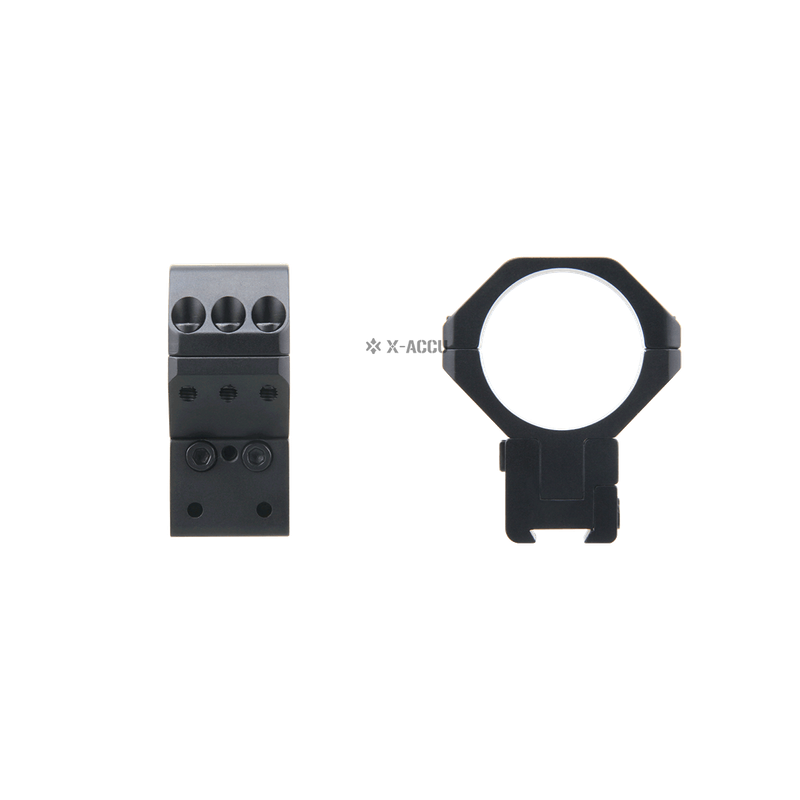

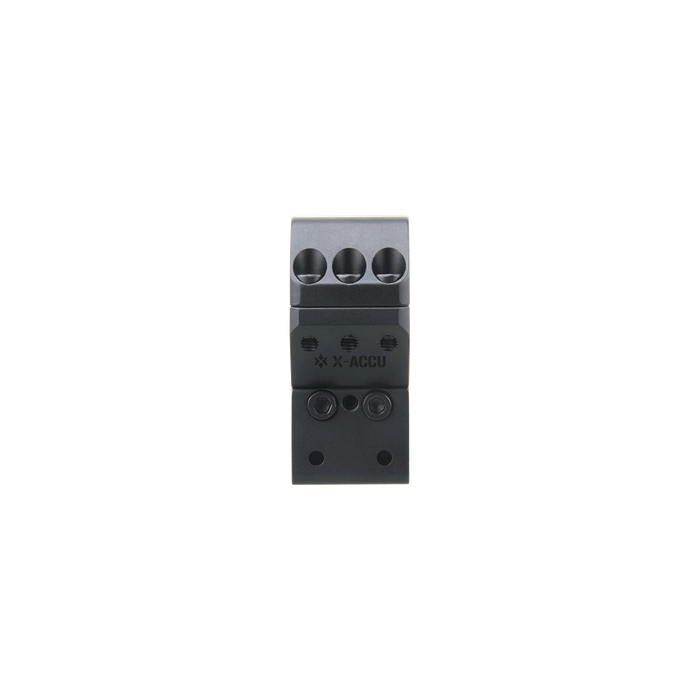

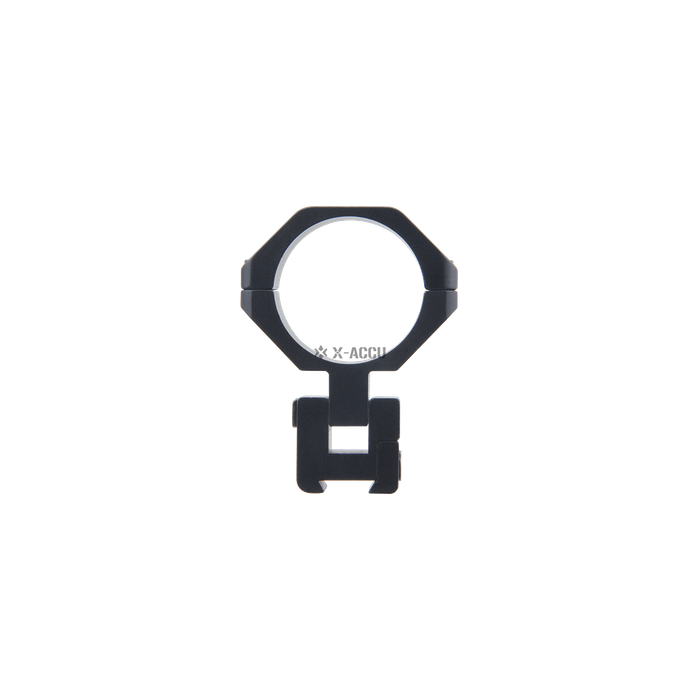

Vector Optics X-ACCU 34mm Adjustable Elevation Dovetail Rings — XASR-3055
Precision-Engineered Scope Rings for Optimal Alignment
The Vector Optics X-ACCU 34mm Adjustable Elevation Dovetail Rings (Model: XASR-3055) are meticulously crafted to provide shooters with a customizable and secure mounting solution. Designed for 34mm scope tubes, these rings offer adjustable elevation settings, ensuring optimal alignment and accuracy for various shooting applications.
Key Features
Adjustable Elevation Height
Allows for elevation adjustments ranging from 37.5mm to 43mm (1.5" to 1.7") from the base to the ring center, facilitating precise scope alignment.
Robust Construction
Crafted from durable 6061-T6 aluminum alloy with a black matte finish, ensuring strength and resistance to wear.
Secure Mounting
Each ring is secured with six Torx screws, providing a firm grip on the scope and maintaining zero under recoil.
Compatibility
Fits 11mm dovetail rails and accommodates scopes with objective lenses up to 60mm in diameter.
Lightweight Design
Weighs only 155g (5.5oz), adding minimal weight to your firearm setup

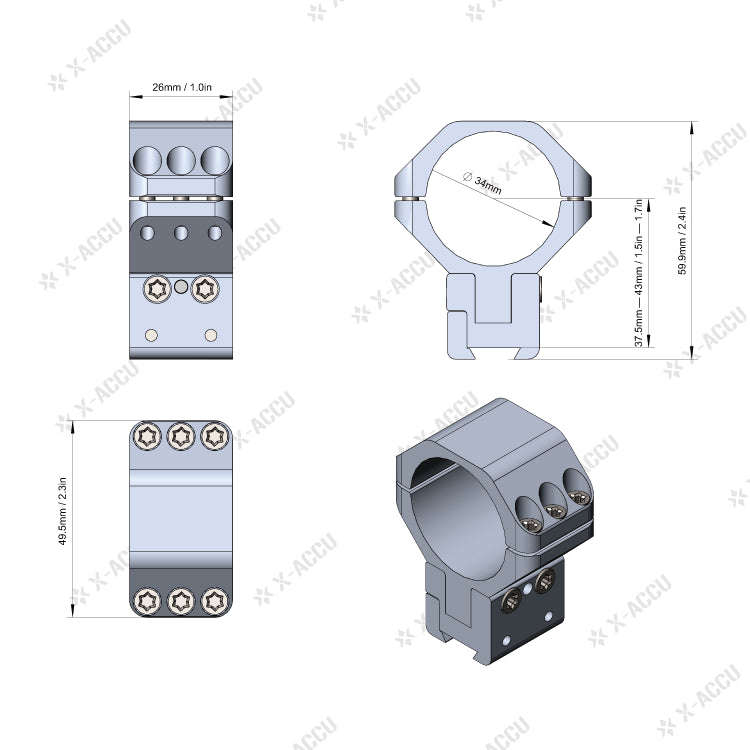

Specifications
Feature | Details |
---|---|
Model | XASR-3055 |
Tube Diameter | 34mm |
Elevation Height | 37.5mm — 43mm (1.5" — 1.7") |
Ring Width | 26mm / 1.0 inch |
Weight | 155g / 5.5oz |
Material | 6061-T6 Aluminum Alloy |
Finish | Black Matte |
Mount Type | 11mm Dovetail |
Screws per Ring | 6 Torx Screws |
Max Objective Lens | Up to 60mm |
Torque Specification | Do not exceed 18 in-lbs on ring screws; recommend 25 in-lbs (max 45 in-lbs) on mounting nut |
What's in the Box
Vector Optics X-ACCU 34mm Adjustable Elevation Dovetail Rings (Model: XASR-3055)
T15 Torx Wrench
