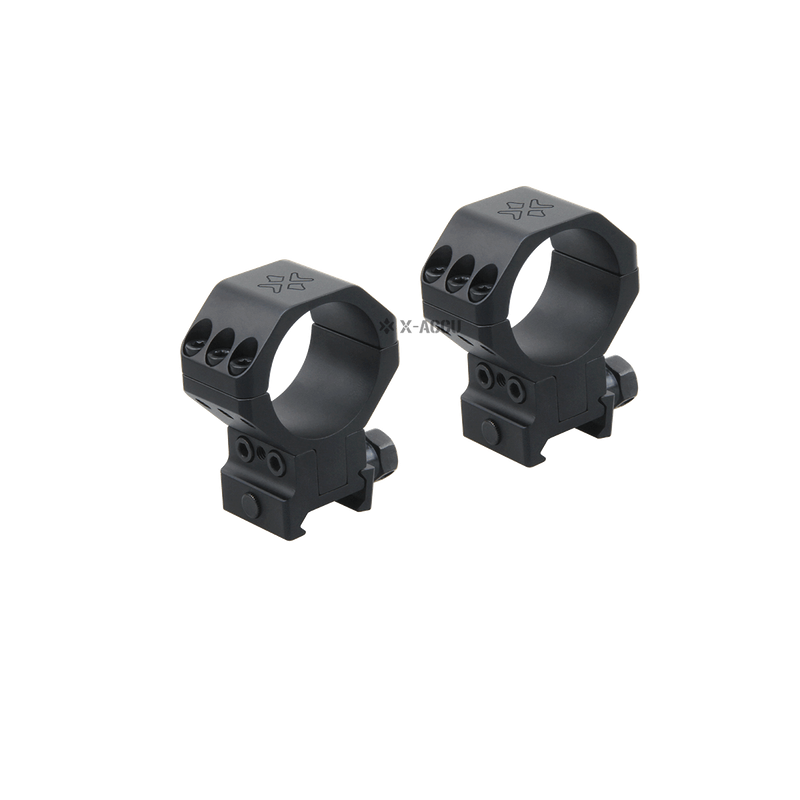

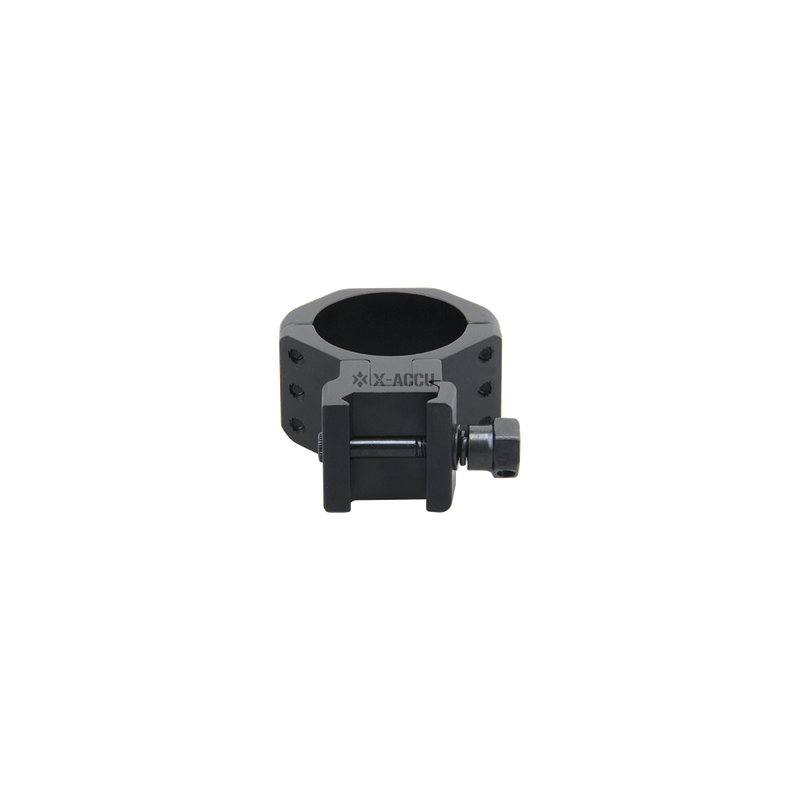

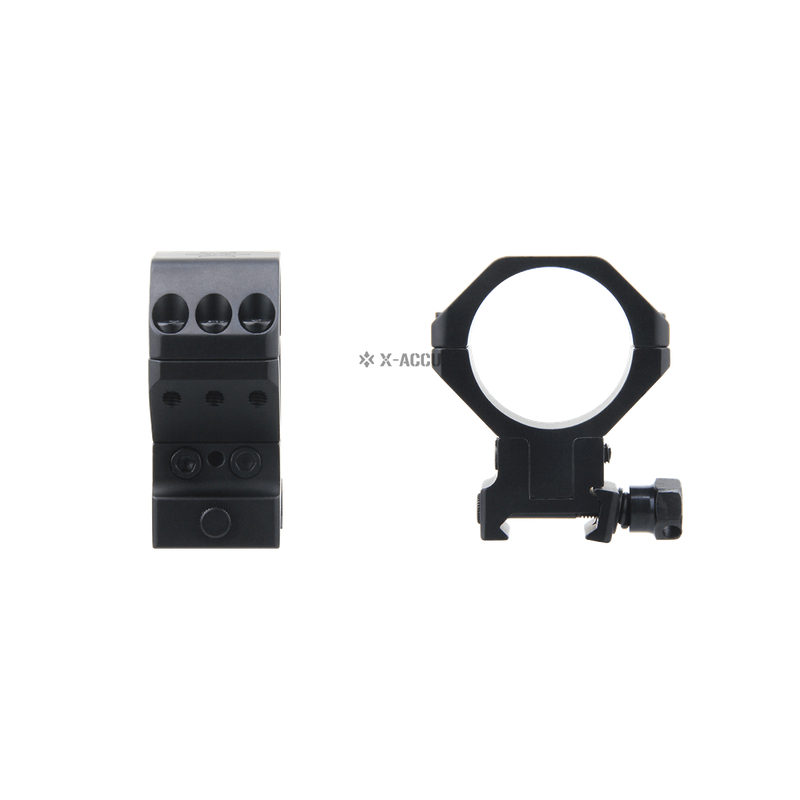

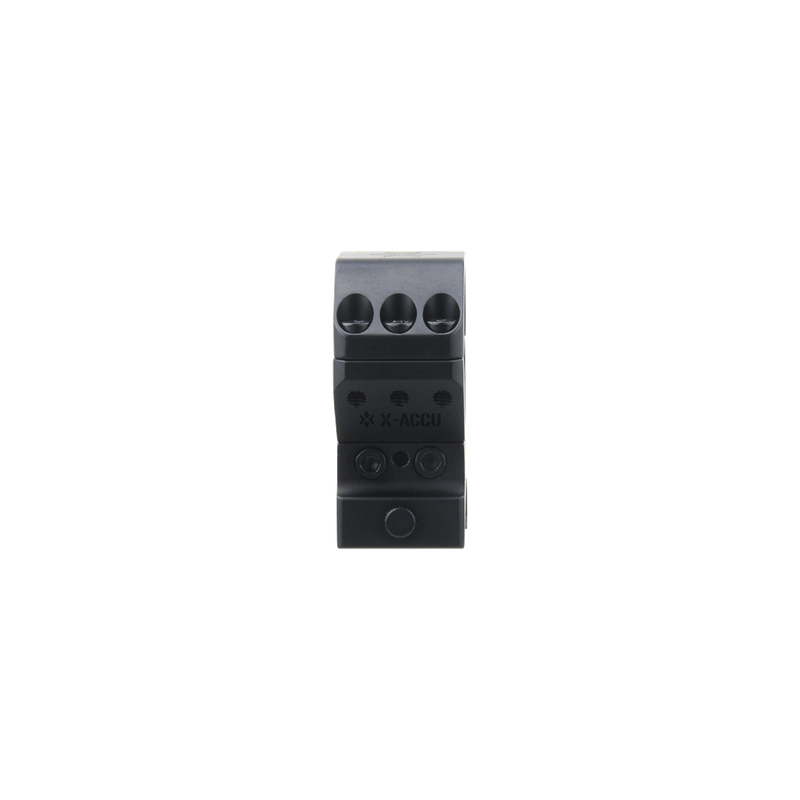

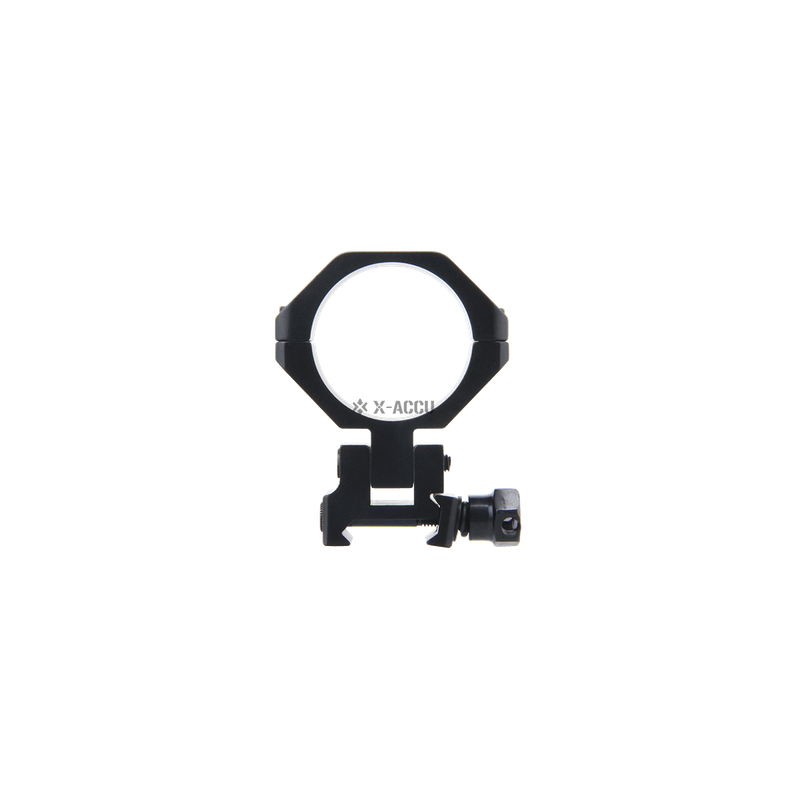

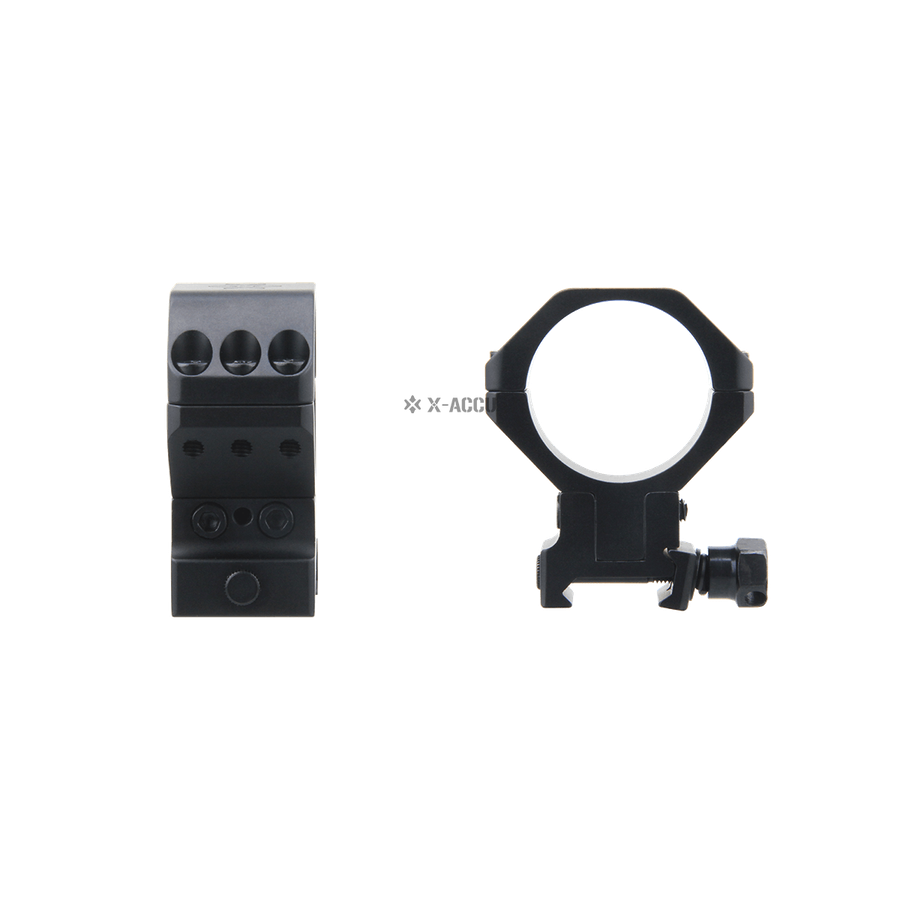

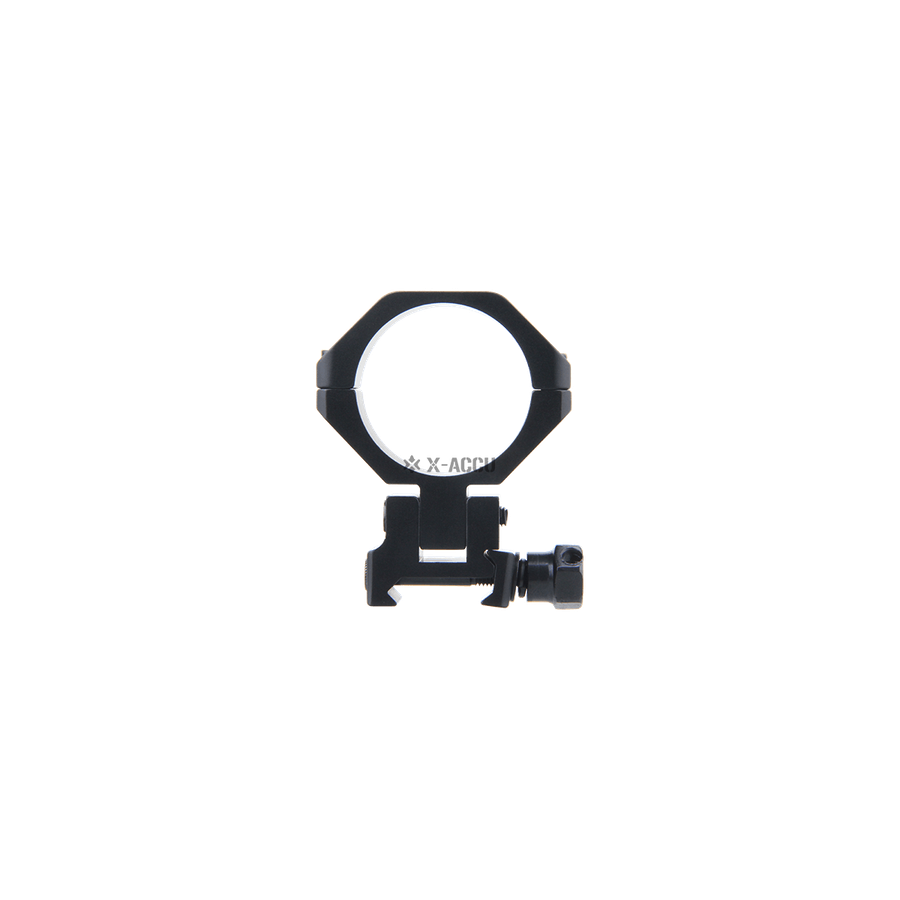

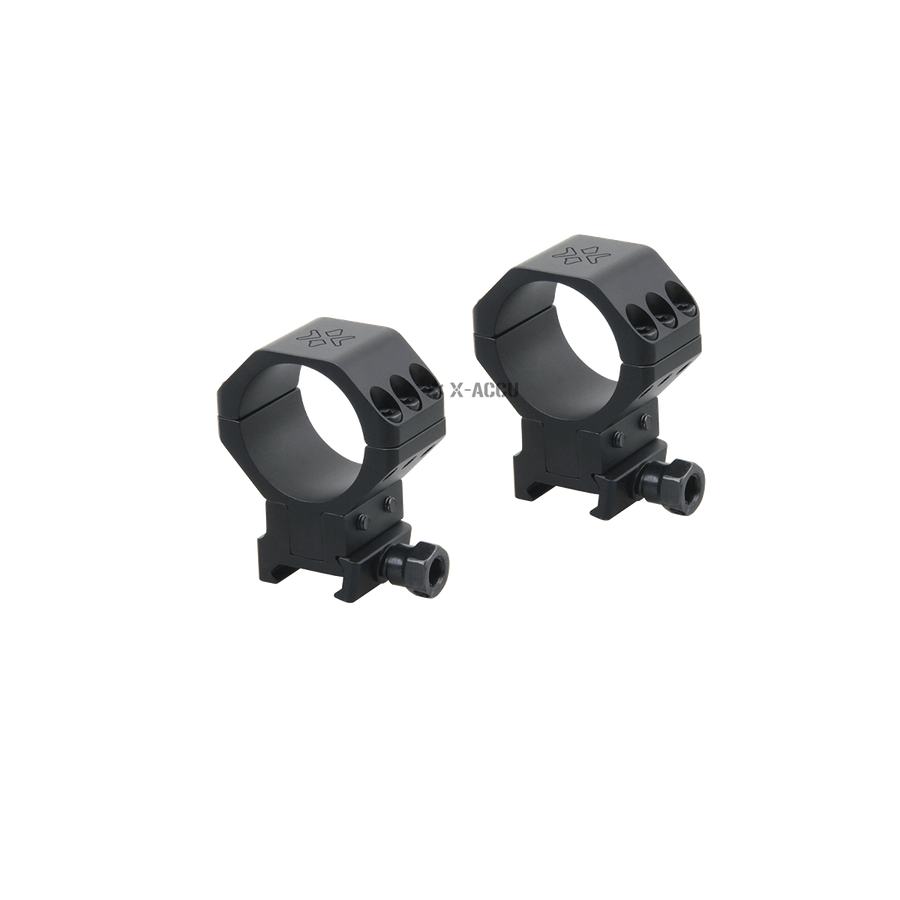

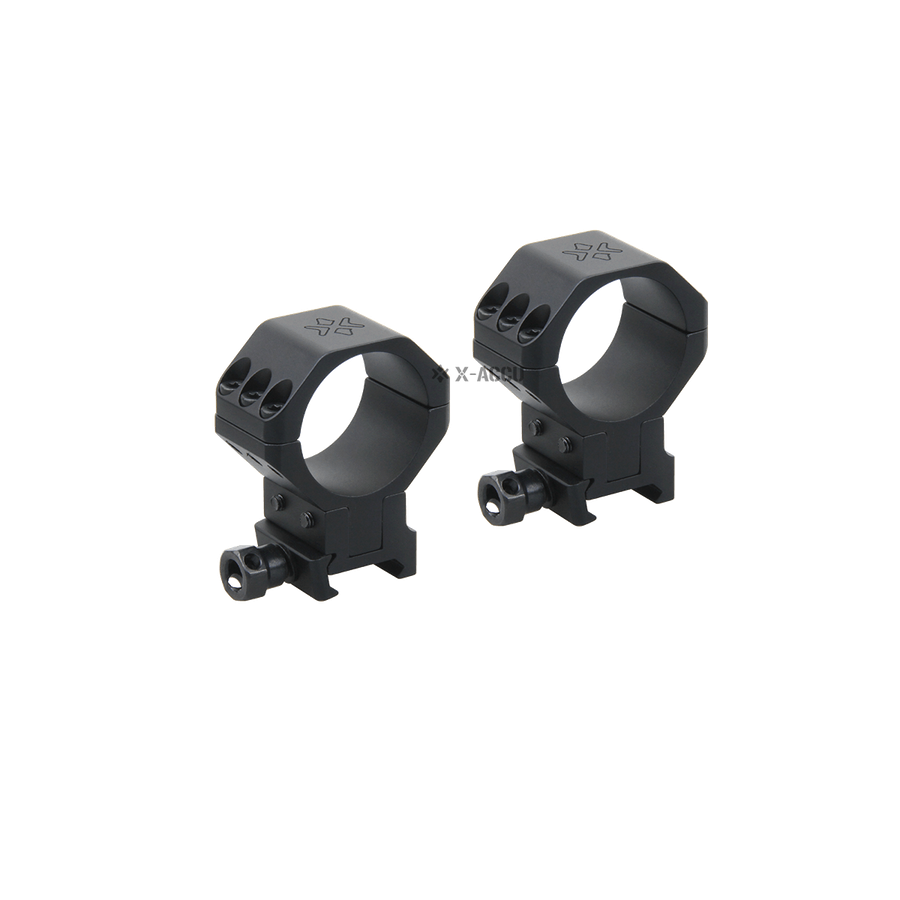

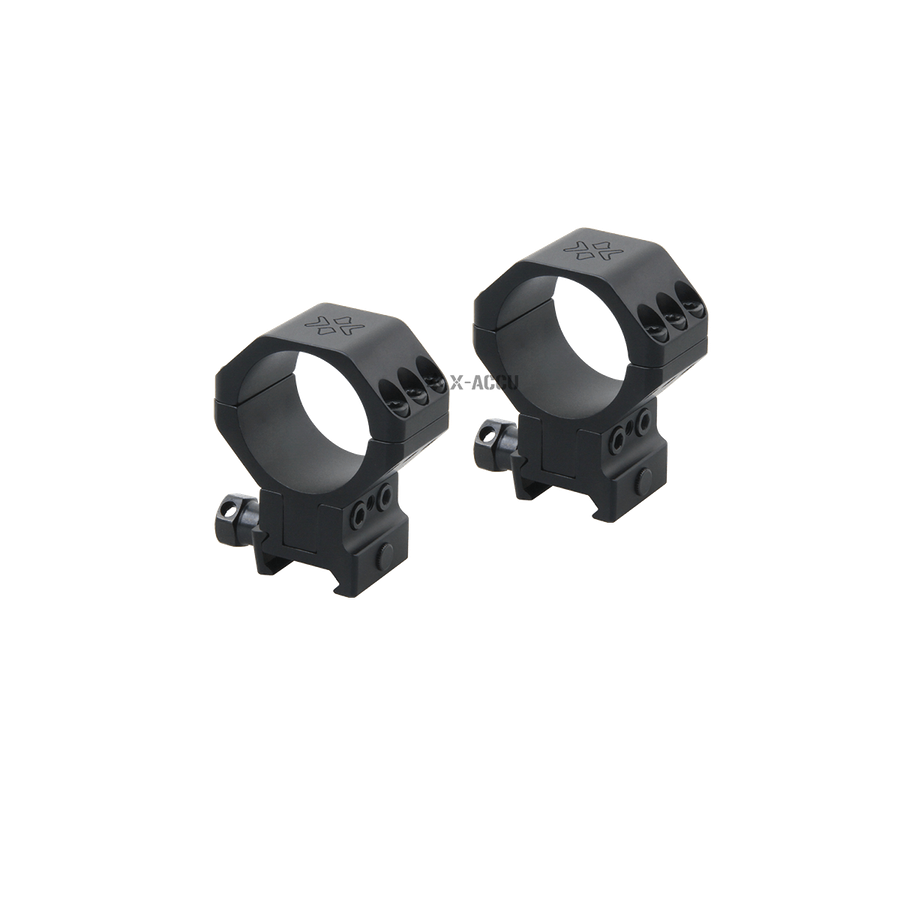

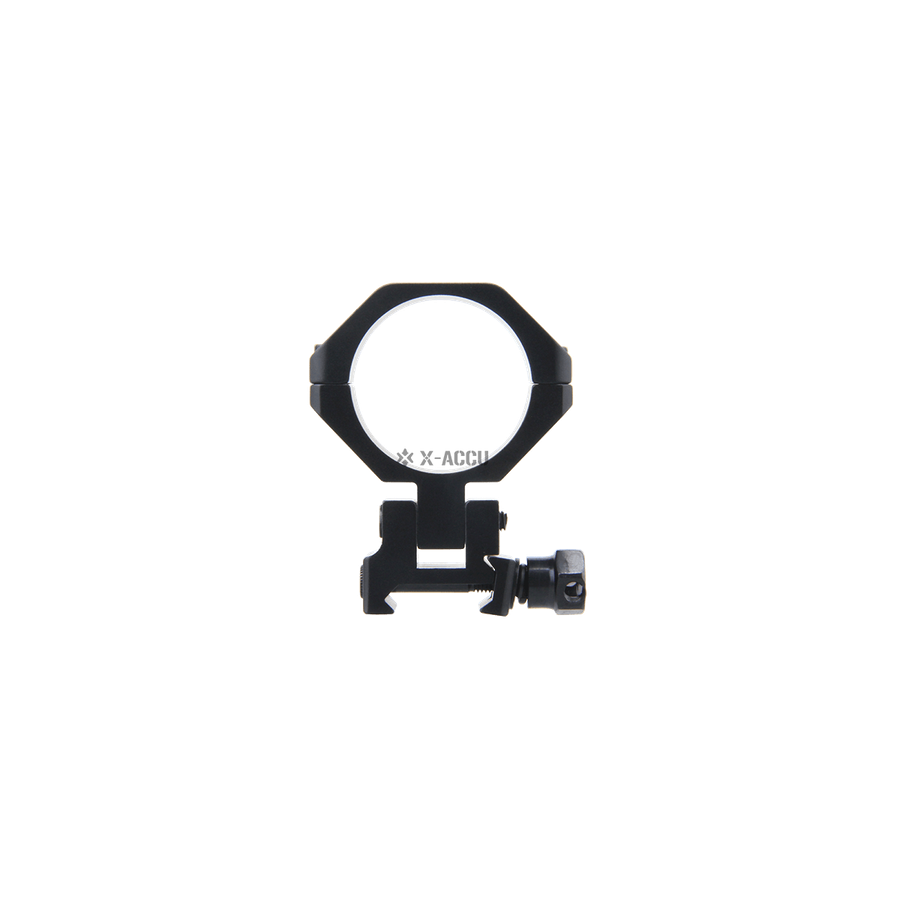

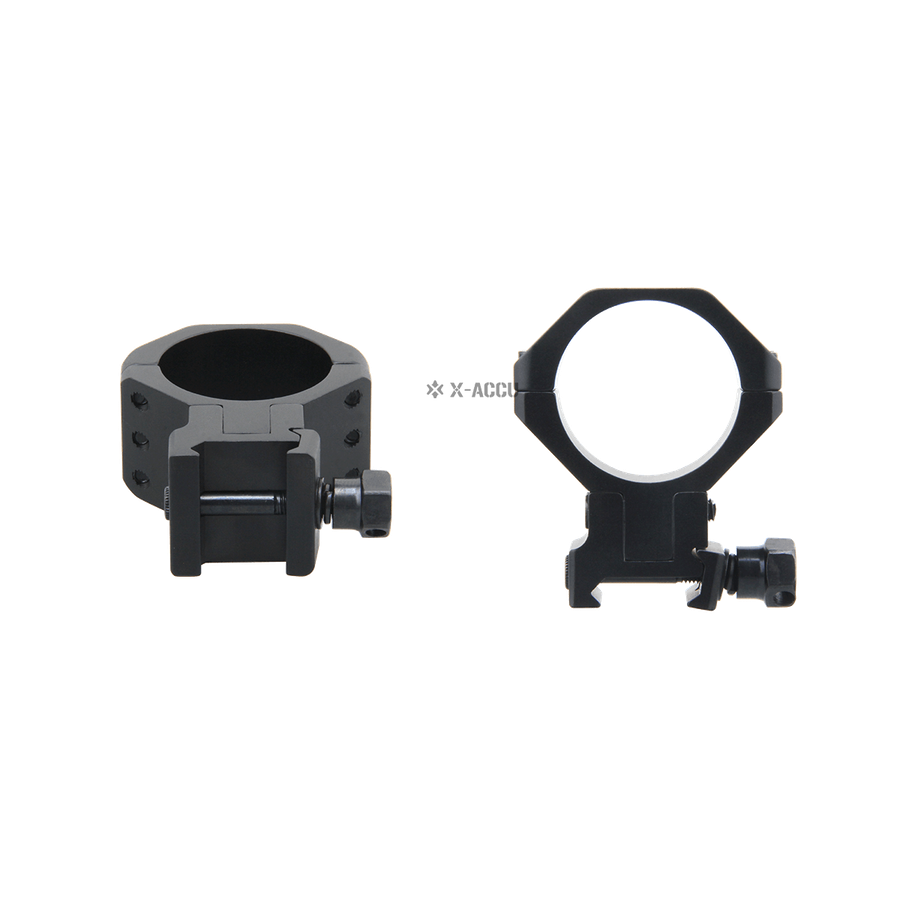

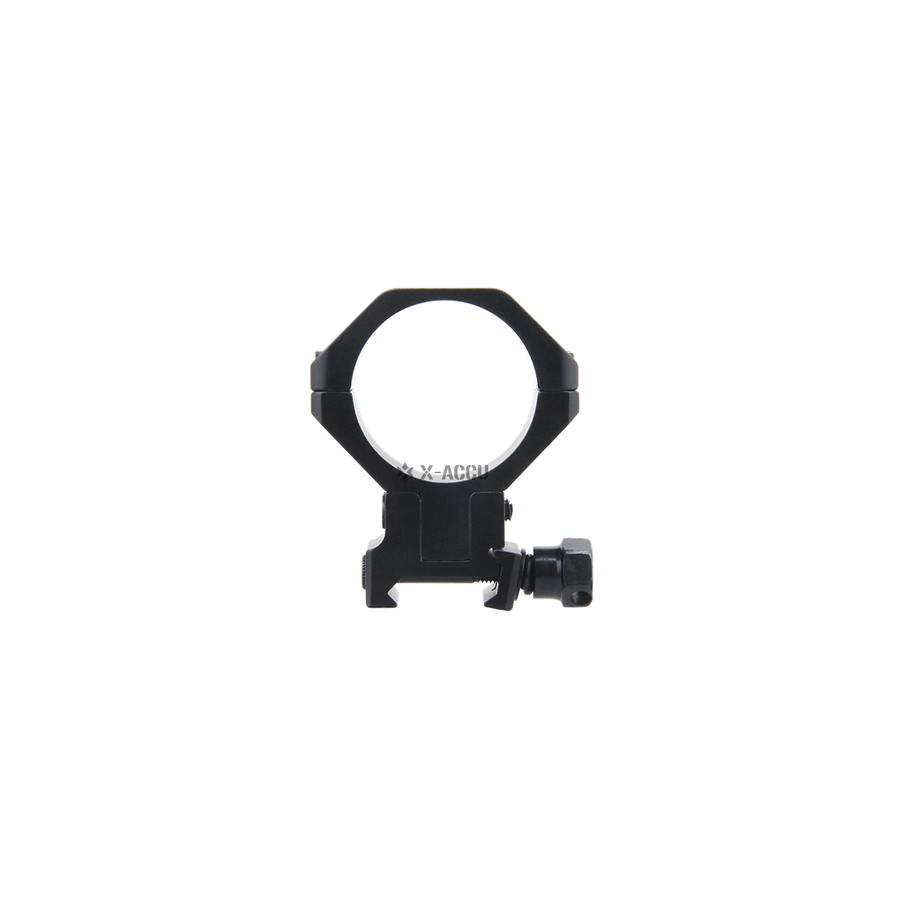

Vector Optics X-ACCU 34mm Adjustable Elevation Picatinny Rings — XASR-3050
Precision-Engineered Scope Rings for Optimal Alignment
The Vector Optics X-ACCU 34mm Adjustable Elevation Picatinny Rings (Model: XASR-3050) are designed to provide shooters with a customizable and secure mounting solution. These rings offer adjustable elevation settings, ensuring optimal alignment and accuracy for various shooting applications.
Key Features
Adjustable Elevation Height
Allows for elevation adjustments ranging from 34.5mm to 40.5mm (1.35" to 1.60") from the base to the ring center, facilitating precise scope alignment.
Robust Construction
Crafted from durable 6061-T6 aluminum alloy with a black matte finish, ensuring strength and resistance to wear.

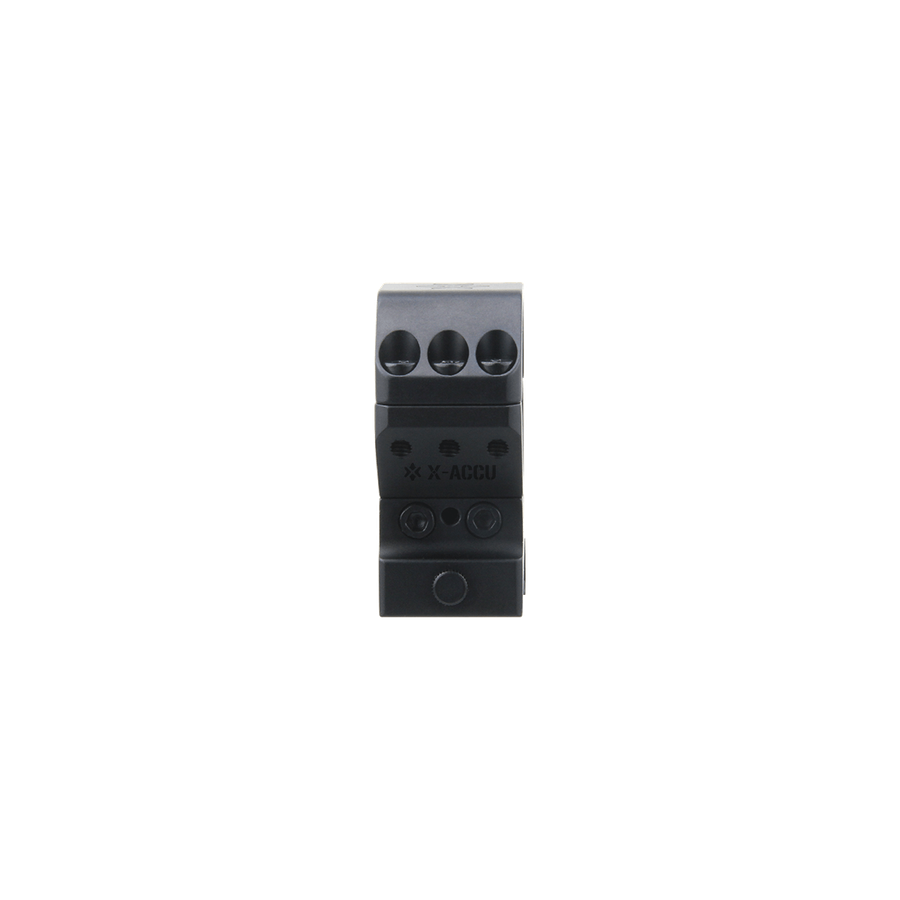

Secure Mounting
Each ring is secured with six Torx screws, providing a firm grip on the scope and maintaining zero under recoil.
Compatibility
Fits 1913 Picatinny rails and accommodates scopes with objective lenses up to 60mm in diameter.
Lightweight Design
Weighs only 165g (5.8oz), adding minimal weight to your firearm setup.

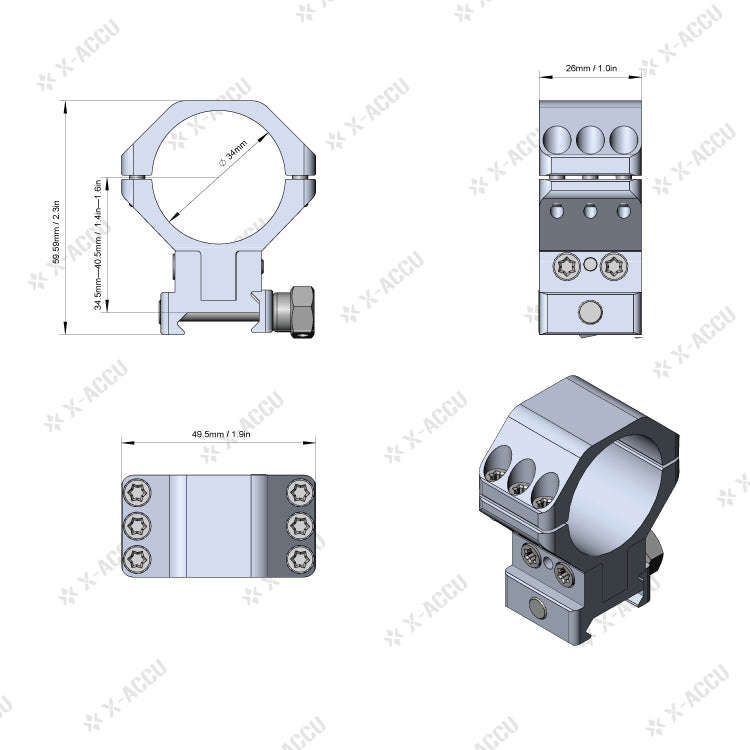

Specifications
Feature | Details |
---|---|
Model | XASR-3050 |
Tube Diameter | 34mm |
Elevation Height | 34.5mm — 40.5mm (1.35" — 1.60") |
Ring Width | 26mm / 1 inch |
Weight | 165g / 5.8oz |
Material | 6061-T6 Aluminum Alloy |
Finish | Black Matte |
Mount Type | 1913 Picatinny |
Screws per Ring | 6 Torx Screws |
Max Objective Lens | Up to 60mm |
Torque Specification | Do not exceed 18 in-lbs on ring screws; recommend 25 in-lbs (max 45 in-lbs) on mounting nut |
What's in the Box
Vector Optics X-ACCU 34mm Adjustable Elevation Picatinny Rings (Model: XASR-3050)

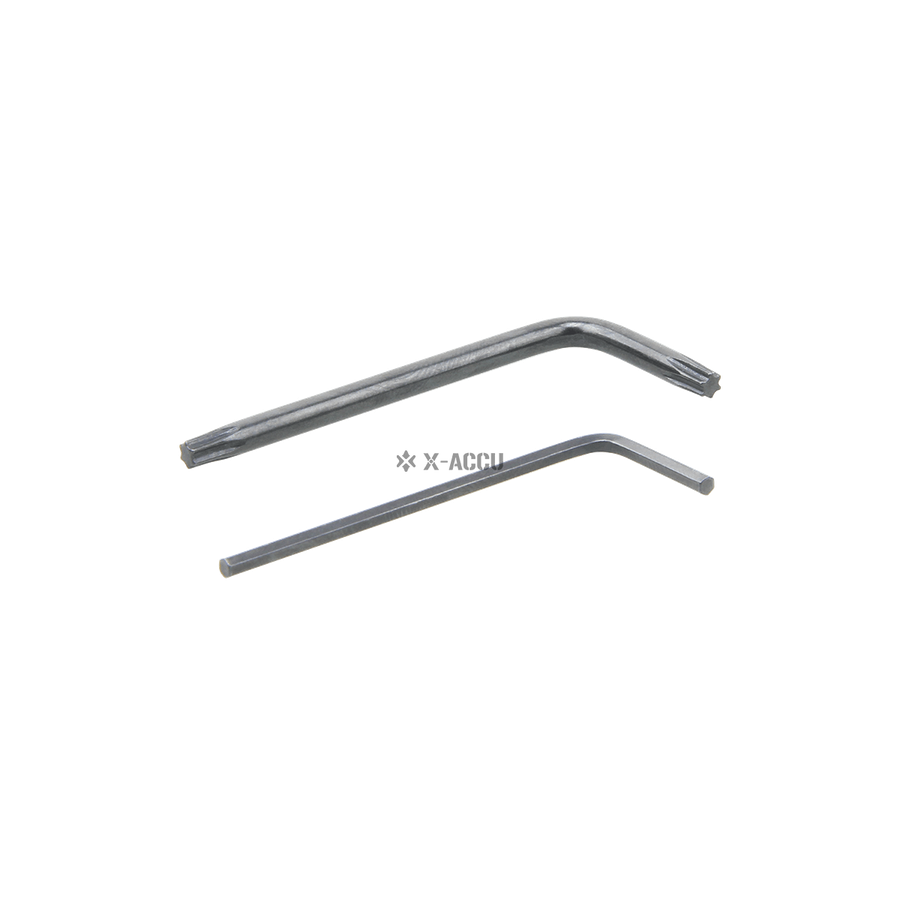

T15 Torx Wrench
