Vehicle 7 Pin Trailer Towing Light Cable Circuit Plug Socket Tester
New
R277.25
Closed
15 Oct 18 16:02
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 1 business day. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Customer ratings:
Product code
959088
Bob Shop ID
369961745

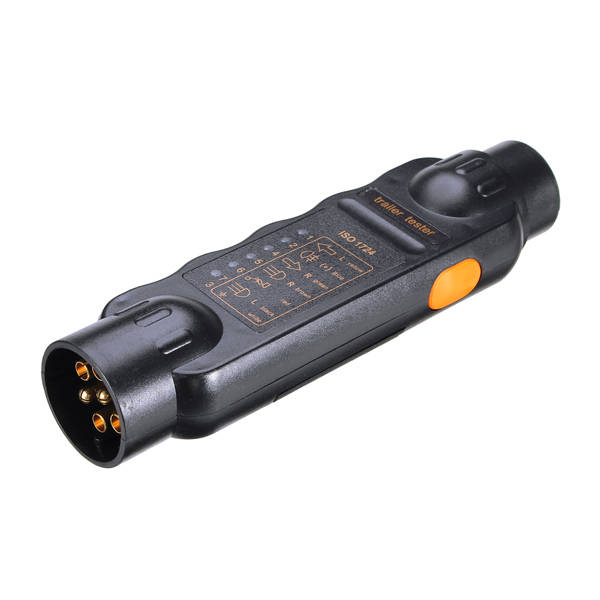

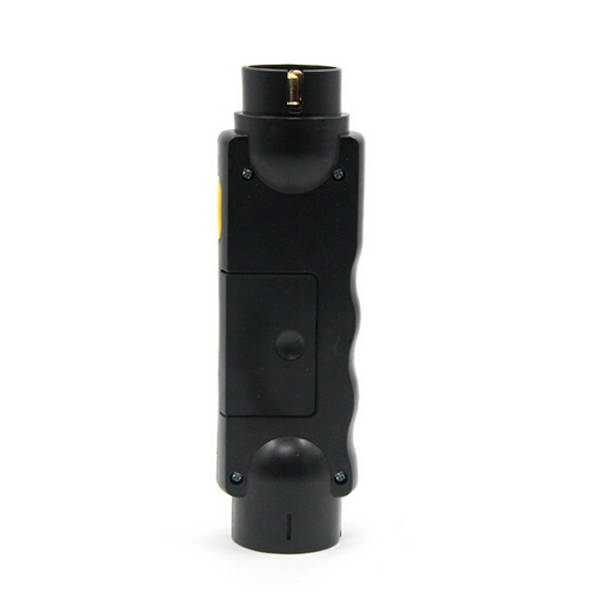

Vehicle 7 Pin Trailer Towing Light Cable Circuit Plug Socket Tester
Description:
Trailer tester for 7 pins plug and socket connection.
Used to test the trailer power supply wiring whether normal or not.
With 7 LED indicators.
Indicates any failure in your wiring on the car or on the trailer.
Portable and lightweight.
Specification:
How to test the connection of a Trailer (can also be a caravan or bicycle carrier)
1. Put the plug in the connection of the tester.
2. Press the yellow button on the side of the tester.

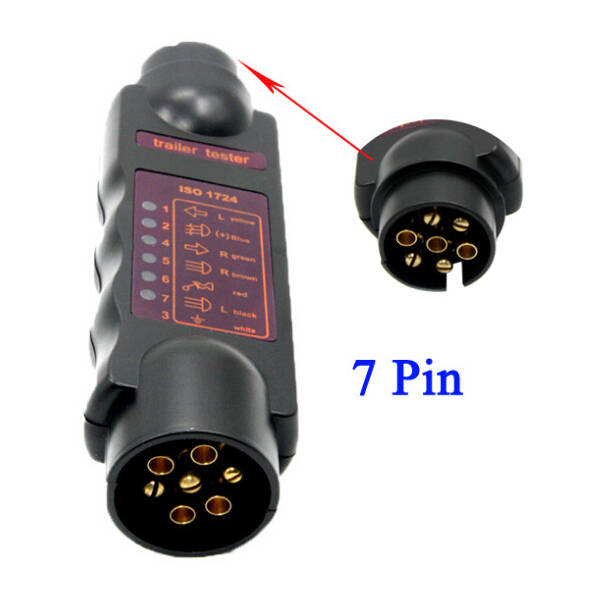

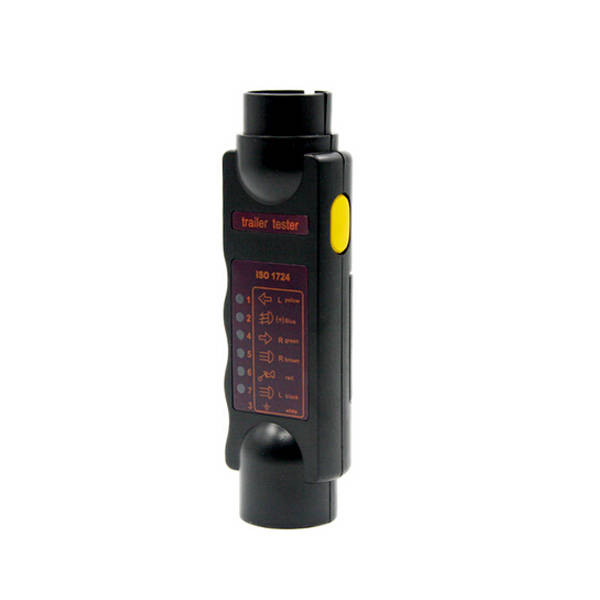

3. If the wiring is good, all the LEDs light up. the function of each LED is (acc iso 1724):
a. left hand indicator (yellow);
b. fog light or 12V (blue);
c. mass (white);
d. right hand indicator (green);
e. right rear light (brown);
f. left brake light (red);
g. left rear light (black).
Attention: The pin no 2 can be used either for a warning fog lamp or a permanent 12V connection.
4. If a LED doesn't light up, it is because the corresponding wire is defective. If all the LEDs don’t light up.
1. Put the tester in the socket of the car.
2. Press the yellow button on the side of the tester.
3. If the wiring is good, all the LEDs light up. Do again steps 4 as previous.
You can also test the functions of each pin of the socket.
1. Switch on the left hand indicator (after switching on the ignition key).
2. The corresponding LED must flash with the same frequency. If not, left hand indicator wiring is defective/broken.
3. Repeat steps 1 and 2 for the right hand indicator, rear light, fog light and stoplights.
With a +/- 4 m extension cable, you can test the functions form the driver's seat more easily.
Package Included:
1 X Trailer Socket Tester
1 X User Manual
Description:
Trailer tester for 7 pins plug and socket connection.
Used to test the trailer power supply wiring whether normal or not.
With 7 LED indicators.
Indicates any failure in your wiring on the car or on the trailer.
Portable and lightweight.
Specification:
| Item Type | Diagnostic tools |
| Item Name | Trailer tester |
| Model name | T21230 |
| Material | ABS Plastic |
| Color | Black |
| Power Supply | 9V battery (not included) |
| Item Size | 17.5 * 5.3 * 4.2cm / 6.9 * 2.1 * 1.7in |
| Item Weight | Approx. 152g / 5.4oz |
| Package Size | Approx. 23.5 * 11 * 4.5cm / 9.3 * 4.3 * 1.8in |
| Package Weight | Approx. 188g / 6.6oz |
How to test the connection of a Trailer (can also be a caravan or bicycle carrier)
1. Put the plug in the connection of the tester.
2. Press the yellow button on the side of the tester.
3. If the wiring is good, all the LEDs light up. the function of each LED is (acc iso 1724):
a. left hand indicator (yellow);
b. fog light or 12V (blue);
c. mass (white);
d. right hand indicator (green);
e. right rear light (brown);
f. left brake light (red);
g. left rear light (black).
Attention: The pin no 2 can be used either for a warning fog lamp or a permanent 12V connection.
4. If a LED doesn't light up, it is because the corresponding wire is defective. If all the LEDs don’t light up.
1. Put the tester in the socket of the car.
2. Press the yellow button on the side of the tester.
3. If the wiring is good, all the LEDs light up. Do again steps 4 as previous.
You can also test the functions of each pin of the socket.
1. Switch on the left hand indicator (after switching on the ignition key).
2. The corresponding LED must flash with the same frequency. If not, left hand indicator wiring is defective/broken.
3. Repeat steps 1 and 2 for the right hand indicator, rear light, fog light and stoplights.
With a +/- 4 m extension cable, you can test the functions form the driver's seat more easily.
Package Included:
1 X Trailer Socket Tester
1 X User Manual
